MINI-CIRCUITS TB-684+ BANDPASS FILTER

Mini-Circuits - the world renown RF components company, made a series of 'Test Beds' for their range of components, where a component is built up into a working circuit block which could be used by equipment manufacturers to evaluate and build around the component to design their desired system.

 From a European OEMS research and development laboratory we have procured quite a range of these 'TB' Test bed evaluation modules.

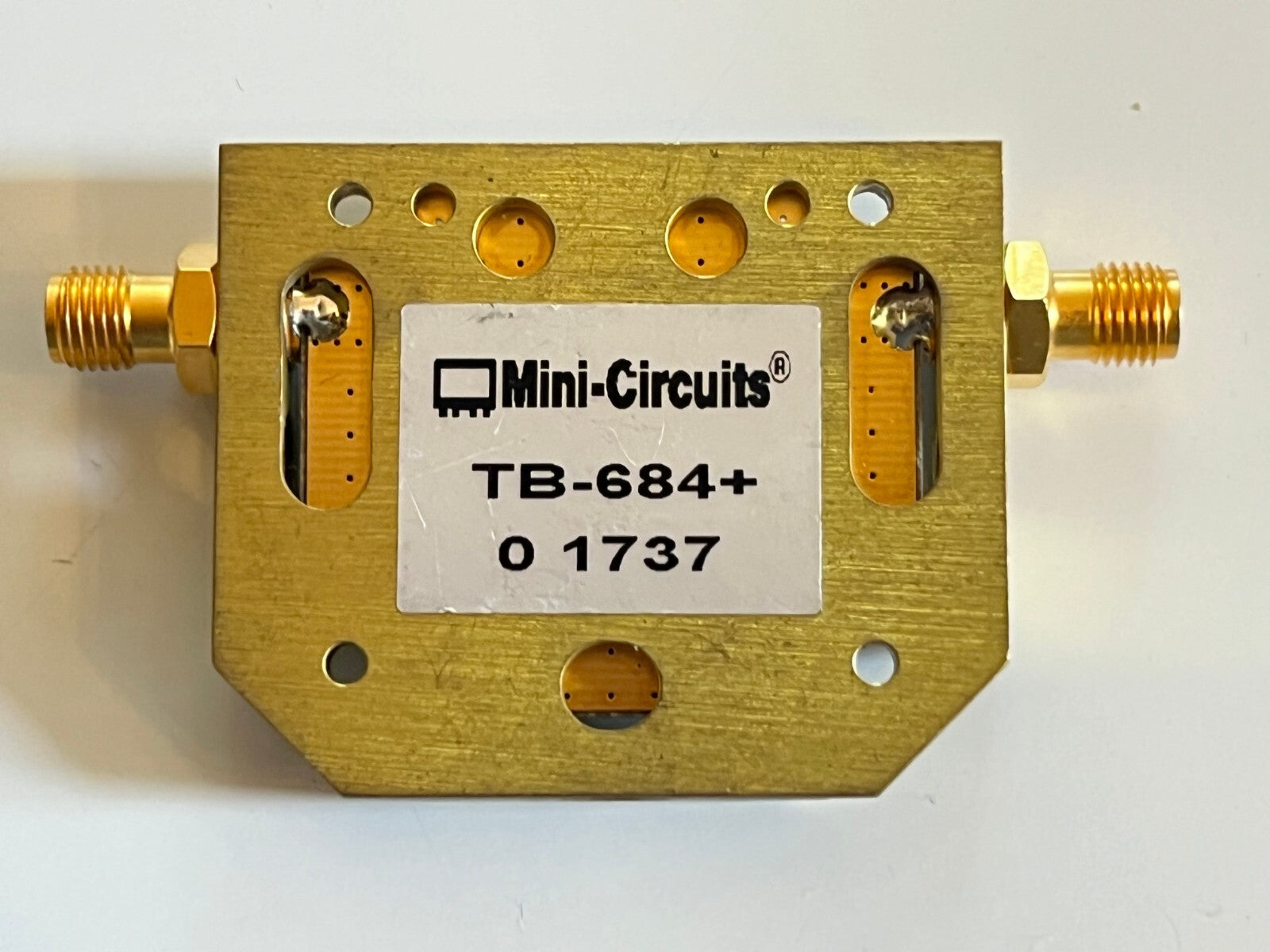

This one, is Mini Circuits model number TB-684+, which is an evaluation circuit for their part number CBP-1250C, the ceramic resonator bandpass filter.

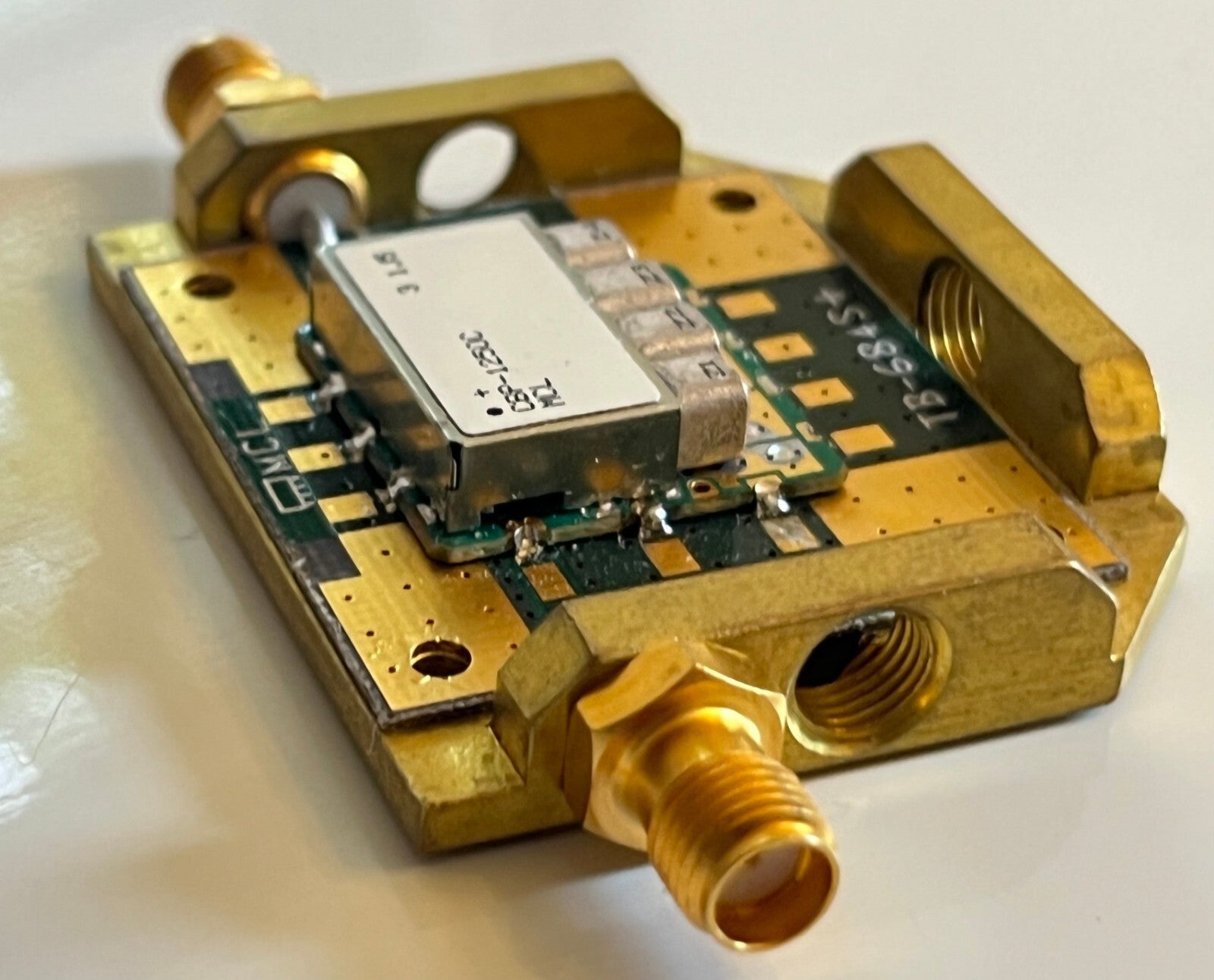

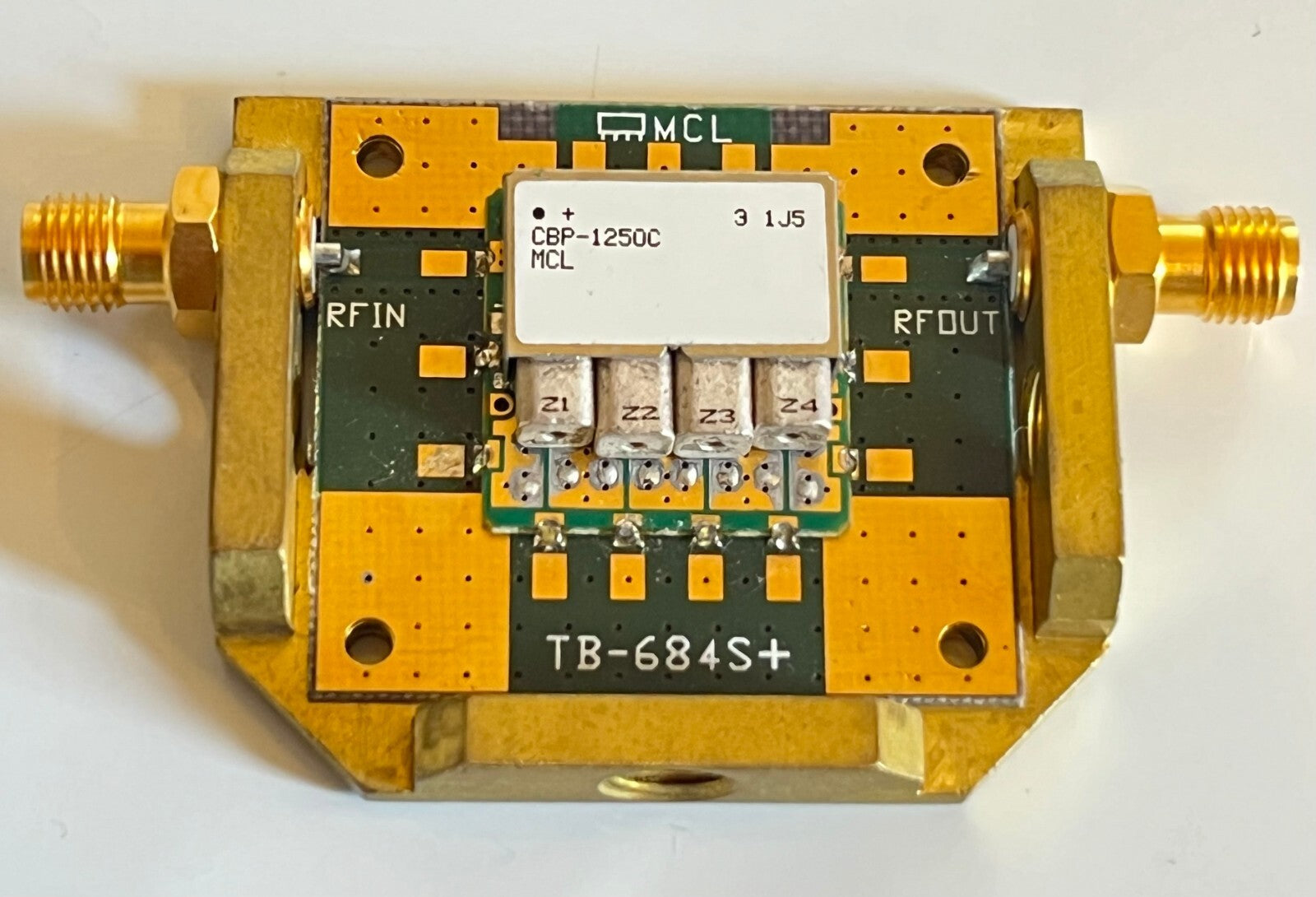

The TB-684+  is a complete 1215MHz to 1285MHz  50 Ohm 5W lump Ceramic coaxial resonator bandpass filter module, with SMA female connections.

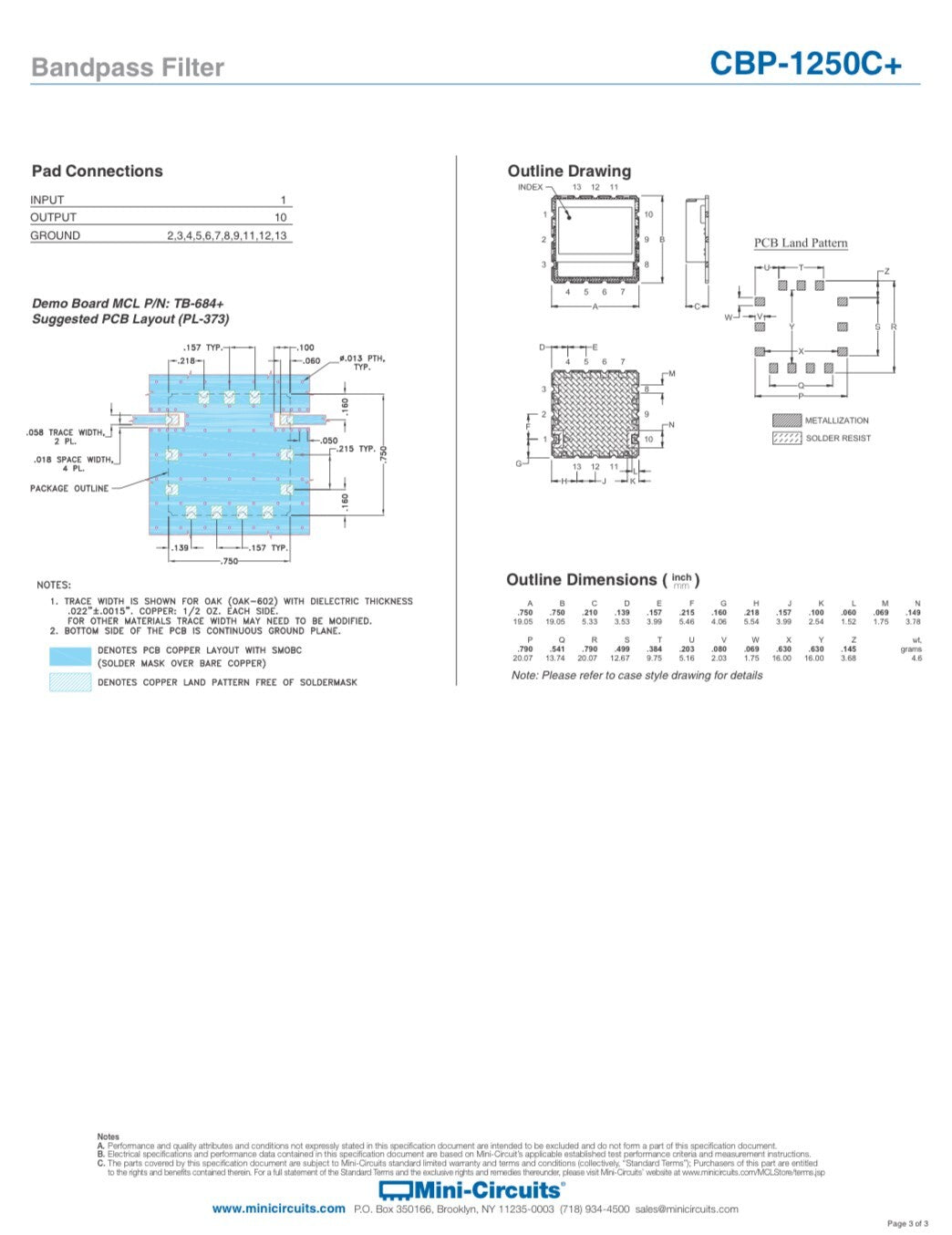

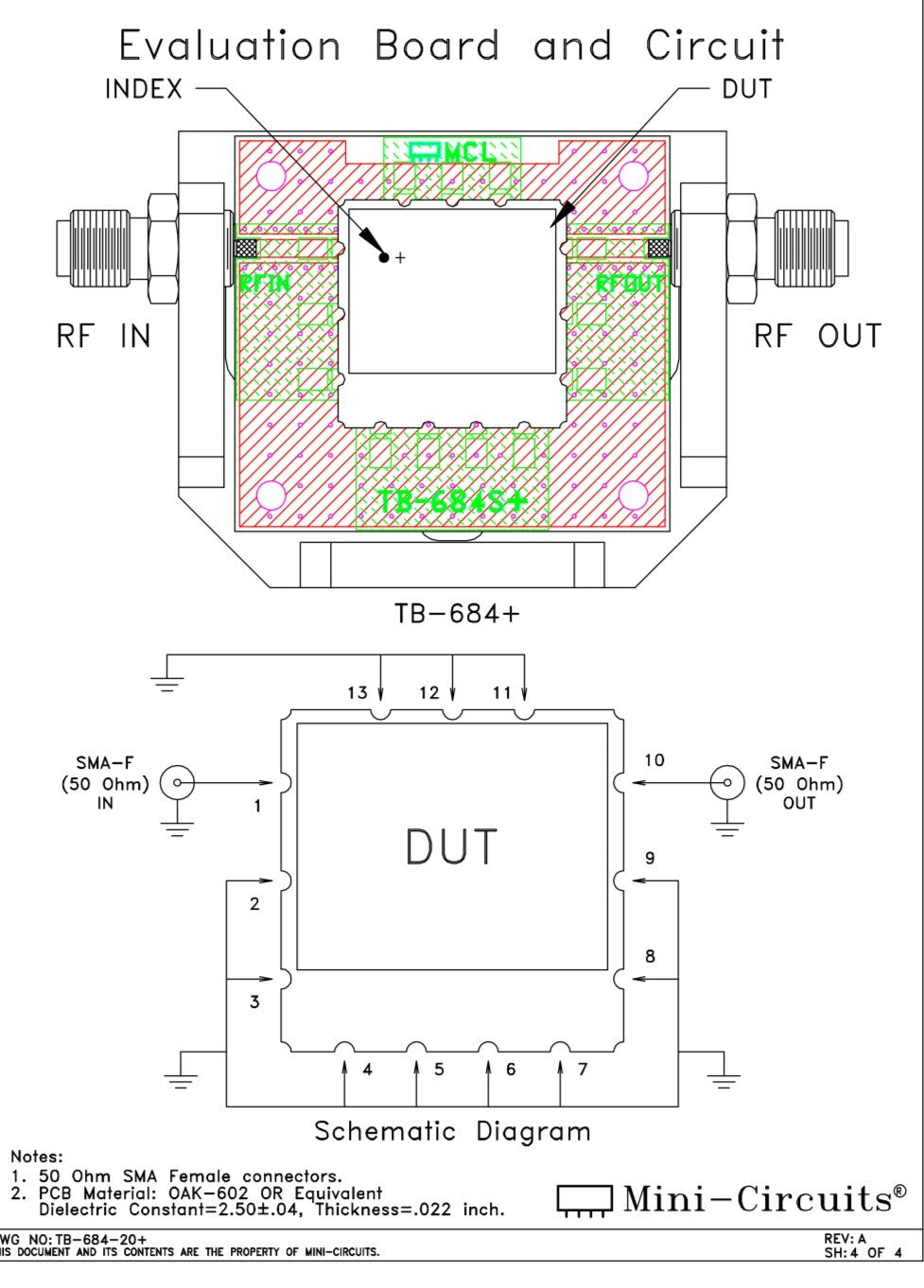

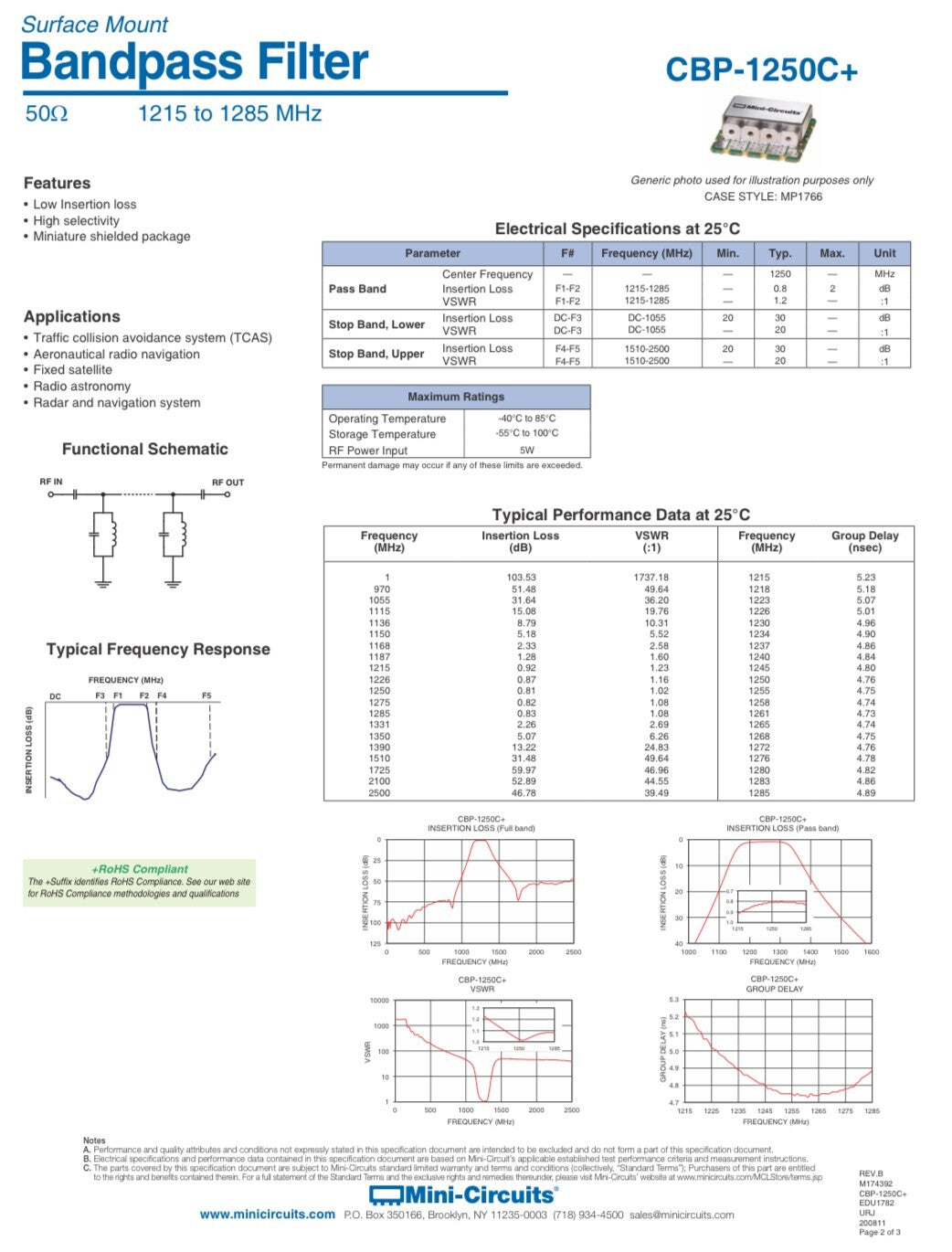

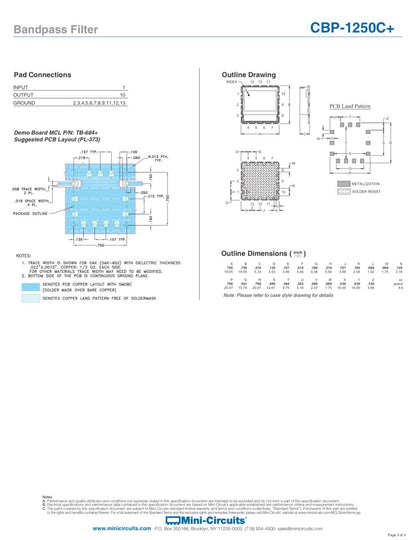

Full manufacturers datasheet with all specifications can be seen at in the photos above.

These came to us from a now closed Europeans UK R&D laboratory where they had had little use. Offered here at a fraction to the distributors list price, in perfect used condition.

  PRICED AND SUPPLIED EACH - X1.
