MINI-CIRCUITS TB-45 HELA-10D 300MHz +20dBm RF AMPLIFIER EVALUATION BOARD ae1w56

MINI-CIRCUITS TB-45 HELA-10D 300MHz +20dBm RF AMPLIFIER EVALUATION BOARD ae1w56

£85.00
£85.00
Sale Sold out
Taxes included.

MINI-CIRCUITS TB-45 WIDE BAND AMPLIFIER

Mini-Circuits - the world renown RF components company, made a series of 'Test Beds' for their range of components, where a component is built up into a working circuit block which could be used by equipment manufacturers to evaluate and build around the component to design their desired system.

 From a European OEMS research and development laboratory we have procured quite a range of these 'TB' Test bed evaluation modules.

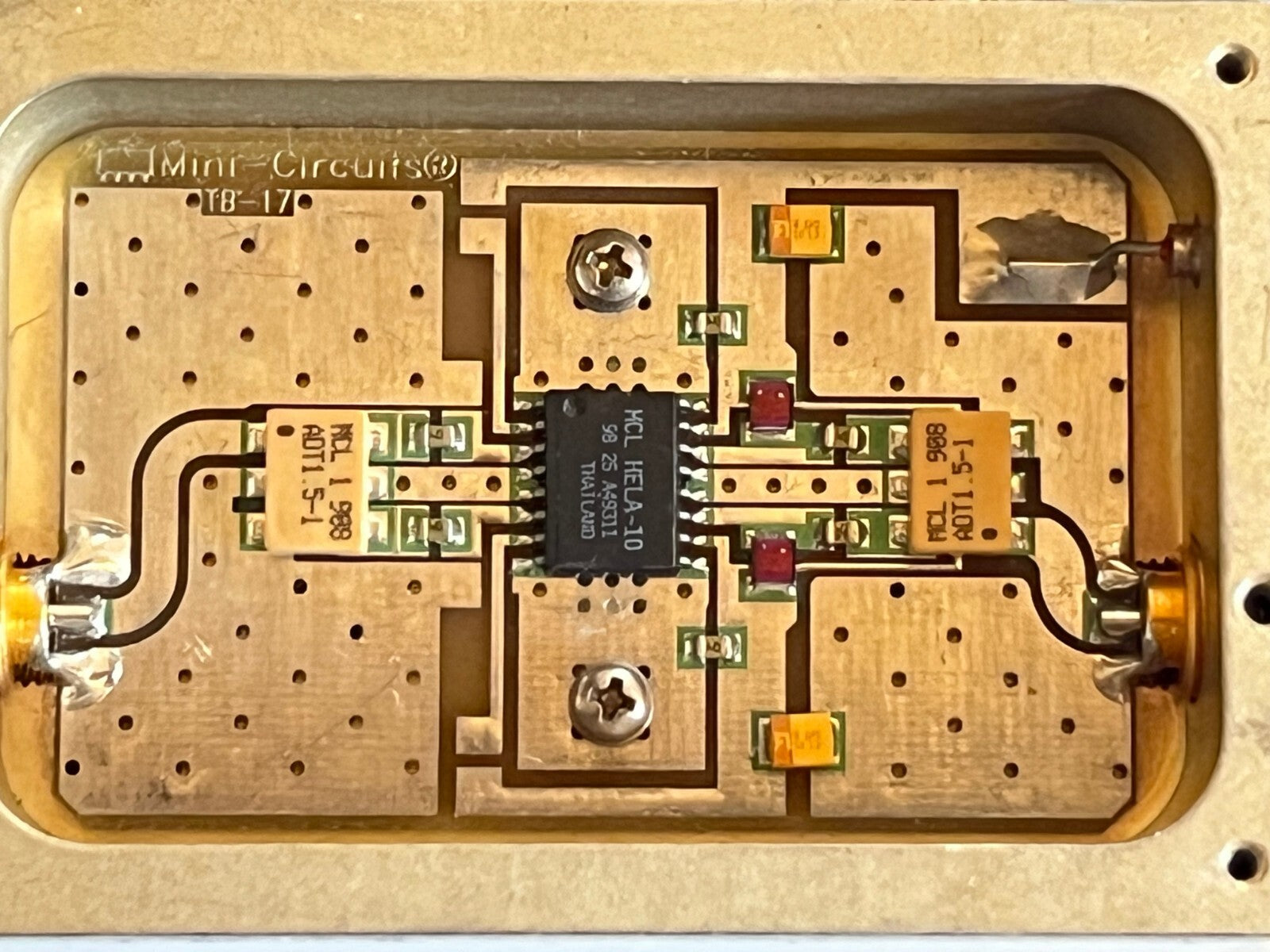

This one, is Mini Circuits model number TB-45, which is an evaluation circuit for their part number HELA-10D, the broadband high IP3 monolithic amplifier.

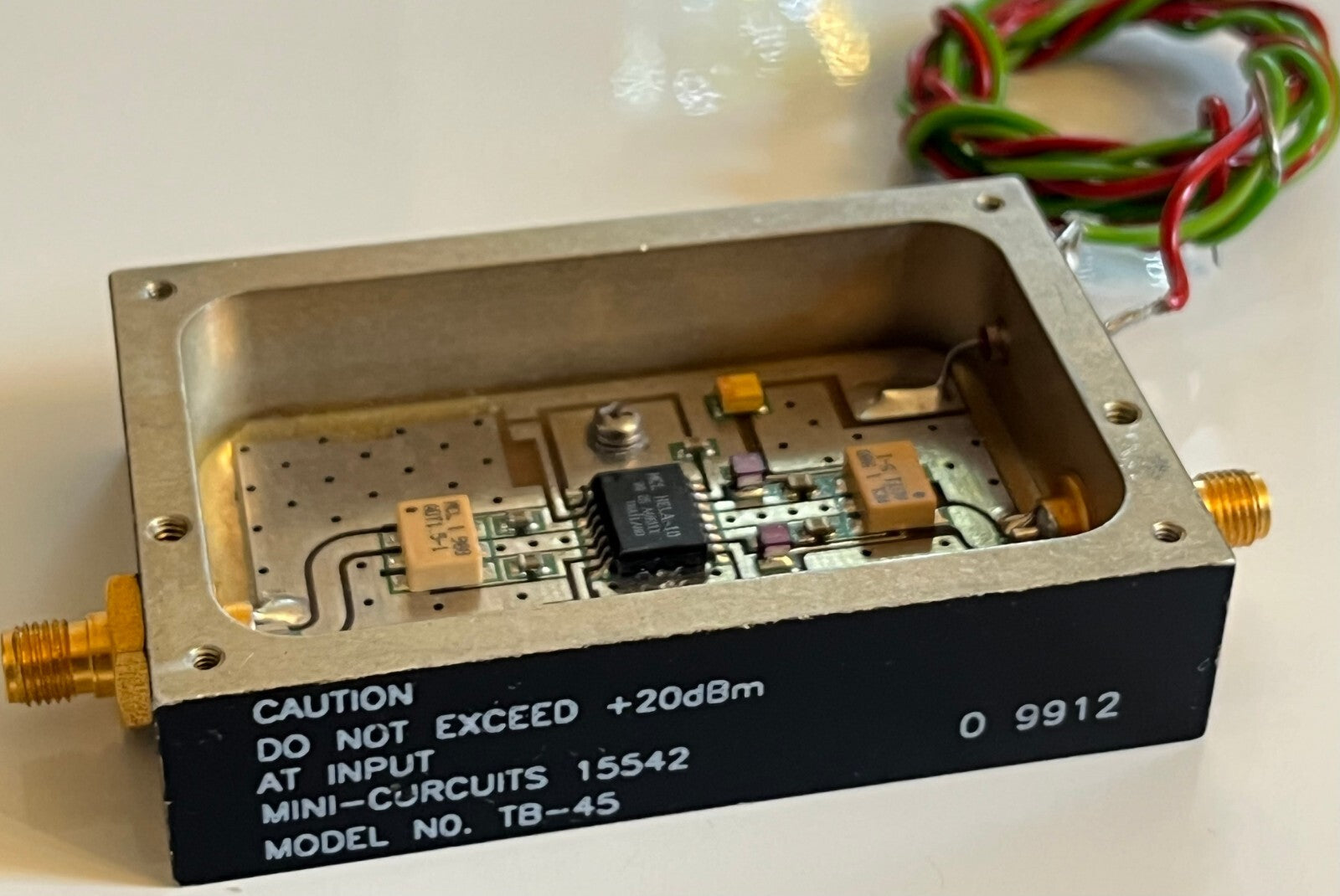

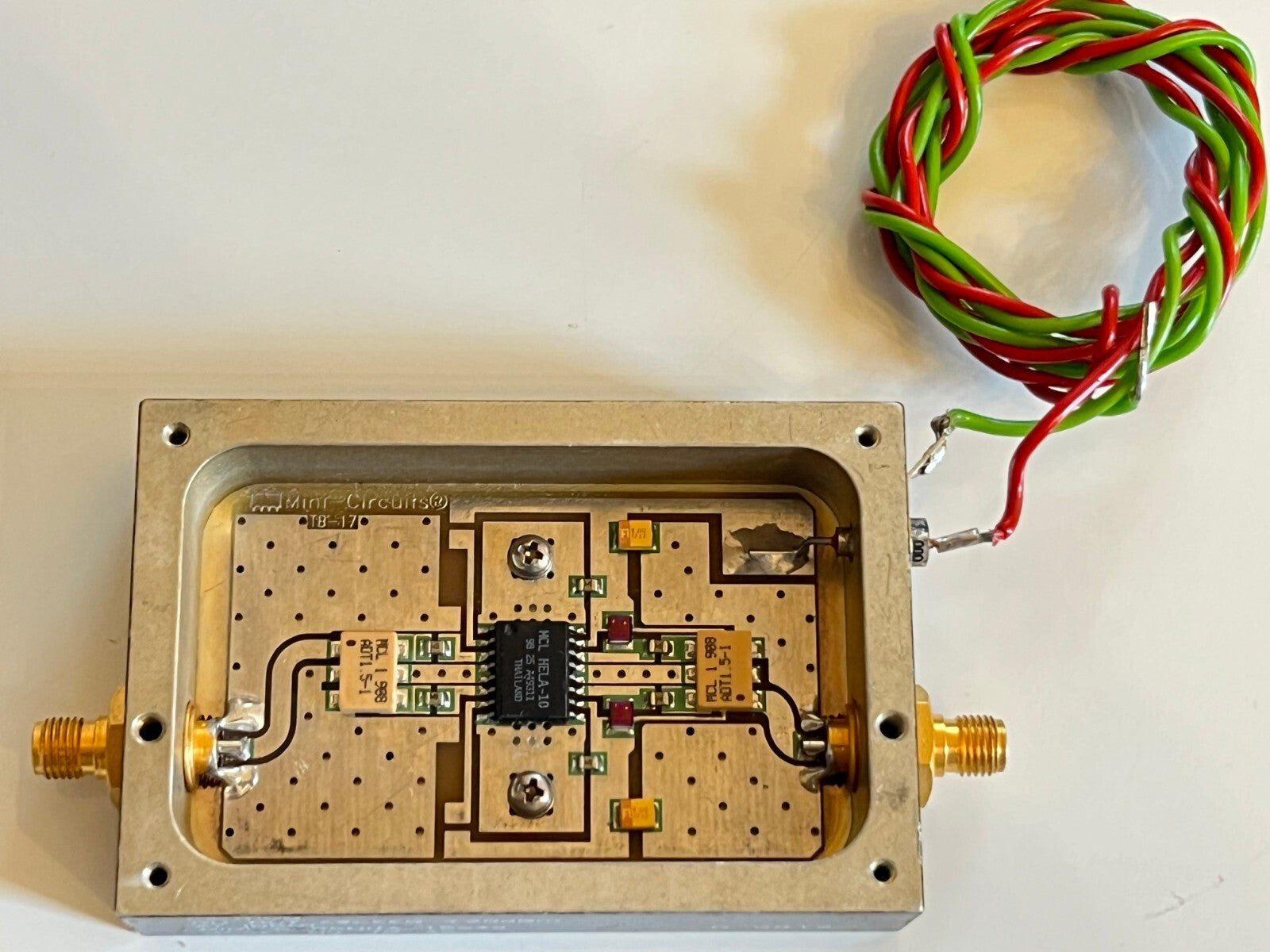

The TB-45  is a complete 8MHz to 300MHz +20dBm 12Vdc supply, High IP3 gain Low Noise 50 Ohm RF power amplifier module, with SMA female connections.

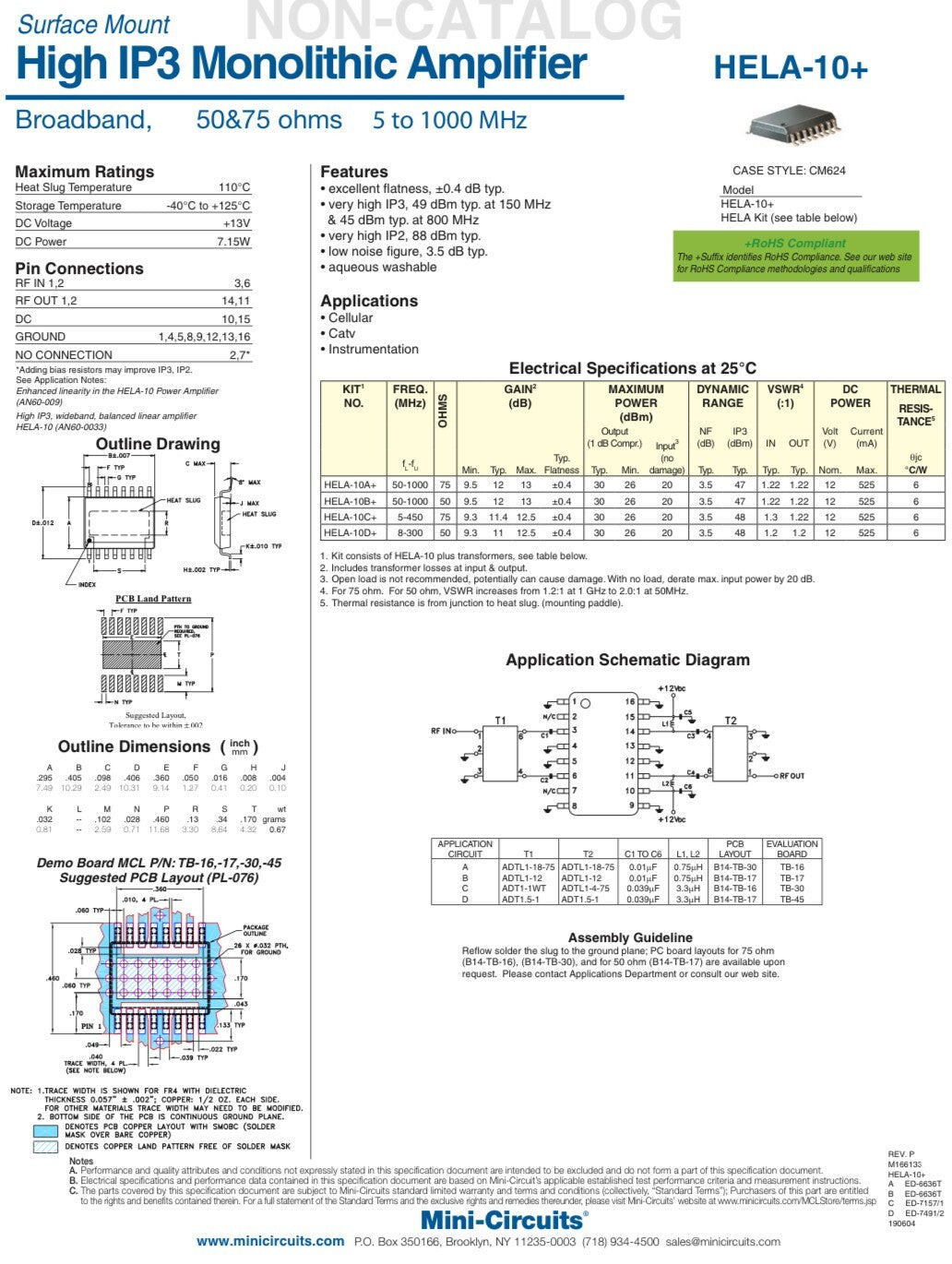

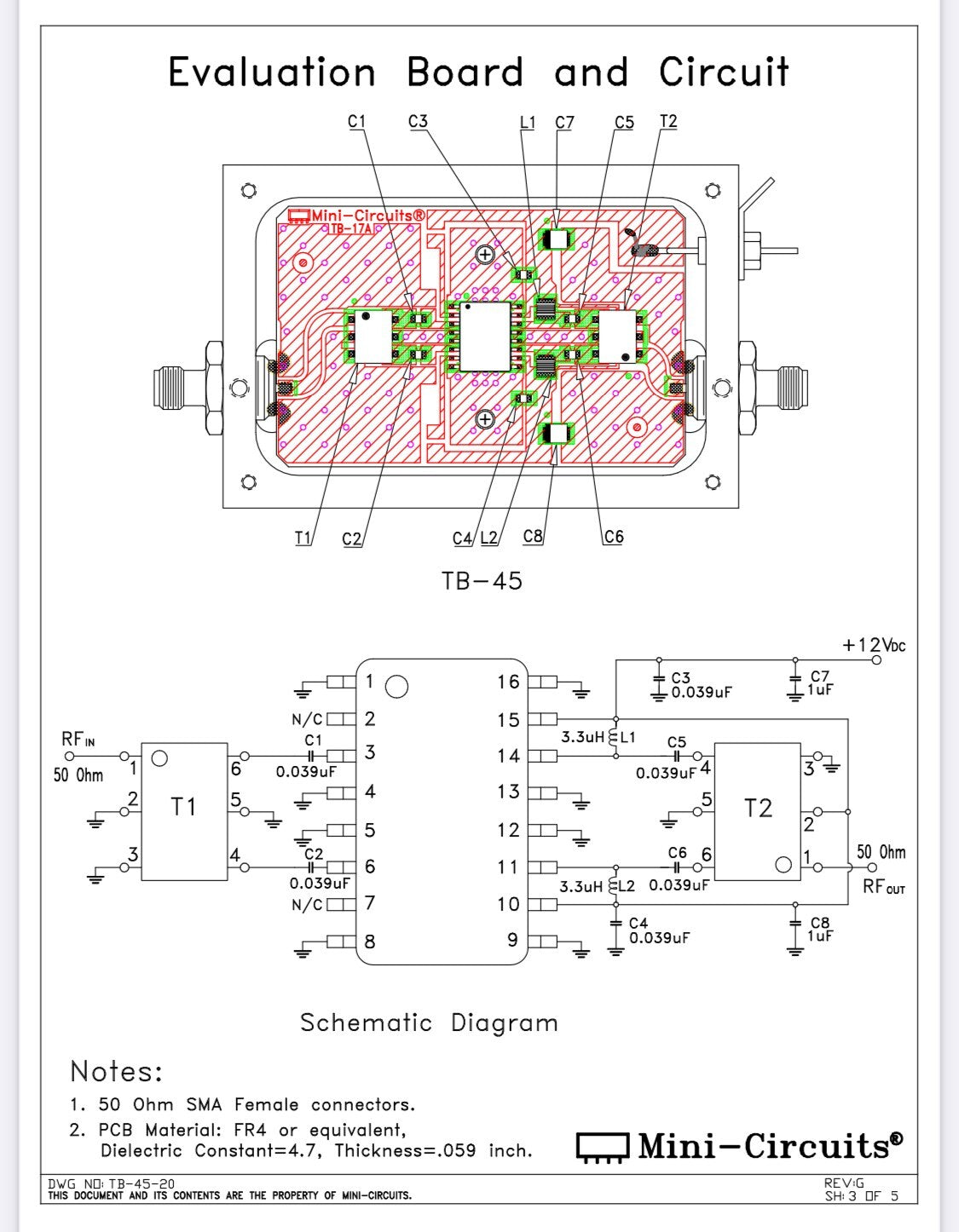

Full manufacturers datasheet with all specifications can be seen at in the photos above and further useful information is at https://www.minicircuits.com/app/AN60-009.pdf

These came to us from a now closed Europeans UK R&D laboratory where they had had little use. Offered here at a fraction to the distributors list price, in perfect used condition.

  PRICED AND SUPPLIED EACH - X1.
