MINI-CIRCUITS TB-368 SXBP-100 BAND PASS FILTER EVALUATION BOARD ae1w61

MINI-CIRCUITS TB-368 SXBP-100 BAND PASS FILTER EVALUATION BOARD ae1w61

£55.00
£55.00
Sale Sold out
Taxes included.

MINI-CIRCUITS TB-368 BANDPASS FILTER

Mini-Circuits - the world renown RF components company, made a series of 'Test Beds' for their range of components, where a component is built up into a working circuit block which could be used by equipment manufacturers to evaluate and build around the component to design their desired system.

 From a European OEMS research and development laboratory we have procured quite a range of these 'TB' Test bed evaluation modules.

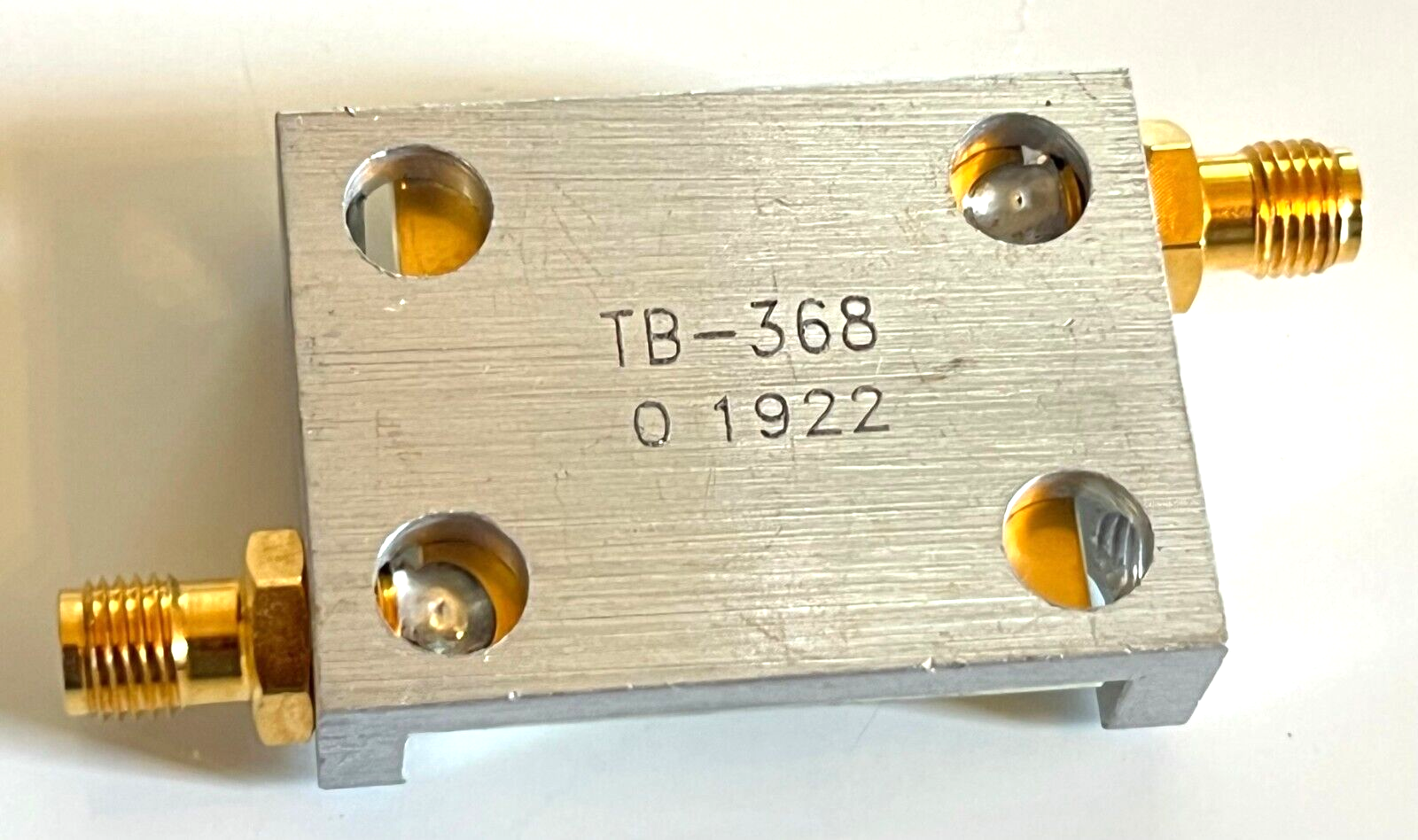

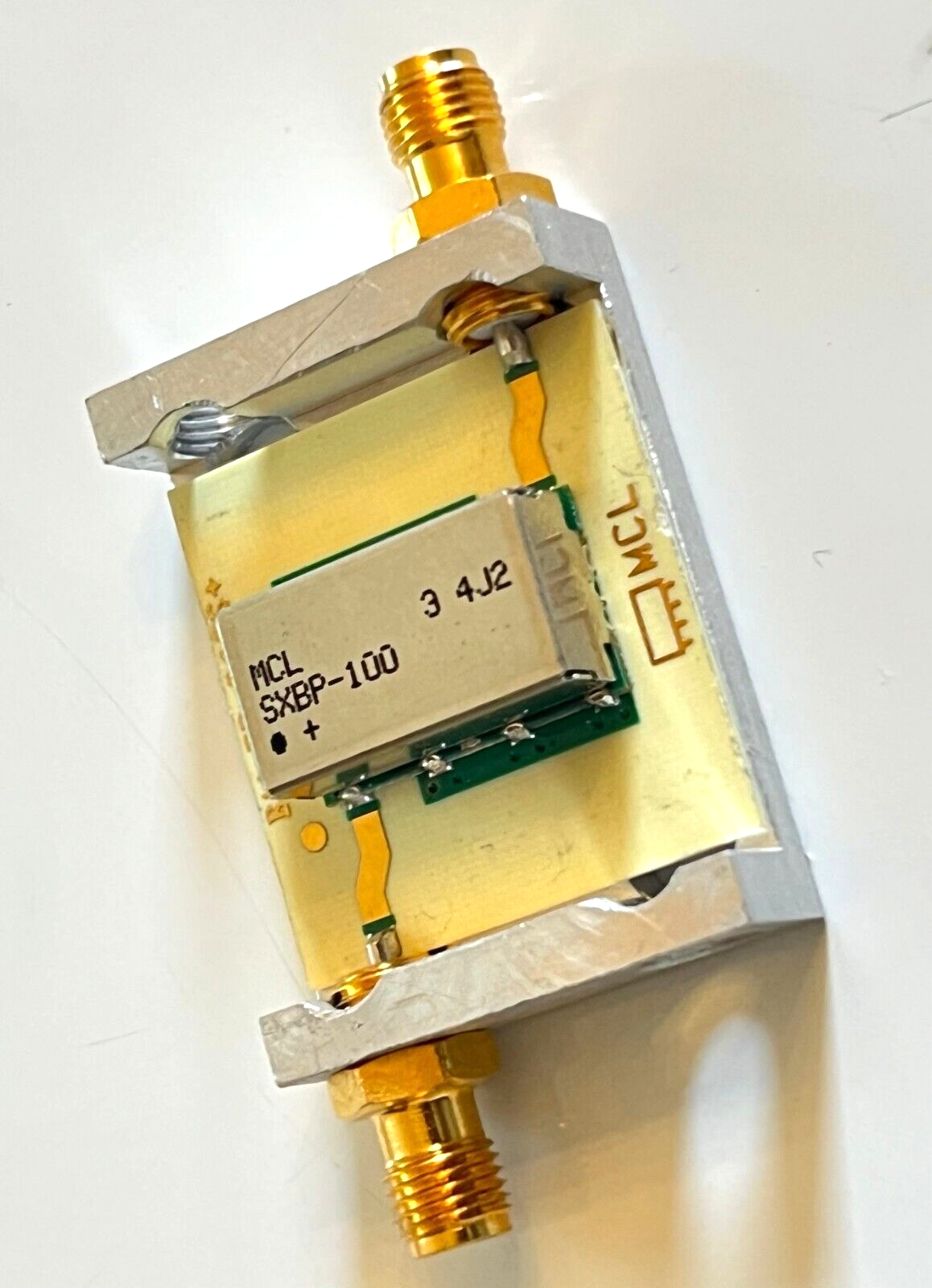

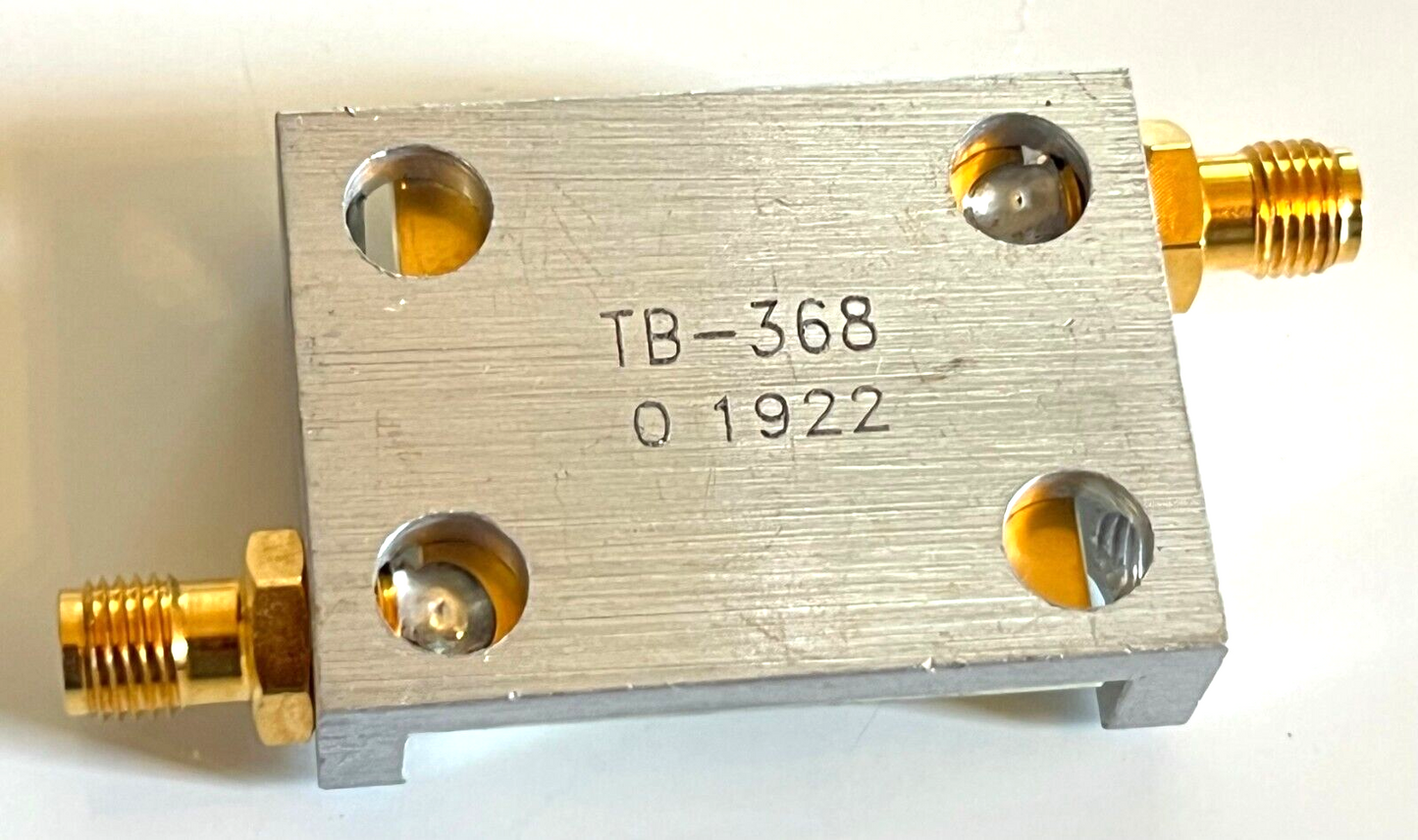

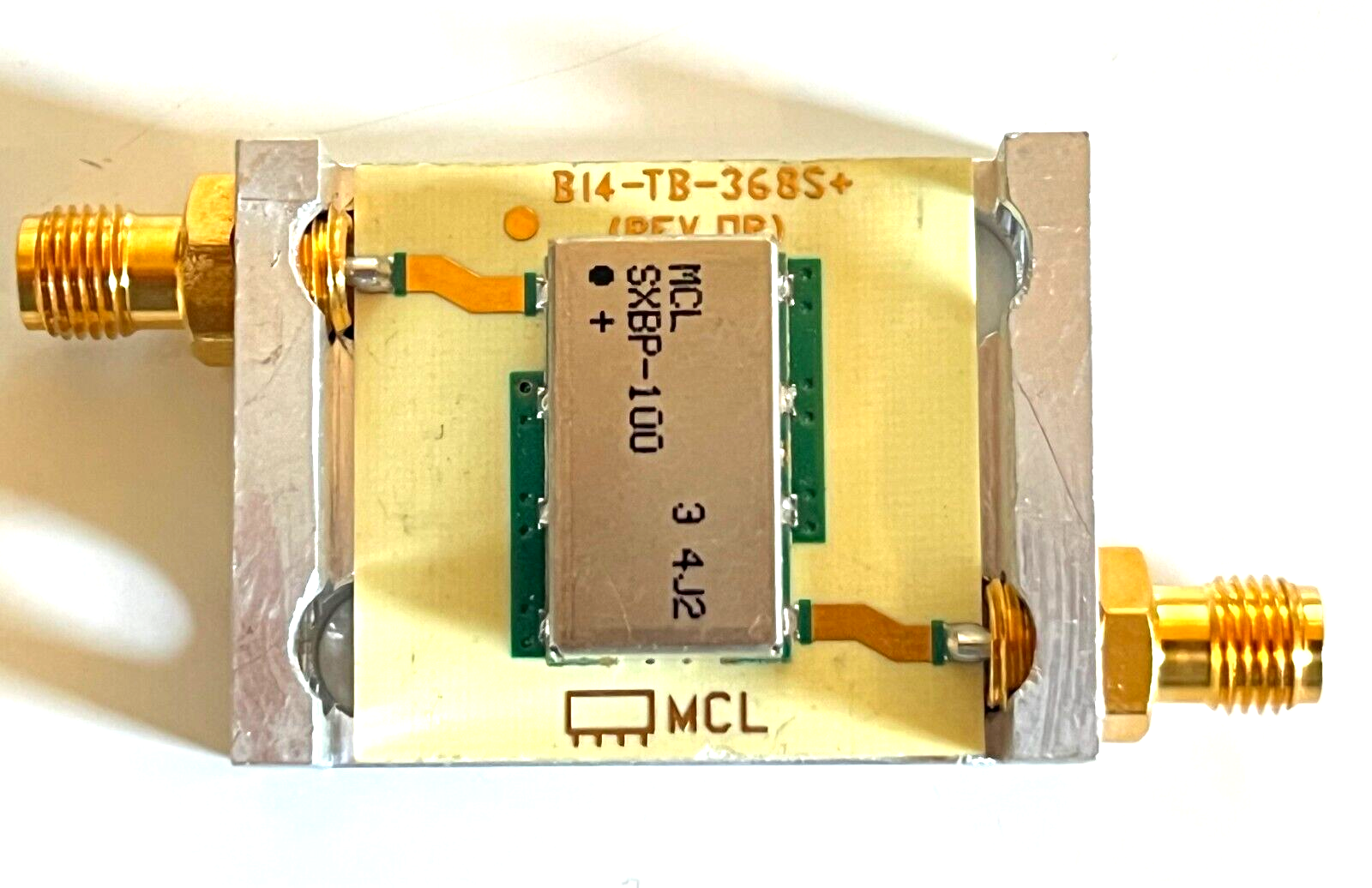

This one, is Mini Circuits model number TB-368, which is an evaluation circuit for their part number SXBP-100, the bandpass filter.

The TB-368  is a complete 87MHz to 117MHz  50 Ohm 0.25W lump L-C bandpass filter module, with SMA female connections.

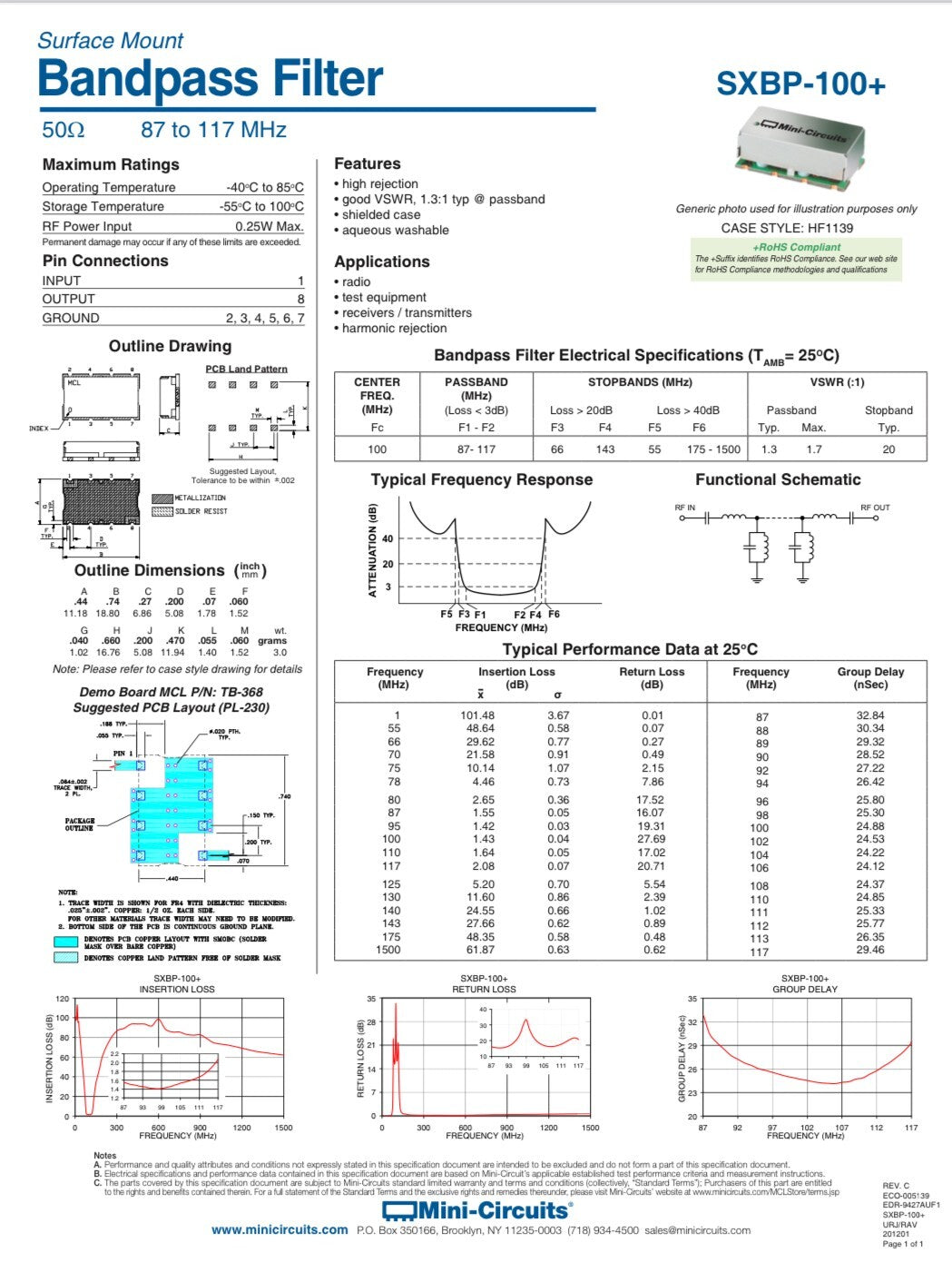

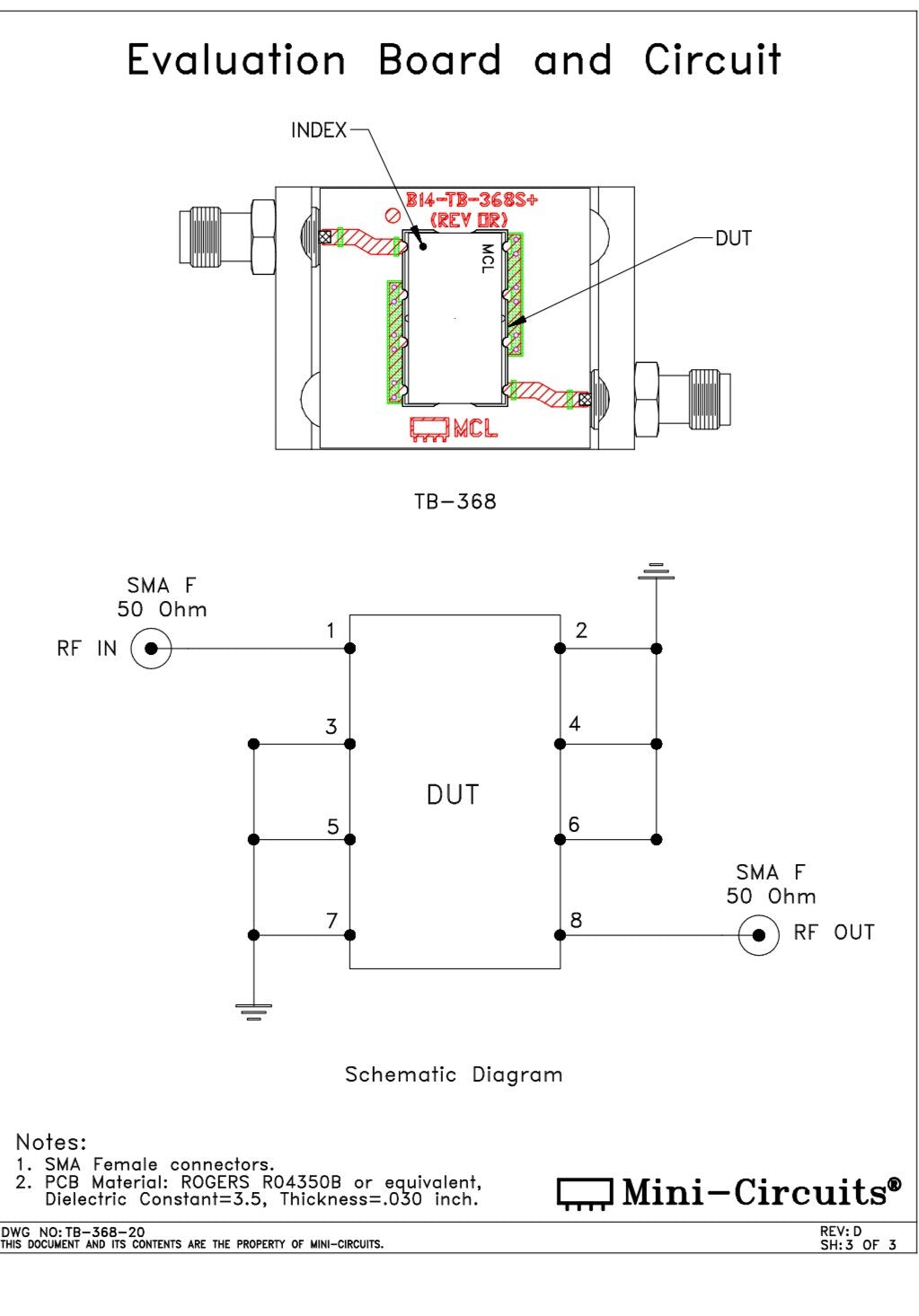

Full manufacturers datasheet with all specifications can be seen at in the photos above.

These came to us from a now closed Europeans UK R&D laboratory where they had had little use. Offered here at a fraction to the distributors list price, in perfect used condition.

  PRICED AND SUPPLIED EACH - X1.
