MINI-CIRCUITS TB-363+ BANDPASS FILTER

Mini-Circuits - the world renown RF components company, made a series of 'Test Beds' for their range of components, where a component is built up into a working circuit block which could be used by equipment manufacturers to evaluate and build around the component to design their desired system.

 From a European OEMS research and development laboratory we have procured quite a range of these 'TB' Test bed evaluation modules.

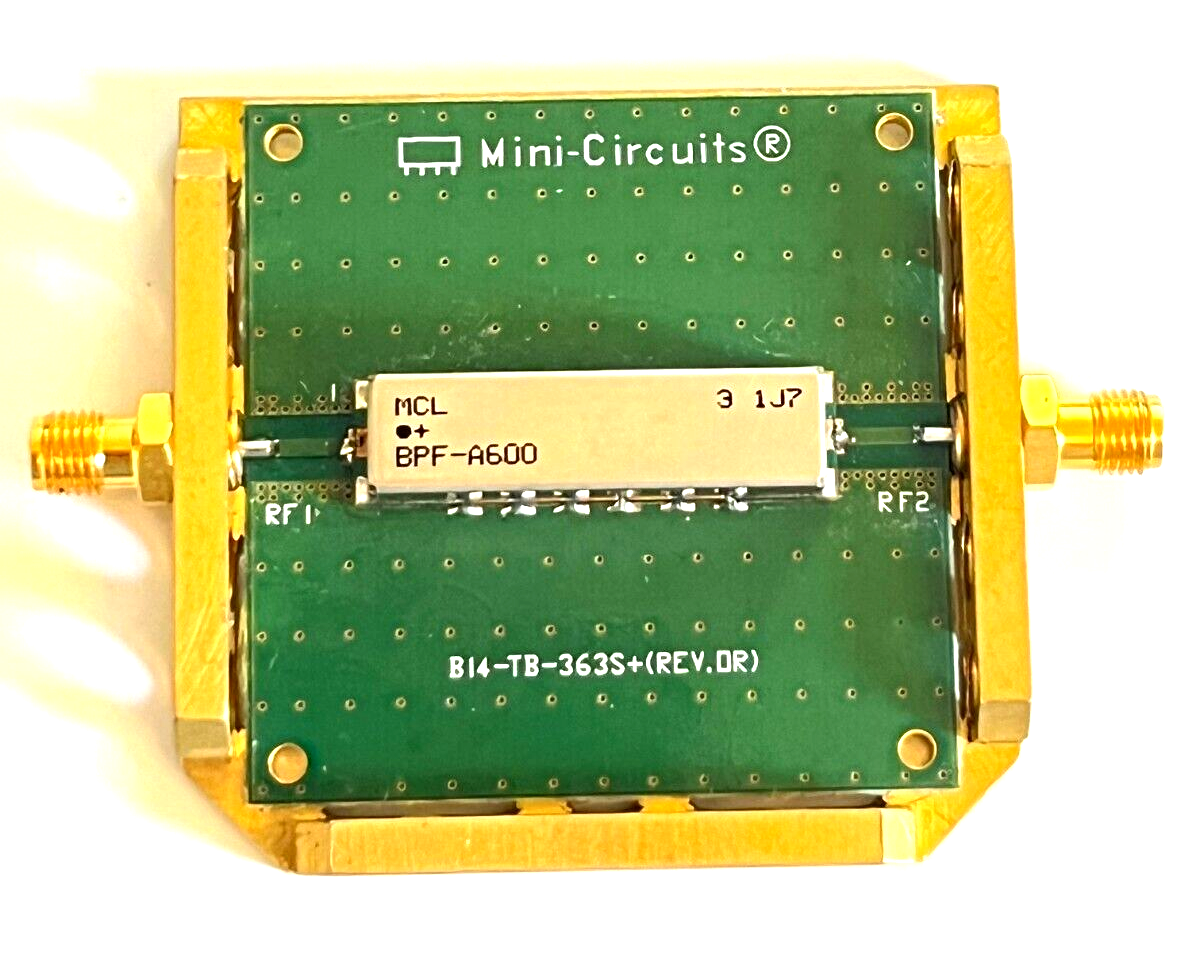

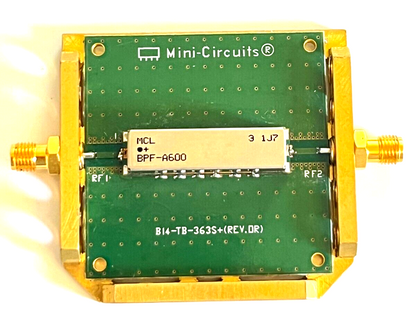

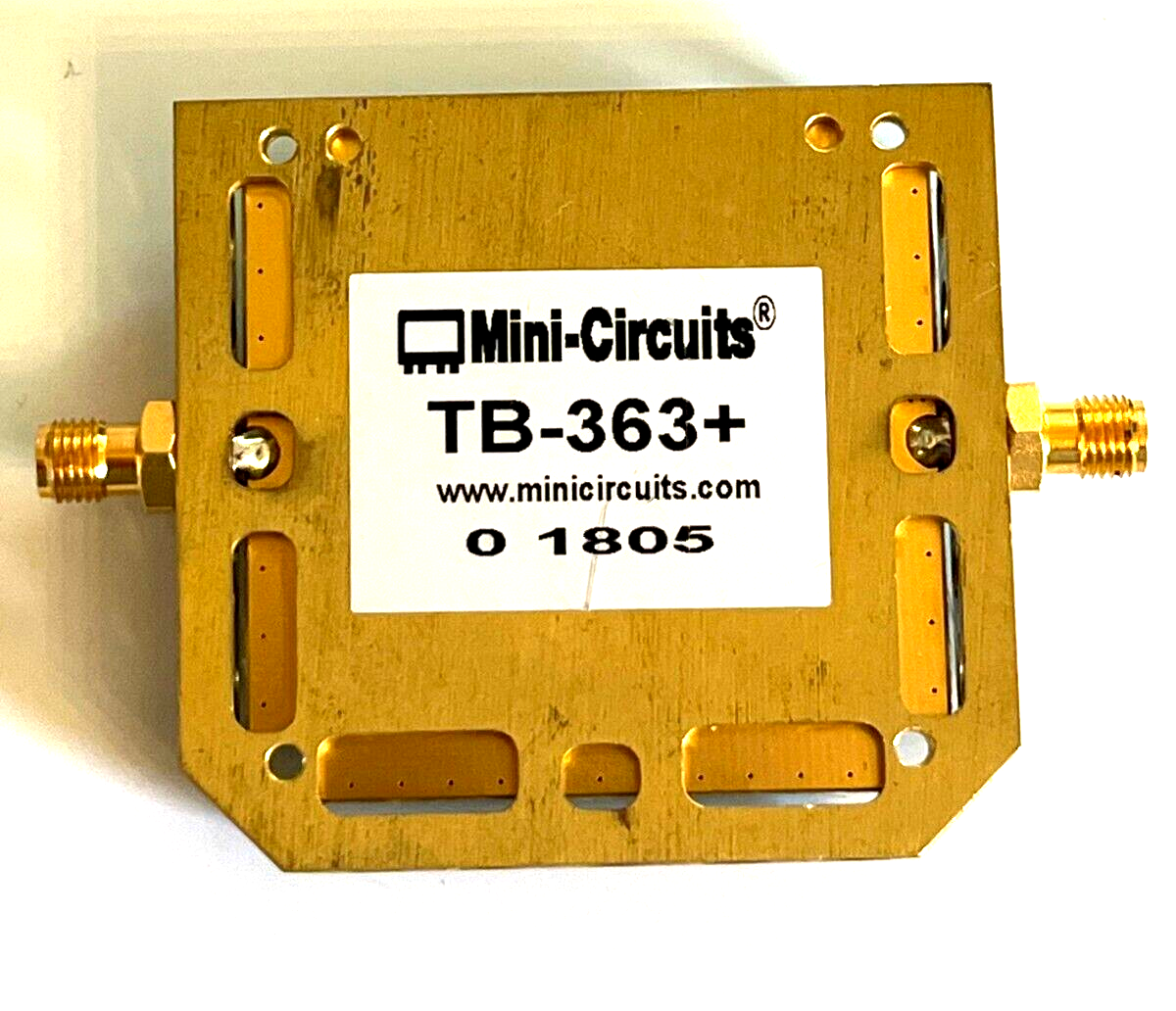

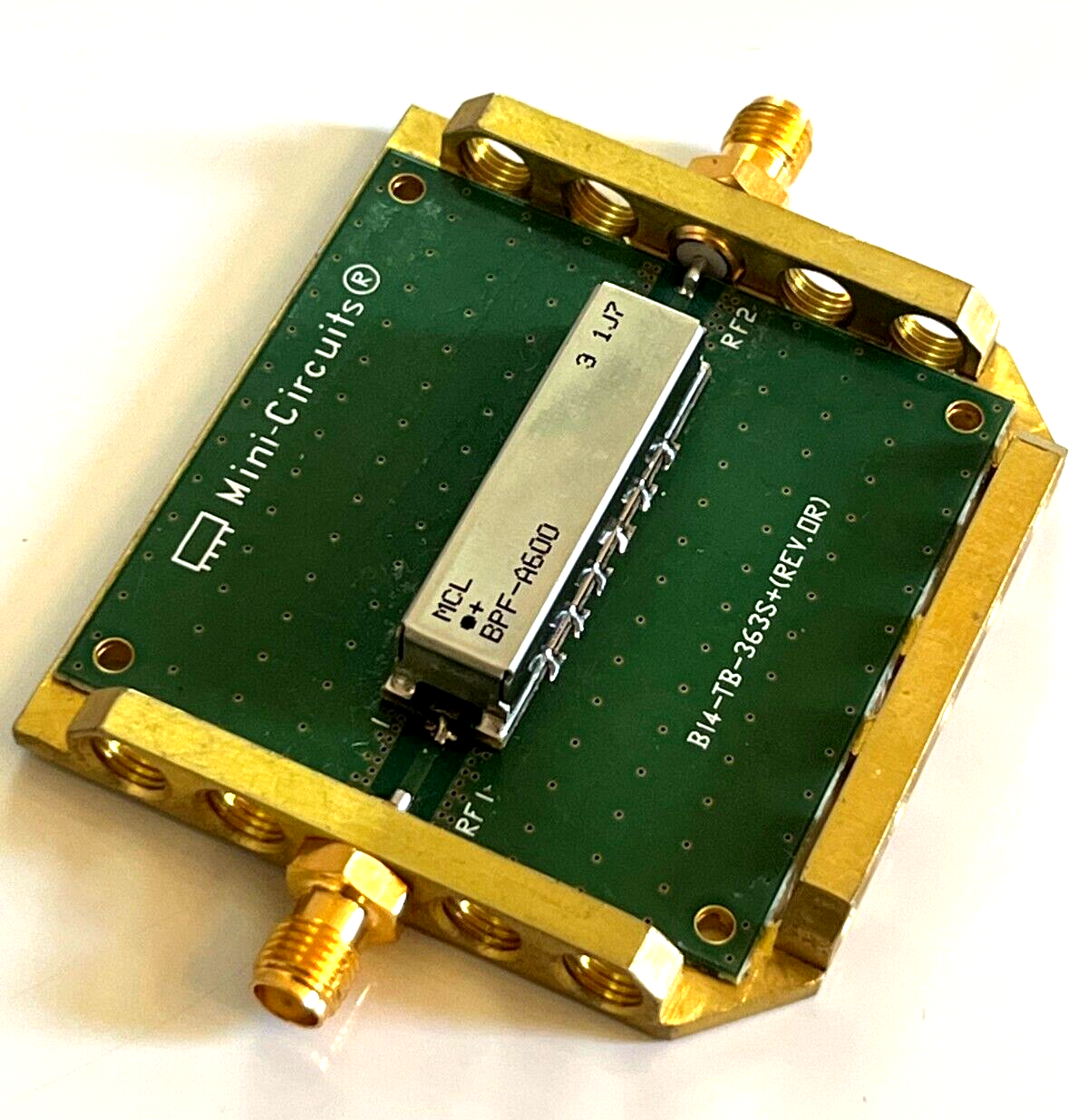

This one, is Mini Circuits model number TB-363+, which is an evaluation circuit for their part number BPF-A600, the bandpass filter.

The TB-363+  is a complete 500MHz to 700MHz  50 Ohm 1W lump L-C bandpass filter module, with SMA female connections.

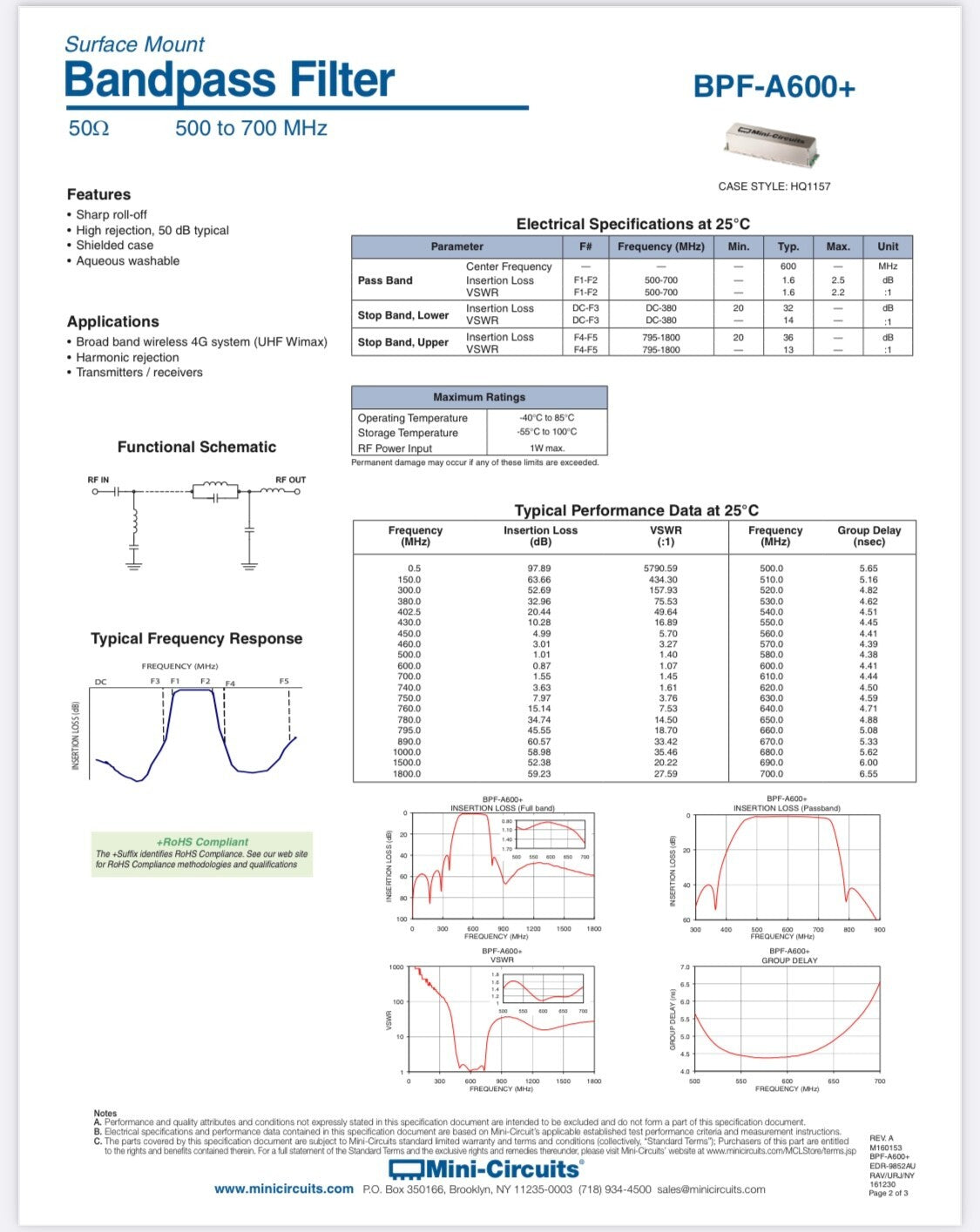

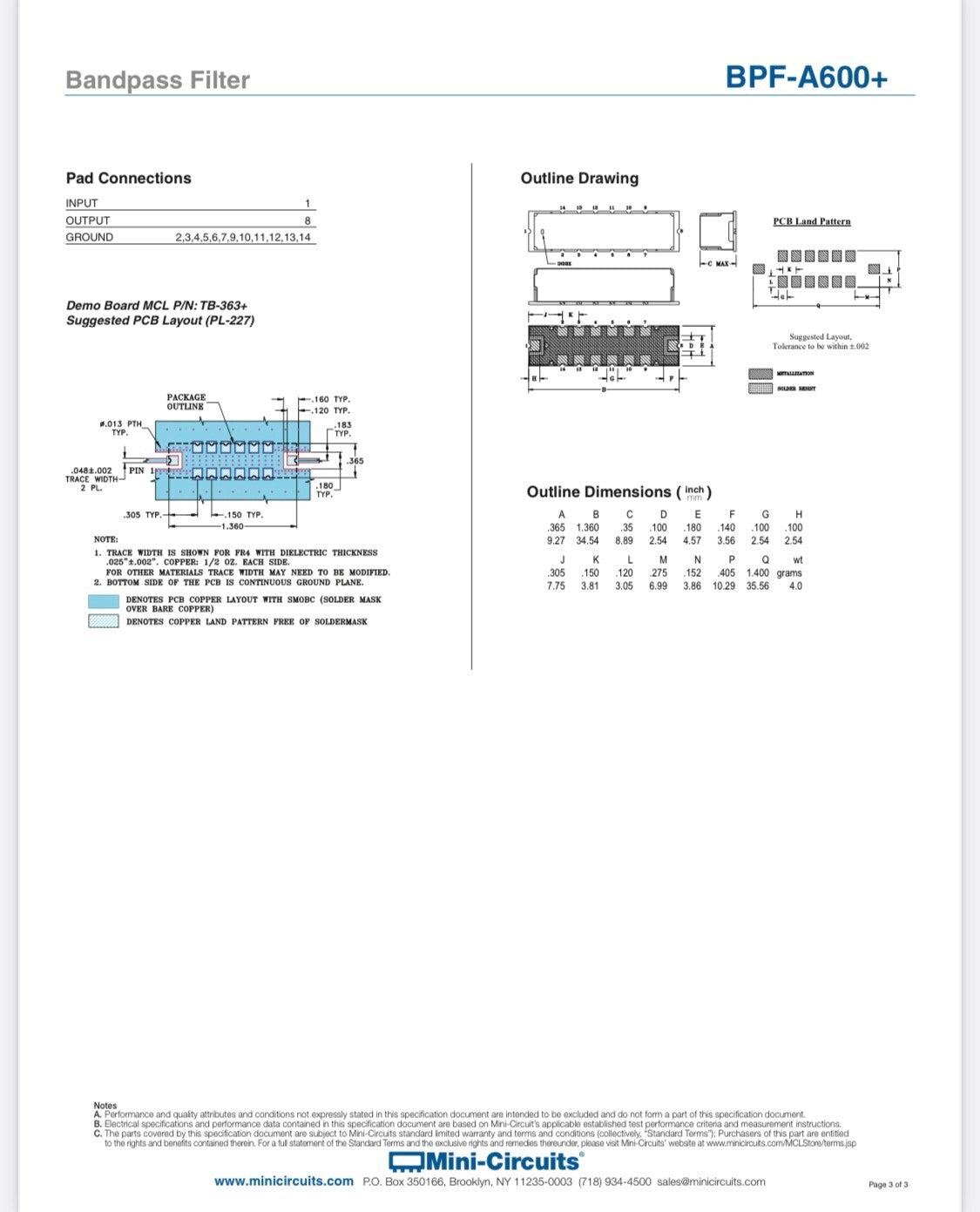

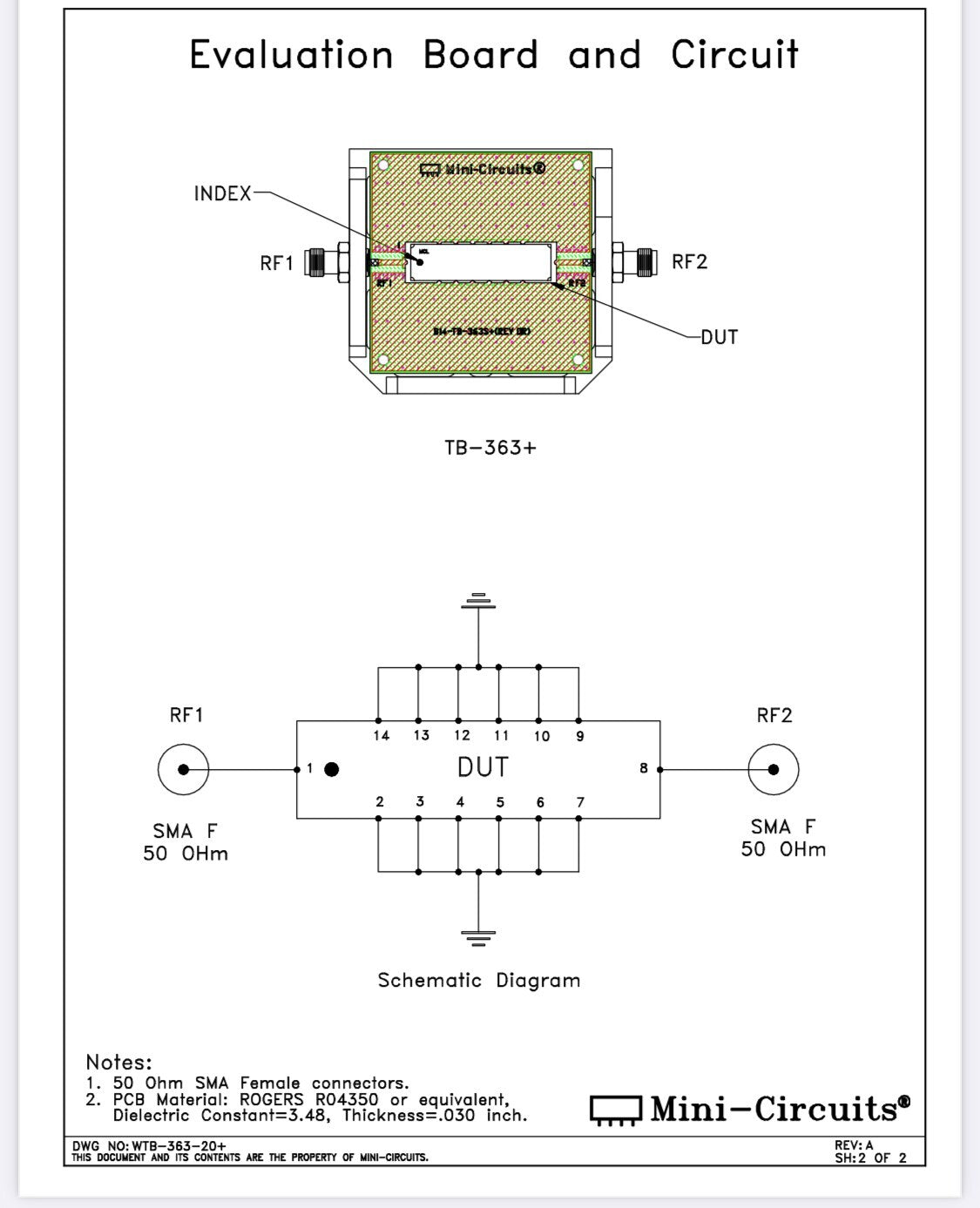

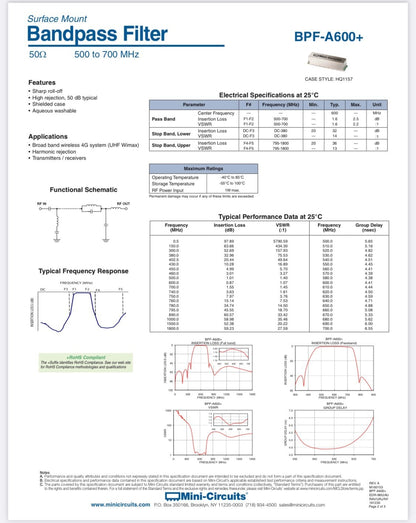

Full manufacturers datasheet with all specifications can be seen at in the photos above.

These came to us from a now closed Europeans UK R&D laboratory where they had had little use. Offered here at a fraction to the distributors list price, in perfect used condition.

  PRICED AND SUPPLIED EACH - X1.
