MINI-CIRCUITS TB-332 BAND STOP FILTER

Mini-Circuits - the world renown RF components company, made a series of 'Test Beds' for their range of components, where a component is built up into a working circuit block which could be used by equipment manufacturers to evaluate and build around the component to design their desired system.

 From a European OEMS research and development laboratory we have procured quite a range of these 'TB' Test bed evaluation modules.

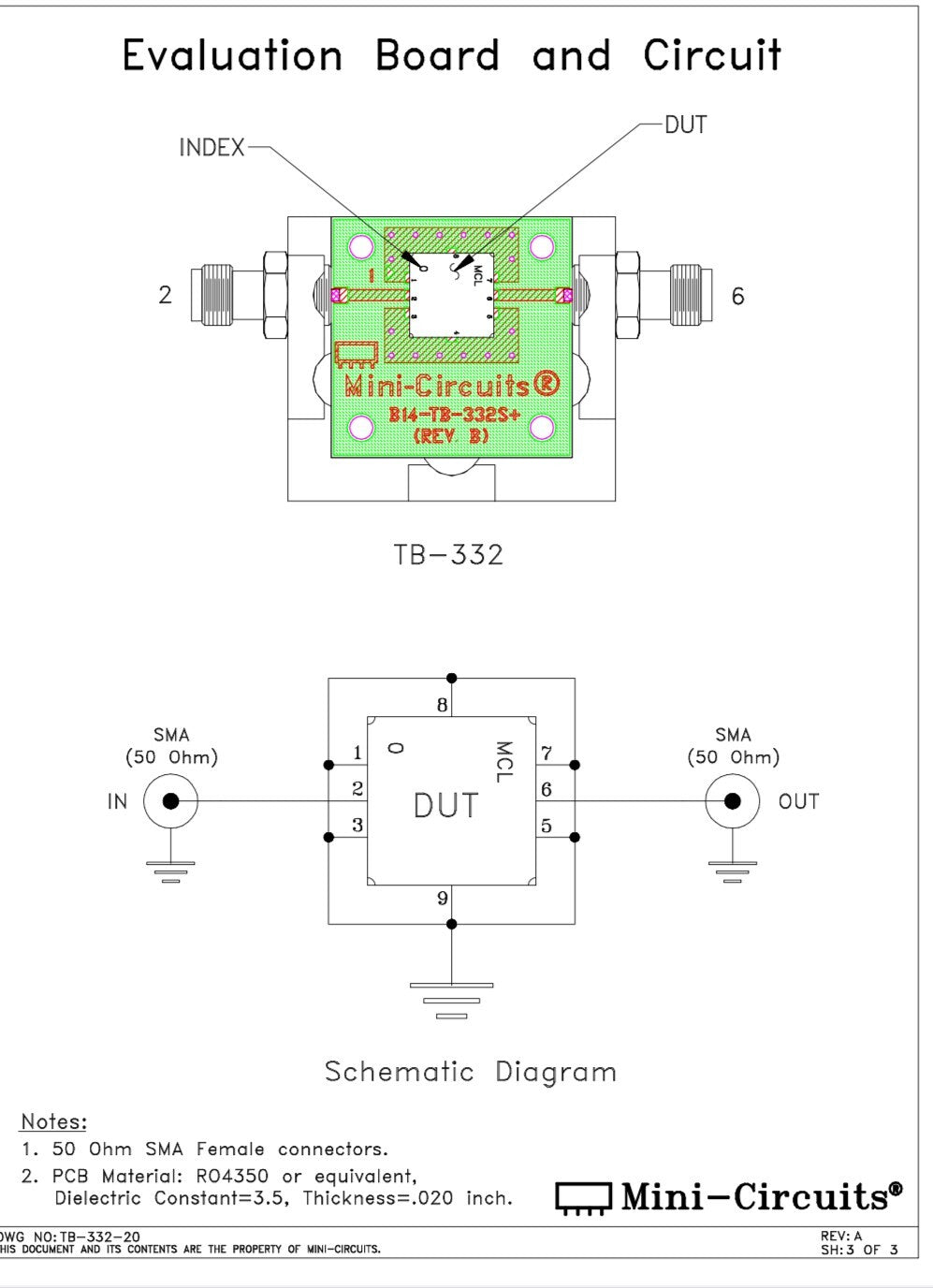

This one, is Mini Circuits model number TB-332, which is an evaluation circuit for their part number BSP-255310+, the band stop filter.

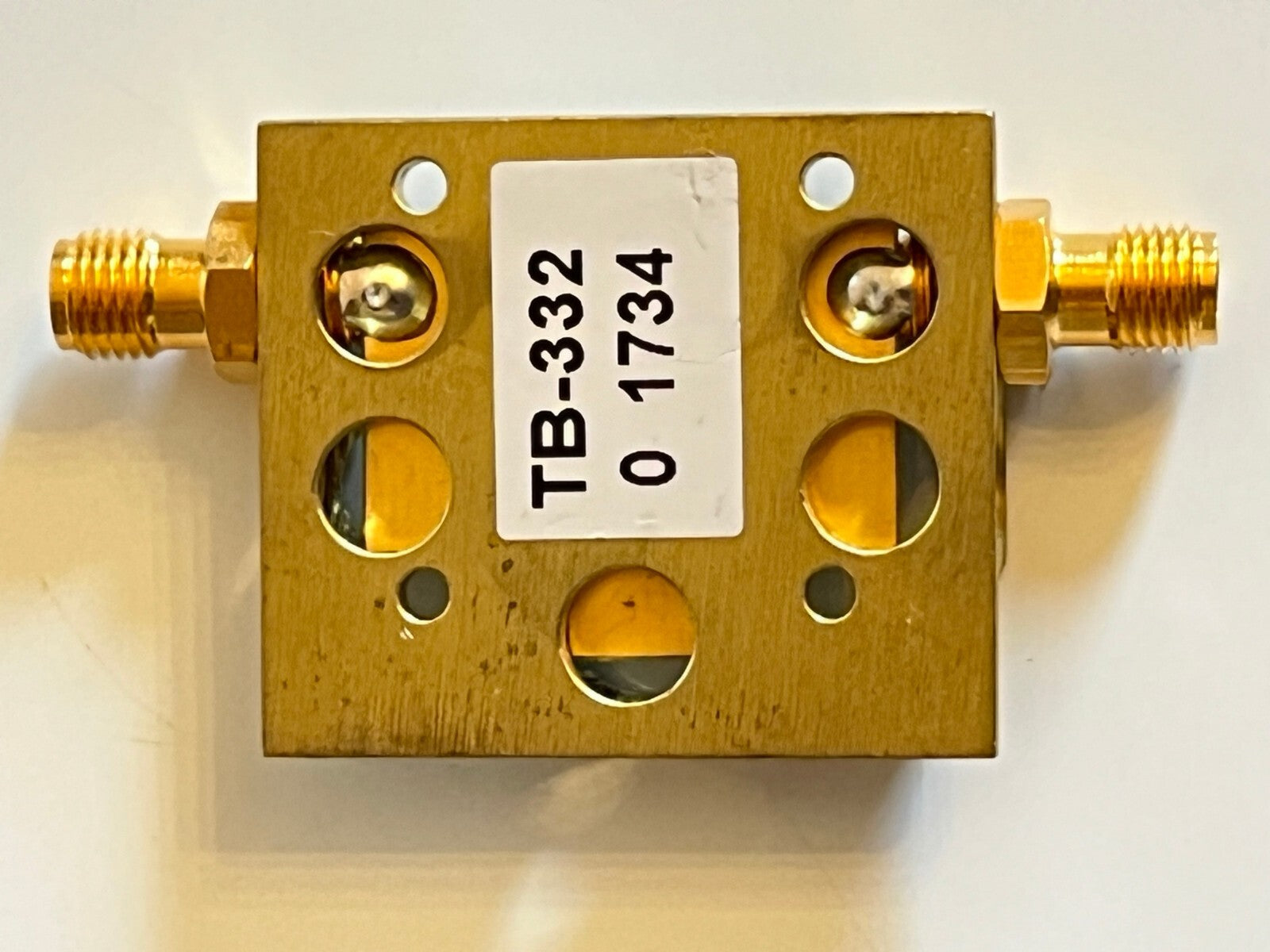

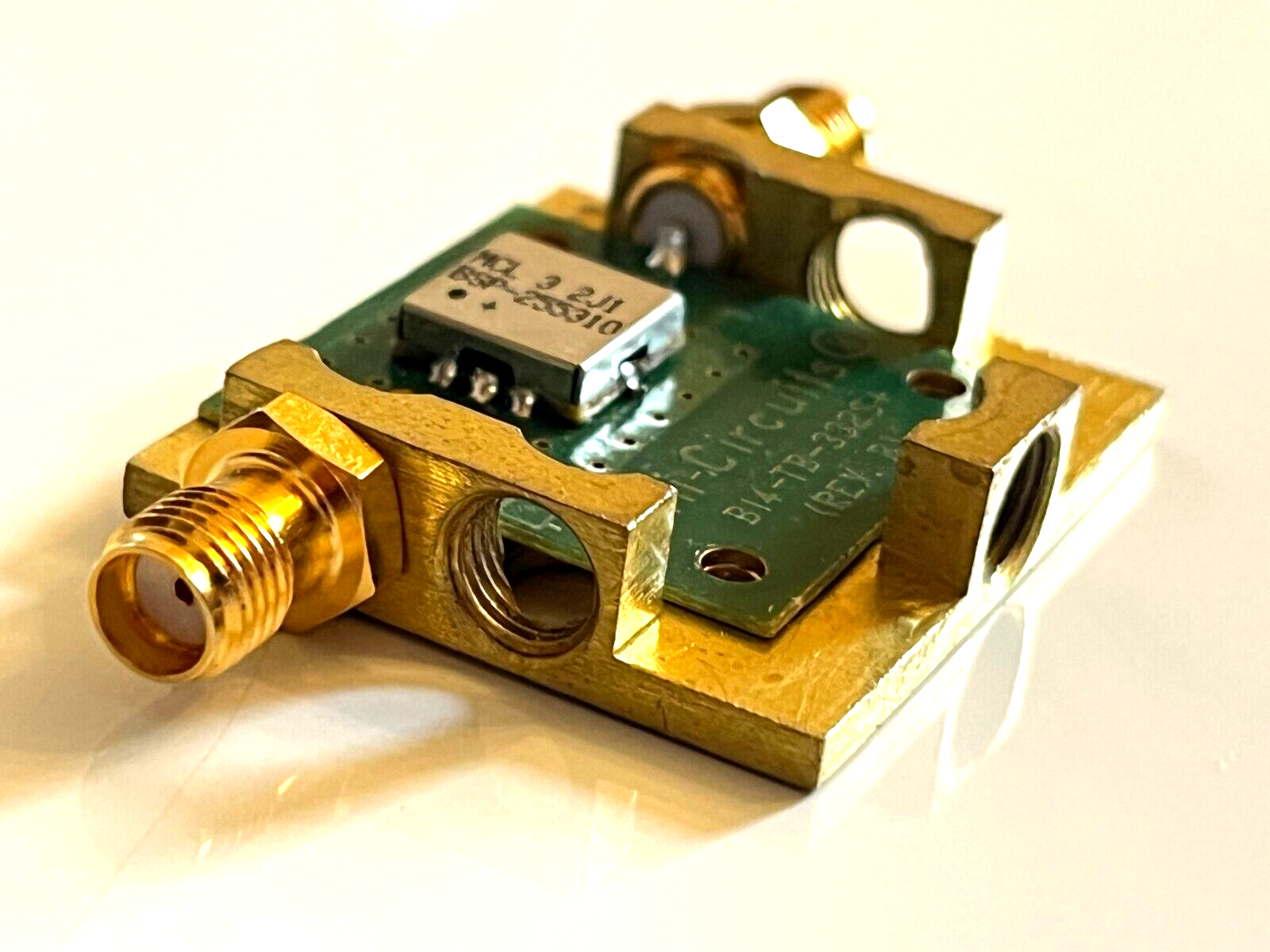

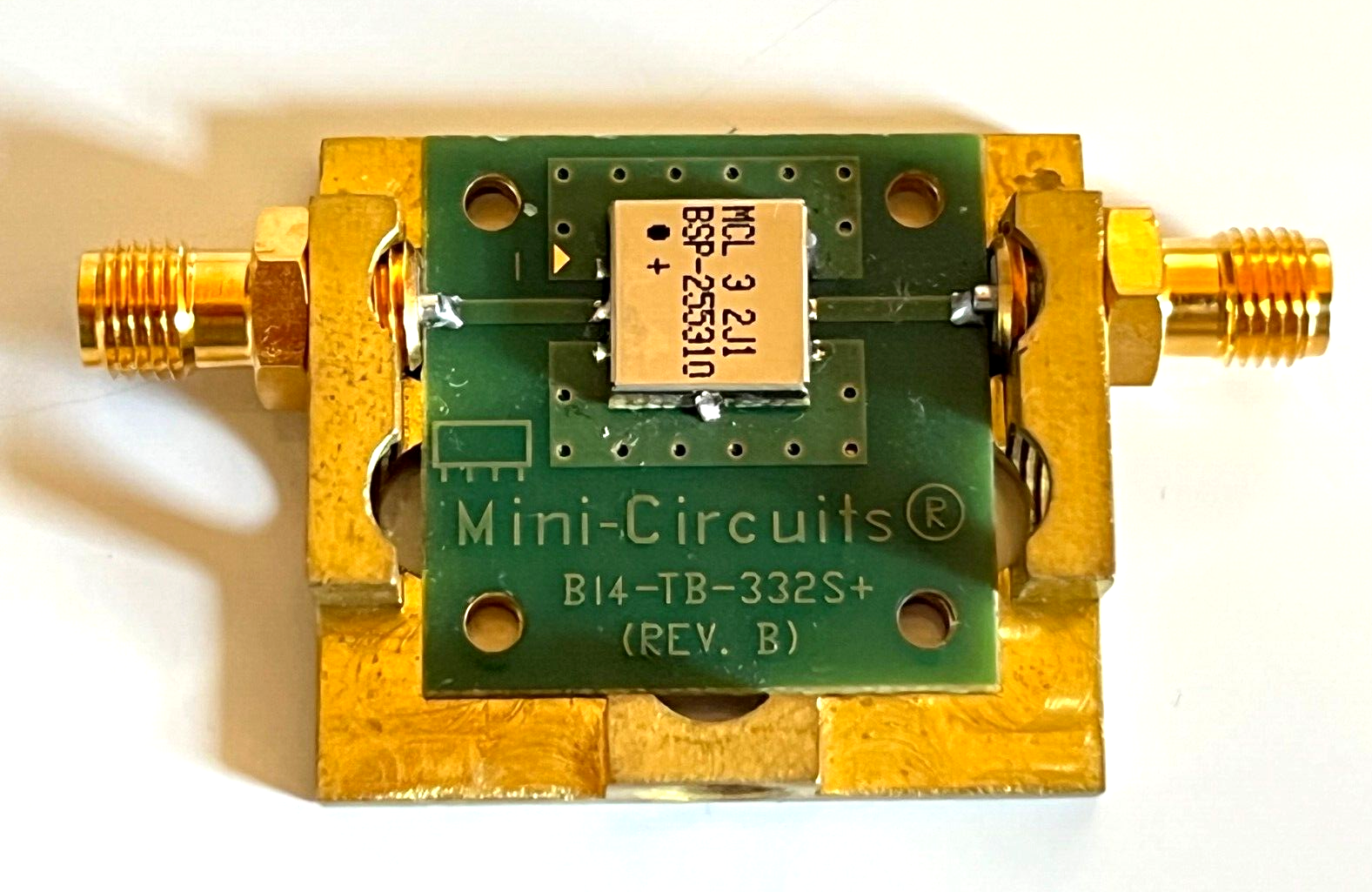

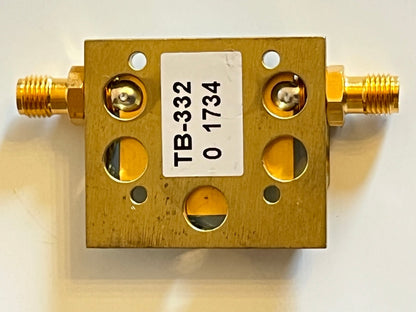

The TB-332  is a complete 255MHz to 310MHz 50 Ohm 0.5W lump L-C band stop module, with SMA female connections.

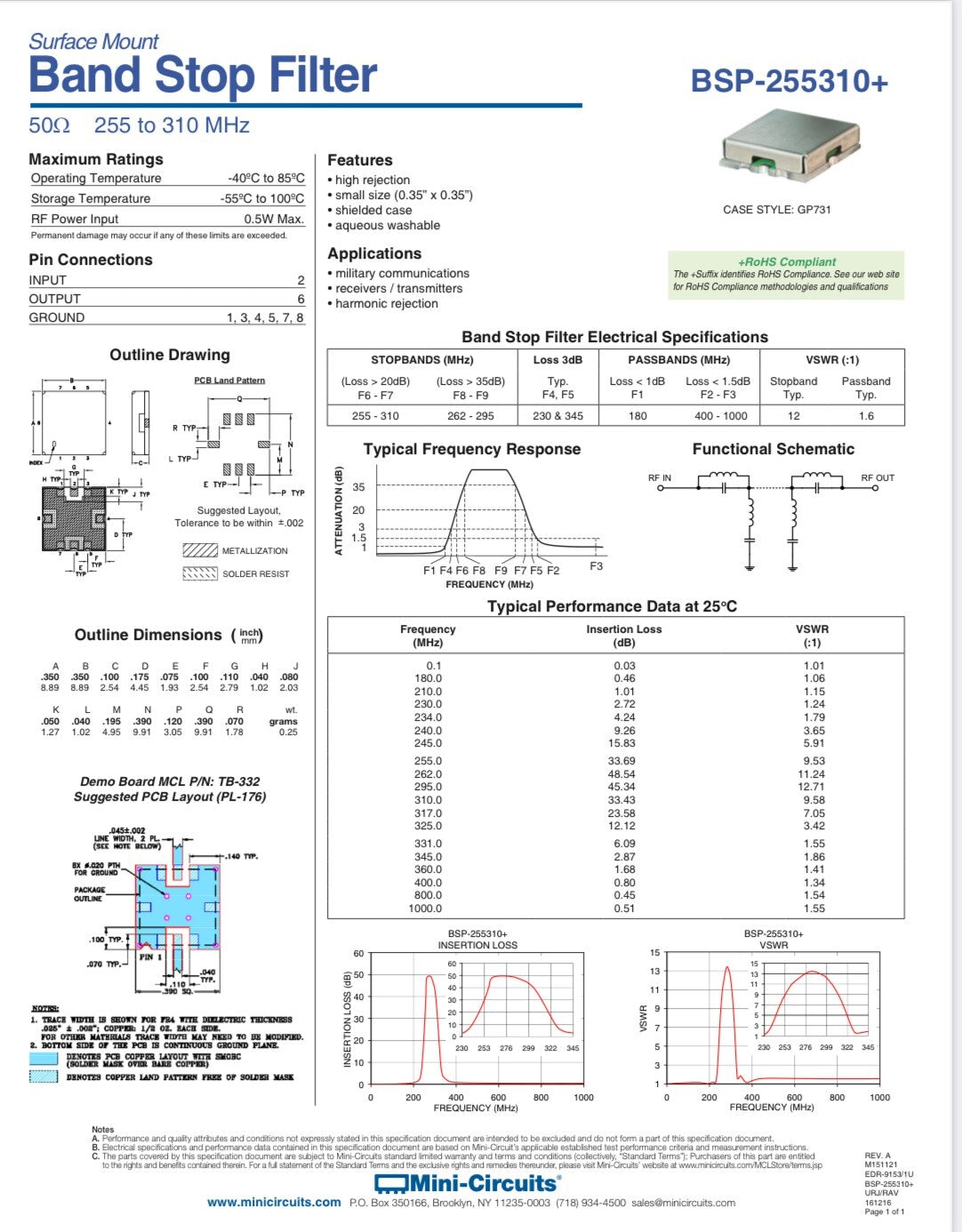

Full manufacturers datasheet with all specifications can be seen at in the photos above.

These came to us from a now closed Europeans UK R&D laboratory where they had had little use. Offered here at a fraction to the distributors list price, in perfect used condition.

  PRICED AND SUPPLIED EACH - X1.
