MILITARY SPEC NSF BIAS SPRING RETURN TOGGLE SWITCH BS9572-F002-502 fd7a19

MILITARY SPEC NSF BIAS SPRING RETURN TOGGLE SWITCH BS9572-F002-502 fd7a19

£35.00
£35.00
Sale Sold out
Taxes included.

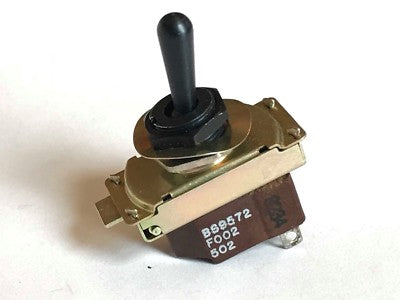

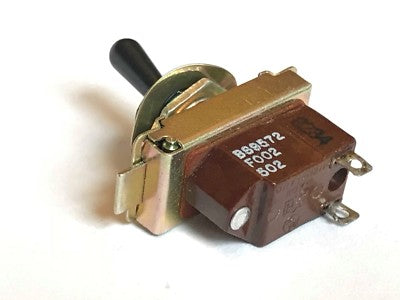

MIL SPEC SPRING BIAS TOGGLE SWITCH

Manufactured by NSF controls as their part number BS9572-F002-502, These are a full military quality single pole on / off  SPRING BIAS RETURN toggle switch.

So the spring bias mechanism provides a momentary switch action, which snaps back to resting position when released

They are old vintage stock, that were manufactured to military specifications, (BS9572-F002-502)

Beautifully manufactured with a very strong and positive snap switch action. Bakolite body construction with anodized aluminium black control knob / actuator, with matching black locking rings and washers.

The switch is rated to at least 5A at mains 250Vac.
Solder tag connections (2 off).

Dimensions of the main body are 30mm x 15mm with a behind panel depth of about 25mm required. Mounting hole is about 13mm.
