Manufactured by Honeywell as their part number 4TL1-6 to full military specifications (NSN 5930-00-660-3961) These are a superb quality 4 pole single throw (so can be used to control 4 circuits, on / off ) SPRING BIAS RETURN toggle switch.
So the spring bias mechanism provides a momentary switch action, which snaps back to resting position when released
They are old vintage stock, that were manufactured to military specifications, (BS9572-F0004)

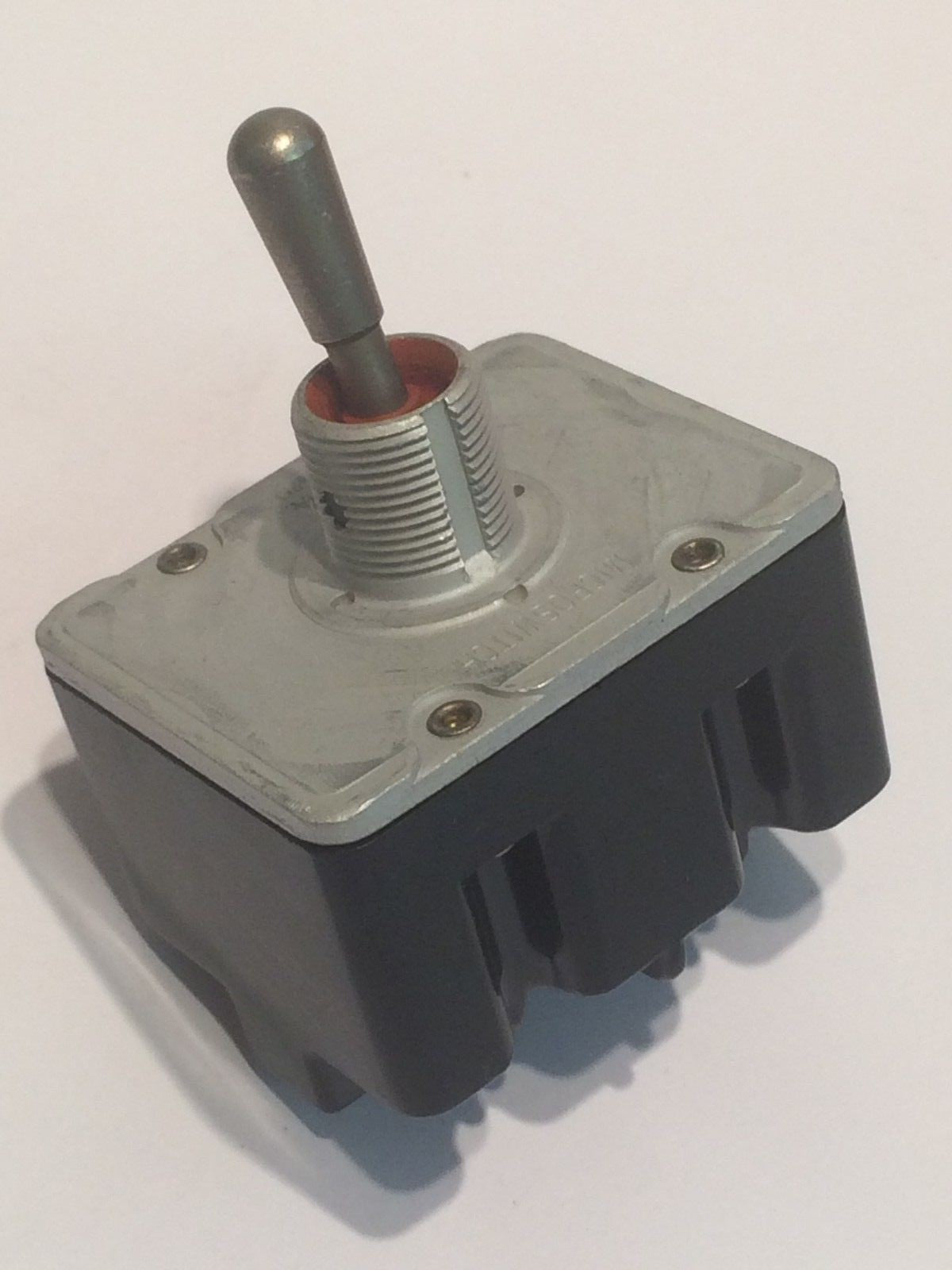

Beautifully manufactured with a very strong and positive snap switch action. Bakolite body construction with stainless steel control knob / actuator, which is sealed - so ok for hazardous environment etc.

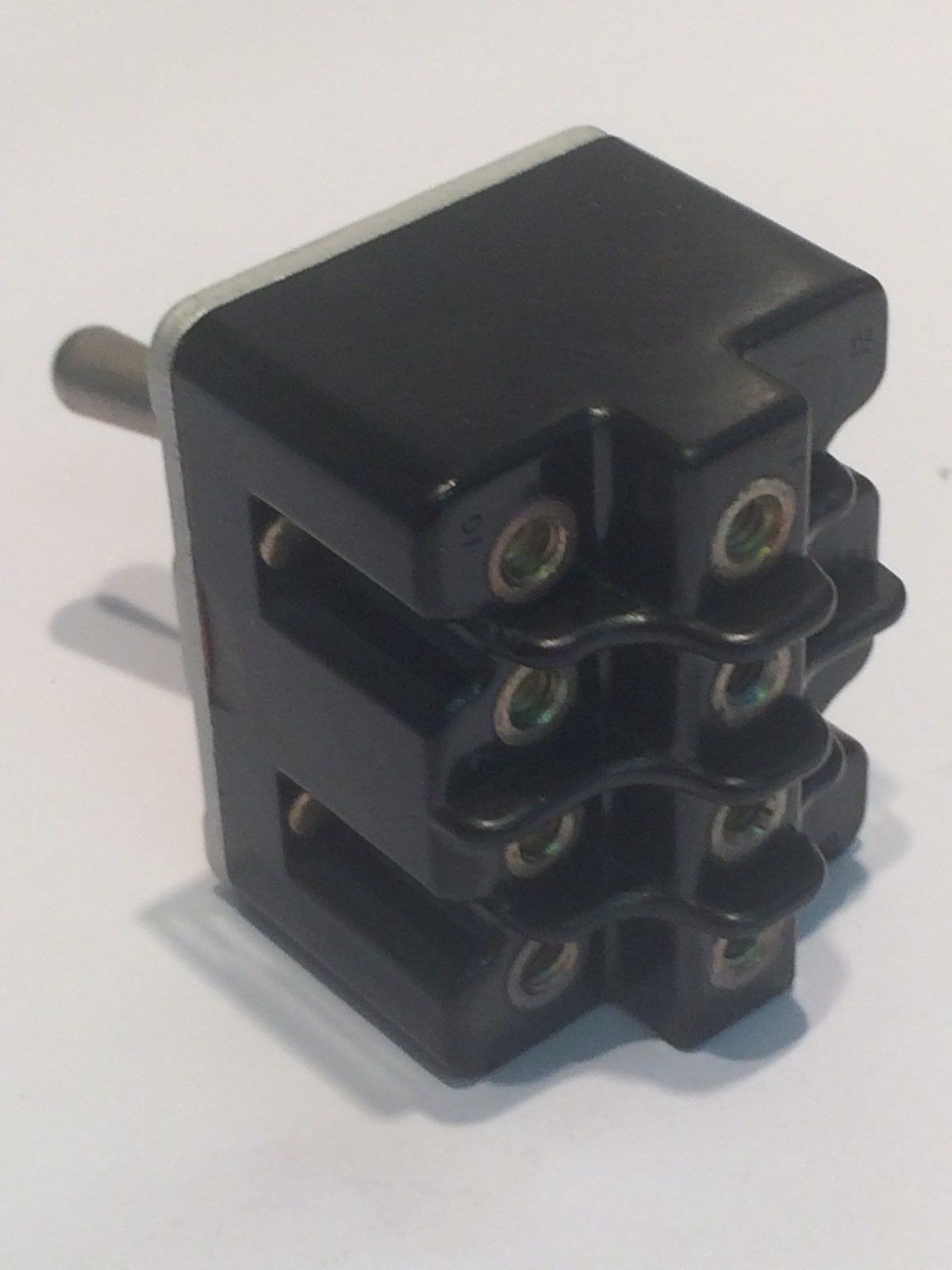

Connections are screw terminals, all connection screws washers and mounting nuts etc are included.
MOD price on this switch was over £60.00...
The switch is rated to 18A
Dimensions of the main body are 40mm x 34mm with a behind panel depth of about 35mm required. Mounting hole is about 12mm.
New unused in original NATO packing
