MILITARY SPEC 1 POLE CENTER OFF BIAS SPRING RETURN TOGGLE SWITCH 1TL1-5 ad1J69

Name: MILITARY SPEC 1 POLE CENTER OFF BIAS SPRING RETURN TOGGLE SWITCH 1TL1-5 ad1J69
Brand: Honeywell
SKU: 9308
Price: 33.00 GBP
Availability: InStock

£33.00

Sale Sold out

Taxes included.

Quantity

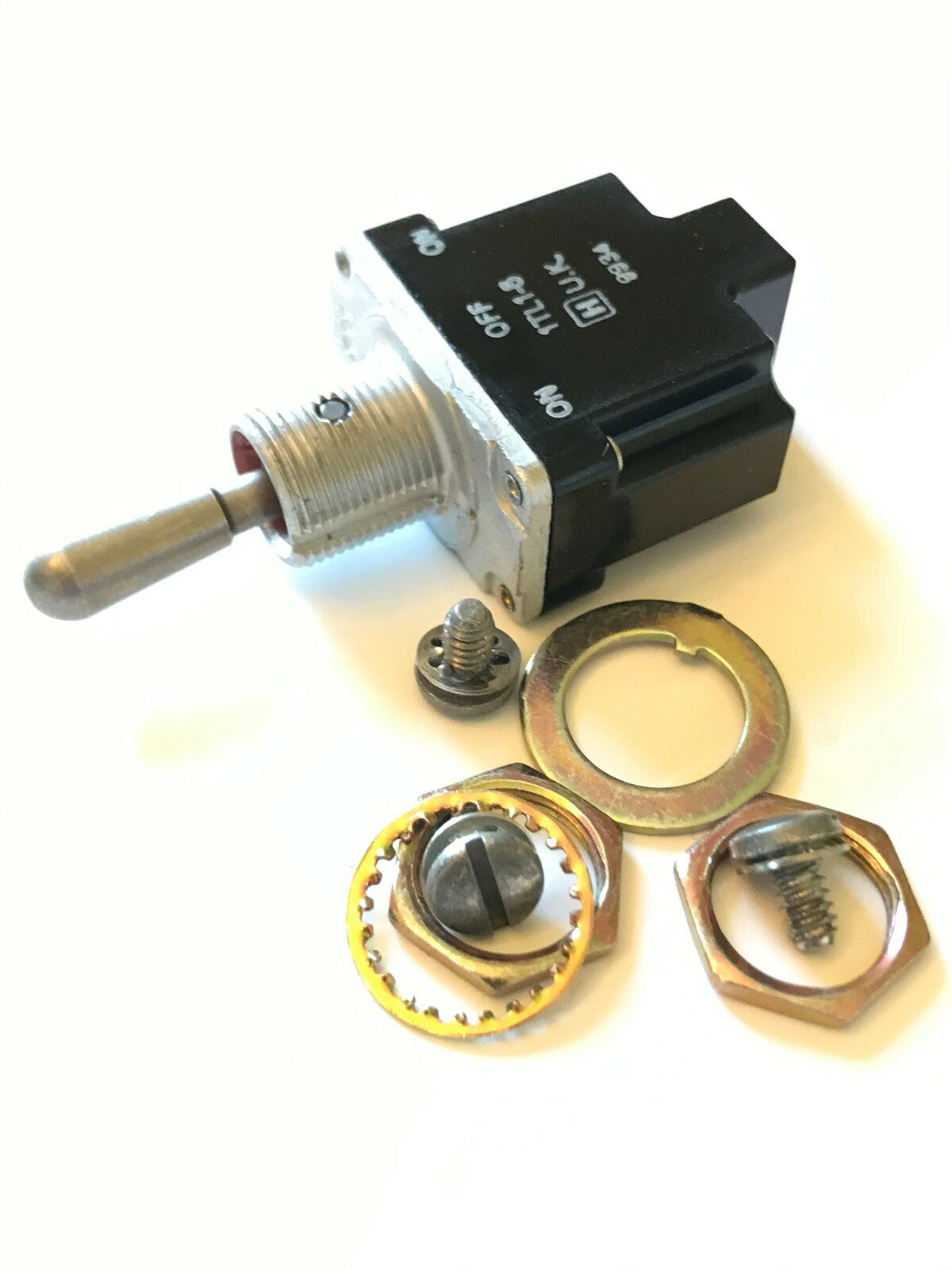

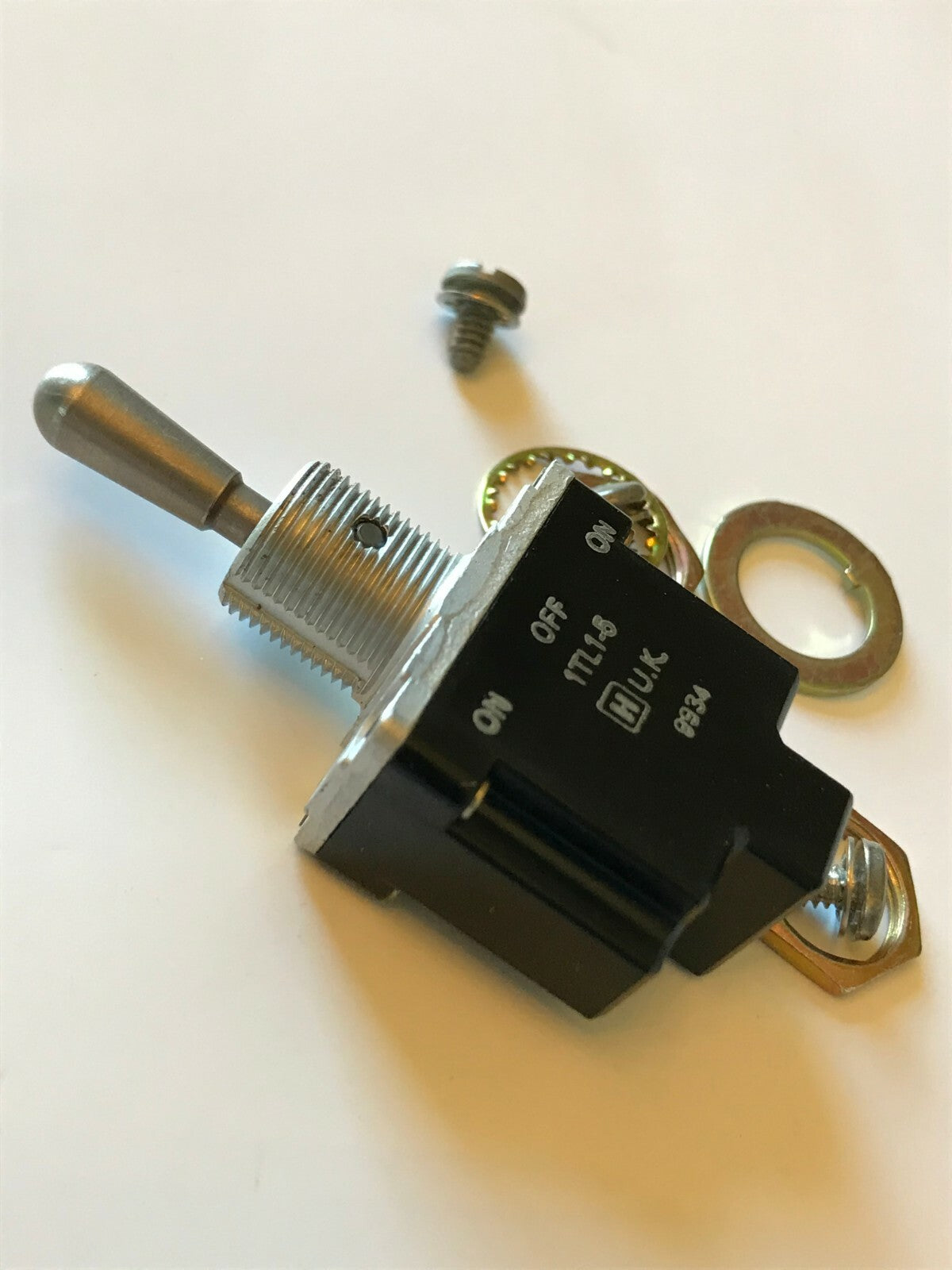

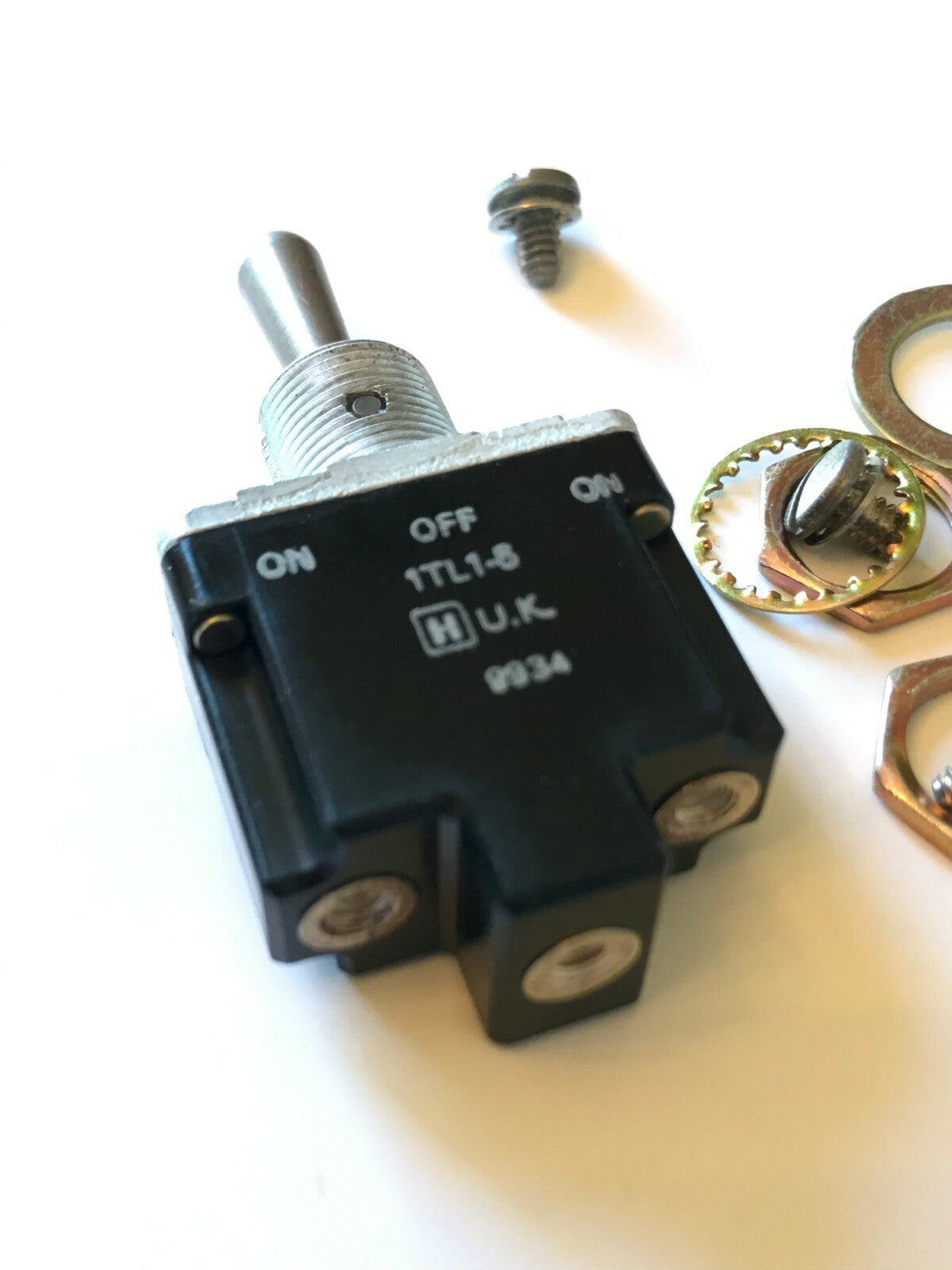

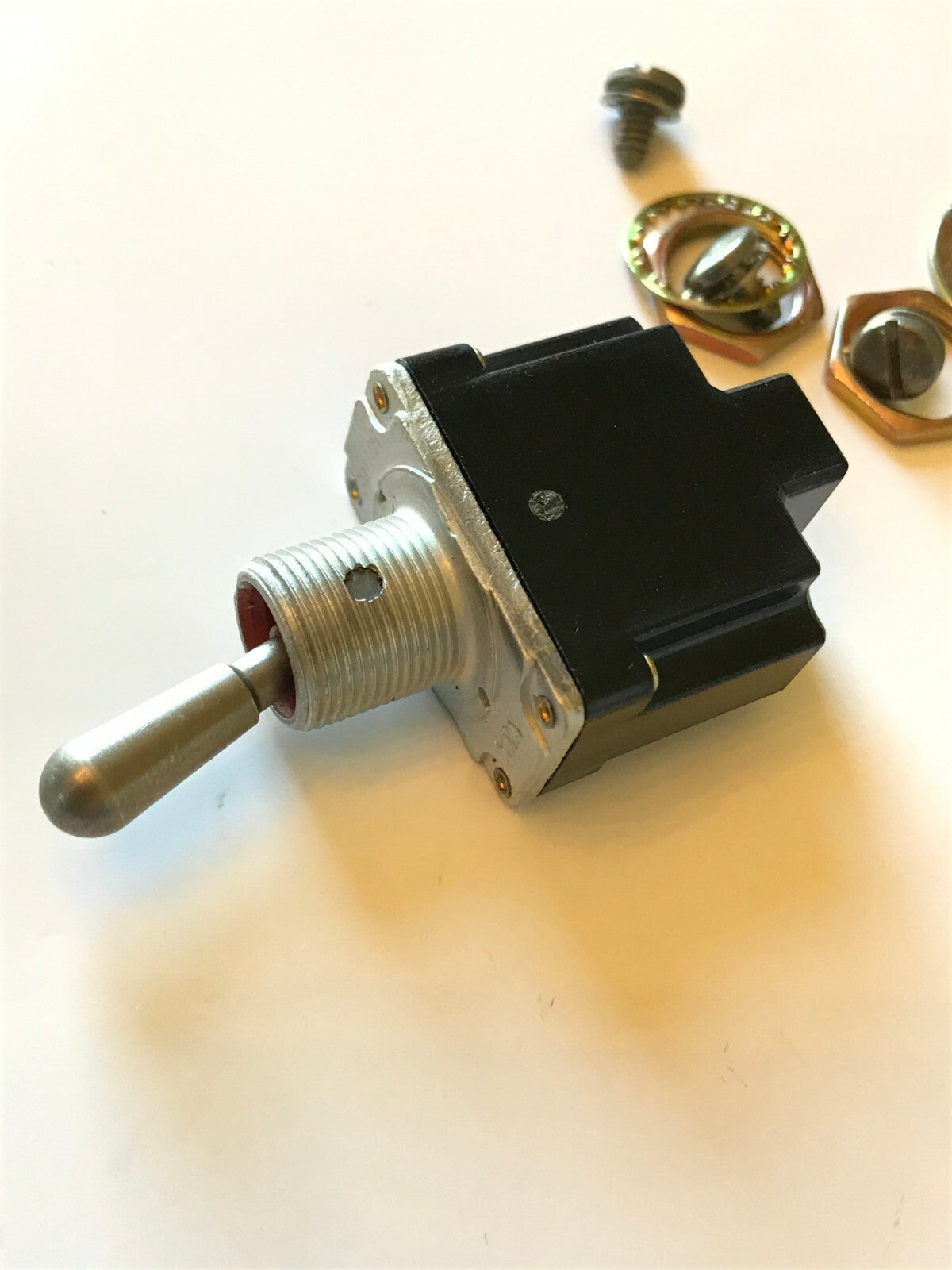

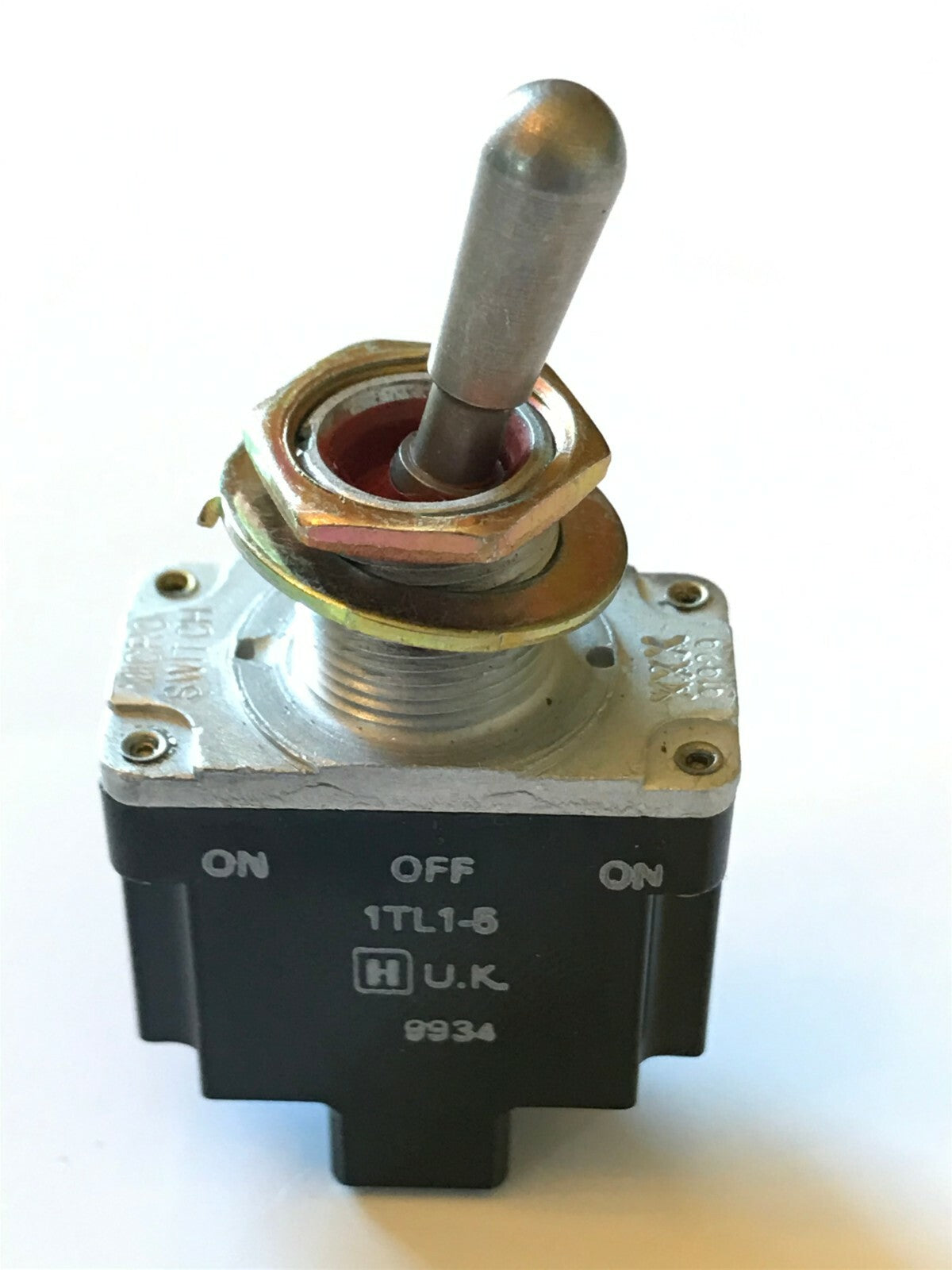

Manufactured in the UK by Honeywell as their part number 1TL1-5 to full military specifications MS24523-31, (NSN 5930-99-256-5333) These are a superb quality single pole 3 position - center off toggle switch, with one of the positions been momentary spring bias which returns to the center off position when released.

So the spring bias mechanism provides a momentary switch action, which snaps back to the central resting position when released.

The other switch position is maintained, not sprung returned.

Beautifully manufactured with a very strong and positive snap switch action. Bakolite body construction with stainless steel control knob / actuator, which is sealed - so ok for hazardous environment etc.

Connections are screw terminals, all connection screws washers and mounting nuts etc are included.

MOD price on this switch was over £60.00...

The switch is rated to 15A

Dimensions of the main body are 30mm x 15mm x 29mm with a behind panel depth of about 35mm required. Mounting hole is about 12mm.

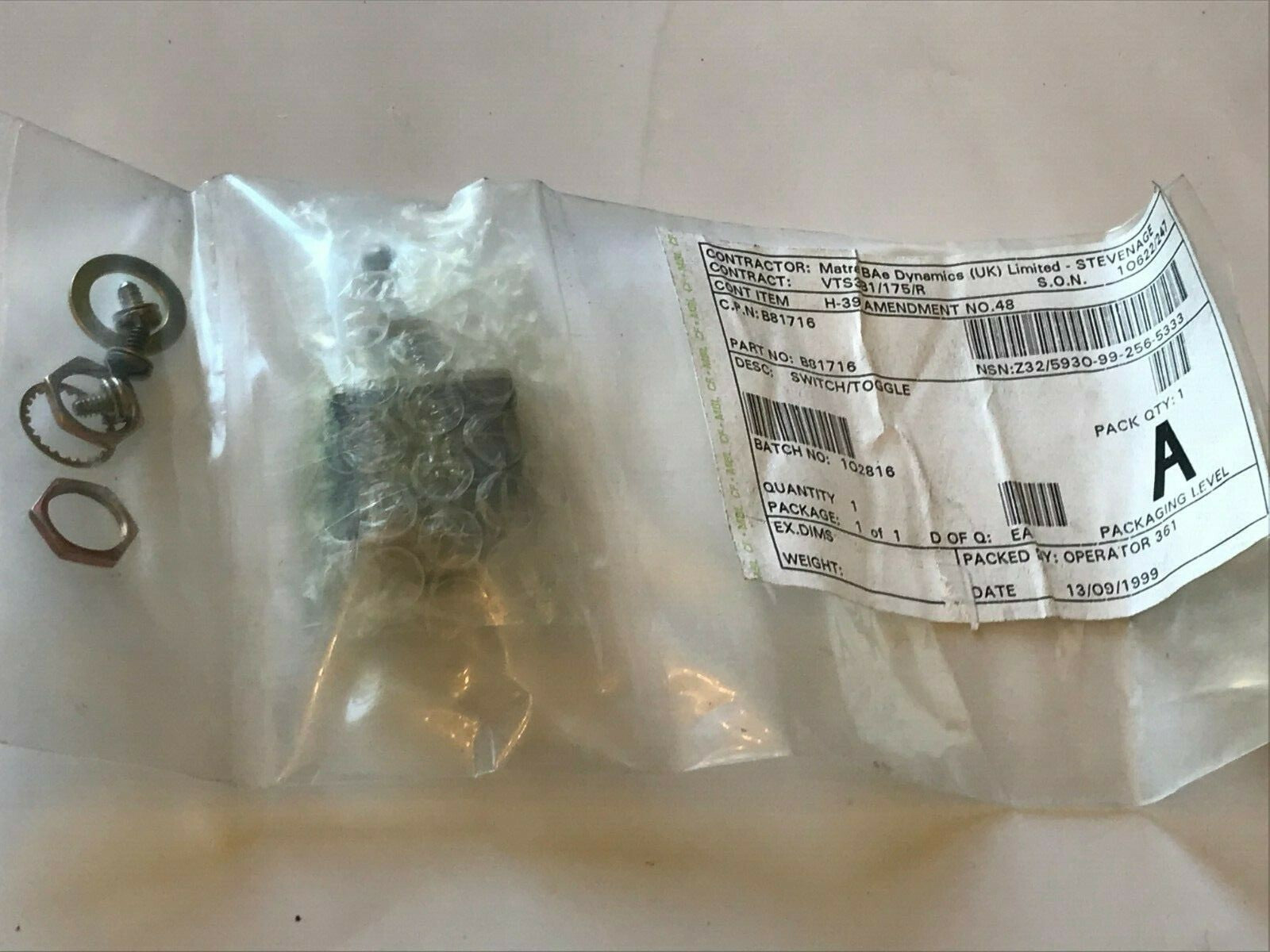

New unused in original NATO packing
