MILITARY PCB WITH DATEL SHM-6MM, ADC-HZ12BMM, OP16AJ, & OTHERS ae1*13

MILITARY PCB WITH DATEL SHM-6MM, ADC-HZ12BMM, OP16AJ, & OTHERS ae1*13

£120.00
£120.00
Sale Sold out
Taxes included.

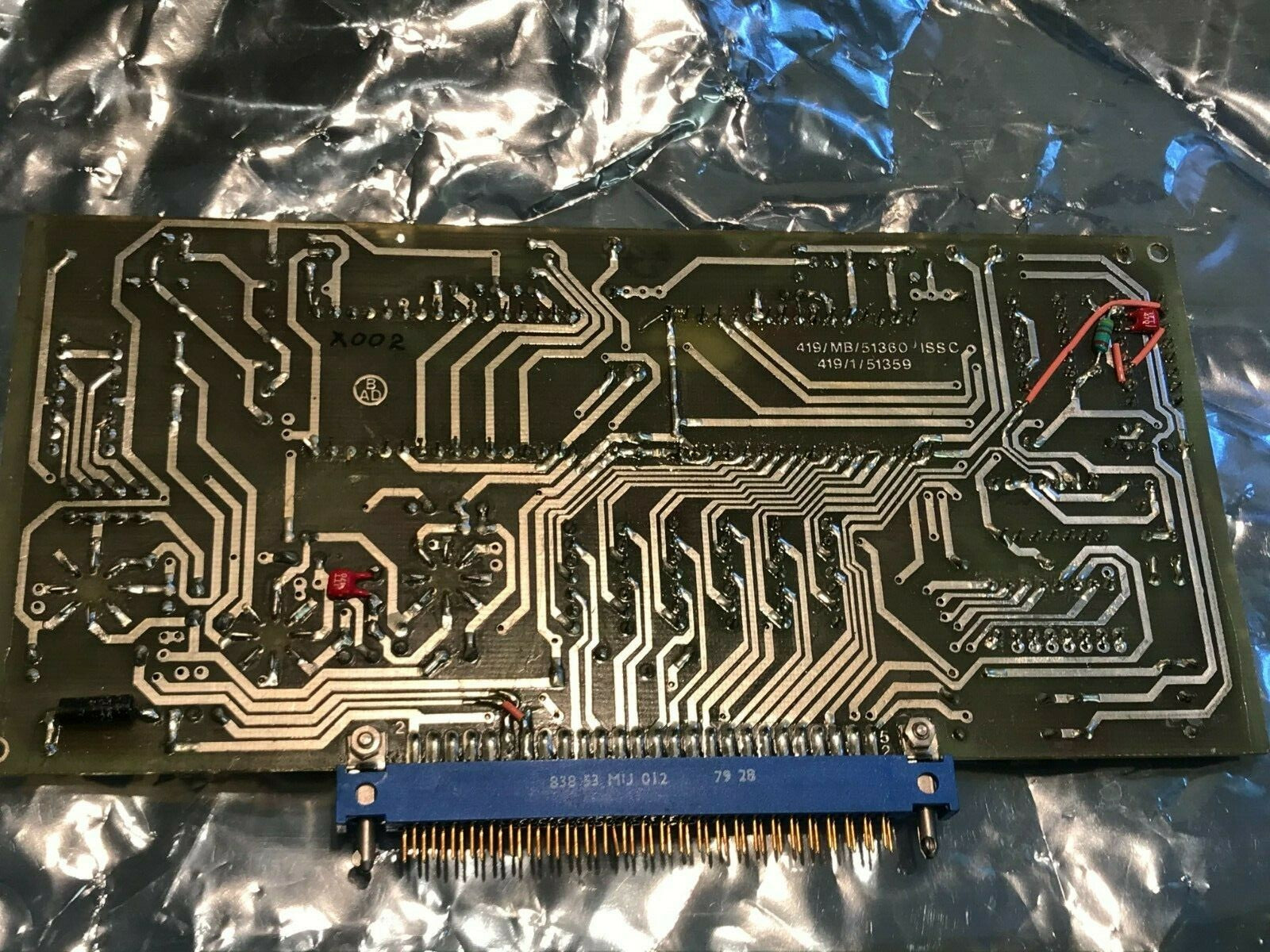

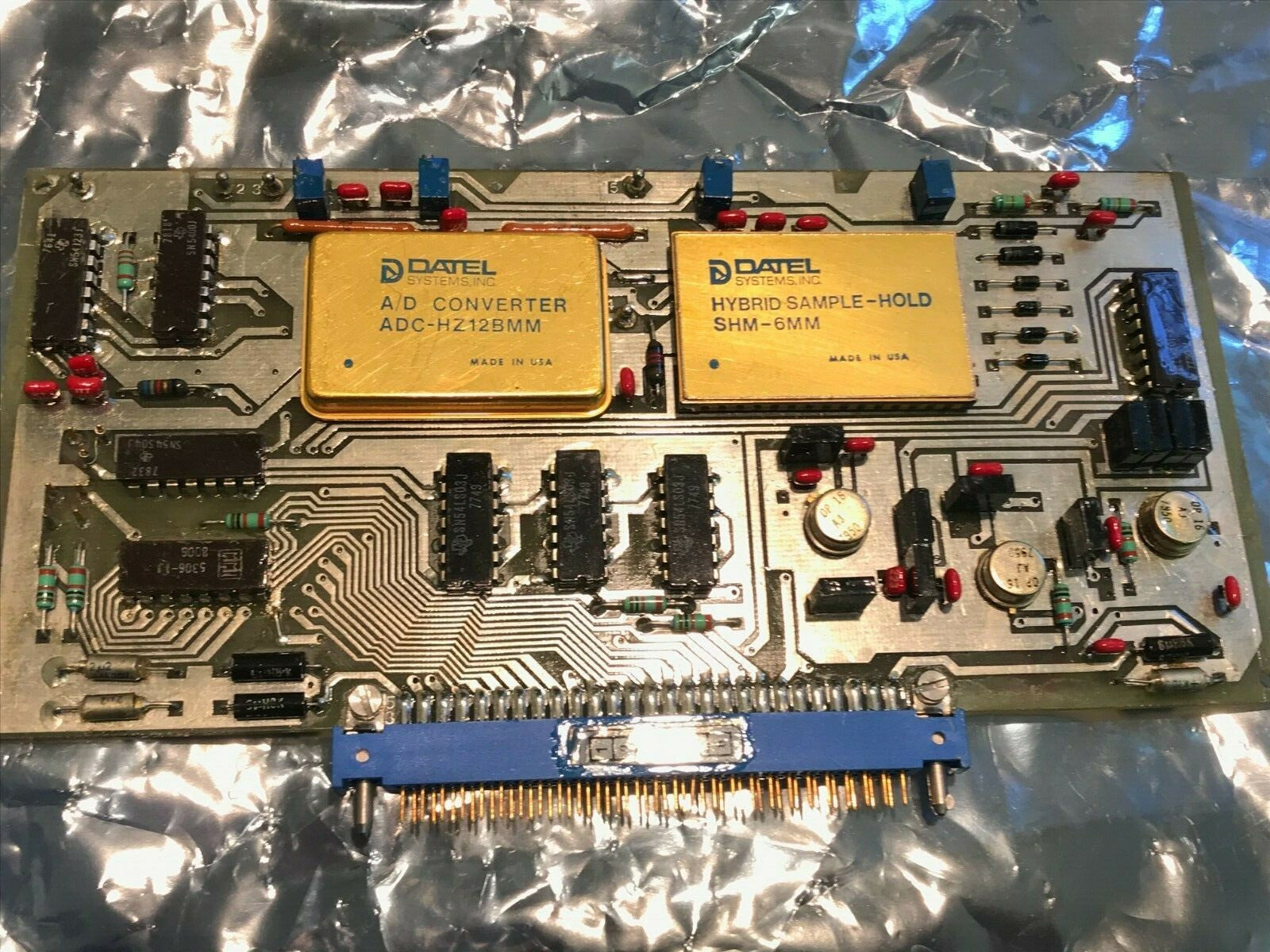

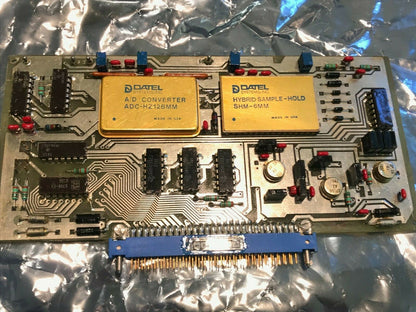

MILITARY I.C.'S  ON P.C.B.

These printed circuit boards ,were made by British Aerospace in the 1980's and were never installed or used. We are selling them for the very high value and ultra rare semiconductors fitted on the board.

This type has:

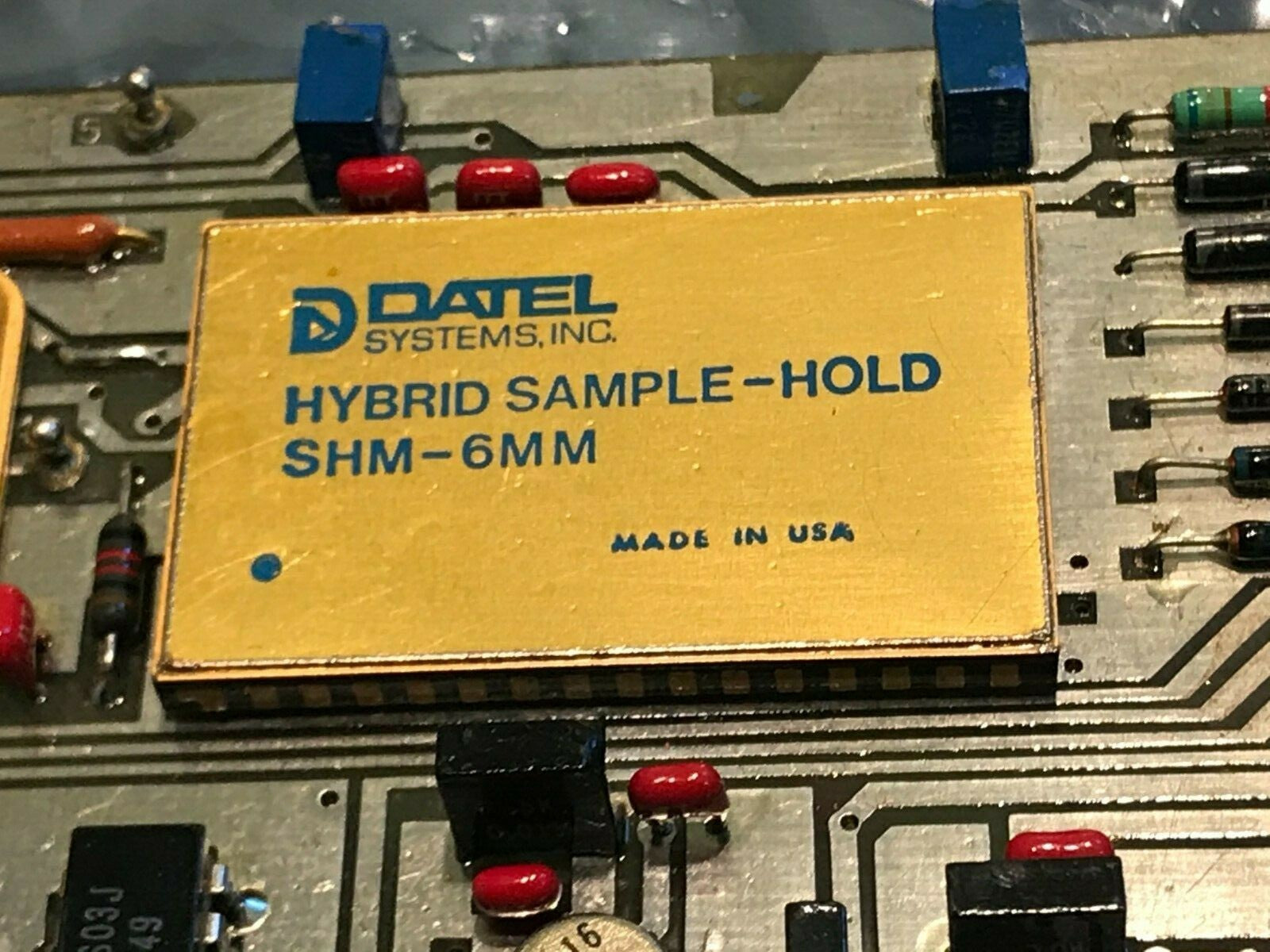

1x Datel-Intersil SHM-6MM Hybrid Sample - Hold high speed and high accuracy sample and hold circuit.

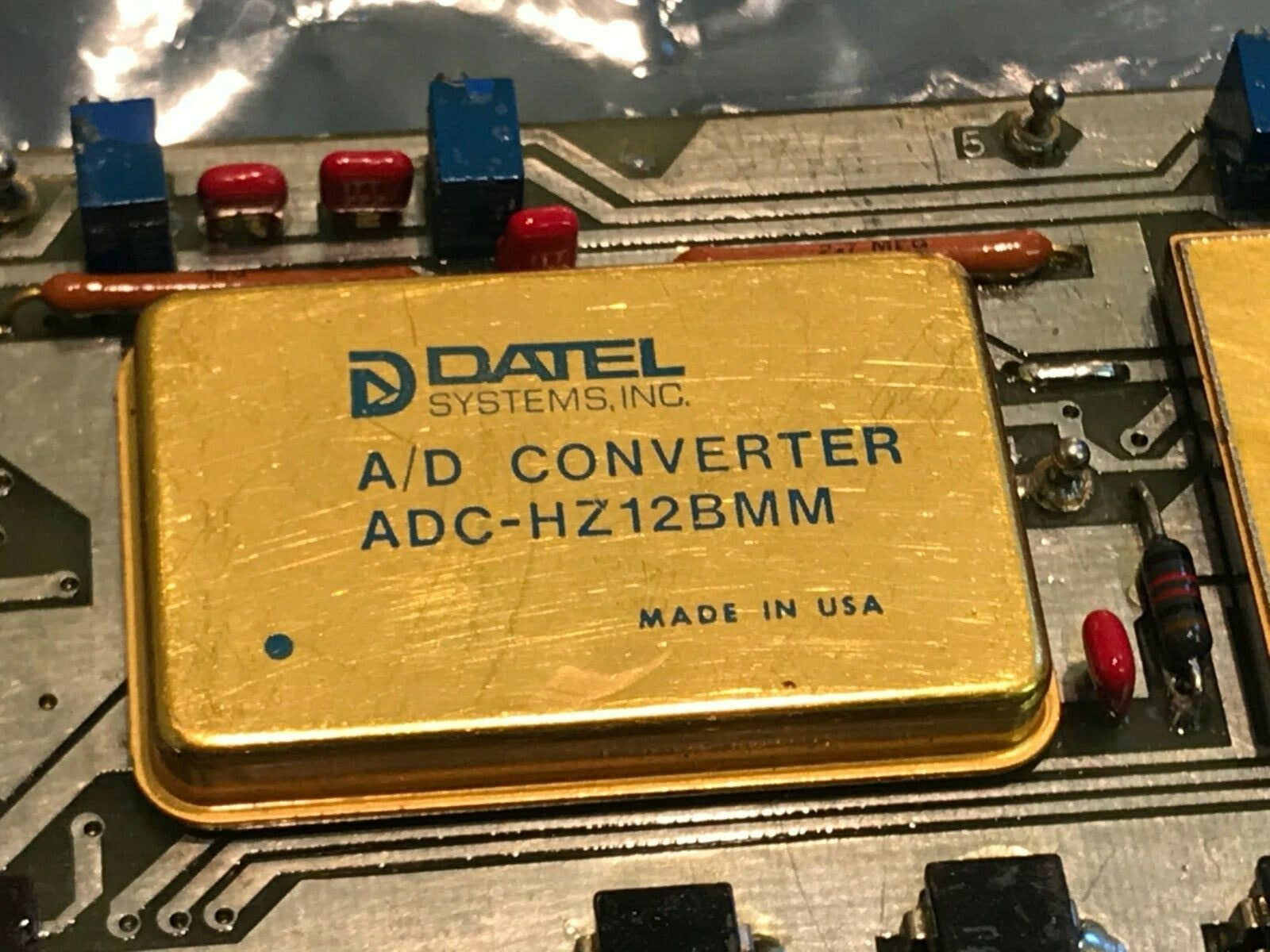

1x Datel  ADC-HZ12BMM high speed and high reliability 12 bit A/D convertor

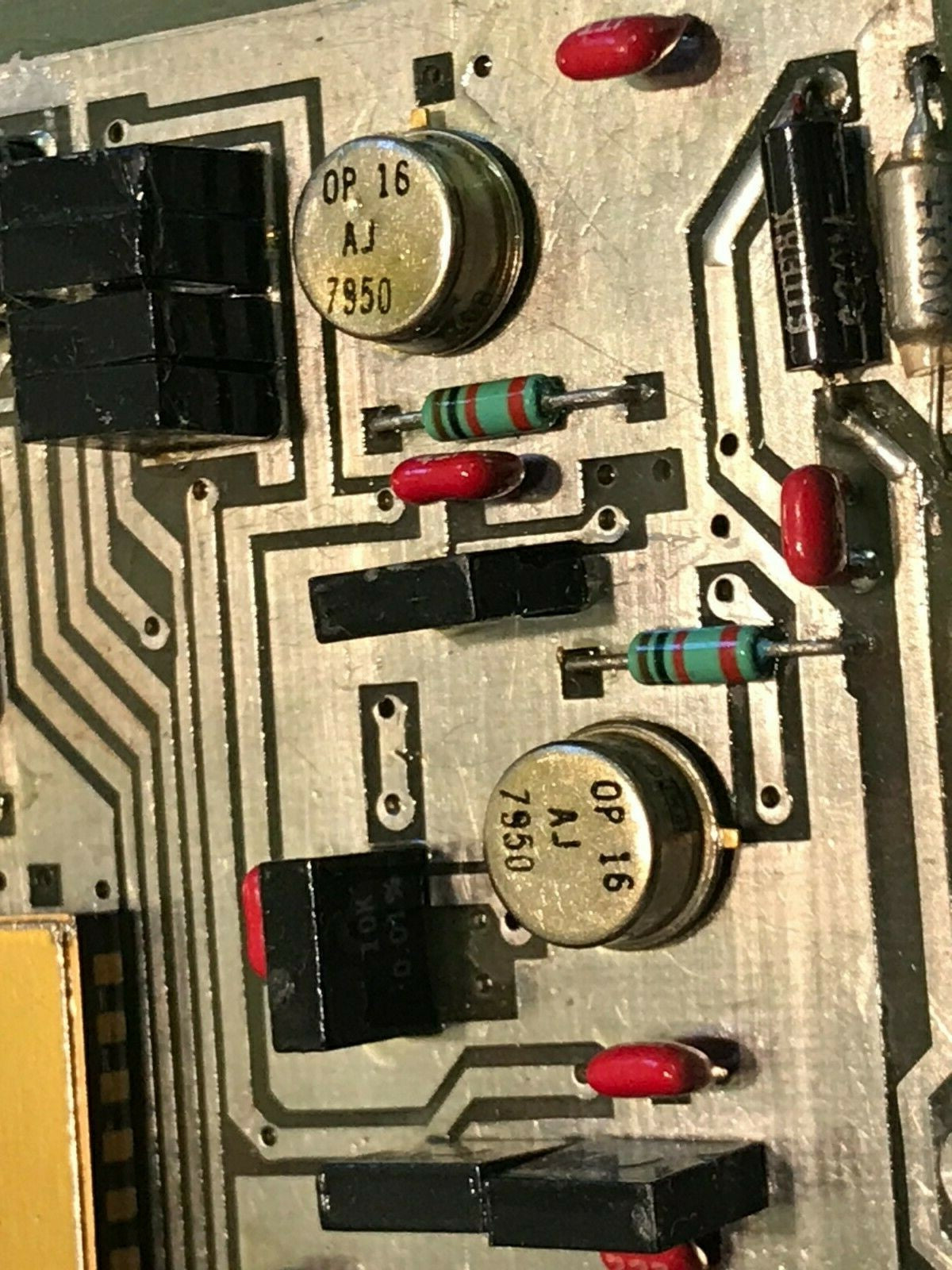

3x PMI  OP16AJ TO5 can op amps

1X Harris analogue switch
And 7 other Motorola / Texas 54LS series.


The datasheet for the Datel sample hold circiuits can be seen here:
http://www.datel.com/data/ads/shm-6.pdf

and

The datasheet for the Datel A/D convertor can be seen here:
http://www.datel.com/data_sheets/?http://www.datel.com/data/ads/adc-hxhz.pdf


 These boards are new unused and came to us many years ago from a UK based MOD sub-contract manufacturer, so the components on them are also perfect and original.

Priced and supplied each x1 board.
