MILITARY PCB DATEL SHM-6MM, ADH-8586-12-1/883C, OP16AJ AMPS & OTHERS ae1*11

MILITARY PCB DATEL SHM-6MM, ADH-8586-12-1/883C, OP16AJ AMPS & OTHERS ae1*11

£120.00
£120.00
Sale Sold out
Taxes included.

MILITARY I.C.'S  ON P.C.B.

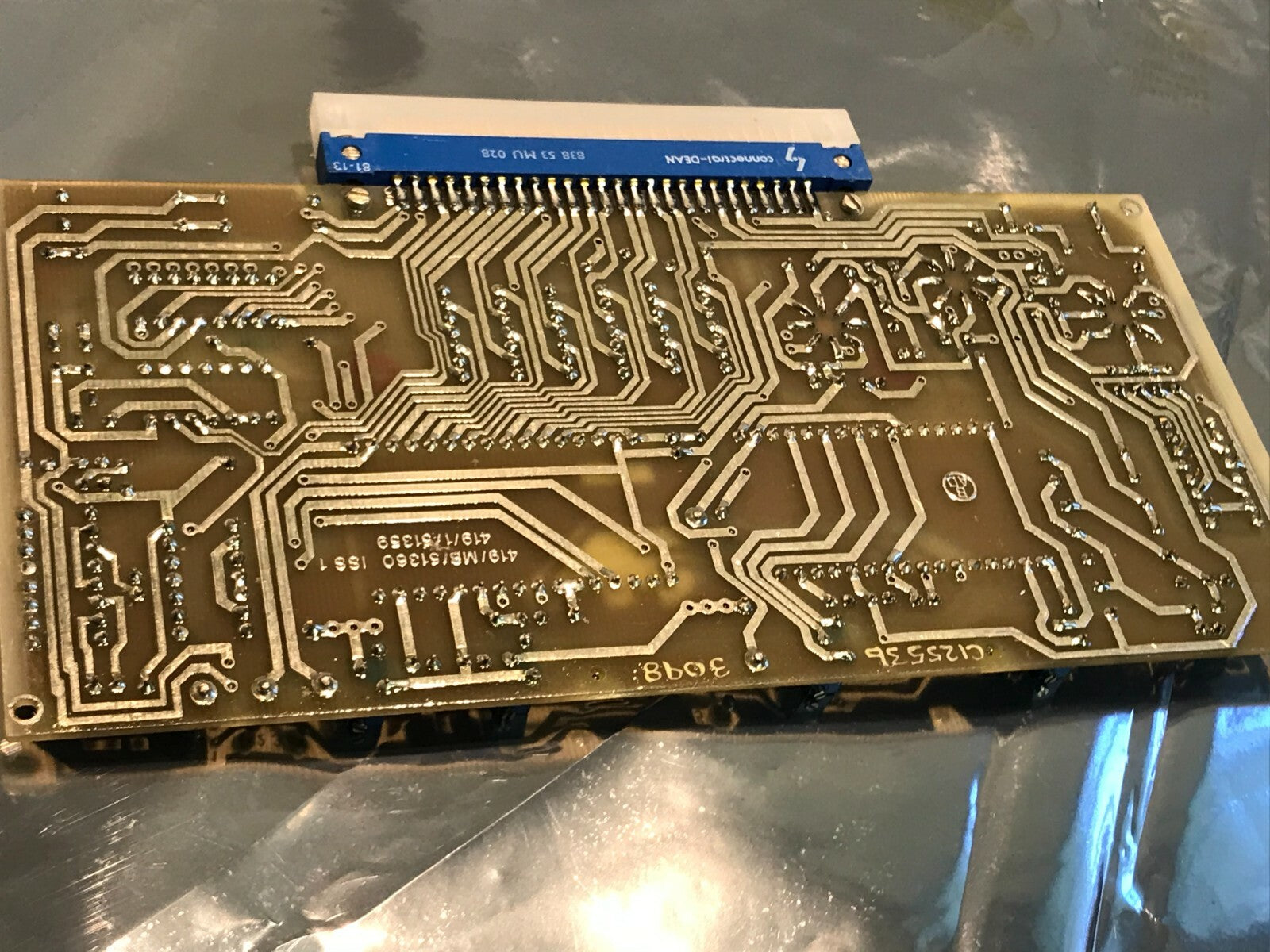

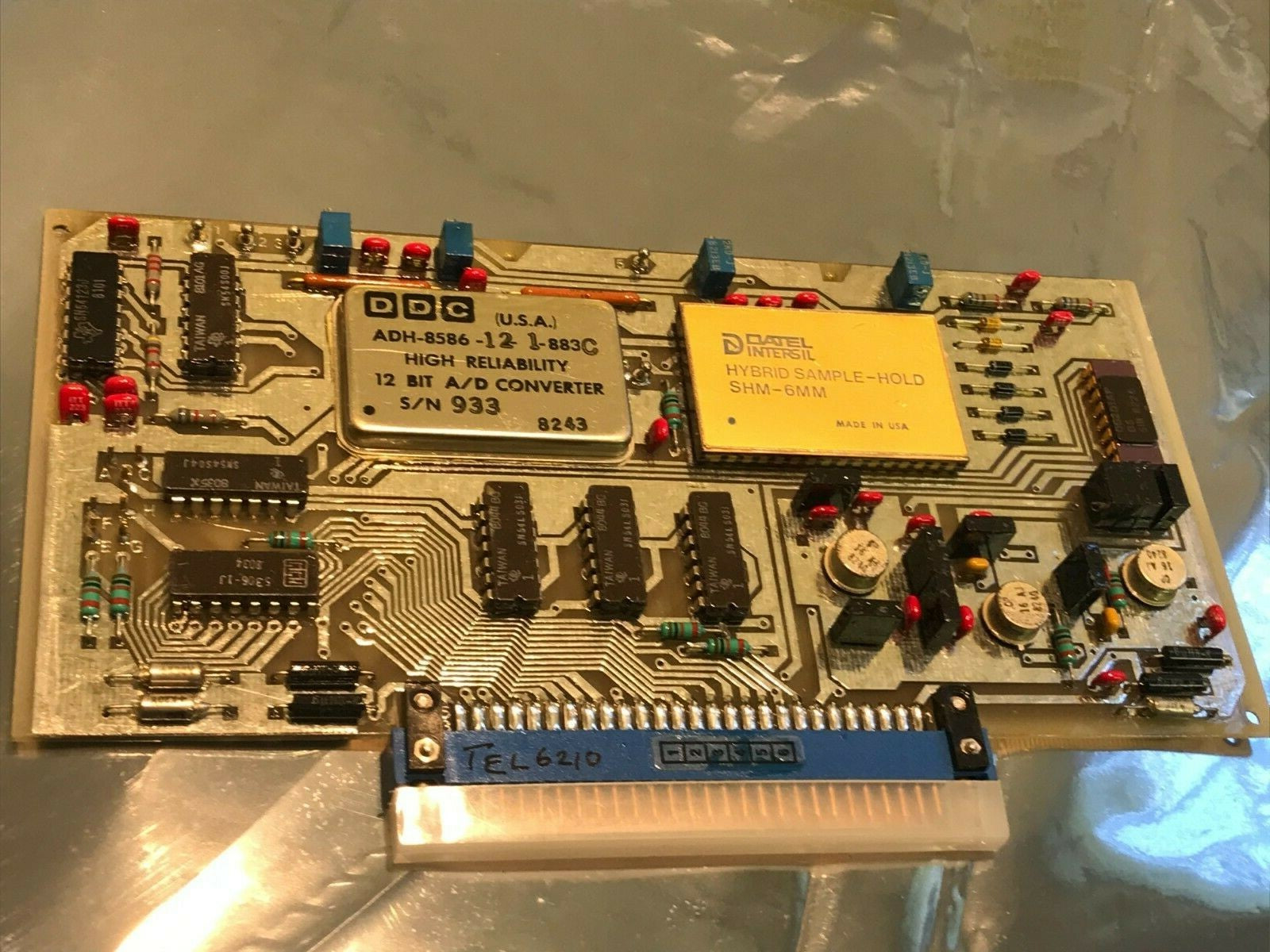

These printed circuit boards ,were made by British Aerospace in the 1980's and were never installed or used. We are selling them for the very high value and ultra rare semiconductors fitted on the board.

This type has:

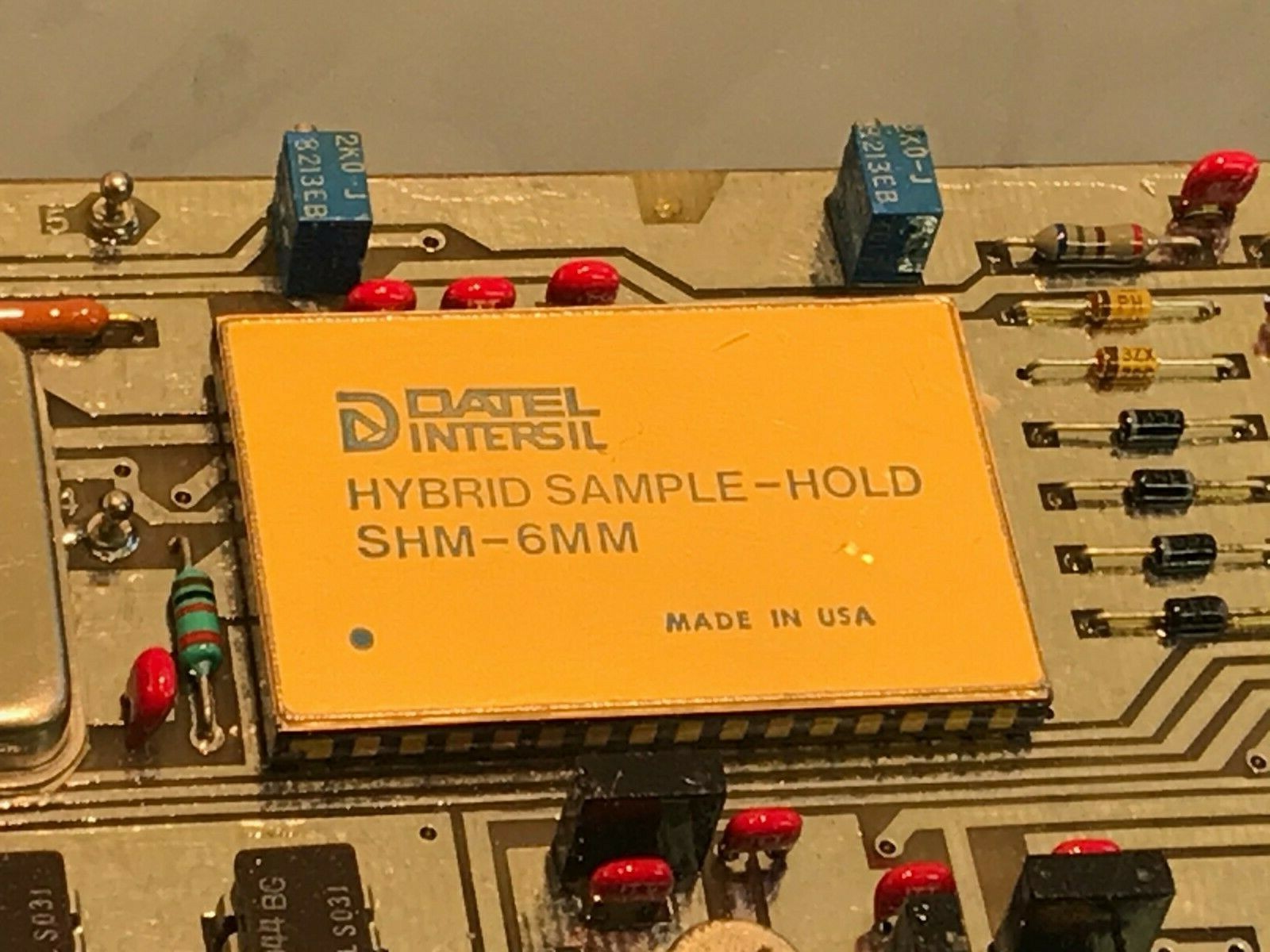

1x Datel-Intersil SHM-6MM Hybrid Sample - Hold high speed and high accuracy sample and hold circuit.

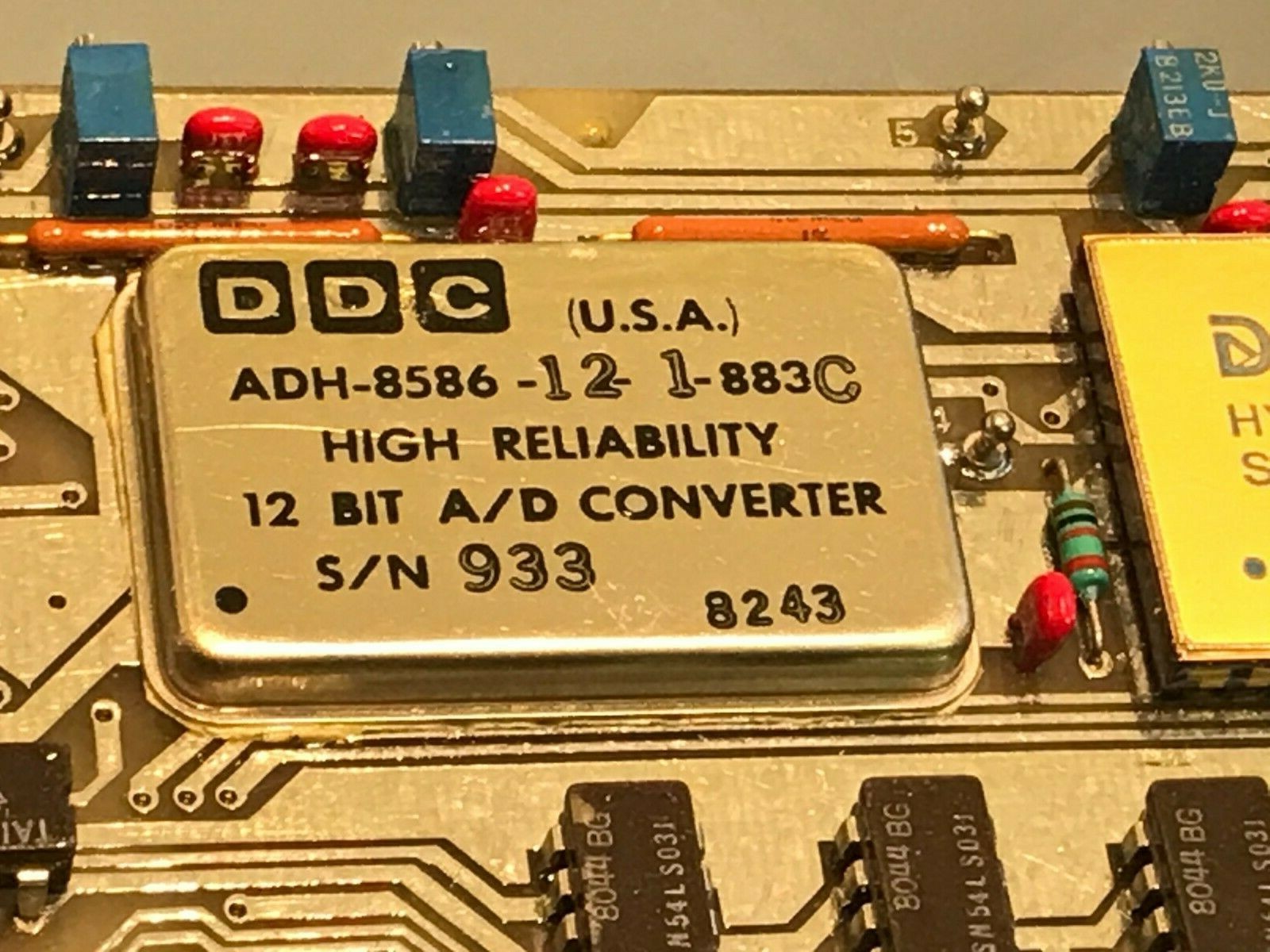

1x Data Device Corporation ADH-8586-12-1/883C high reliability12 bit A/D convertor

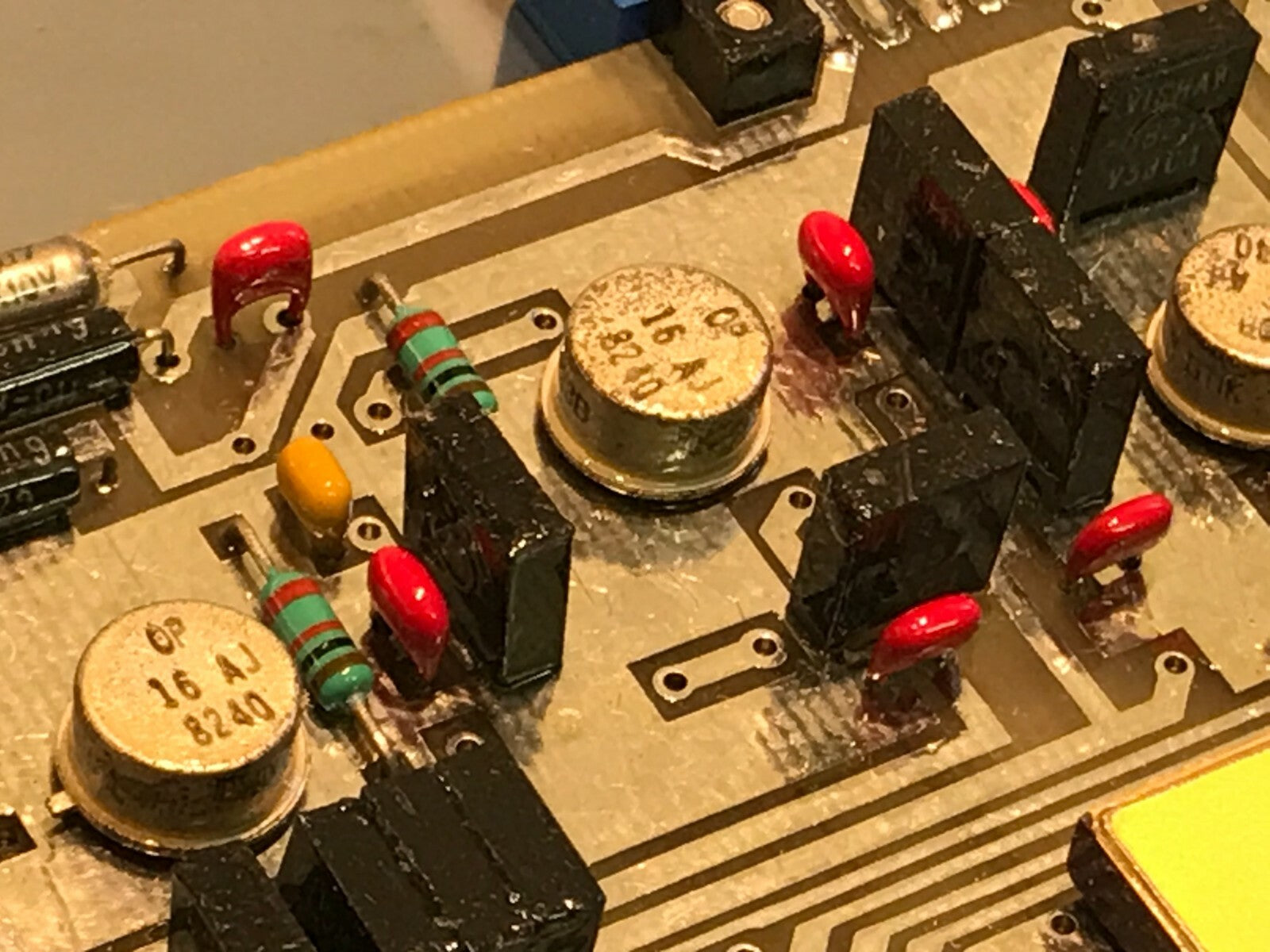

3x PMI  OP16AJ TO5 can op amps

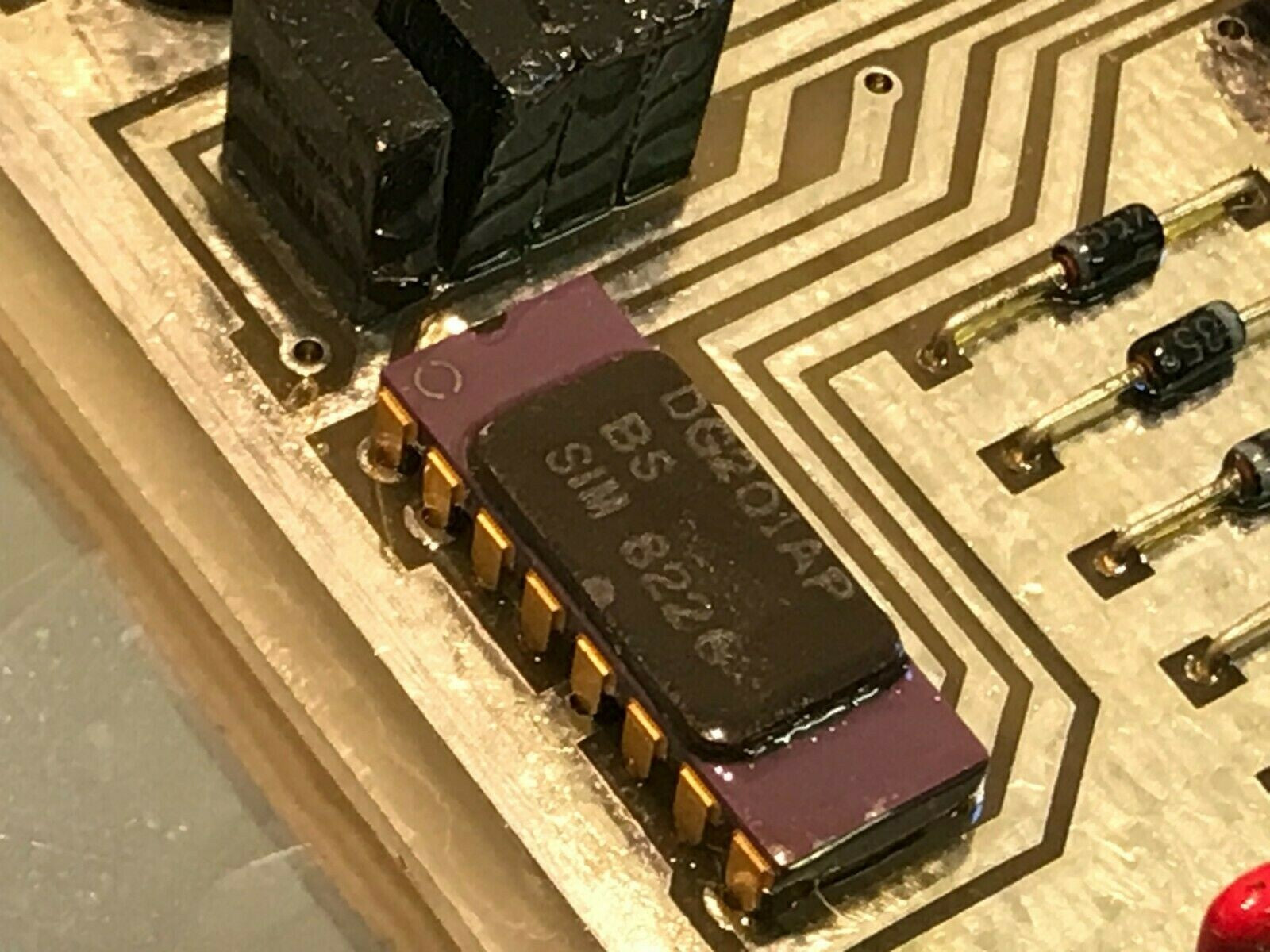

1x SIliconix DG201AP-BS analogue switch
And 7 other Texas 54LS series.


The datasheet for the Datel sample hold circiuits can be seen here:
http://www.datel.com/data/ads/shm-6.pdf

and

The datasheet for the DDC A/D convertor can be seen here:
https://www.datasheetarchive.com/pdf/download.php?id=c5187ed477c5bb6794310fe30c88db2df395fc&type=M&term=ADH8586121883B


 These boards are new unused and came to us many years ago from a UK based MOD sub-contract manufacturer, so the components on them are also perfect and original.

Priced and supplied each x1 board, and a further quantity maybe available exclusively from our stock, contact us for details.
