MICROBUS BACKPLANE FOR SINGLE BOARD COMPUTERS
|
|
|
|
|
|
|
|

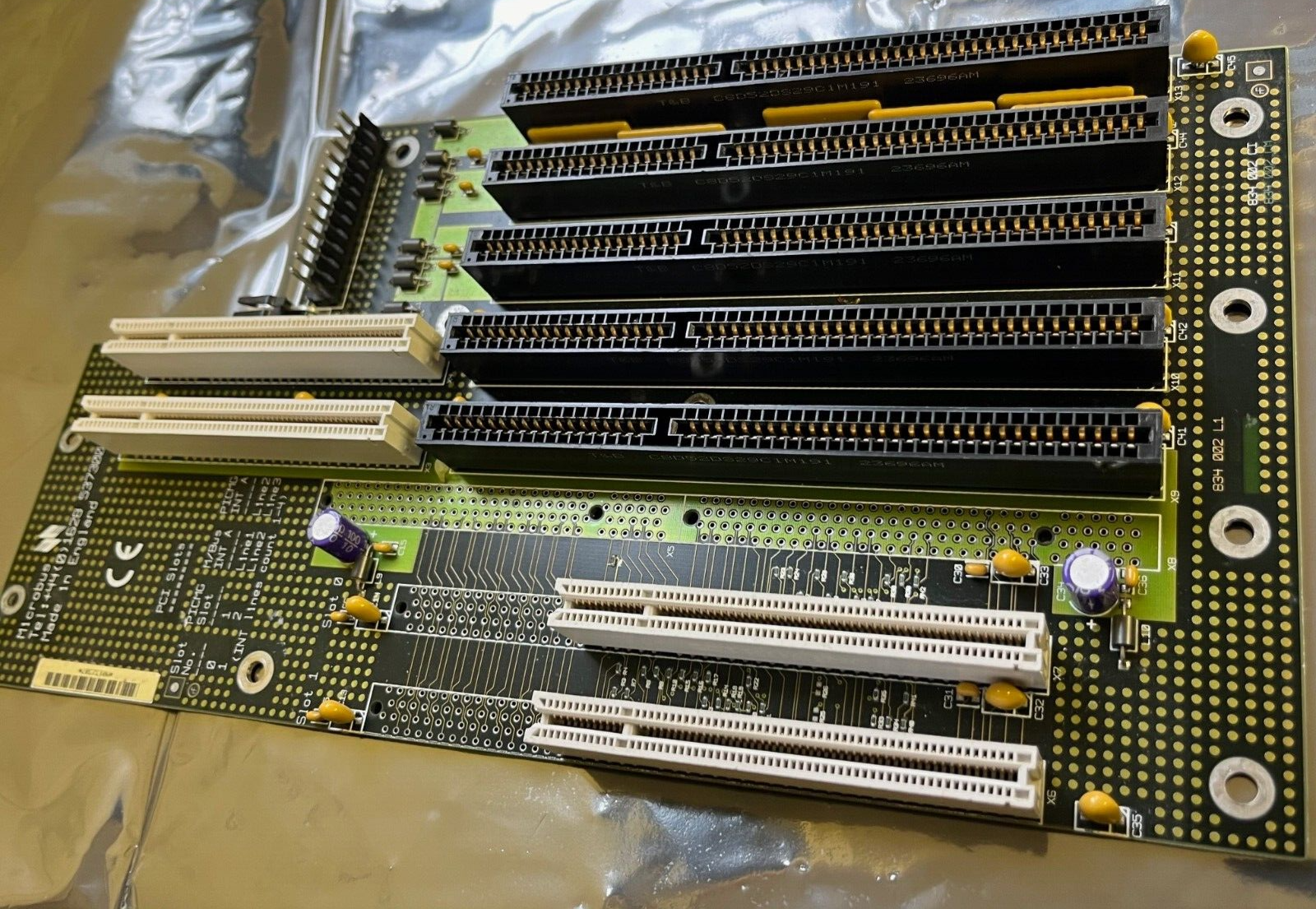

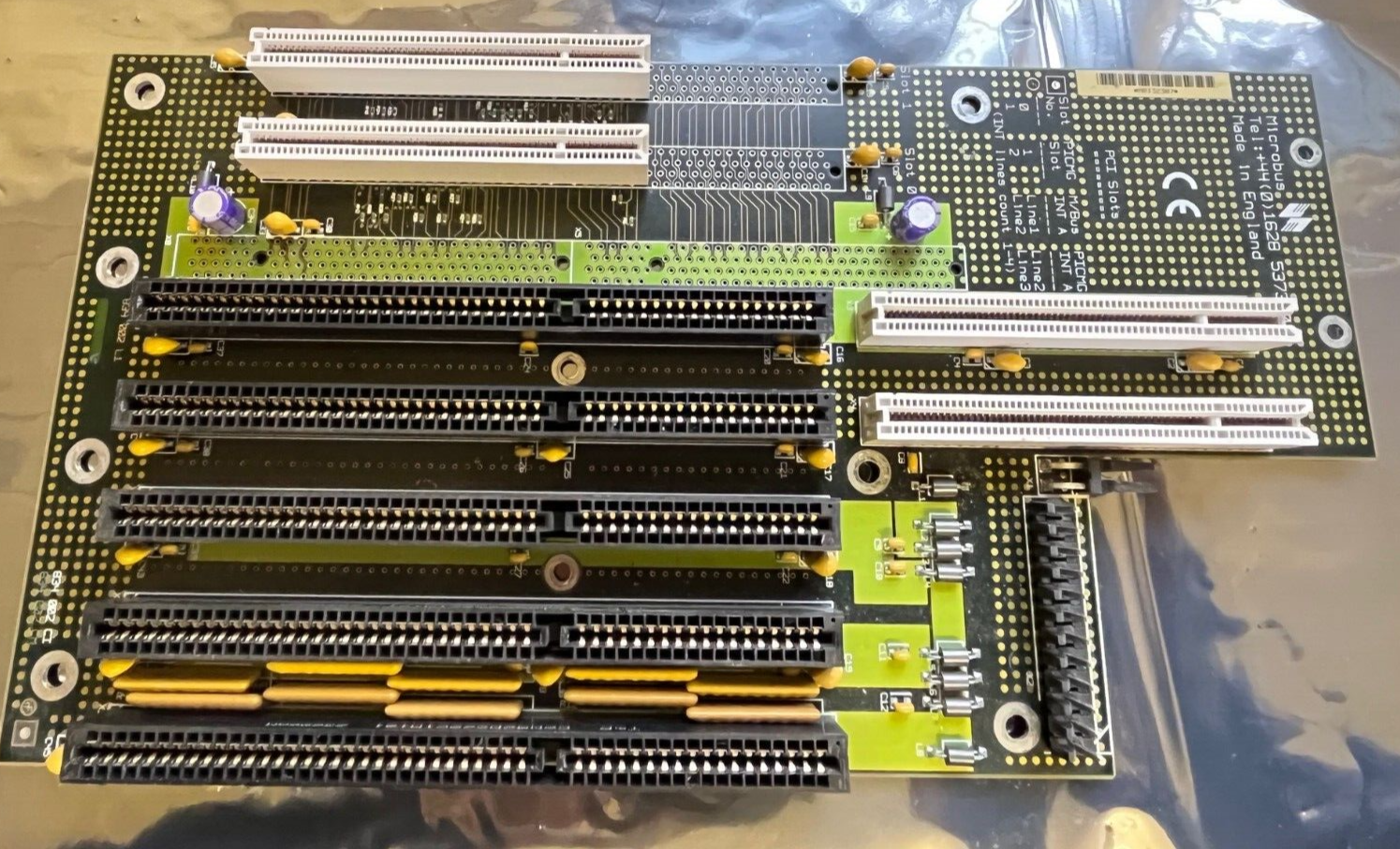

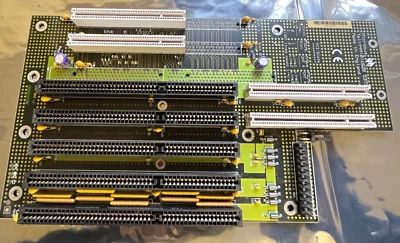

This is the Microbus type 834-002 - a bog standard backplane manufactured by Microbus for use with Single Board Computers and embedded systems.

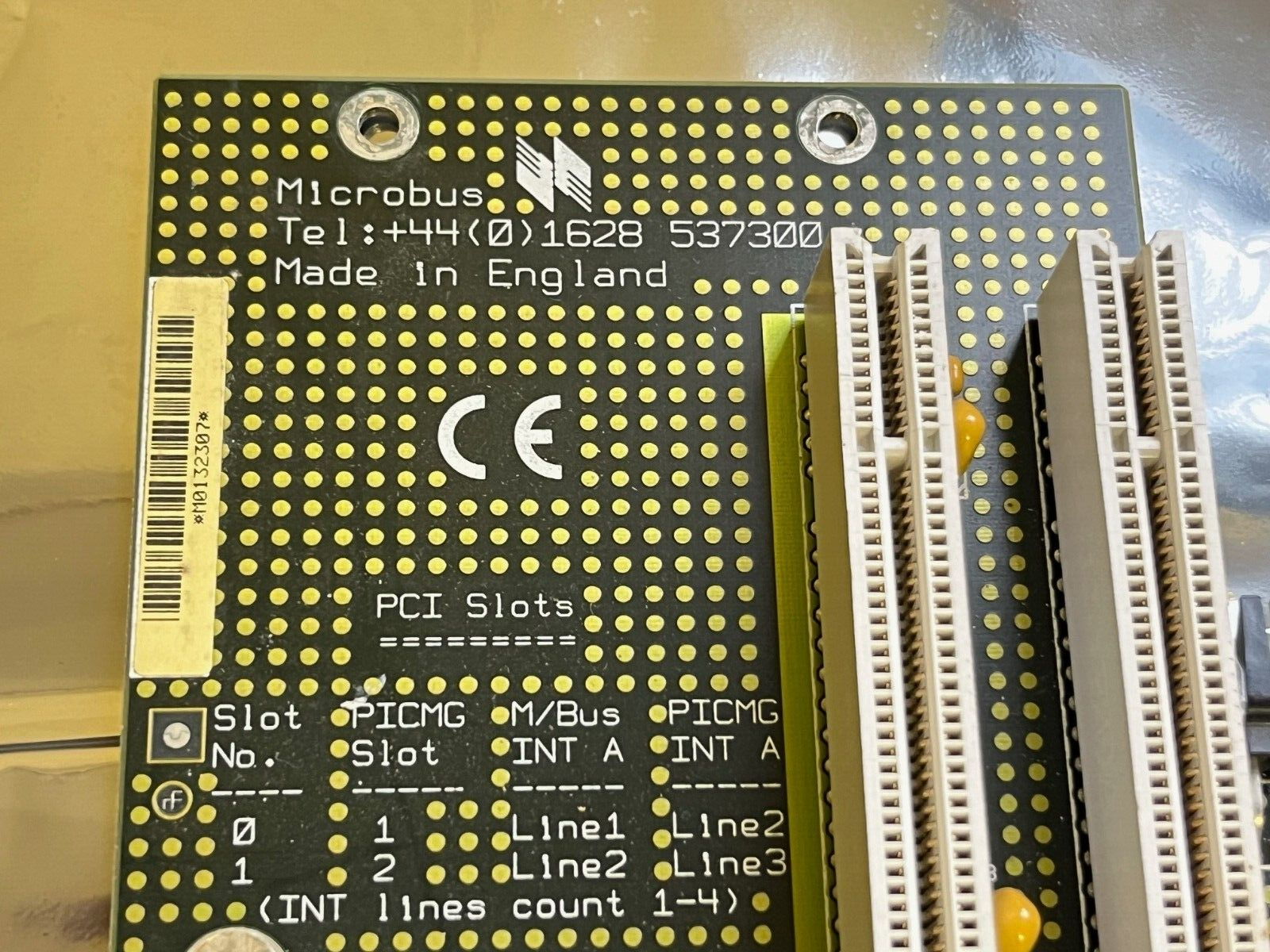

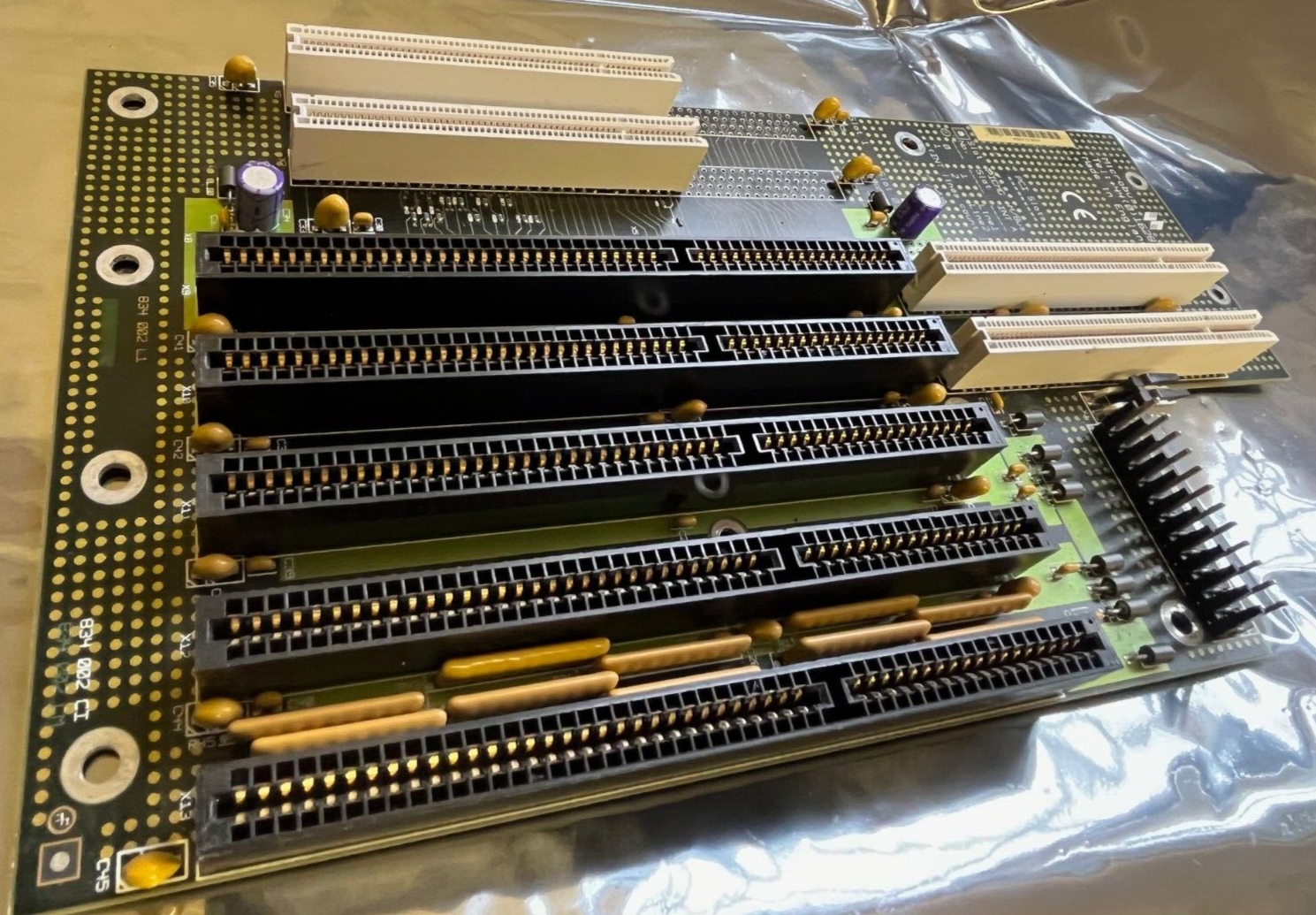

They have 5x 16 Bit full length ISA slots, (two with a PCI slot directly behind it, as used by and required by some SBC manufacturers) and 2 standard PCI slots
Standard old type AT motherboard power supply connection (12 pin - 2 x 6 way in line usually)
Dimensions are 274mm long x 147mm wide.
Over the years we have seen this exact card used in many embedded system environments, so they are a well used type; these particular ones have been stripped from military communications equipment that had never been used and were 'destroyed'. So although the cards are not new in the strictest sense, they are as new and in perfect working condition.
Useful for maintaining older embedded systems, would usually cost up to 10 times what we are asking for them.
Elsewhere in our shop we also sell the suitable single board computer systems compatible with this card, if you are building a system from scratch or need to replace it all.
