Texas Instruments

MEMORY PCB WITH 84 X 4256 TEXAS INST DRAM MEMORY CHIPS TMS4256-12NL ac1f23

MEMORY PCB WITH 84 X 4256 TEXAS INST DRAM MEMORY CHIPS TMS4256-12NL ac1f23

£60.00
£60.00
Sale Sold out
Taxes included.

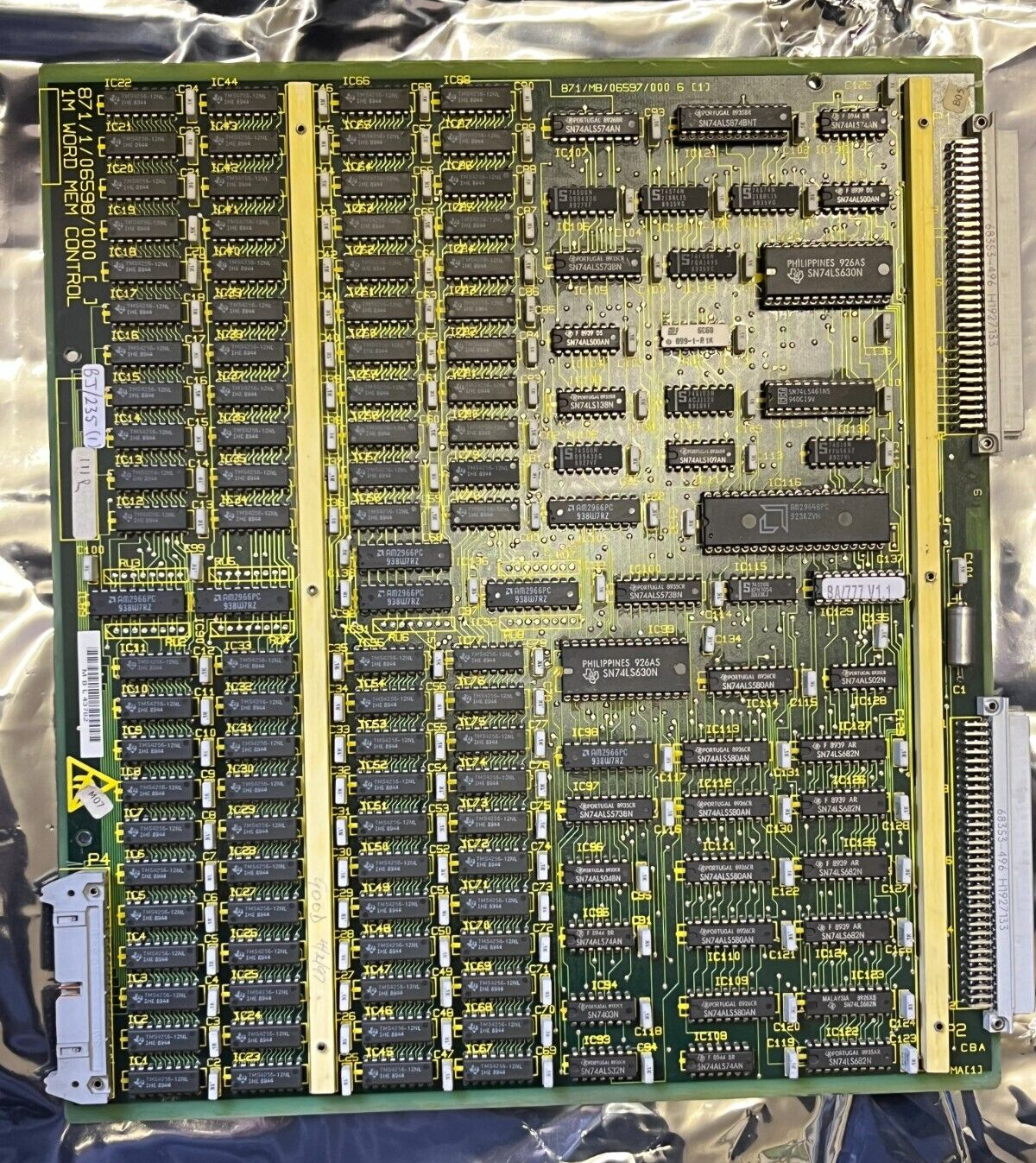

MEMORY CARD WITH DRAM I.C.'S ON P.C.B.

These printed circuit boards ,were made by Plessey in the 1990's and were never installed or used. We are selling them for the now rare semiconductors fitted on the board.

This type has:

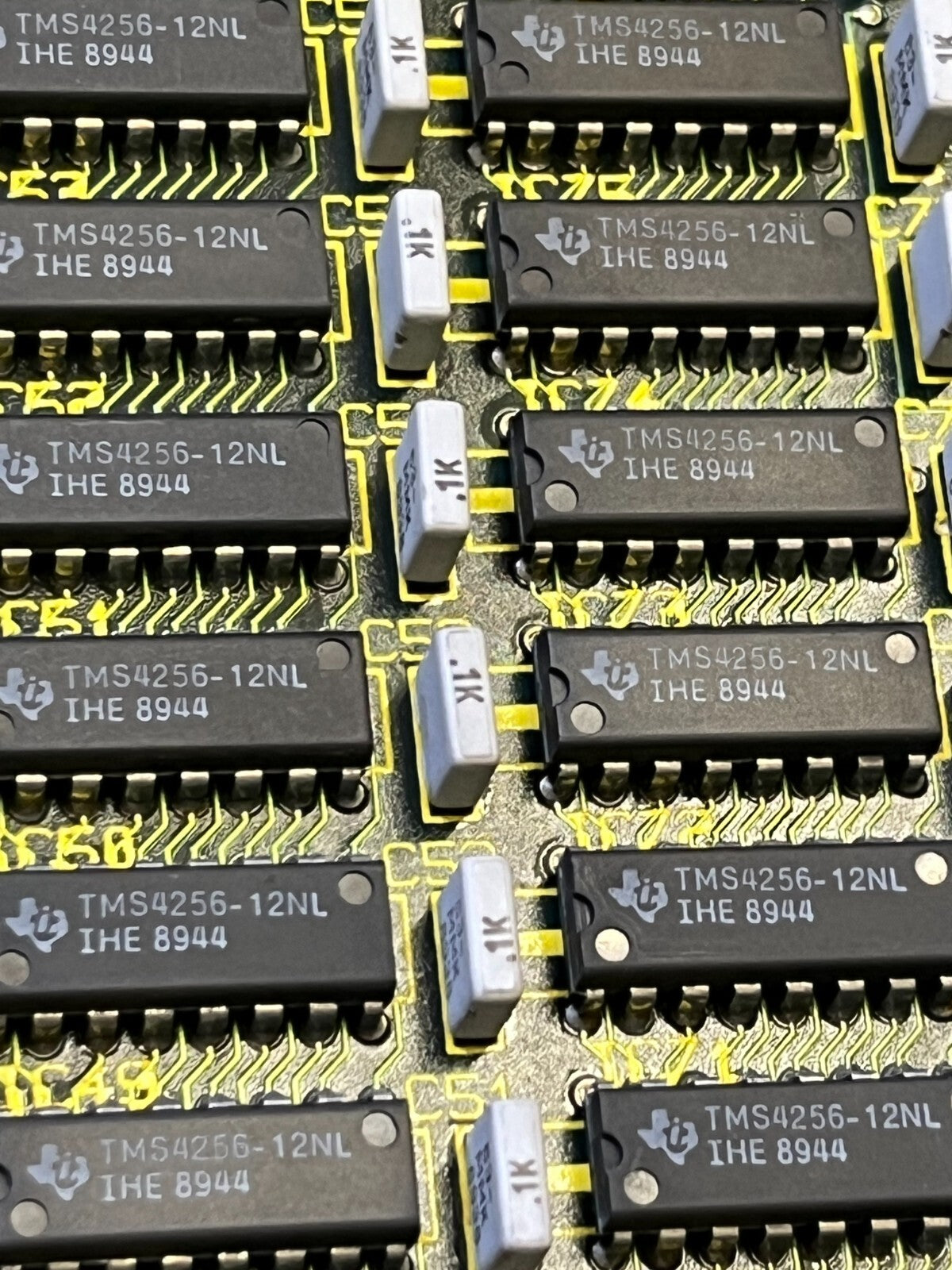

84 x Texas Instruments TMS4256-12NL

These are 256k x 1 bit early DRAM memory chips, 120nSec access time, 16 Pin DIL,

The 41256 were a generic dynamic memory chip of the era, used in many early personal computers made by Commodore, Sinclair and Apple etc, these are mainly date code 1989.

The legs have not been cropped, so when desoldered from the board will be perfect chips.


 These boards are new unused and came to us many years ago directly from the Plessey manufacturing site, so the components on them are also perfect and original.

Priced and supplied each x1 board.
