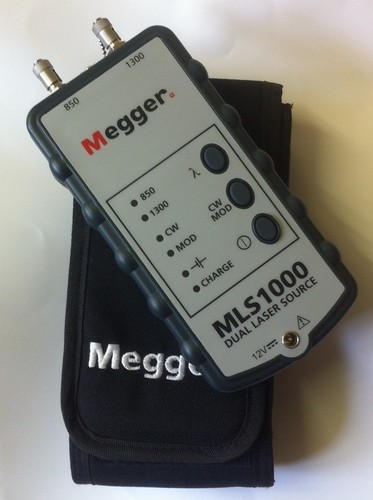

Top quality piece of industry standard test equipment, the MLS1000 Light Source is a small and compact instrument for launching light into an optical fiber cable, particularly for when an optical link is being tested.
The MLS1000 is a stable optical dual LED source that can be used in conjunction with an optical power meter for optical loss testing of fiber optic cables. It has been designed to output 850nm or 1300nm at a level of -20 dBm into a 62.5/125 multi-mode fibre.
It is particularly suitable for the testing of LAN’s, FDDI, and other multimode links whether inside or outside a building. Although the MLS1000′s main use is in multimode fiber optic cable loss testing, other applications include fiber continuity testing, connector testing, and patch lead testing.
Both CW (constant wave) and modulated outputs are available with LED mode indication. Battery status warning provides battery condition indication. An optical charger is available when rechargeable batteries are fitted.
850 and 1300 nm LED source
High stability output
Temperature compensated
Continuous and modulated outputs
Exceptional battery life
Ruggedised waterproof housing to IP54
Dry Cell or Rechargeable operation
Rechargeable cells charged within product
SUPPLIED WITH ORIGINAL PROTECTIVE CASE, REQUIRES 2 X 'AA' (MN1500) ALKALINE OR RECHARGEABLE BATTERIES.
Item has come to us from a now closed Marconi laboratory, it has been well looked after and is sold in perfect working and cosmetic condition, actually looks as if it has never been used.
