Hewlett Packard

HP X382A 8.2 to 12.4 GHz WR-90 WAVE GUIDE VARIABLE ATTENUATOR ad2u1

HP X382A 8.2 to 12.4 GHz WR-90 WAVE GUIDE VARIABLE ATTENUATOR ad2u1

£195.00
£195.00
Sale Sold out
Taxes included.

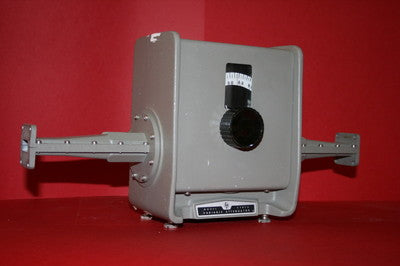

HP X382A 8.2 to 12.4 GHz WR-90 WAVE GUIDE VARIABLE ATTENUATOR

The attenuation value of the X382A direct-reading, precision attenuator depends on the rotation angle of the resistive card, rather than on the resistivity value of the attenuating material.
Therefore, it is insensitive to changes in temperature and humidity which can affect the resistive card of ordinary adjustable flap attenuators.

The attenuation value is highly accurate and is stable from 0 to 50 dB and features large, easy-to-read dials, and can handle considerable microwave power.

Frequency range: 8.2 to 12.4 GHz
Maximum SWR: 1.15
Attenuation accuracy: ±2% or 0.1 dB (whichever is greater)
Attenuation range: 0 to 50 dB
Maximum power (CW): 10 Watts
Waveguide designator: EIA WR-90 MIL-W-85/1-077
Flange designator: UG-135/U MIL-F-3922/54C-008

Sold in good used condition - perfect functionality and good cosmetically.
