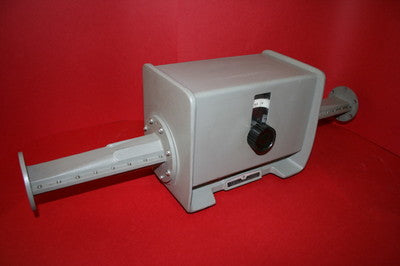

HP J382A 5.3 to 8.2 GHz WR-137 WAVE GUIDE VARIABLE ATTENUATOR

The attenuation value of the J382A direct-reading, precision attenuator depends on the rotation angle of the resistive card, rather than on the resistivity value of the attenuating material. Therefore, it is insensitive to changes in temperature and humidity which can affect the resistive card of ordinary adjustable flap attenuators.

 The attenuation value is highly accurate and is stable from 0 to 50 dB and features large, easy-to-read dials, and can handle considerable microwave power.

Frequency range: 5.3 to 8.2 GHz
Maximum SWR: 1.15
Attenuation accuracy: ±2% or 0.1 dB (whichever is greater)
Attenuation range: 0 to 50 dB
Maximum power (CW): 5 Watts
Waveguide designator: EIA WR-137
Flange designator: UG-441/U

Sold in good used condition - perfect functionality and good cosmetically.
