HP AGILENT

HP 10073A PASSIVE SCOPE PROBE 500MHz X10 WITH 1M CABLE AE1W100

HP 10073A PASSIVE SCOPE PROBE 500MHz X10 WITH 1M CABLE AE1W100

£85.00
£85.00
Sale Sold out
Taxes included.

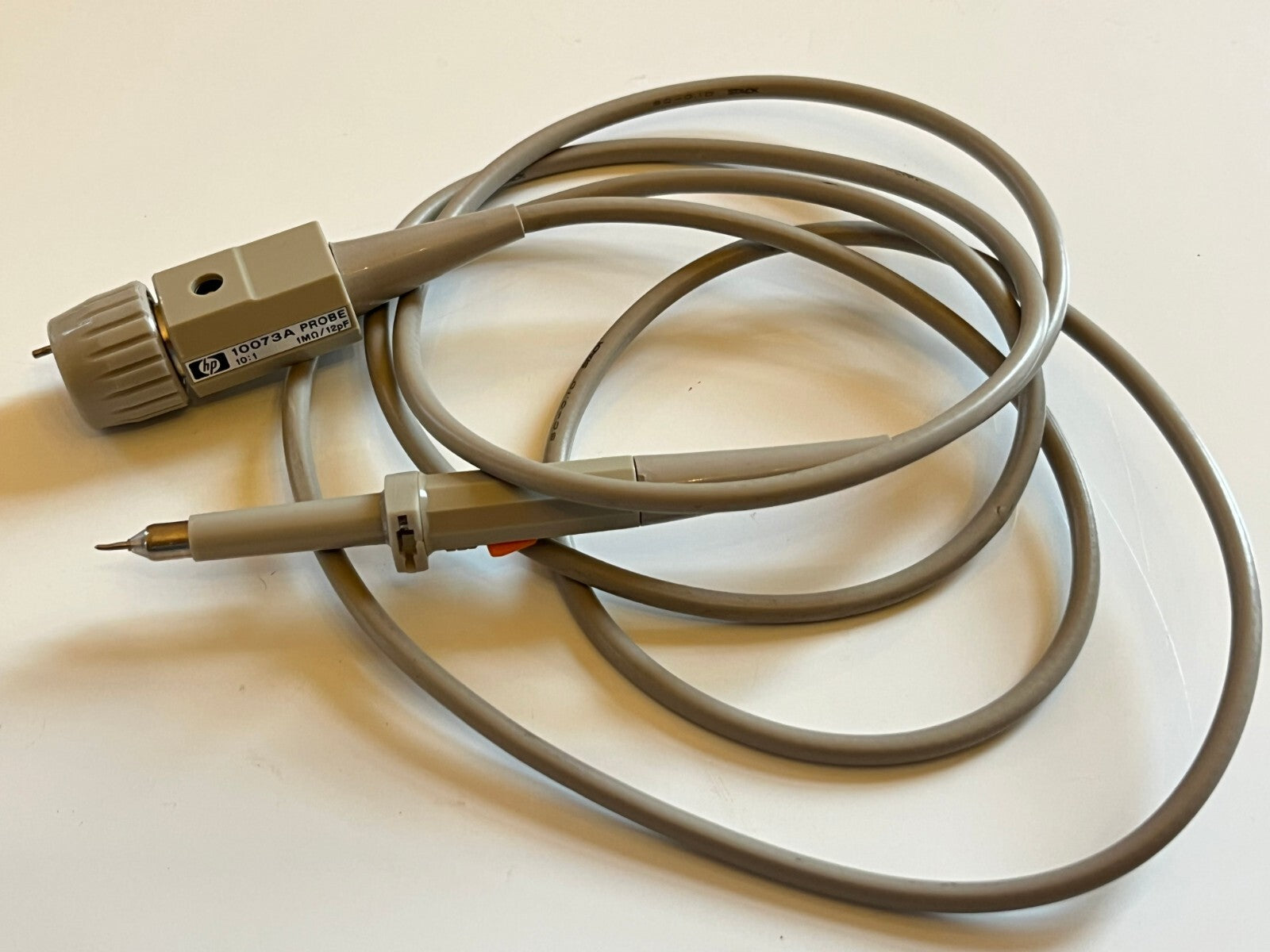

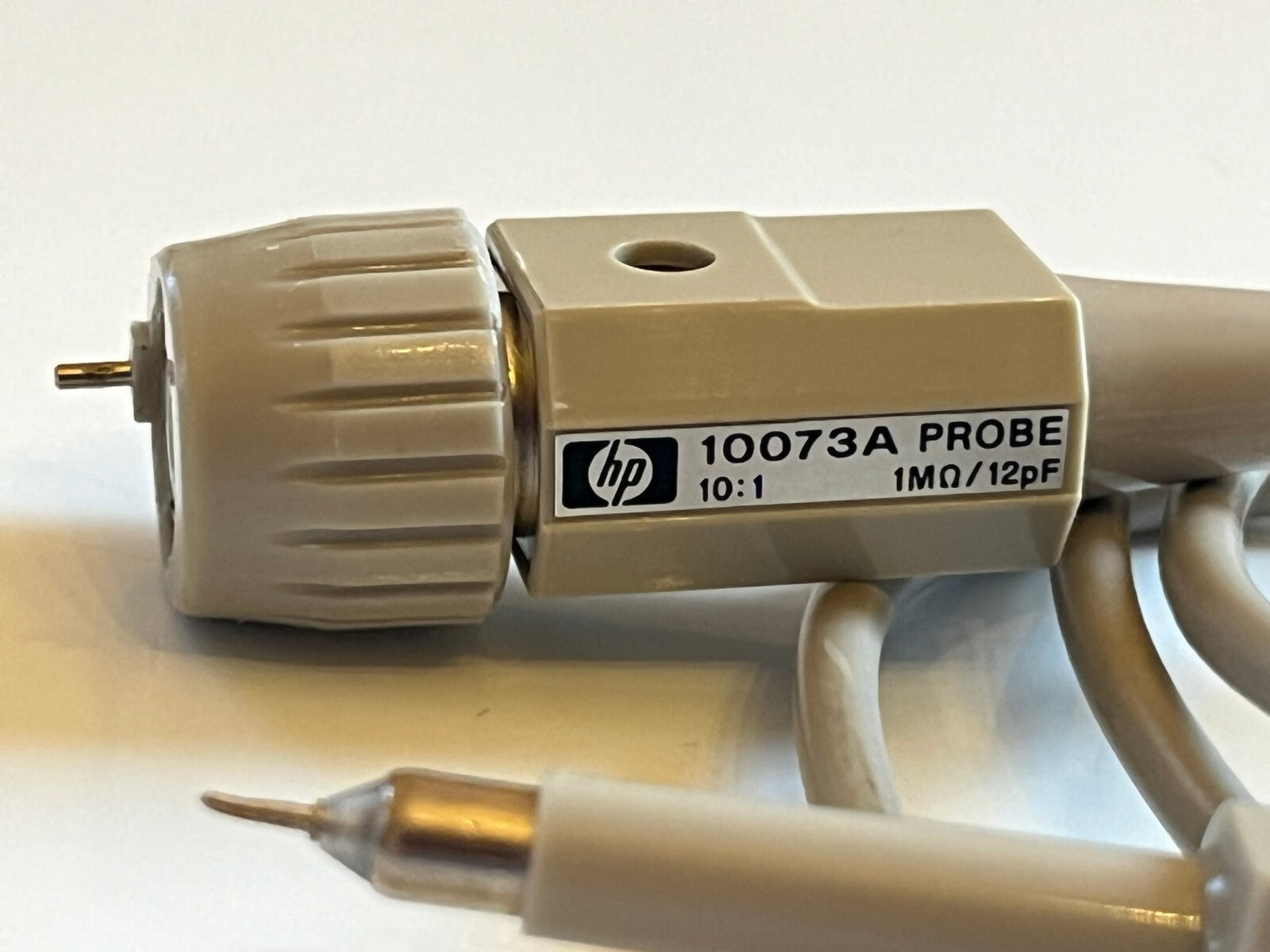

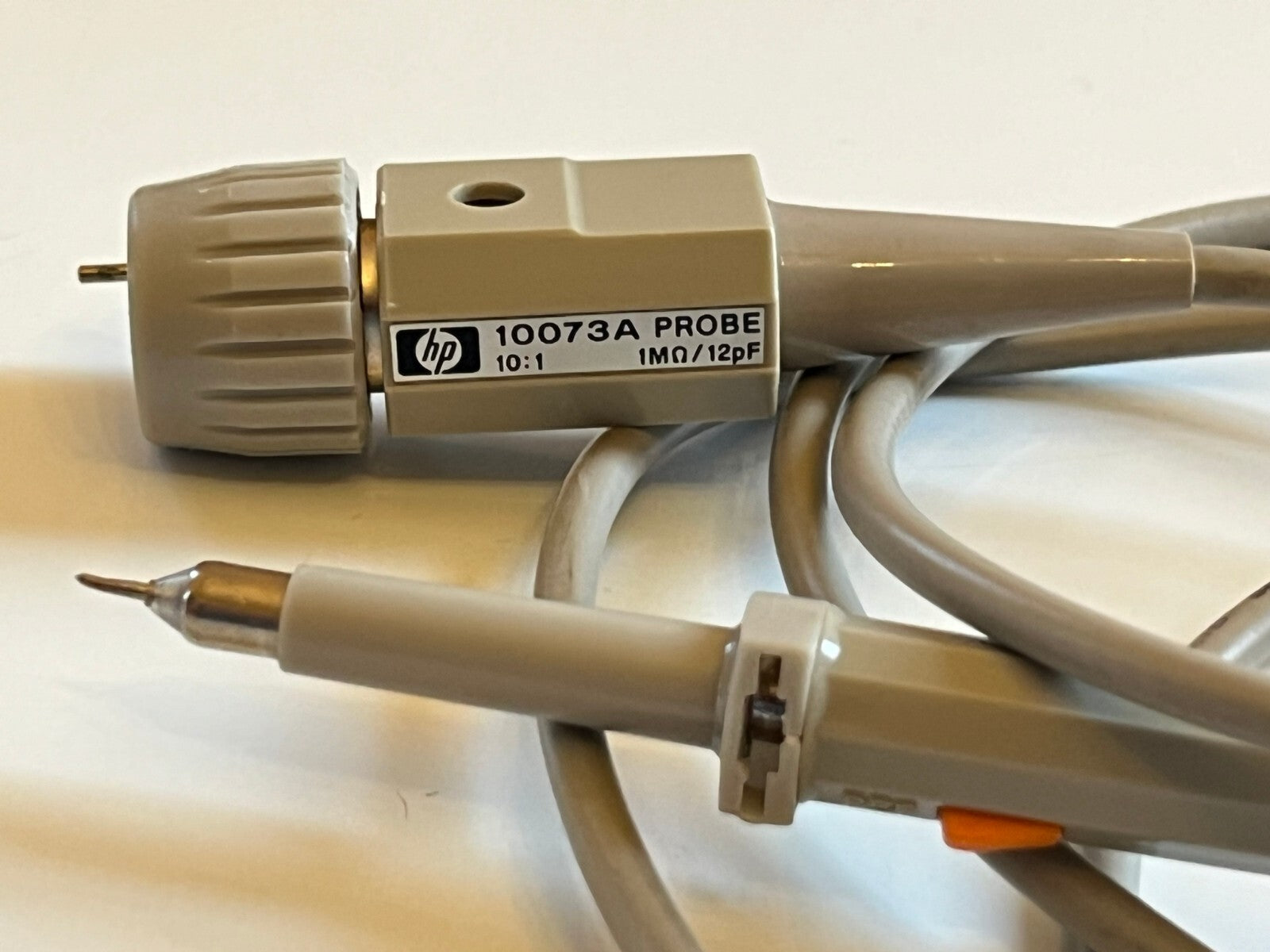

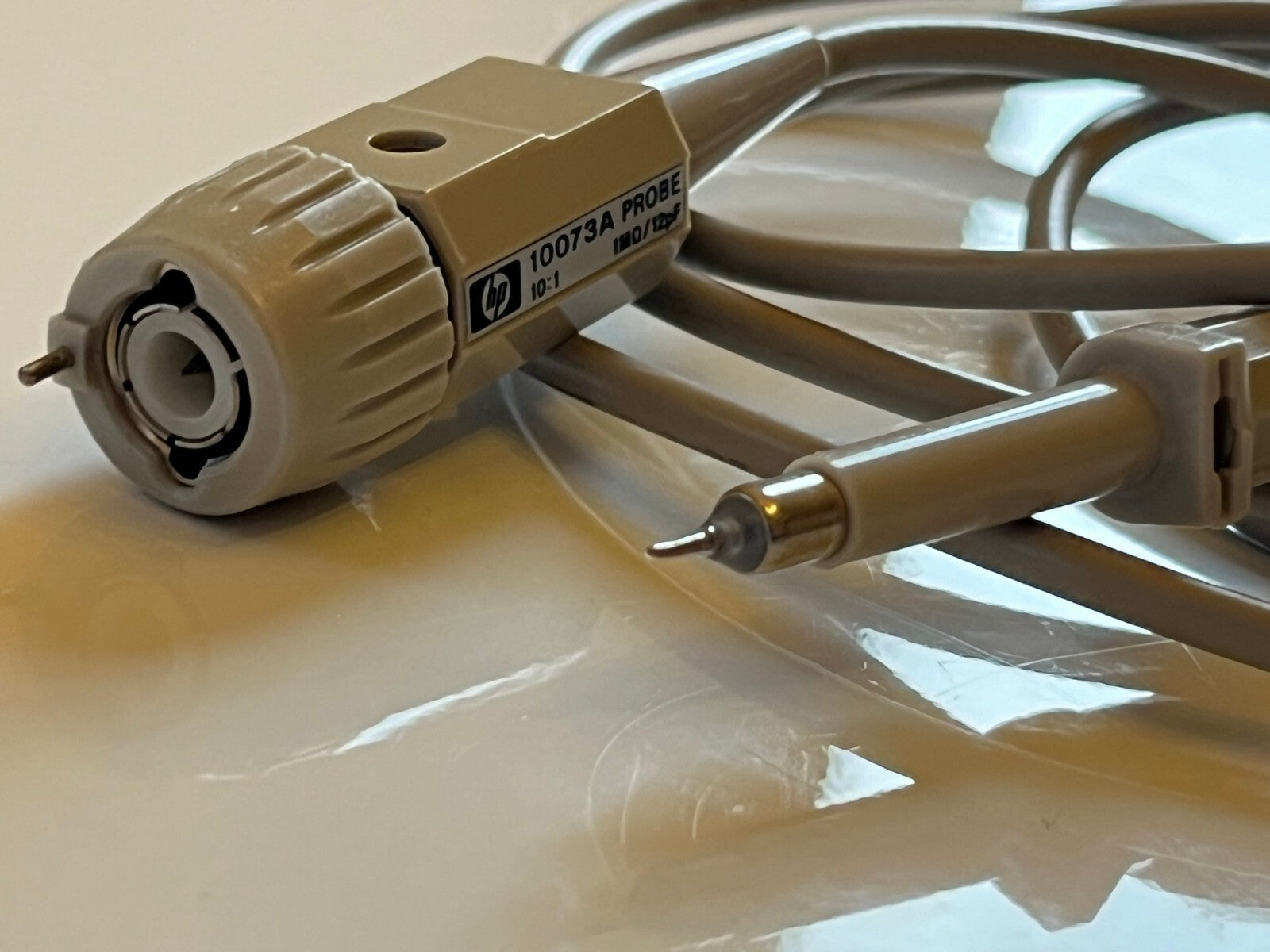

HP 10073A OSCILLOSCOPE PROBE 500MHz

Manufactured by HP / Agilent as their part number 10073A, this is an industry standard BNC interface passive oscilloscope probe.

The 10073A Probe is a passive probe designed for use in applications with a frequency range of up to 500MHz. It offers a 10X attenuation, meaning that the input signal is reduced by a factor of 10 before being measured by the oscilloscope or other testing equipment. This attenuation allows for more accurate and precise measurements, especially when dealing with high voltage signals.


 ≥500 MHz Bandwidth
450V peak (max)

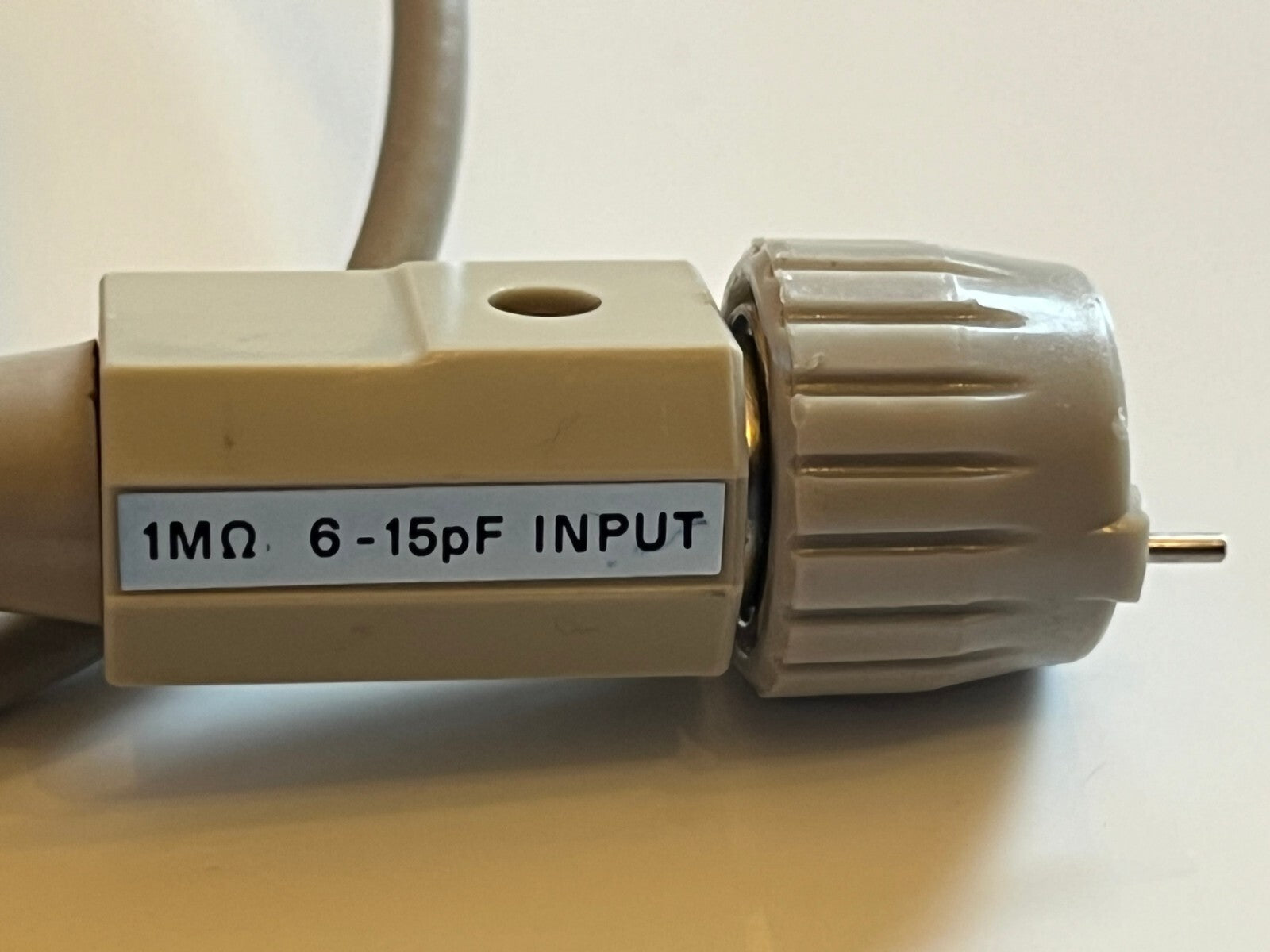

12 pF Input Capacitance
1 MΩ Input Resistance
X10
1m long cable

Not new, but it has had very little use and is sold in perfect working and cosmetic condition.
