HIROSE SMA DIRECTIONAL COUPLER 2GHz (1.7 - 2.3) 3dB HDH-02003DHD fba32b

HIROSE SMA DIRECTIONAL COUPLER 2GHz (1.7 - 2.3) 3dB HDH-02003DHD fba32b

£20.00
£20.00
Sale Sold out
Taxes included.

HIROSE SMA DIRECTIONAL COUPLER 50 OHM

Manufactured by HIROSE (HRS)  as their part number HDH-02003DHD-DC, this is an industry standard 2 way directional coupler with SMA female connections.

Hirose HDH directional couplers offer extremely low loss, a high degree of matching and high isolation. 1 input and 2 output (or vice versa) with 90 degree phase difference between input and output.

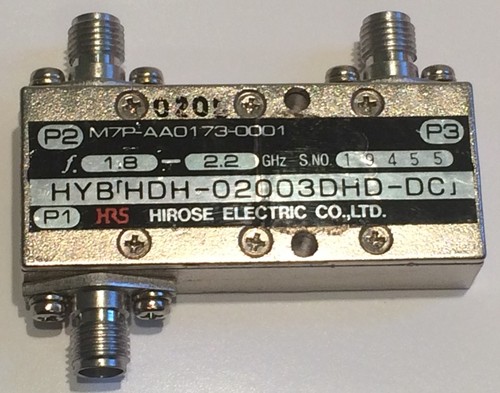

The manufacturers datasheet - address at bottom of this page, states the useful frequency range as been 1.7GHz to 2.3GHz, the actual units have 1.8 - 2.2 marked on them.


 VSWR is 1.20:1 or better, 0.3 dB Insertion Loss and 20 dB or better isolation, 3dB coupling, rated upto 2W.

Offered here at a fraction to the distributors list price, good condition - removed from brand new equipment which had to be dismantled under a secure destruction order.

 link to datasheet download, cut and paste: https://www.hirose.com/product/en/download_file/key_name/HDH-02003DHD%2840%29/category/Specification%20Sheet/doc_file_id/37781/?file_category_id=9&item_id=03520065040&is_series=

 PRICED AND SUPPLIED EACH - X1
