HIGH CURRENT 56uH AXIAL INDUCTOR CHOKE (x100) fd6J35

HIGH CURRENT 56uH AXIAL INDUCTOR CHOKE (x100) fd6J35

£100.00
£100.00
Sale Sold out
Taxes included.

HIGH CURRENT 56uH CHOKEE

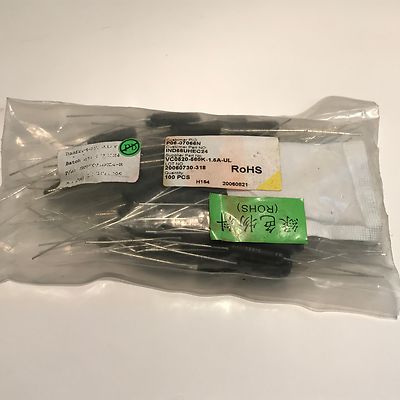

This is a sealed factory pack of 100 pieces....
Manufactured by ECM, as their part number VCO520-560K-1.5A-UL, these are a high power 56uH axial wound copper on high saturation ferrite bobbin which allows high inductance with low DC resistance, the high resistivity core offers very high parallel resistance, resulting in maximum coil performance.

56uH
1.5A current rated
  0.13 Ohm DC resistance
Dimensions are roughly 22mm x 6mm diameter with 40mm leads.

They are protected by flame retardant UL type VW-1 per MIL-I-23053/5, class 3 requirements polyolefin tubing.

These are new date code lead free components.

Priced and supplied in a pack of 100, for packs of 1 see our other listing for this item.
