HERGA INDUSTRIAL QUALITY FOOT / HAND SWITCH HERGA 6240 LONG 3M CABLE ac1a

HERGA INDUSTRIAL QUALITY FOOT / HAND SWITCH HERGA 6240 LONG 3M CABLE ac1a

£23.00
£23.00
Sale Sold out
Taxes included.
mm

HIGH QUALITY MOMENTARY FOOT SWITCH

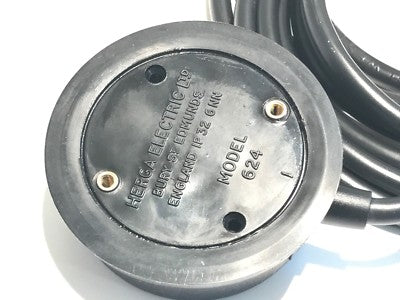

Manufactured in the UK by Herga as their model 624 - complete part number 6240-AABB-ZC00, These are a  high quality bellows type electrical foot switch which is also ideal for use as a hand held operating switch.

It has single pole normally closed momentary (not latching) contacts rated at 24V 0.1A - so a circuit is broken by pressing down on the switch.

Quite a sensitive switch, the travel for switch activation is about 4mm.

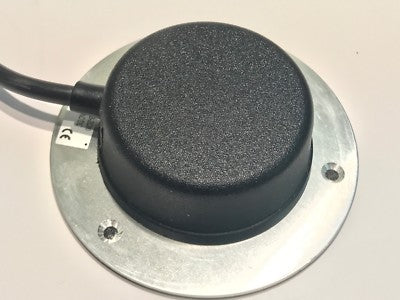

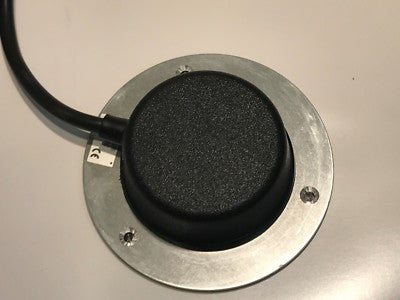

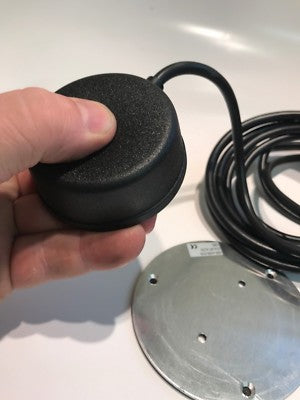

Tough thermoplastic flexible cover, and the switch is mounted onto a non slip aluminium base which has 3 mounting holes for fixing. The aluminium base is quickly removed by 2 screws, making the switch module suitable for hand operation.

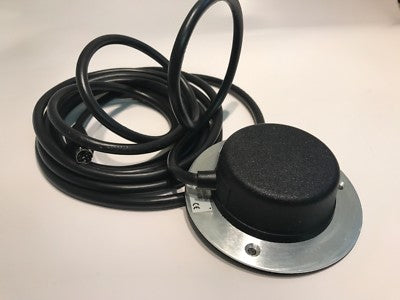

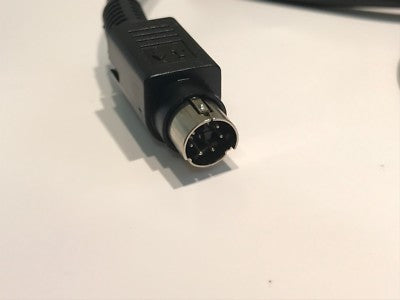

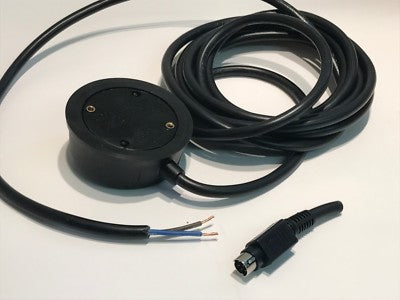

They are fitted with 3m of very nice quality flexible 2 core cable, which has a 6 pin mini din connector on the end, if not required just cut this off as shown in the photos.

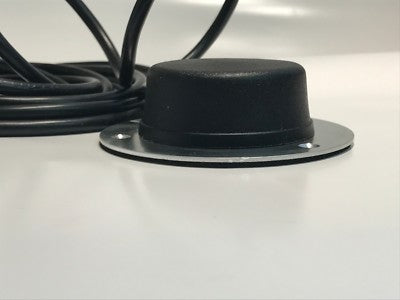

Dimensions, across the top of the switch the diameter is 57mm, across the base the diameter is 64mm, and the height is 25mm.

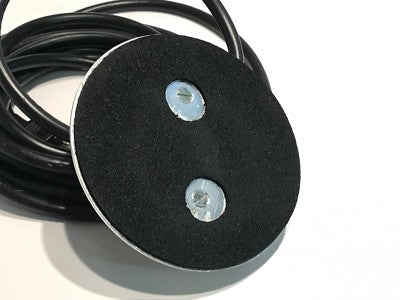

The aluminium disc base is 93mm diameter and with the anti-slip mat is 3mm thick. Mounting holes are 68mm apart.

Priced and supplied each x1, as shown in the photographs.
