Kraus & Naimer

HEAVY DUTY D12A 3 POSITION CENTER OFF SPRING RETURN ROTARY SWITCH fd5c35

HEAVY DUTY D12A 3 POSITION CENTER OFF SPRING RETURN ROTARY SWITCH fd5c35

£32.00
£32.00
Sale Sold out
Taxes included.

SINGLE POLE CENTER OFF 2 POSITION SPRUNG RETURN ROTARY SWITCH

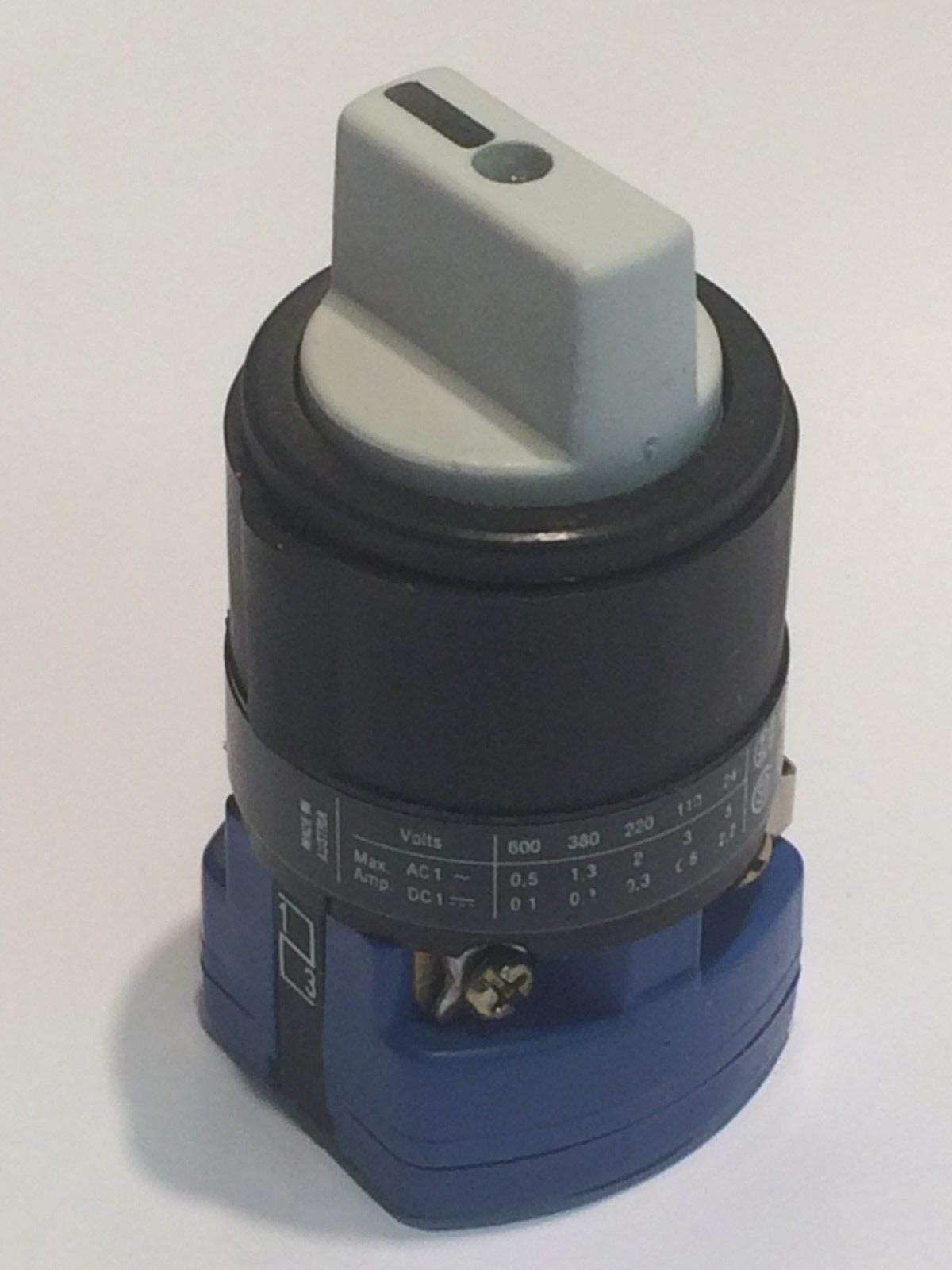

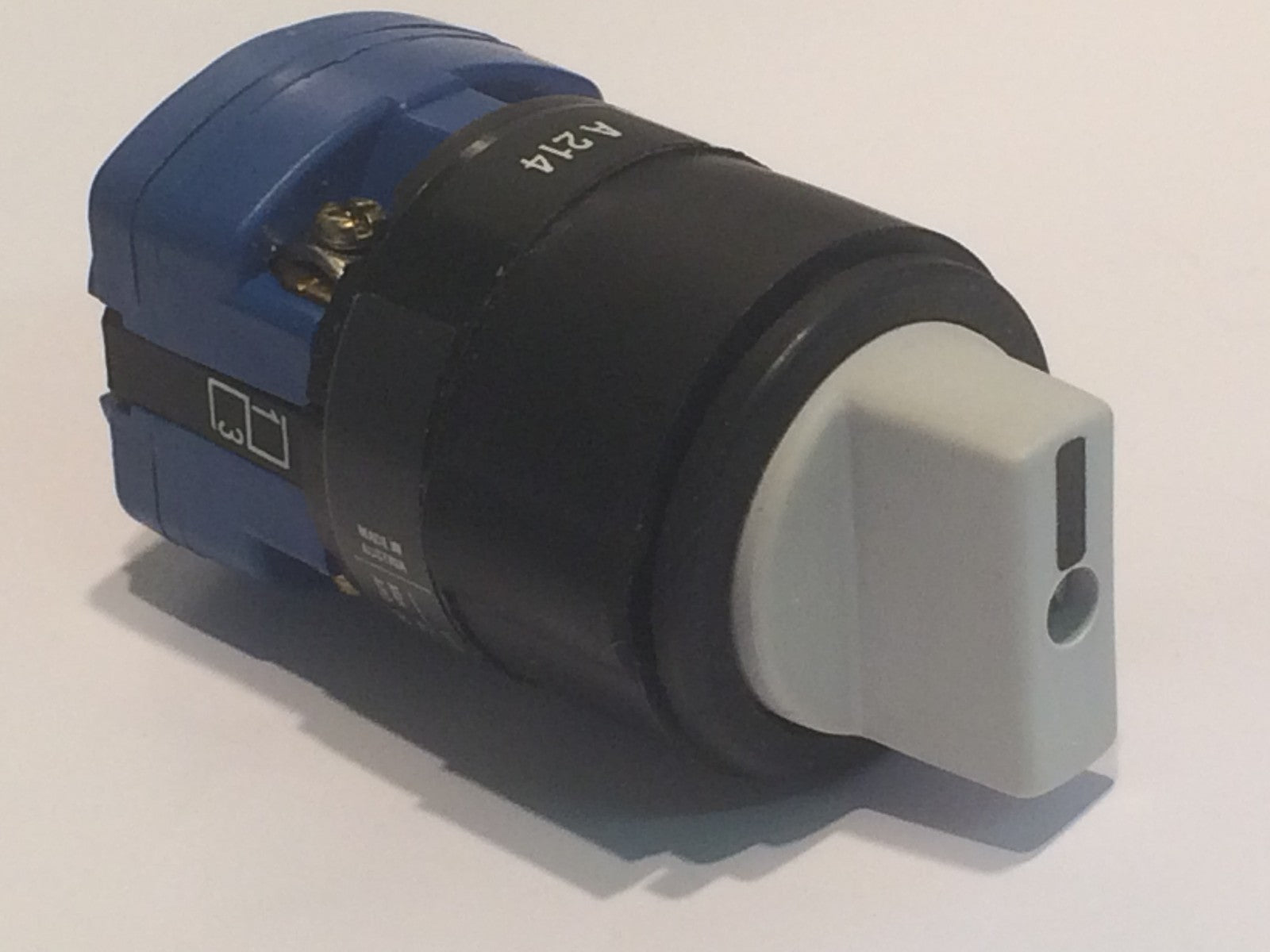

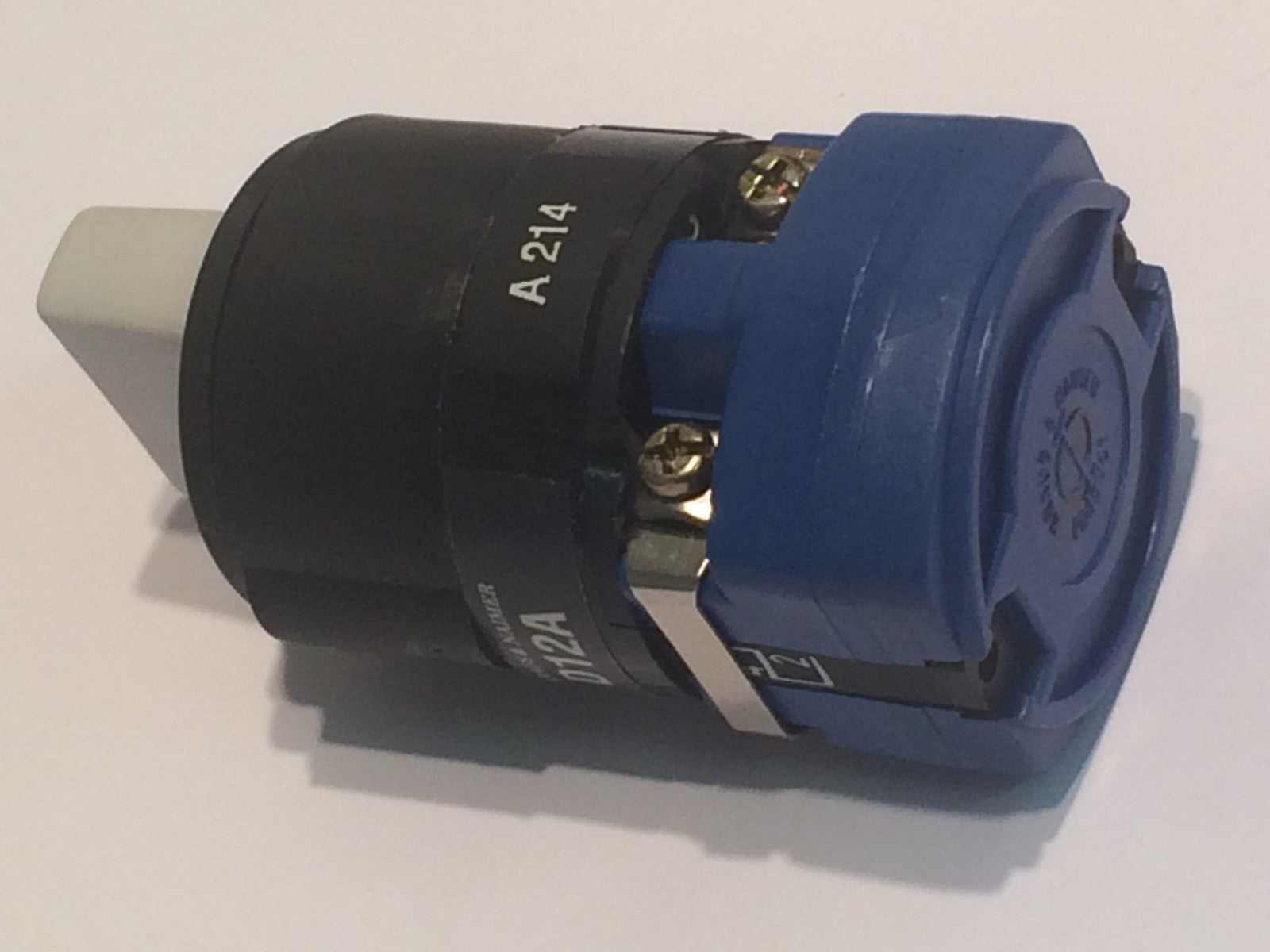

Manufactured to military specifications (NSN 6110-99-786-5099) by Kraus & Naimer of Austria, as their part number D12A-A214, these are a heavy duty rotary switch, center off and spring return to 2 other positions.

So turn the knob to the left and a circuit is made, let go and the switch returns to the center, turn to the right and the other circuit is made, let go and the knob returns to the center position.

SO, single pole, 2 way, with spring loaded return to center off. With a very positive switch action.

Rated from 5A 24Vac upto 0.5A at 600Vac.

Overall dimensions are approximately 75mm high x 43mm diameter at its widest point.

Connections are screw terminals

Priced and supplied individually, each (x1) - A fraction of the real cost for a switch of this spec.
