HEAVY DUTY 6 WAY IN LINE PLUG & SOCKET PAIR PLESSEY CONNECTORS ad1Y12

HEAVY DUTY 6 WAY IN LINE PLUG & SOCKET PAIR PLESSEY CONNECTORS ad1Y12

£30.00
£30.00
Sale Sold out
Taxes included.

HEAVY DUTY 6 WAY PLUG & SOCKET

These are known as Plessey Painton connectors, being manufactured by the company of the same name. Plessey actually called them the 'Multicon' range, they are also sometimes referred to as Jones or in the USA, Cinch plugs.

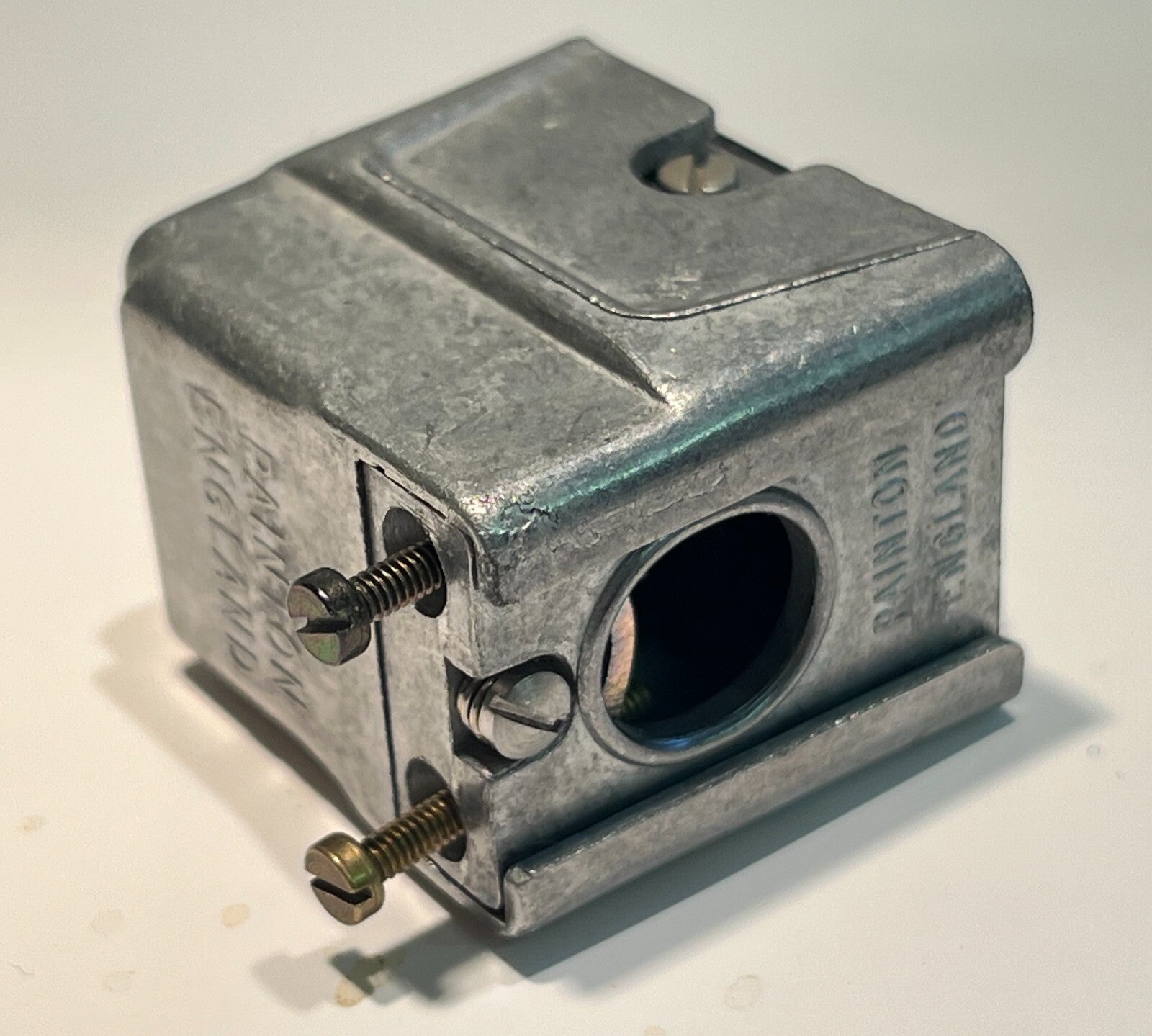

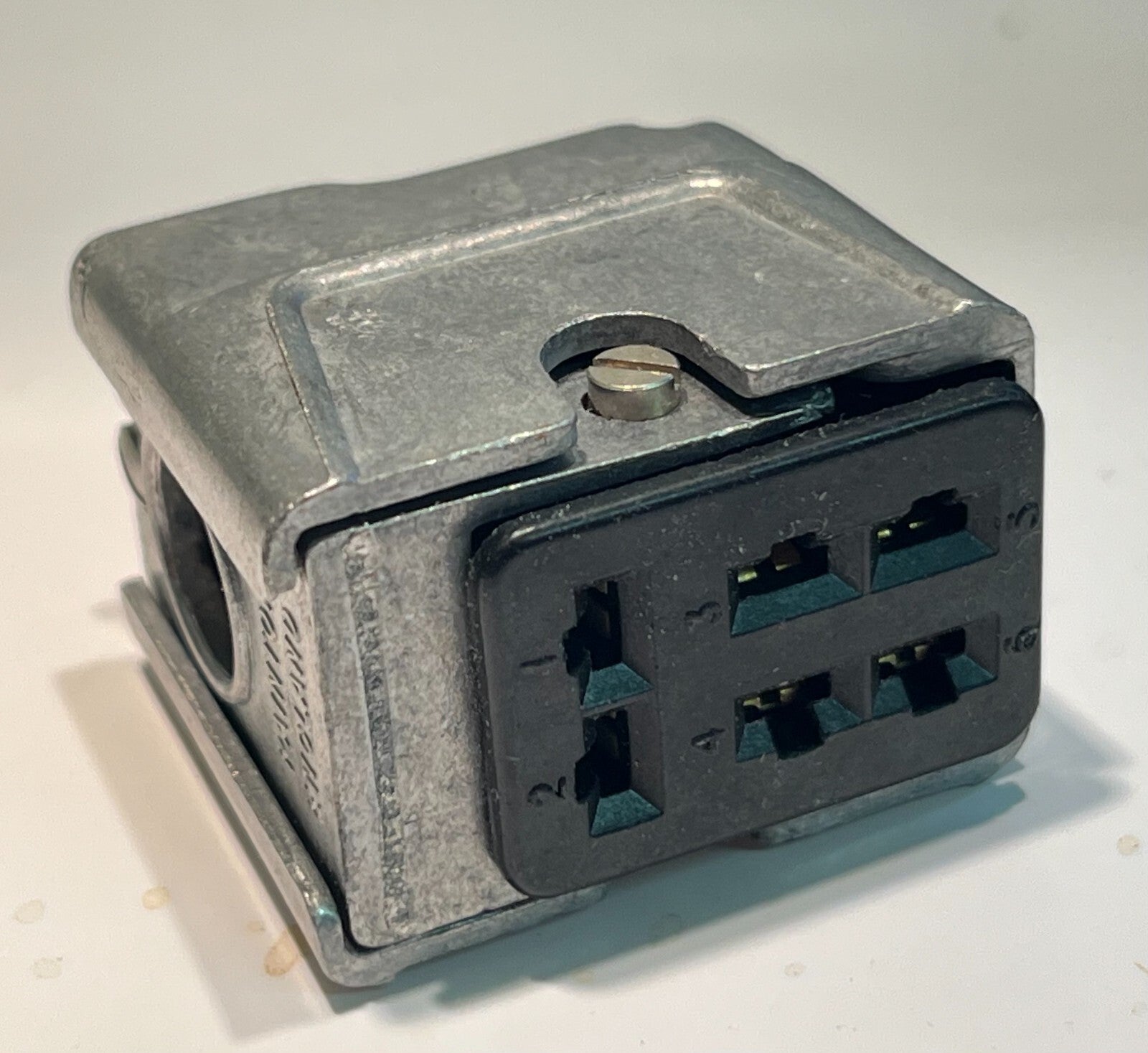

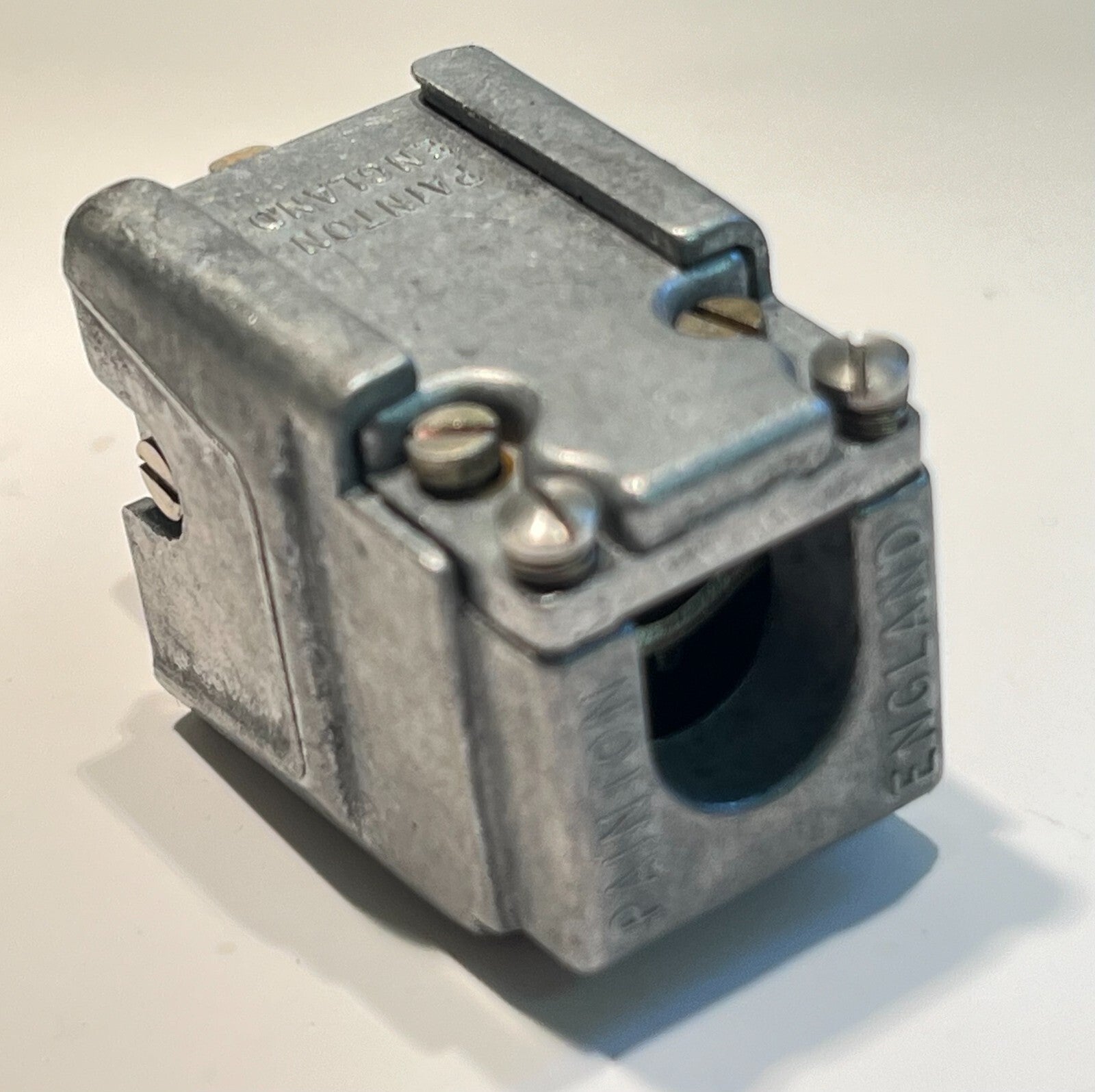

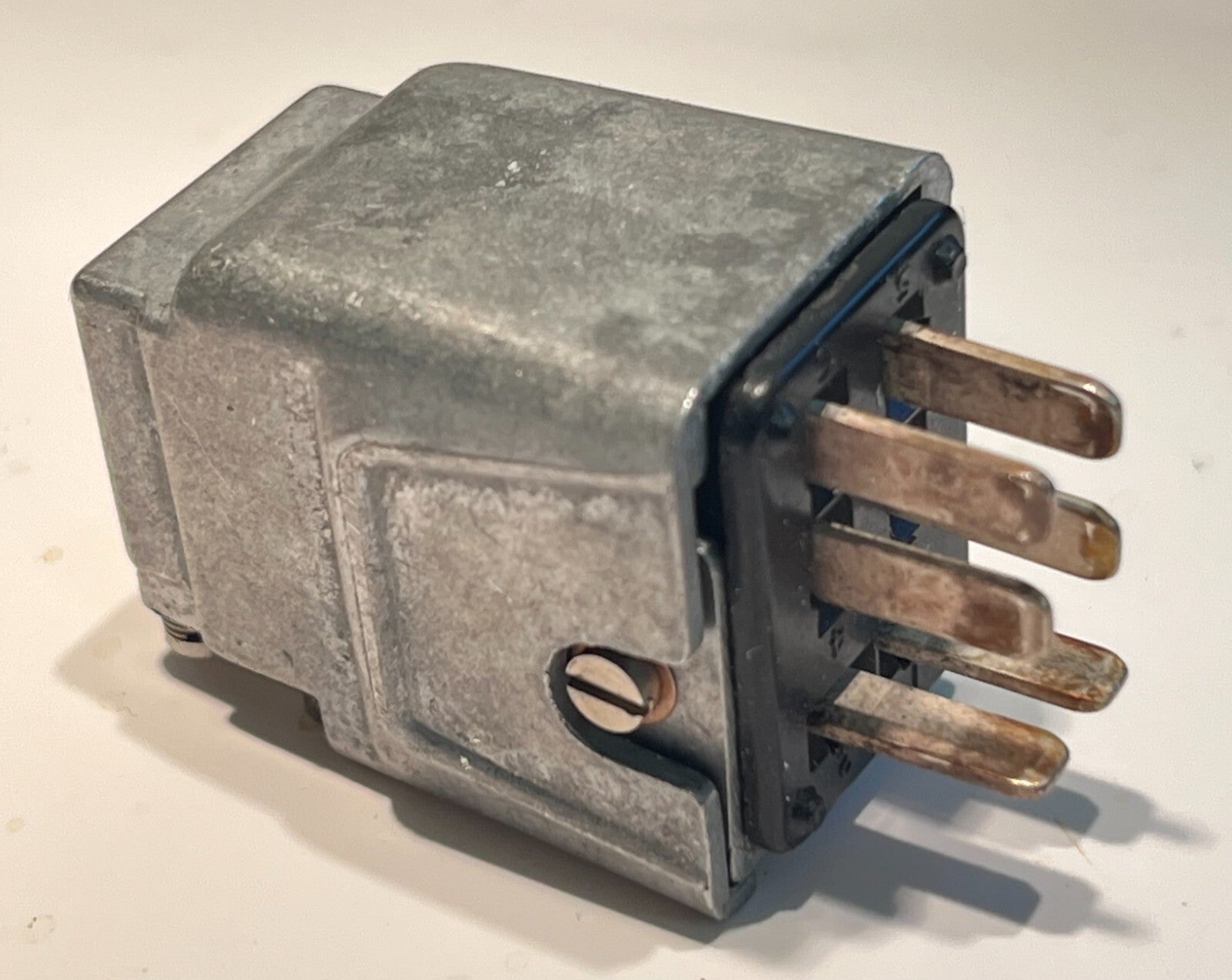

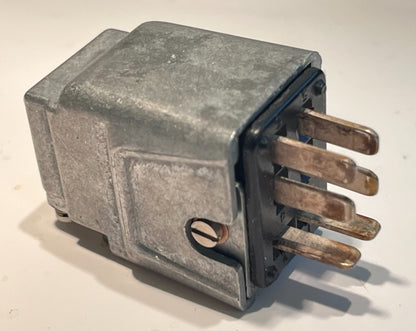

This type is a matching pair of 6 way heavy duty cast aluminium housed connectors.  A cable mount male with a straight in cable entry and clamp, together with a matching cable mount or 'free' female where the cable entrance and clamp is side entry.

We can't emphasise enough how robust and rugged these connectors are.

Two of the connections are at a 90 degree angle to the other four, thus avoiding an incorrect connection.

Superb vintage miltary specification heavy duty connectors, the contact is provided by a heavily silver plated plug blade contact engaging with a heavily silver plated socket clip contact. Absolute reliability is ensured because each socket clip has 4 individual areas of contact with each plug blade.

Rated as high as 1000V working, and upto 10A 250V per contact.

Dimensions of the male including its pins are are approx 50mm x 28mm x 24mm and the female is approx 30mm x 30mm x 24mm38mm x 20mm. Cable entries to the housings are about 11mm.

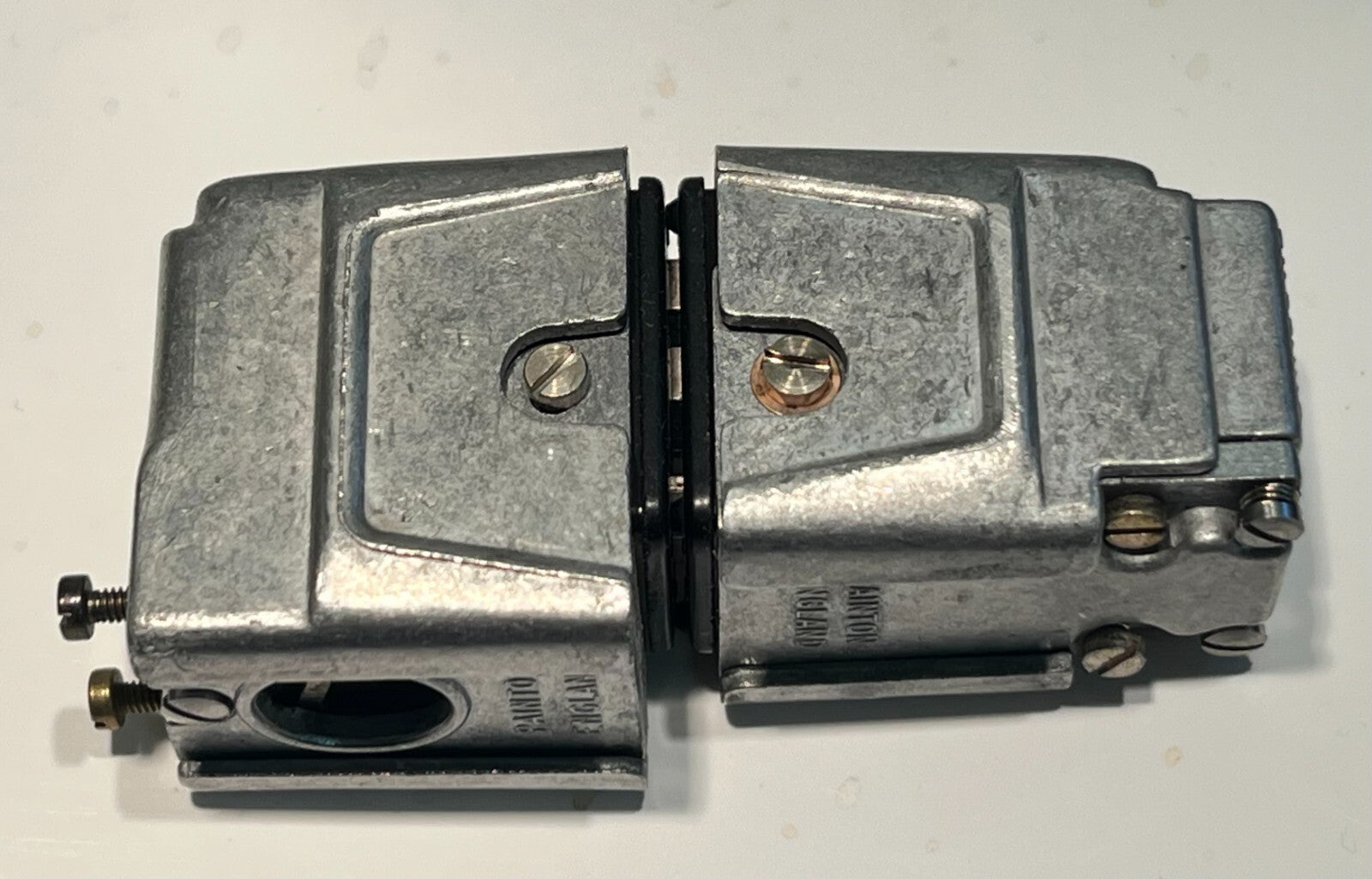

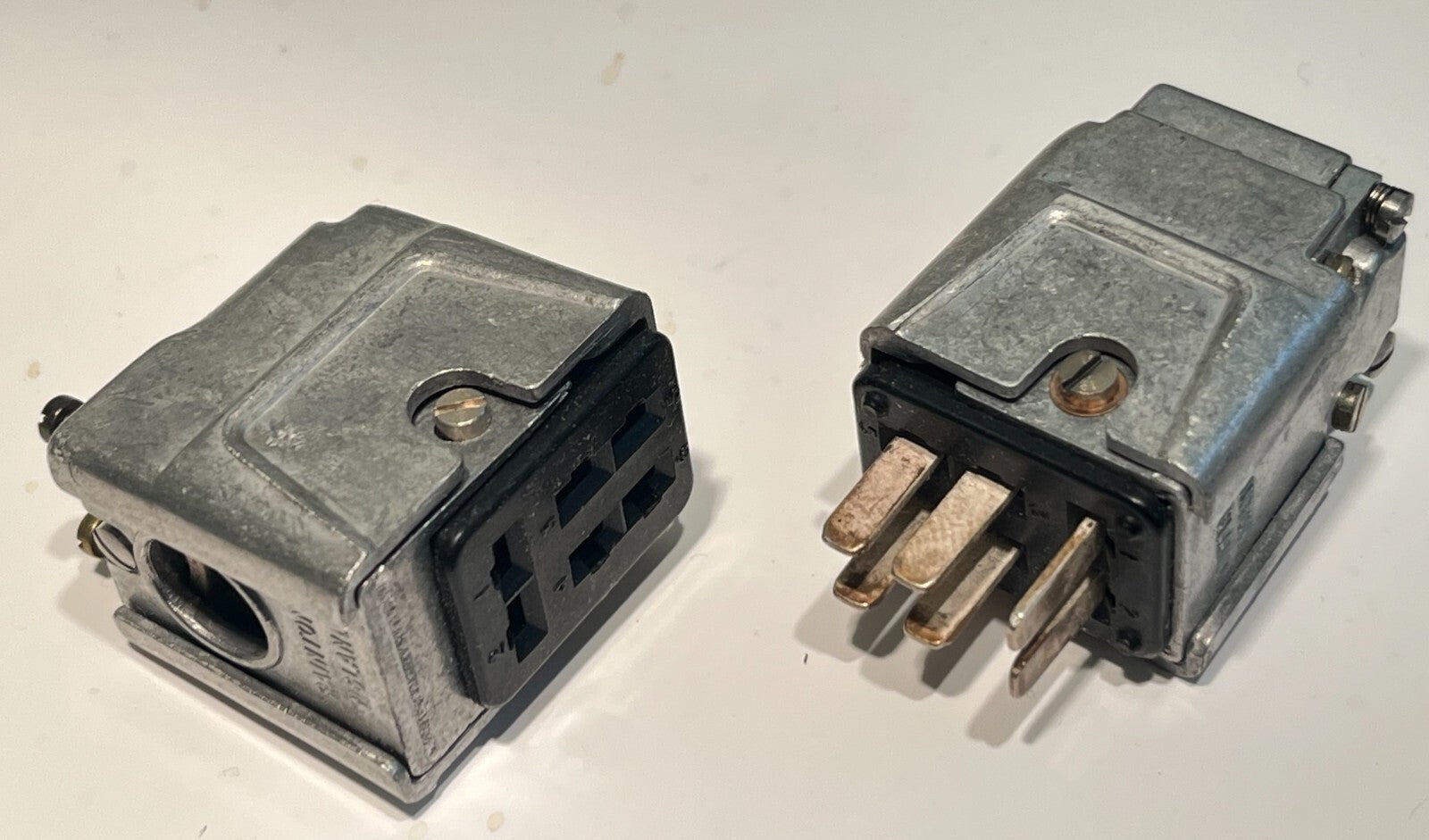

 SUPPLIED AS A PAIR AS SHOWN IN THE PHOTO.
