PLESSEY

HEAVY DUTY 6 WAY CABLE FEMALE PLESSEY JONES CONNECTOR fd2b1

HEAVY DUTY 6 WAY CABLE FEMALE PLESSEY JONES CONNECTOR fd2b1

£18.00
£18.00
Sale Sold out
Taxes included.

HEAVY DUTY 6 WAY PLESSEY RUNNING FEMALE

These are known as Plessey Painton connectors, being manufactured by the company of the same name. Plessey actually called them the 'Multicon' range, they are also sometimes referred to as Jones or in the USA, Cinch plugs.

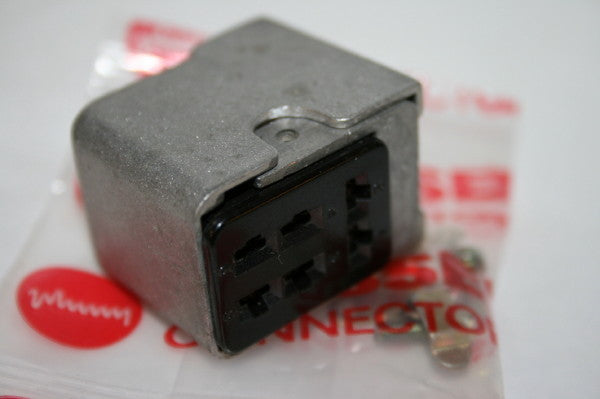

This type is a 6 way cable mount, running or 'free' female which has a heavy duty cast aluminium housing. Two of the connections are at a 90 degree angle to the other four, thus avoiding an incorrect connection.

Superb vintage military specification heavy duty connectors, the contact is provided by a heavily silver plated plug blade contact engaging with a heavily silver plated socket clip contact. Absolute reliability is ensured because each socket clip has 4 individual areas of contact with each plug blade.

Rated as high as 1000V working, and upto 10A 250V per contact.

Cable entry of the housing is about 11mm.

 New and unused vintage stock.

 SUPPLIED AS SHOWN IN THE PHOTO.
