HEAVY DUTY 35A 200V FB3502 BRIDGE RECTIFIER fbb11c

HEAVY DUTY 35A 200V FB3502 BRIDGE RECTIFIER fbb11c

£3.00
£3.00
Sale Sold out
Taxes included.

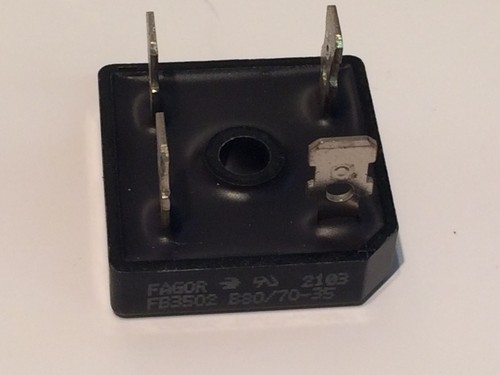

HEAVY DUTY 35A 200V FB3502 BRIDGE RECTIFIER

Manufactured by Fagor as their part number FB3502, these are a heavy duty 35 Amp 200 volt bridge rectifier.

Although rated upto maximums of 35A and 200V it of course is ideal for any voltage and current up to that limit, so perfect for use on 12v or 24v circuits.

Connections are standard .25" push on spade terminals, or solder of course and mounting is through a single 5mm hole in the middle.

Modern compact design, measurements are 28mm square by 7mm high plus the connections.

Looking from the top, the connection by the cut off corner is positive and the connection diagonally opposite is negative, with the other 2 been the AC input.
