Plessey

HEAVY DUTY 18 WAY MALE JONES PLUG PLESSEY CONNECTOR fd2d2

HEAVY DUTY 18 WAY MALE JONES PLUG PLESSEY CONNECTOR fd2d2

£30.00
£30.00
Sale Sold out
Taxes included.

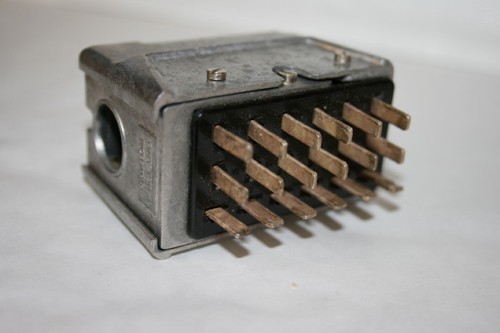

HEAVY DUTY 18 WAY JONES PLUG

These are known as Plessey Painton connectors, being manufactured by the company of the same name. Plessey actually called them the 'Multicon' range, they are also sometimes referred to as Jones or in the USA, Cinch plugs.

 This type is an 18 way cable mount or 'free' male (plug) which has a very heavy duty cast aluminium housing. Six of the connections are at a 90 degree angle to the other twelve, thus avoiding an incorrect connection. Superb vintage miltary specification heavy duty connectors, the contact is provided by a heavily silver plated plug blade contact engaging with a heavily silver plated socket clip contact. Absolute reliability is ensured because each socket clip has 4 individual areas of contact with each plug blade.

Rated as high as 1000V working, and upto 10A 250V per contact.

 Dimensions of the running body are approx 60mm x 34mm x  with a cable entry of about 14mm.

New and unused vintage stock.

 SUPPLIED AS SHOWN IN THE PHOTO.
