OMRON

H3Y-2 12V DC MINIATURE PLUG IN TIMER 8 PIN 0.1 - 1 SECOND DP CONTACTS ad2G11

H3Y-2 12V DC MINIATURE PLUG IN TIMER 8 PIN 0.1 - 1 SECOND DP CONTACTS ad2G11

£20.00
£20.00
Sale Sold out
Taxes included.

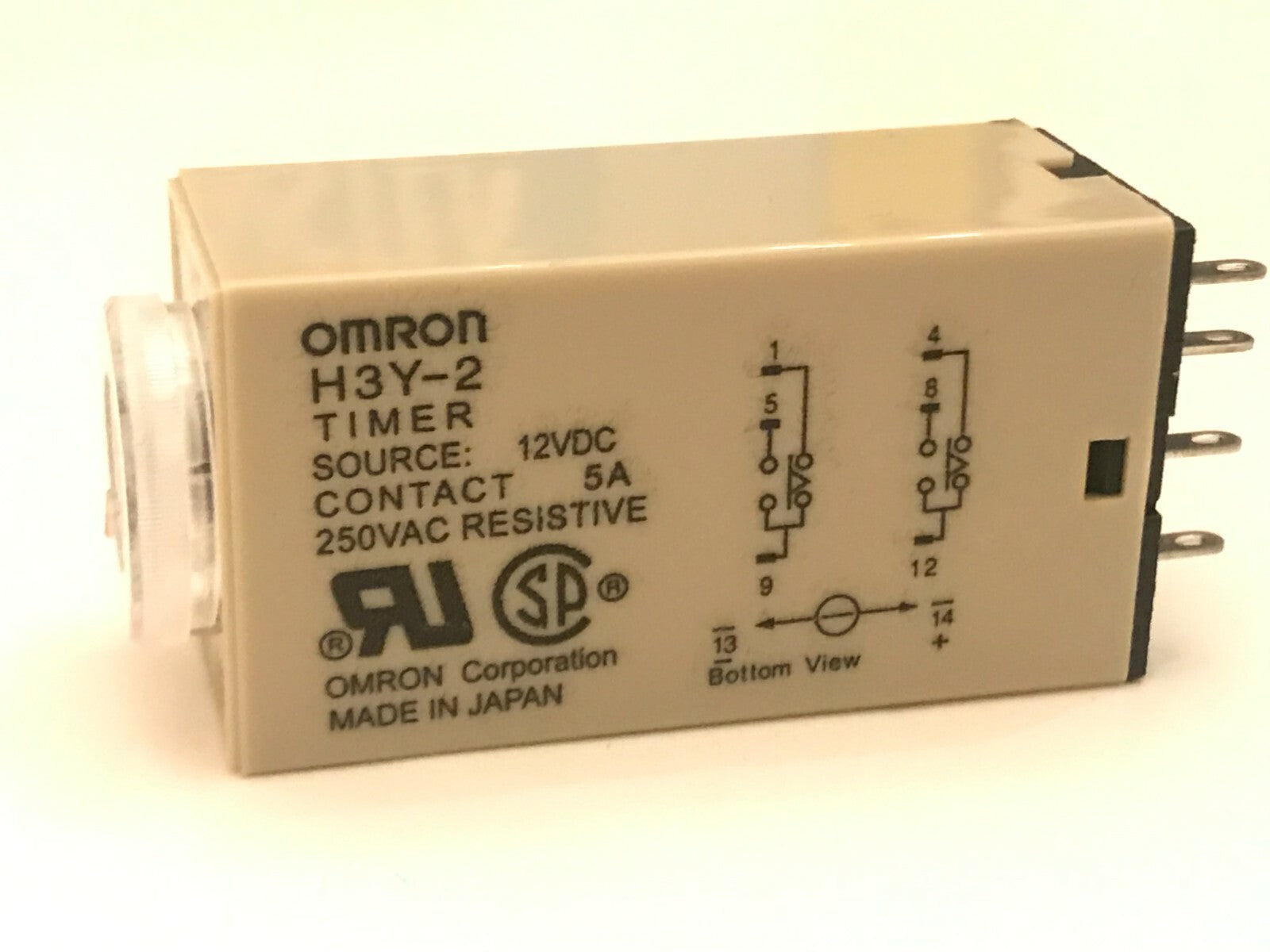

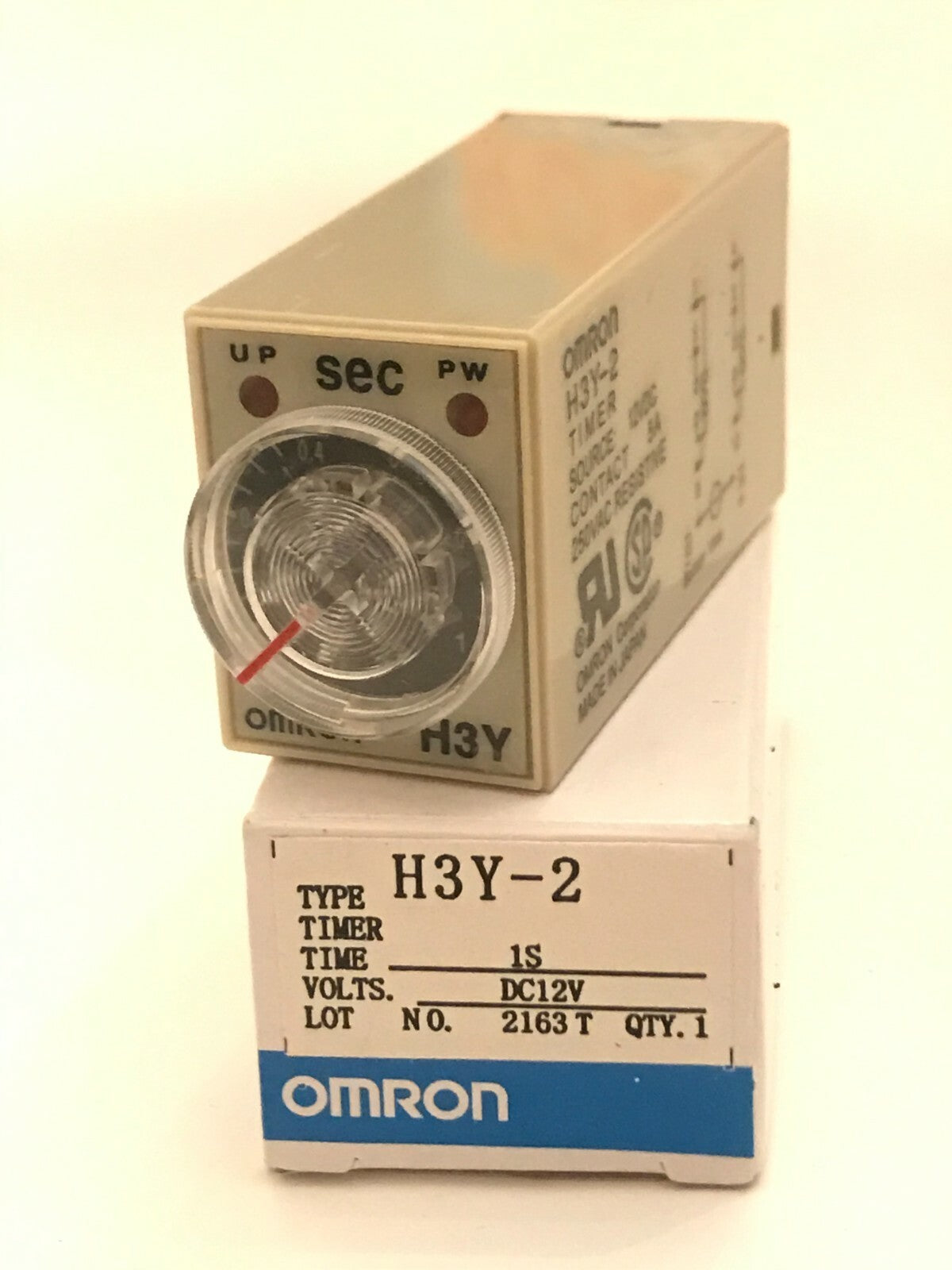

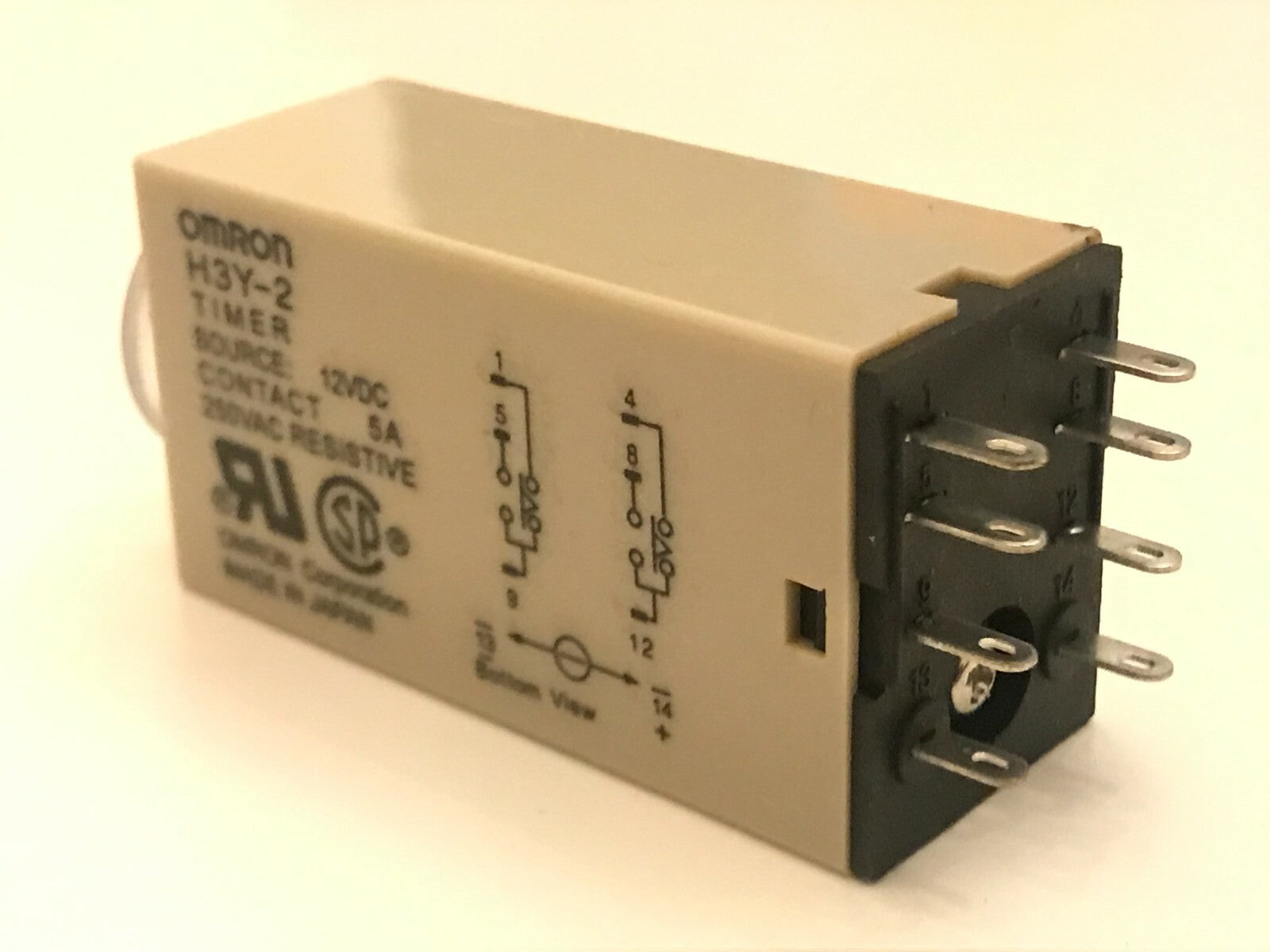

OMRON H3Y-2-12VDC-1S MINI PLUG IN TIMER

This is a H3Y-2-12VDC-1S miniature 8 pin base plug in timer, 0.1 second up to 1 second, with double pole normally closed contacts.

After the unit is powered up, the time set from the front dial starts decreasing and when the set time has elapsed the contacts switch.

Easy to set the time required using a screwdriver to adjust the front dial.

0.1 second - 1 second  12Vdc operation with 5A 250Vac  rated double pole on-off contacts.

New and unused, standard industrial spare part
Supplied as shown in the photograph.
