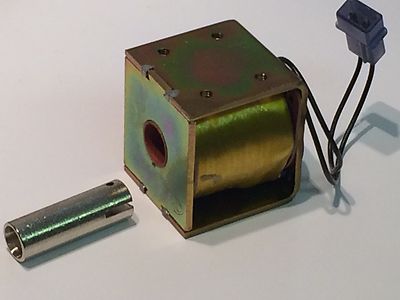

GUARDIAN HEAVY DUTY 24VDC PULL SOLENOID

Manufactured in the USA by Guardian Electric as their part numbers A420-066806-00 and 8-C-24VDC, these are a heavy duty 24Vdc pull solenoid.

The frame dimensions are 40mm long x 40mm wide x 45mm high. The plunger is 12mm diameter with a 2mm slot (10mm deep) milled into it and 2 x 2mm holes for a securing pin. The weight is 0.35Kg.

Coil resistance is 80 Ohms.

There are 4x 1/8th inch threaded mounting holes in the base and also 1 in the top. Connection is made by 16cm flying wires.

The pull stroke of the plunger is about 15mm and though we don't have any other technical information, they are a very strong well engineered solenoid.
