BOURNS

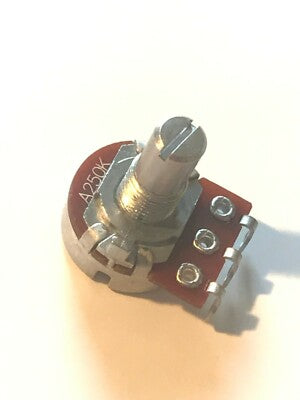

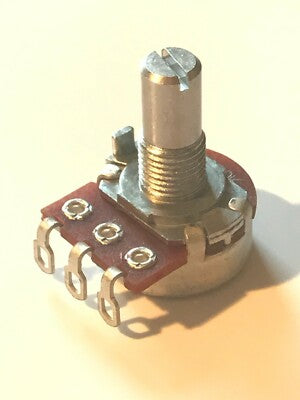

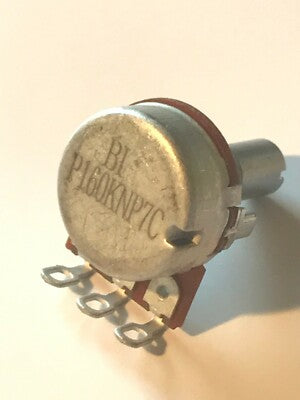

GOOD QUALITY BOURNS MINI 17MM 250K LOG SOLDER LUG POTENTIOMETER A250K ad1J59

GOOD QUALITY BOURNS MINI 17MM 250K LOG SOLDER LUG POTENTIOMETER A250K ad1J59

£3.80
£3.80
Sale Sold out
Taxes included.

MINIATURE 250K LOG POT

Manufactured by Bourns as part of their P160KN range of miniature potentiometers, these are good quality 17mm diameter 250K standard logarithmic pots.

This range has been used extensively in musical instruments and pedals / effects.

They have a completely round 6mm shaft which protrudes away from the main body of the pot by 15mm, 6.5mm of which is the threaded mounting bush (fixing nut supplied).

This version has solder lug connections.

Resistance (Ohms): 250k
Tolerance: ±20%
Power (Watts): 0.2W, 1/5W
Number of Turns: 1
Taper: Logarithmic
Rotation: 300°
Resistive Material: Conductive Plastic
Termination Style: Solder lugs
Actuator Type:         Plain round
Actuator Length: 0.591" (15.00mm)
Actuator Diameter: 0.236" (6.00mm)
Bushing Thread: M7 x 0.75
Mounting Type: Panel Mount
Size - Body:      Round - 0.669" Dia x 0.374" H (17.00mm x 9.50mm)

The dimensions of the main body 17mm diameter  x 9mm deep.

Nice quality pots, not cheap Chinese rubbish. For other values similar search our other listings with "mini pot"

 PRICED AND SUPPLIED EACH x1.
