ALPHA

GOOD QUALITY ALPHA MINI 17MM 50K LIN SOLDER LUG POTENTIOMETER B50K ad1J66

GOOD QUALITY ALPHA MINI 17MM 50K LIN SOLDER LUG POTENTIOMETER B50K ad1J66

£3.80
£3.80
Sale Sold out
Taxes included.

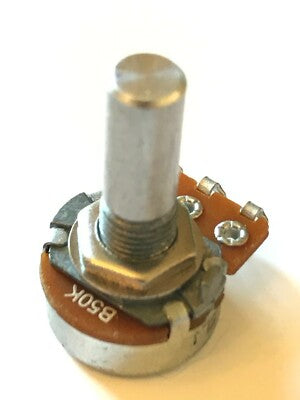

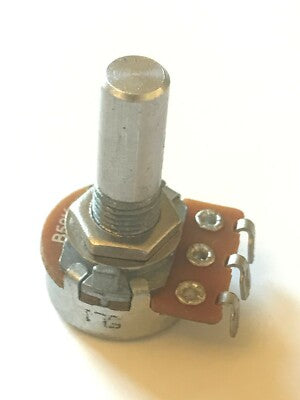

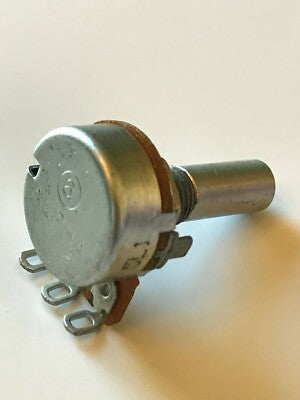

MINIATURE 50K LINEAR POT

Manufactured by Alpha as part of their RC16AF range of miniature potentiometers, these are good quality 17mm diameter 50K standard linear pots.

This range has been used extensively in musical instruments and pedals / effects.

They have a completely round 6.35mm (0.25") shaft which protrudes away from the main body of the pot by 20mm, 6.5mm of which is the threaded mounting bush (fixing nut supplied).

This version has solder lug connections.

Resistance (Ohms): 50k
Tolerance: ±20%
Power (Watts): 60mW
Number of Turns: 1
Taper: Linear
Rotation: 300°
Resistive Material: Conductive Plastic
Termination Style: Solder lugs
Actuator Type:         Plain round
Actuator Length: 20.00mm
Actuator Diameter: 0.25" (6.35mm)
Bushing Thread: M7 x 0.75
Mounting Type: Panel Mount
Size - Body:      Round - 0.669" Dia x 0.374" H (17.00mm x 9.50mm)

The dimensions of the main body 17mm diameter  x 9mm deep.

Nice quality pots, not cheap Chinese rubbish. For other values similar search our other listings with "mini pot"

 PRICED AND SUPPLIED EACH x1.
