ALPHA

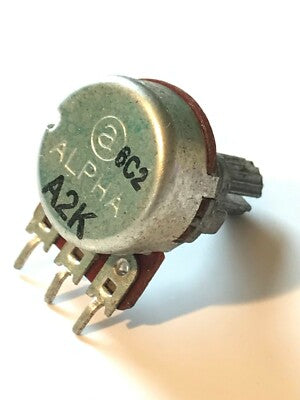

GOOD QUALITY ALPHA MINI 17MM 2K LOG PCB PINS POTENTIOMETER A2K fd5e59

GOOD QUALITY ALPHA MINI 17MM 2K LOG PCB PINS POTENTIOMETER A2K fd5e59

£3.80
£3.80
Sale Sold out
Taxes included.

MINIATURE 2K LOG POT

Manufactured by Alpha as part of their RC16AF range of miniature potentiometers, these are good quality 17mm diameter 2K standard logarithmic pots.

This range has been used extensively in musical instruments and pedals / effects.

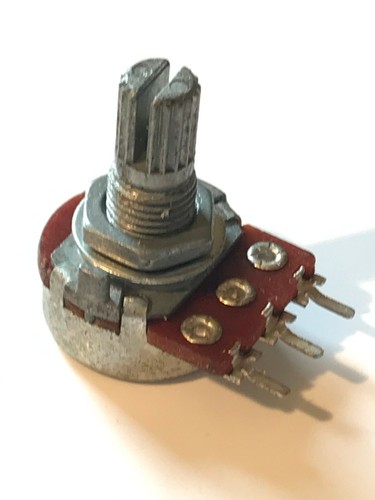

They have a split spline round 6mm shaft which protrudes away from the main body of the pot by 15mm, 6.5mm of which is the threaded mounting bush (fixing nut supplied).

This version has pcb pin connections, at 5mm pitch centres.

Resistance (Ohms): 2k
Tolerance: ±20%
Power (Watts): 60mW
Number of Turns: 1
Taper: Logarithmic
Rotation: 300°
Resistive Material: Conductive Plastic
Termination Style: PCB pins
Actuator Type: Round split spline
Actuator Length: 15.00mm
Actuator Diameter:  6mm
Bushing Thread: M7 x 0.75
Mounting Type: Panel Mount
Size - Body:      Round - 0.669" Dia x 0.374" H (17.00mm x 9.50mm)

The dimensions of the main body 17mm diameter  x 9mm deep.

Nice quality pots, not cheap Chinese rubbish. For other values similar search our other listings with "mini pot"

 PRICED AND SUPPLIED EACH x1.
