FILTRONIC COMBINER

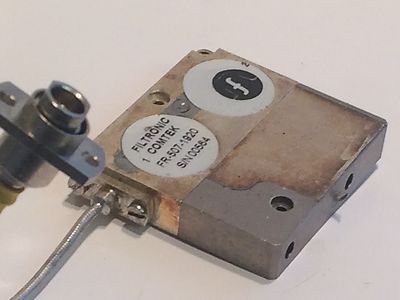

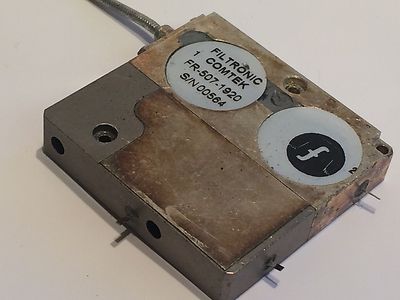

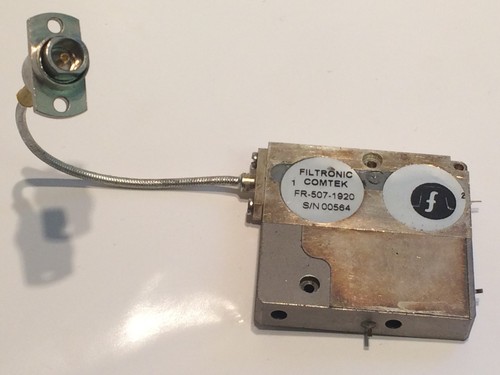

Manufactured by Filtronic as their model FR-507-1920, these are some type of -RF combiner or filter, they have 3 solder tab connections and a length of semi-rigid coax terminating in a BMA female.

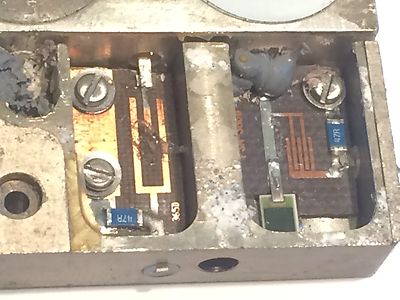

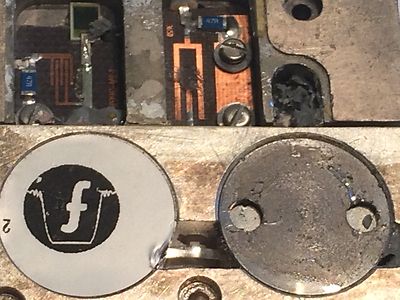

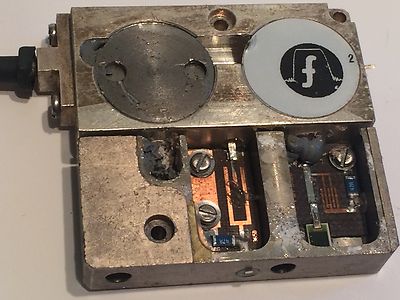

There is a section with a PCB in it that has 47R resistors, and what looks to be a load resistor to ground, and this is bolted to another section which looks to have 2 magnetic isolators in it.

Dimensions are roughly 40mm square and 8mm thick. They are obviously a 'drop in' module that dropped in to the input or output of some equipment.

We have tried to show all aspects in the photos, if anyone has any idea what they may be we would be very interested to hear !

They were destined for equipment that covered the 1.9 - 2.2GHz range.

Note we butchered one to see inside it, the ones we supply will be new as in the first photograph.


 PACK  QUANTITY:  1
