EPCOS B32621 10MM RANGE BEST QUALITY MKP CAPACITORS FROM DROP DOWN LIST FCA11

EPCOS B32621 10MM RANGE BEST QUALITY MKP CAPACITORS FROM DROP DOWN LIST FCA11

£2.00
£2.00
Sale Sold out
Taxes included.
EPCOS PART NUMBER

EPCOS 10MM  MKP  POLYPROP  CAPACITORS

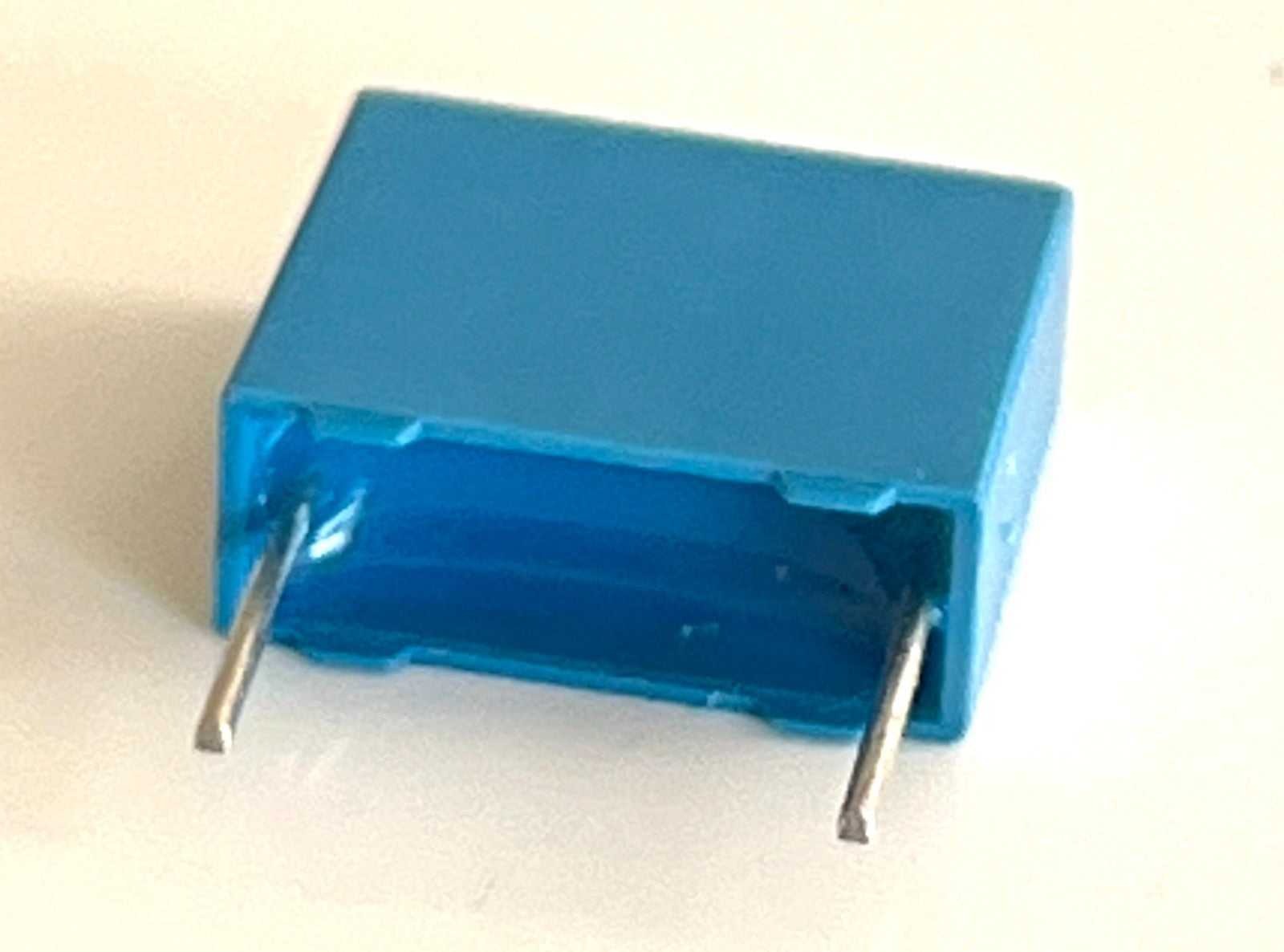

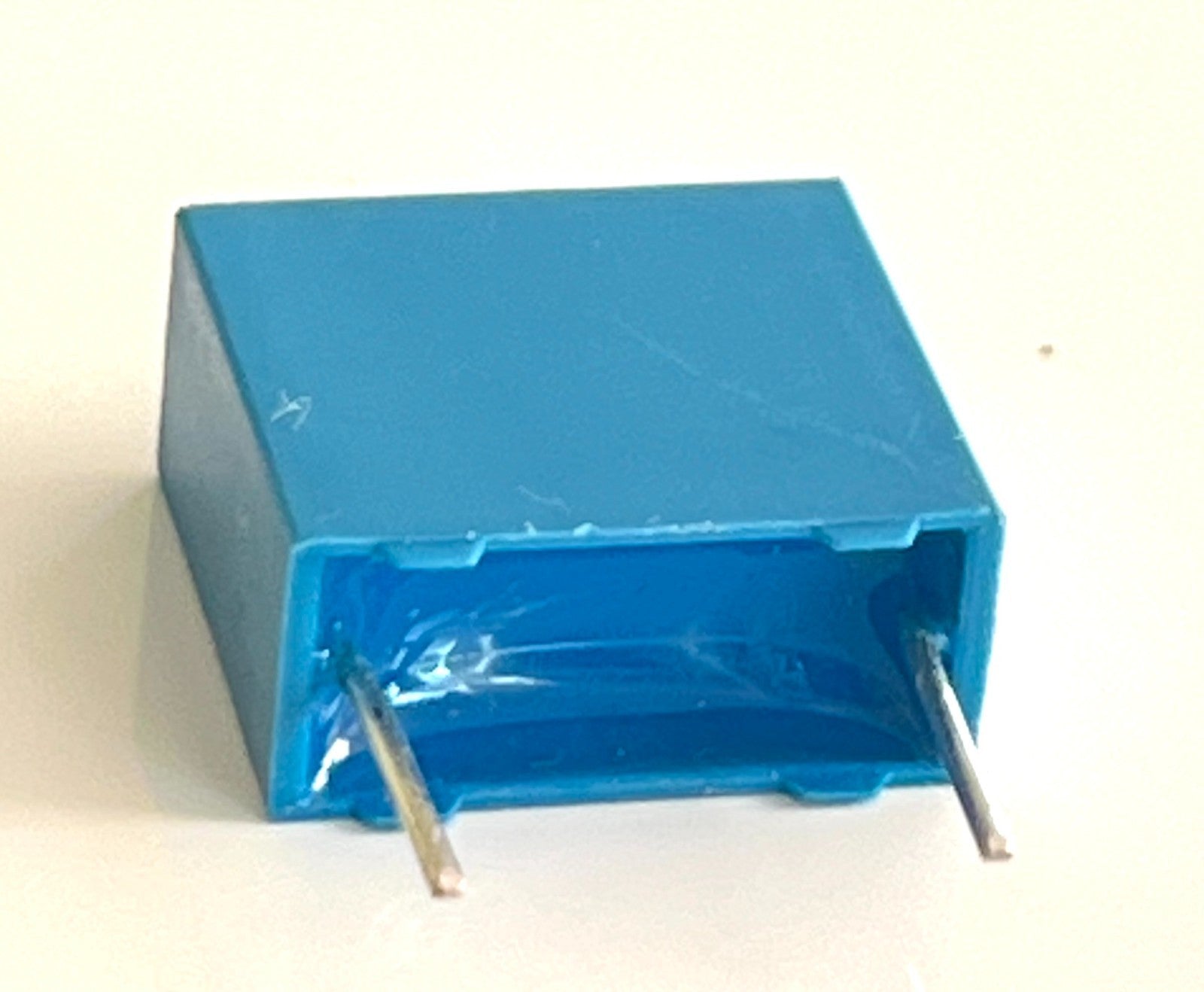

Manufactured by brand leader TDK Epcos as their B32651 range, these are premium quality Polypropylene MKP capacitors with 10mm lead spacing.

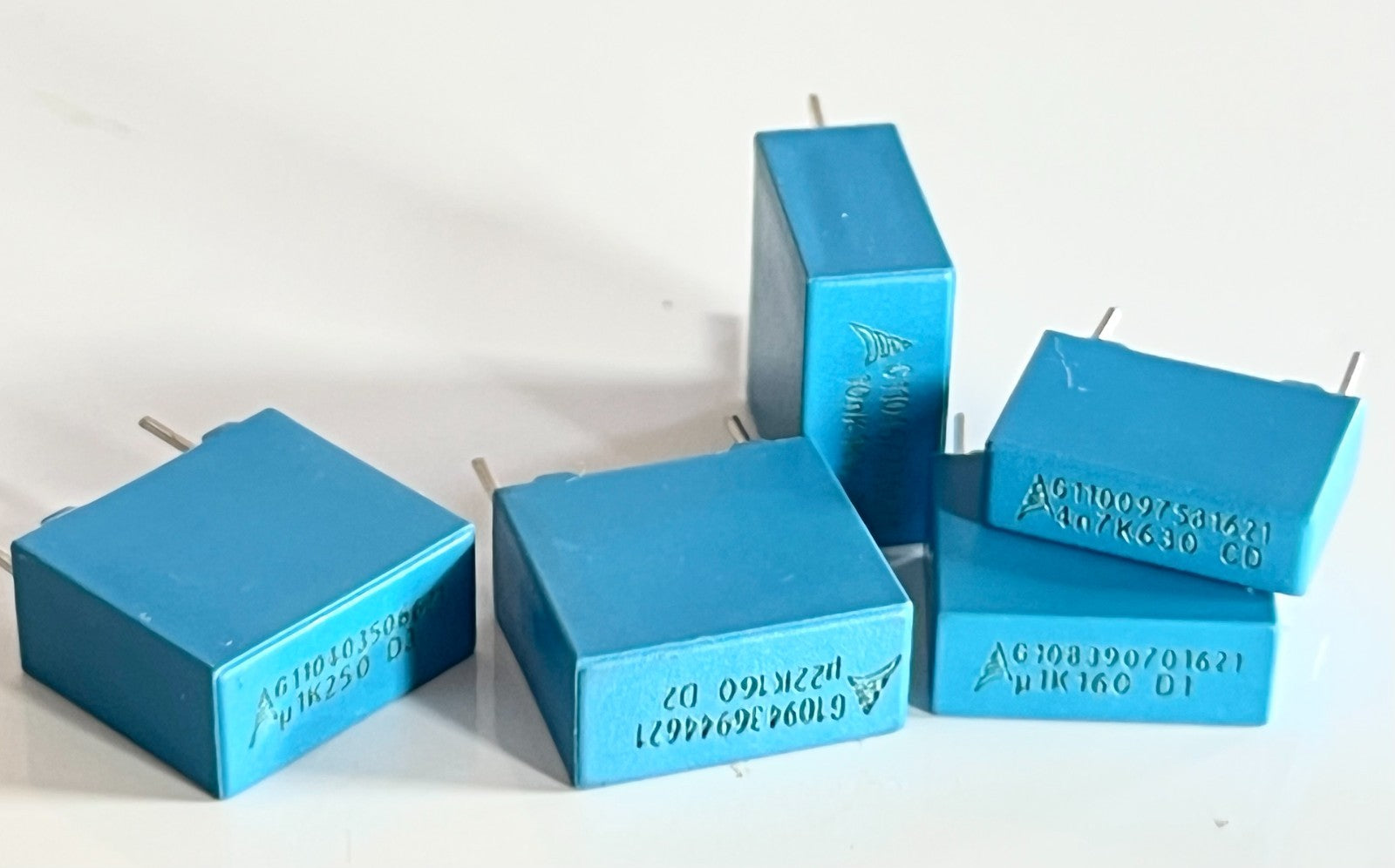

Brand new date code stock, all types available from the drop down menu.

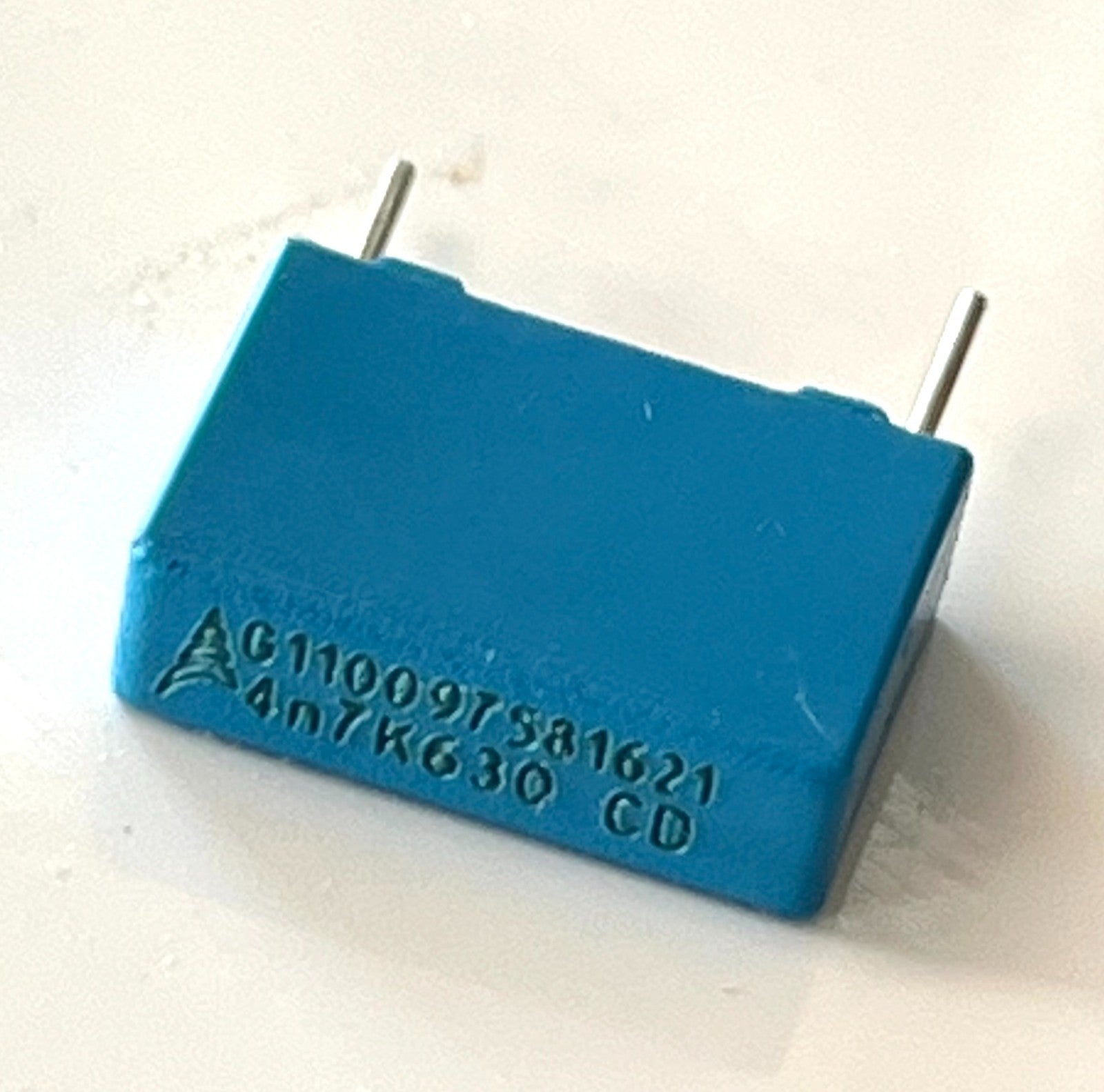

B32621A6472K000 is 0.0047uF - so thats 4.7nF -  4700pF at 630 Volts DC (400Vrms) 10% tolerance and 105°C temperature rating.  Dimensions are 13mm long x 9mm high x 4mm wide, with leads at 10mm spacing.

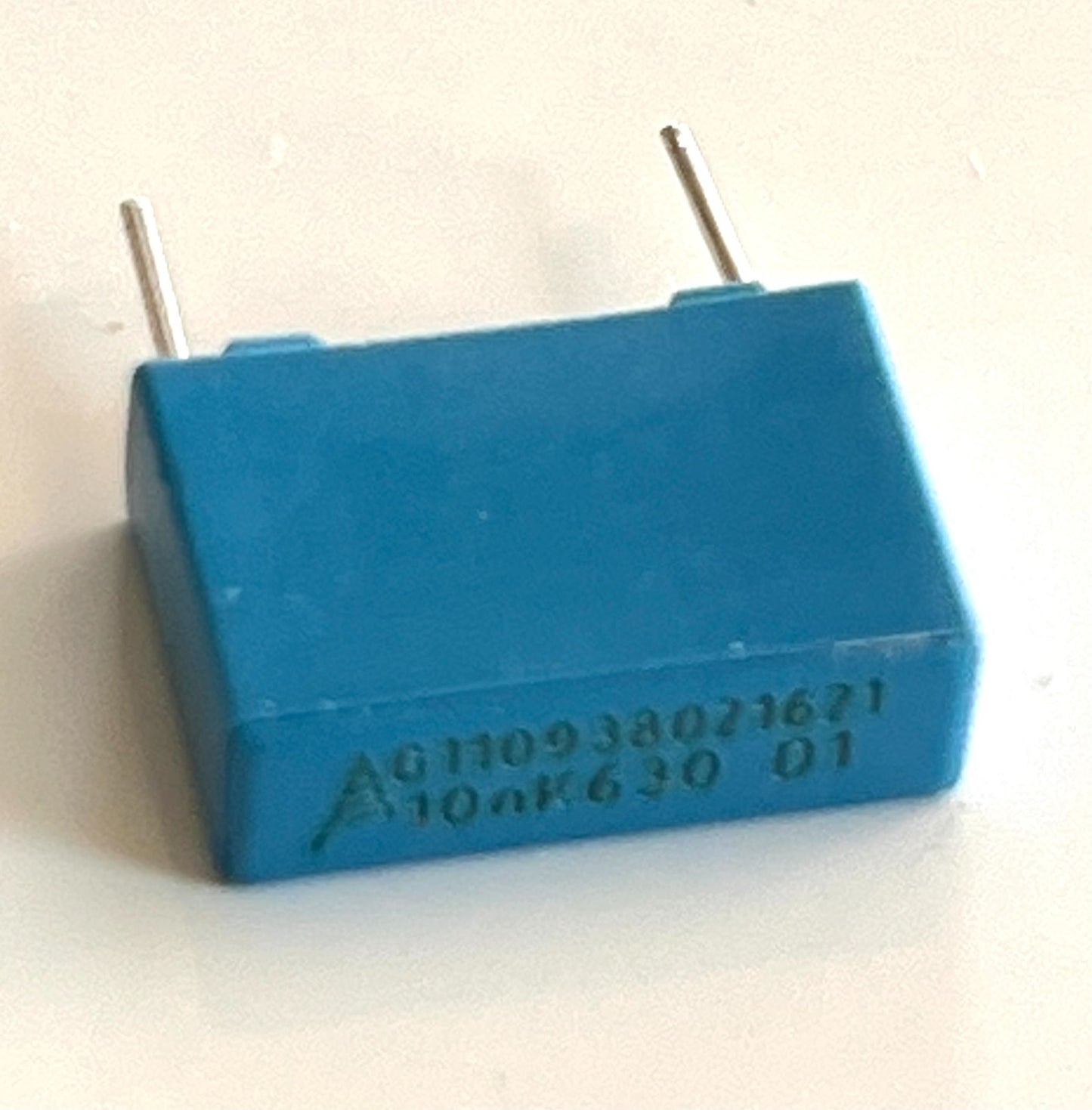

B32621A6103K000 is 0.01uF - so thats 10nF at 630 Volts DC (400Vrms) 10% tolerance and 105°C temperature rating. Dimensions are 13mm long x 9mm high x 4mm wide, with leads at 10mm spacing.

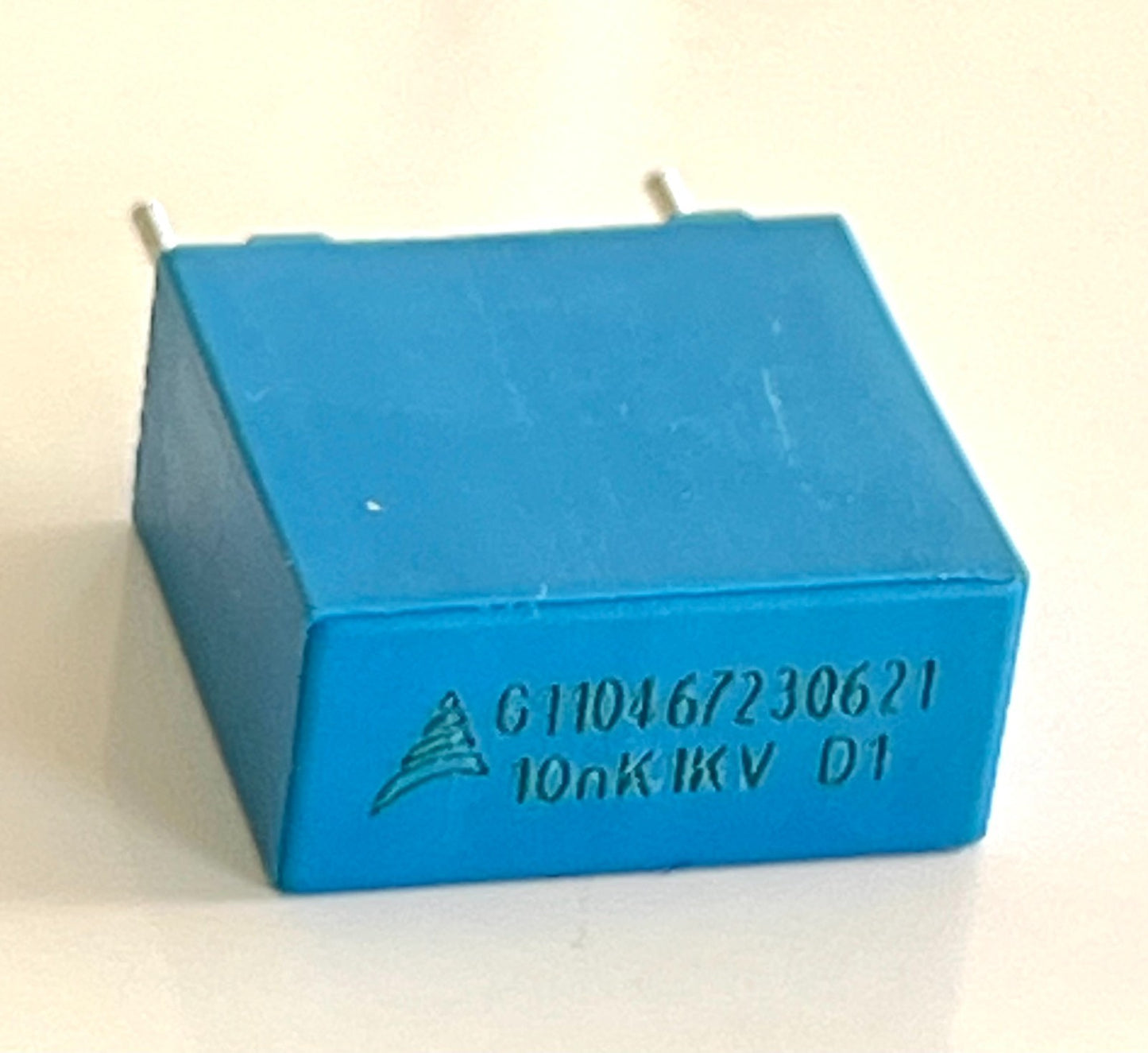

B32621A0103K000 is 0.01uF - so thats 10nF at 1000 Volts DC (500Vrms) 10% tolerance and 105°C temperature rating. Dimensions are 13mm long x 12mm high x 6mm wide, with leads at 10mm spacing.

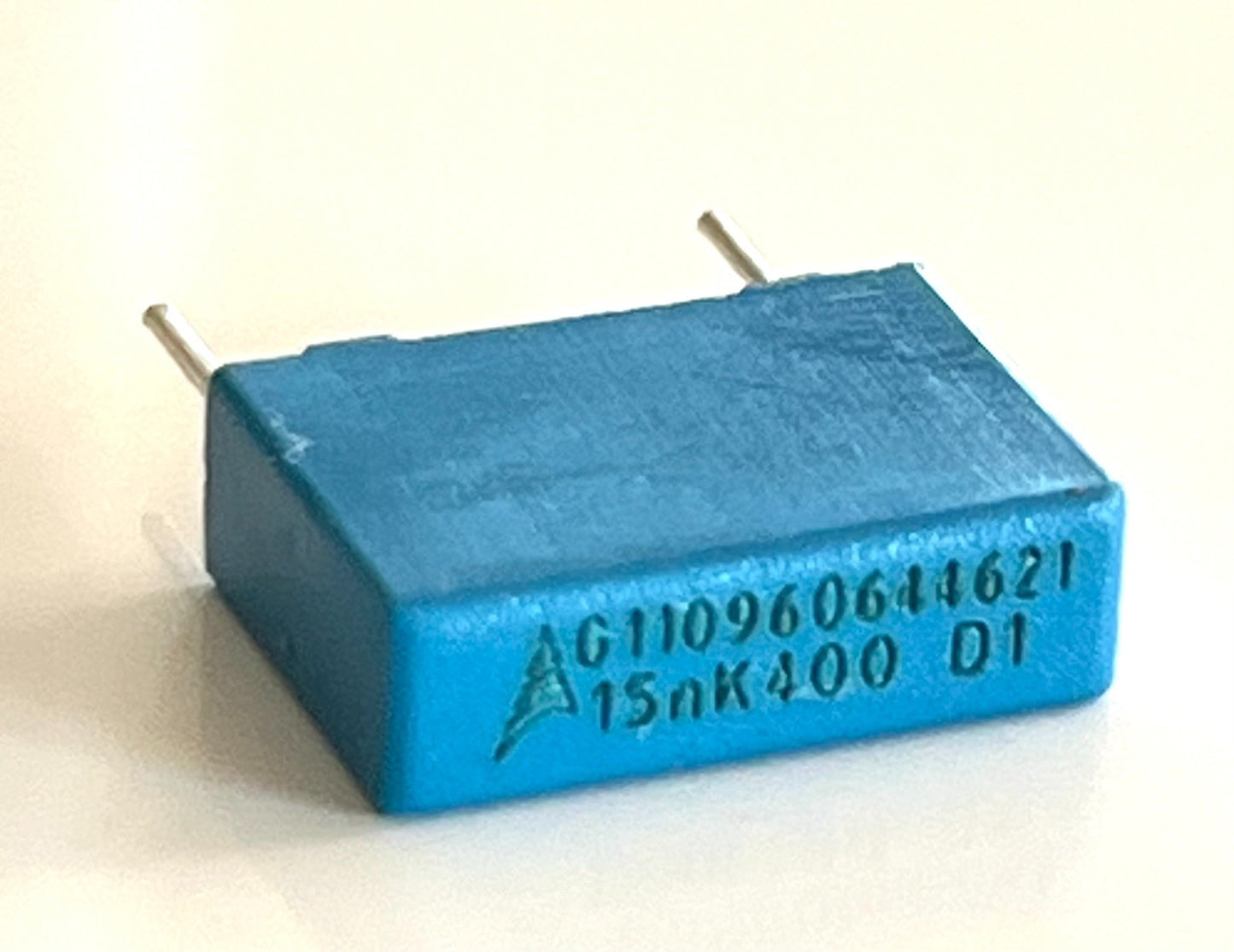

B32621A4153K000 is 0.015uF - so thats 15nF at 400 Volts DC (200Vrms) 10% tolerance and 105°C temperature rating. Dimensions are 13mm long x 9mm high x 4mm wide, with leads at 10mm spacing.

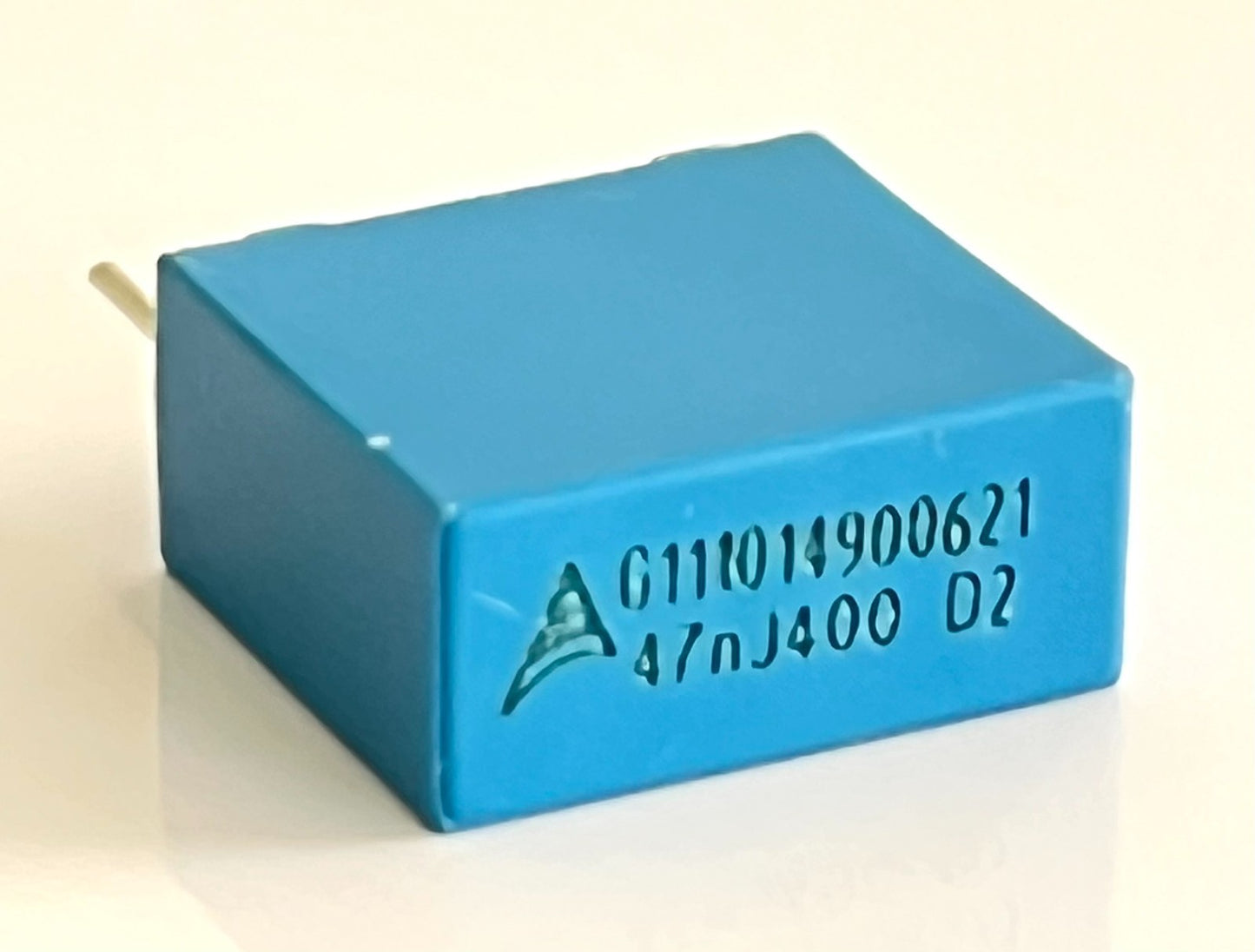

B32621A4473J000 is 0.047uF - so thats 47nF at 400 Volts DC (200Vrms) 5% tolerance and 105°C temperature rating. Dimensions are 13mm long x 12mm high x 6mm wide, with leads at 10mm spacing.

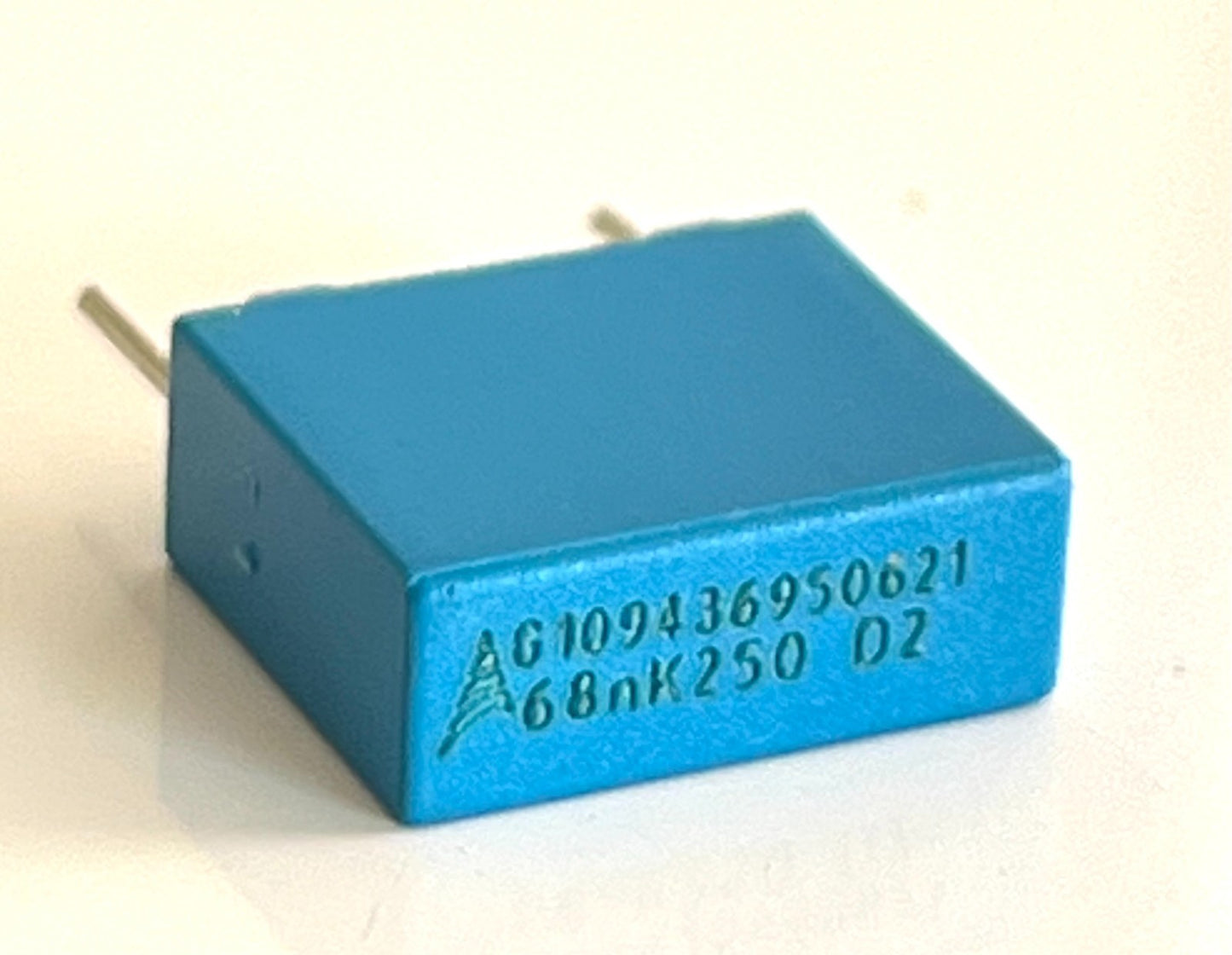

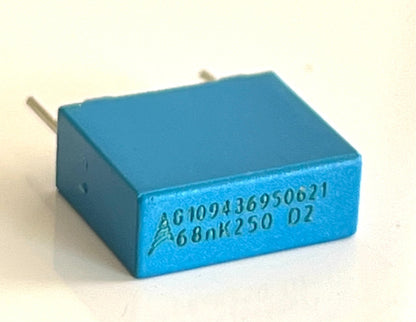

B32621A3683K000 is 0.068uF - so thats 68nF at 250 Volts DC (140Vrms) 10% tolerance and 105°C temperature rating. Dimensions are 13mm long x 11mm high x 5mm wide, with leads at 10mm spacing.

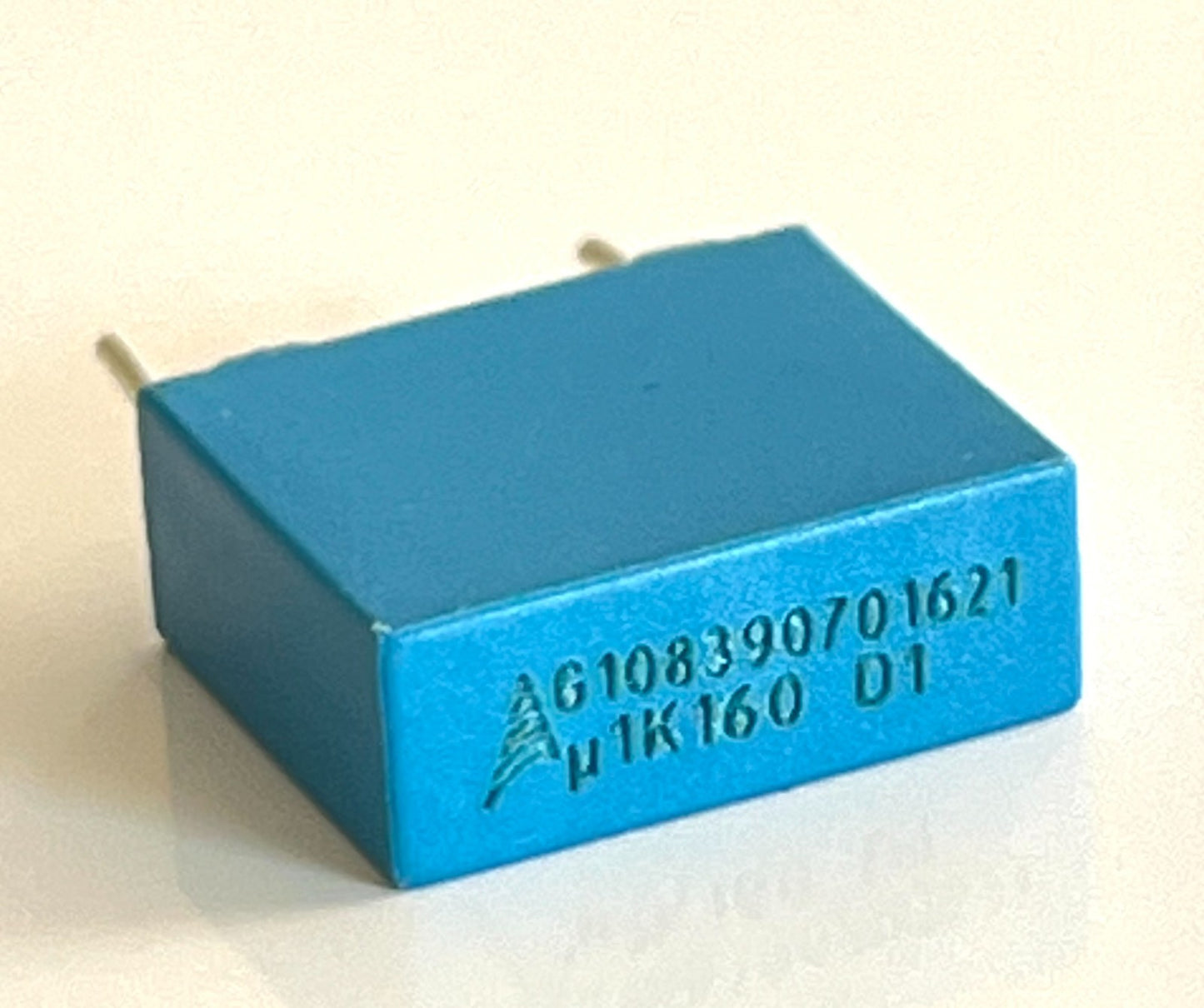

B32621A5104K000 is 0.1uF - so thats 100nF at 160 Volts DC (90Vrms) 10% tolerance and 105°C temperature rating. Dimensions are 13mm long x 11mm high x 5mm wide, with leads at 10mm spacing.

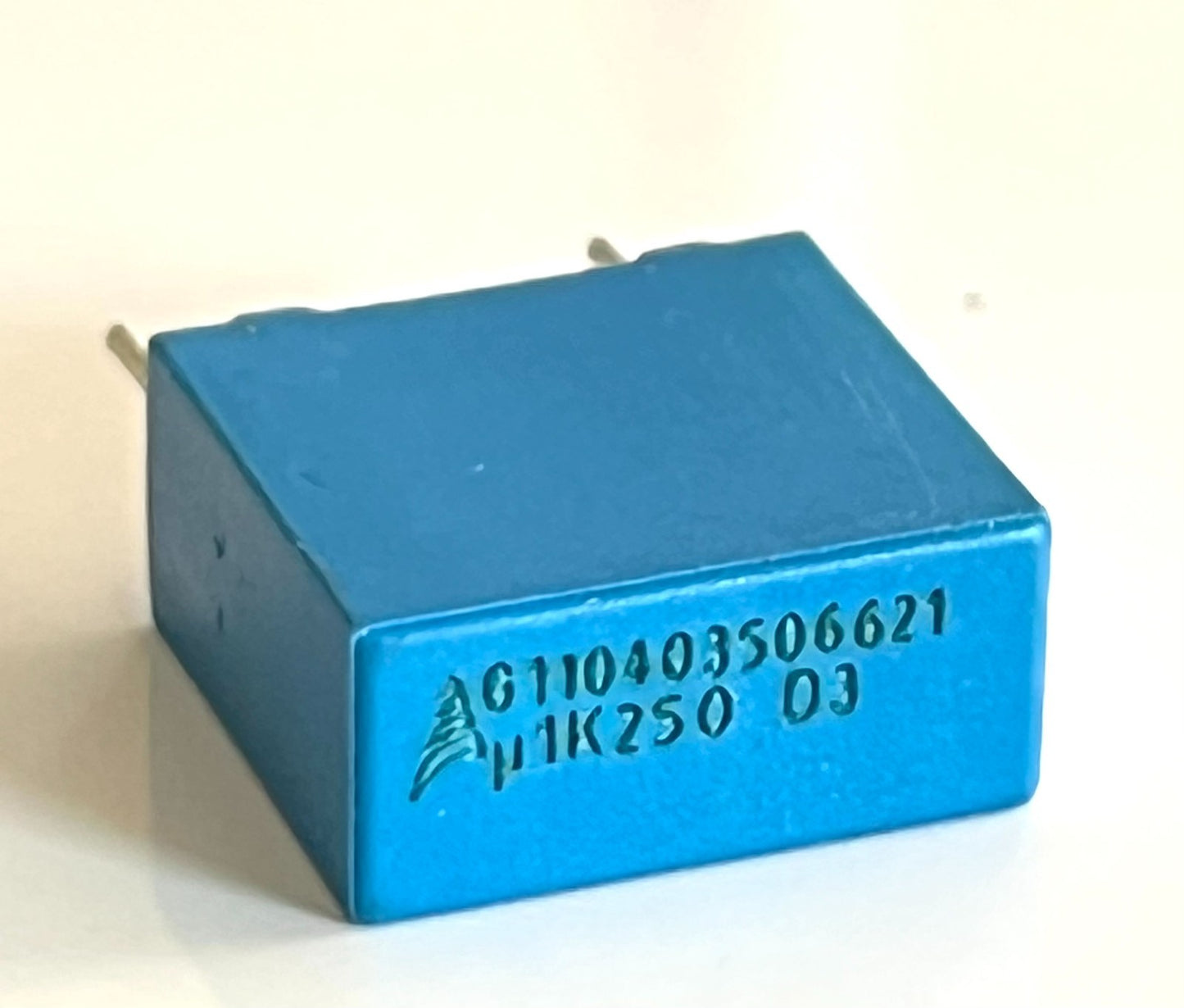

B32621A3104K000 is 0.1uF - so thats 100nF at 250 Volts DC (140Vrms) 10% tolerance and 105°C temperature rating. Dimensions are 13mm long x 12mm high x 6mm wide, with leads at 10mm spacing.

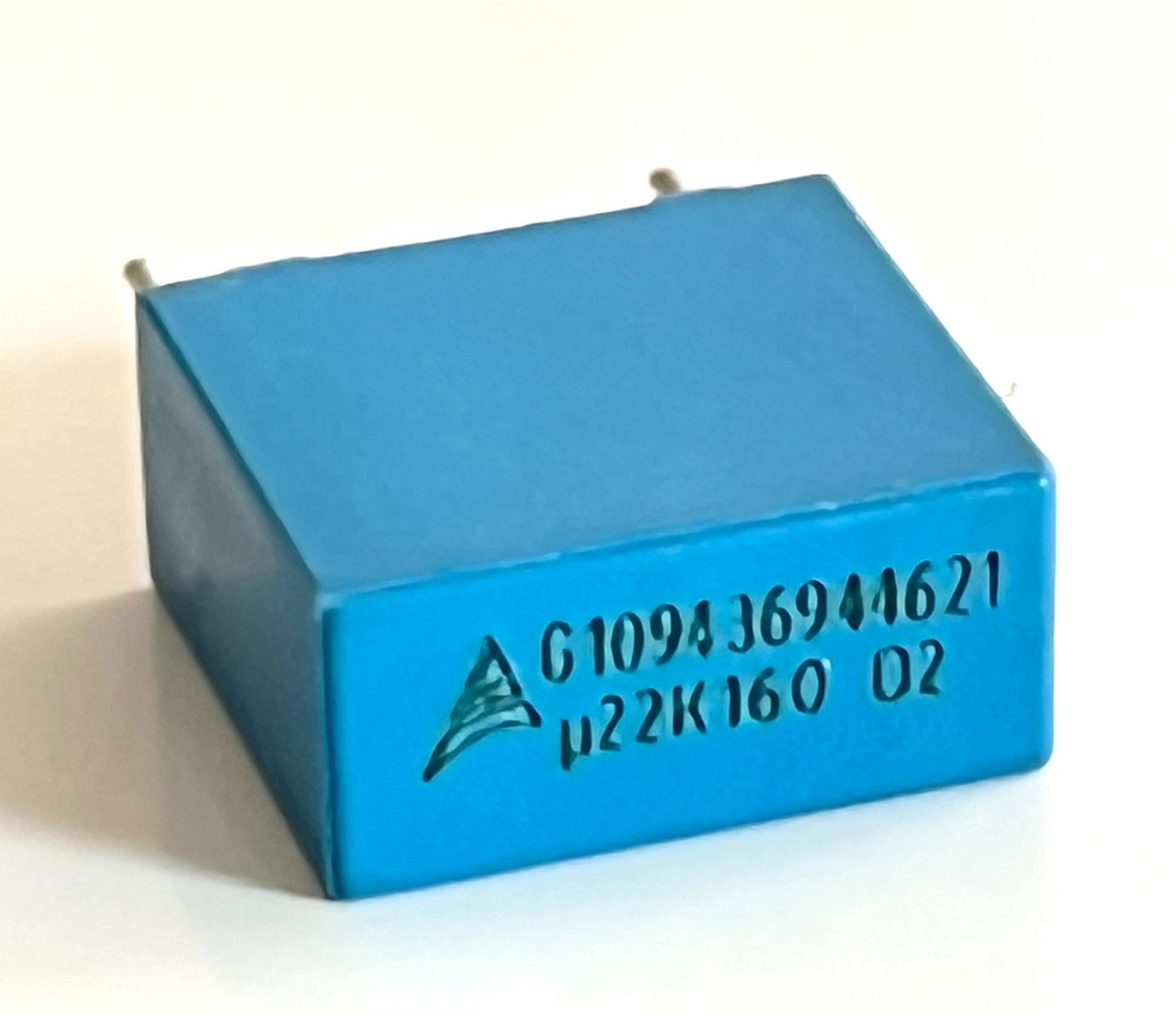

B32621A5224K000 is 0.22uF - so thats 220nF at 160 Volts DC (90Vrms) 10% tolerance and 105°C temperature rating. Dimensions are 13mm long x 12mm high x 6mm wide, with leads at 10mm spacing.


 Metallized polypropylene film radial non-inductive capacitors, manufactured by Epcos as part of their MKP range.

Brand new Rosh lead free stock.

 Priced and supplied each x1 with quantity discounts available.
