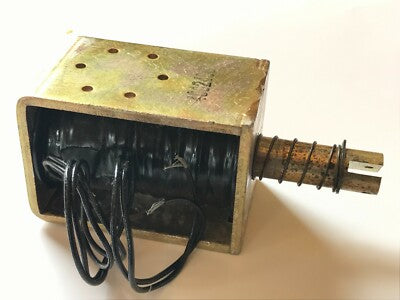

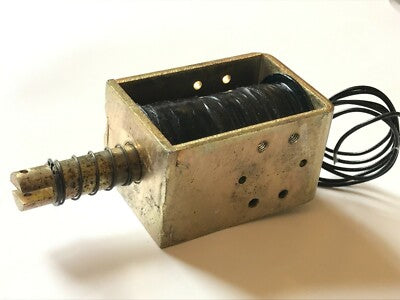

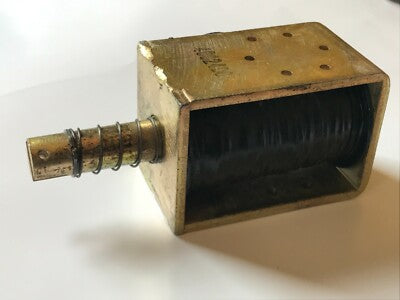

ELECTROSWITCH HEAVY DUTY 24VDC PUSH SOLENOID

Manufactured by Electroswitch to military specifications as their part number 40C24DC(AX), these are a very heavy duty 24Vdc solenoid coil, continuous duty.

The frame dimensions are 68mm long x 40mm wide x 47mm high.

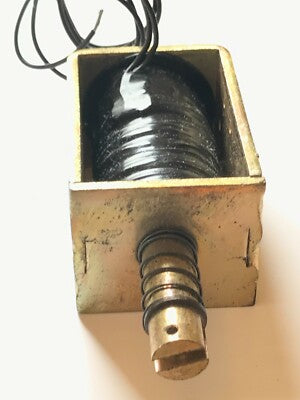

The plunger is 12mm diameter which goes down to a 3mm diameter shaft which protrudes from the rear of the coil housing by a maximum of 4mm - enough to operate a microswitch which the original application required.

Plunger stroke length is 1", and the linear force is 0.375 pounds which is 1.67 Newtons.

Body Style:                   Enclosed frame
Body Length:                2.625 inches nominal
Body Width:                  1.828 inches nominal
Body Height                  1.562 inches nominal
Enclosure Type:            Fully enclosed
Electrical Resistance:   47.50 ohms nominal
Voltage Rating:             24.0V dc maximum
Duty Type:                    Continuous

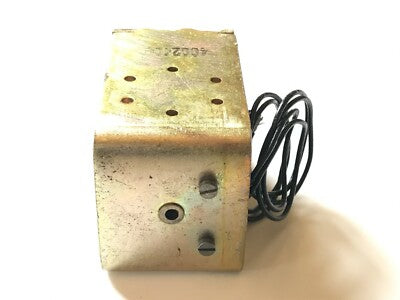

Mountings:                    4 threaded hole
Actuator Stroke Type:                          PUSH
Linear Force Delivered:                        0.375 pounds

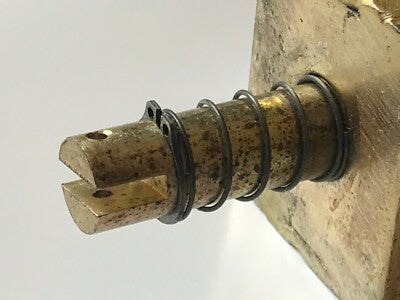

Power Takeoff Connection Type:          Slotted-drilled
Energizing Stroke Maximum Length:    1.000 inches

New surplus stock, priced and supplied each x1.
