EBM-PAPST MODEL 3412-NGV AXIAL 12V (8v - 12.6v) 92MM x 25MM 3 WIRE FAN fbd3d

EBM-PAPST MODEL 3412-NGV AXIAL 12V (8v - 12.6v) 92MM x 25MM 3 WIRE FAN fbd3d

Regular price £28.00
Regular price Sale price £28.00
Sale Sold out
Taxes included.

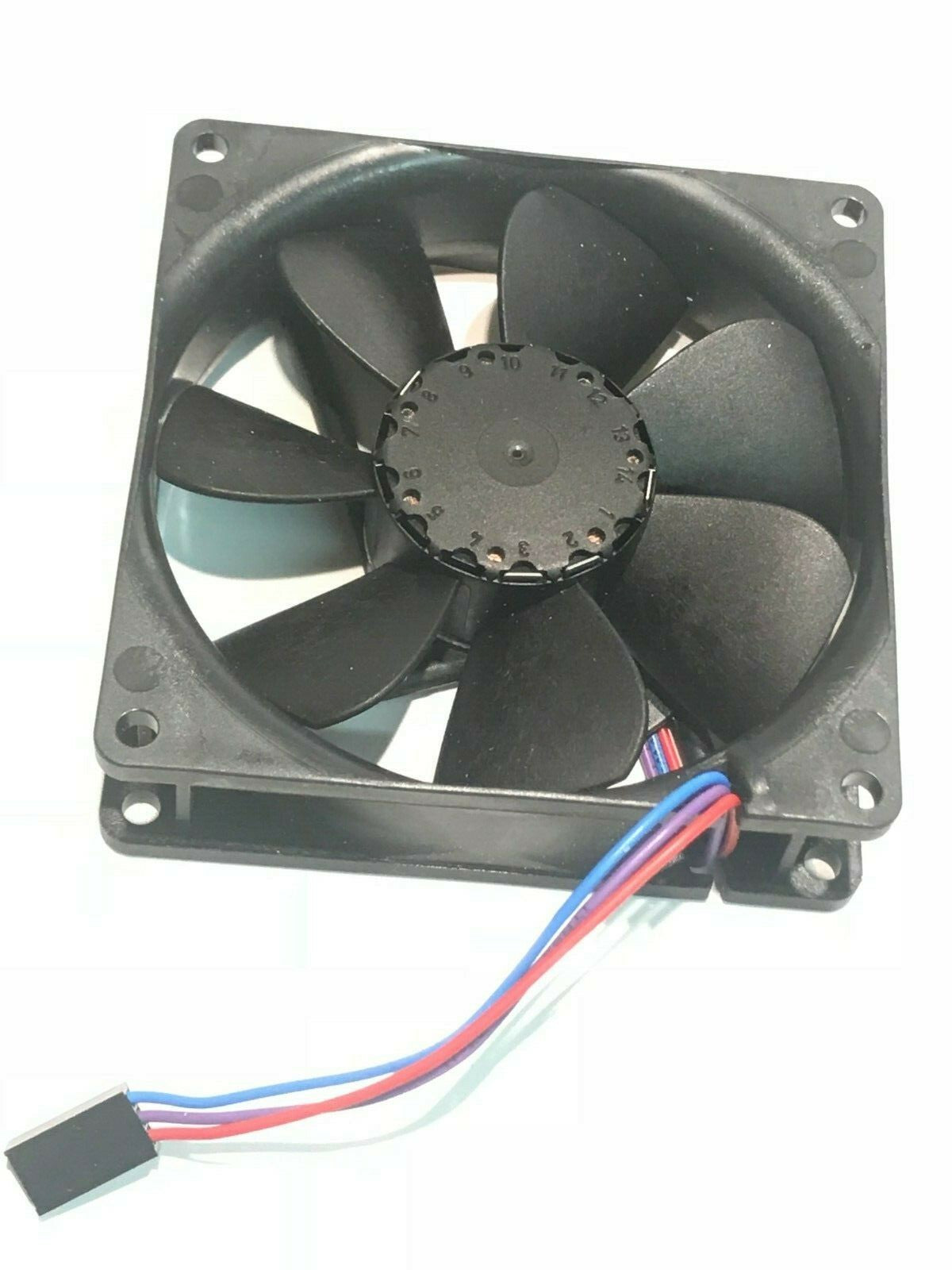

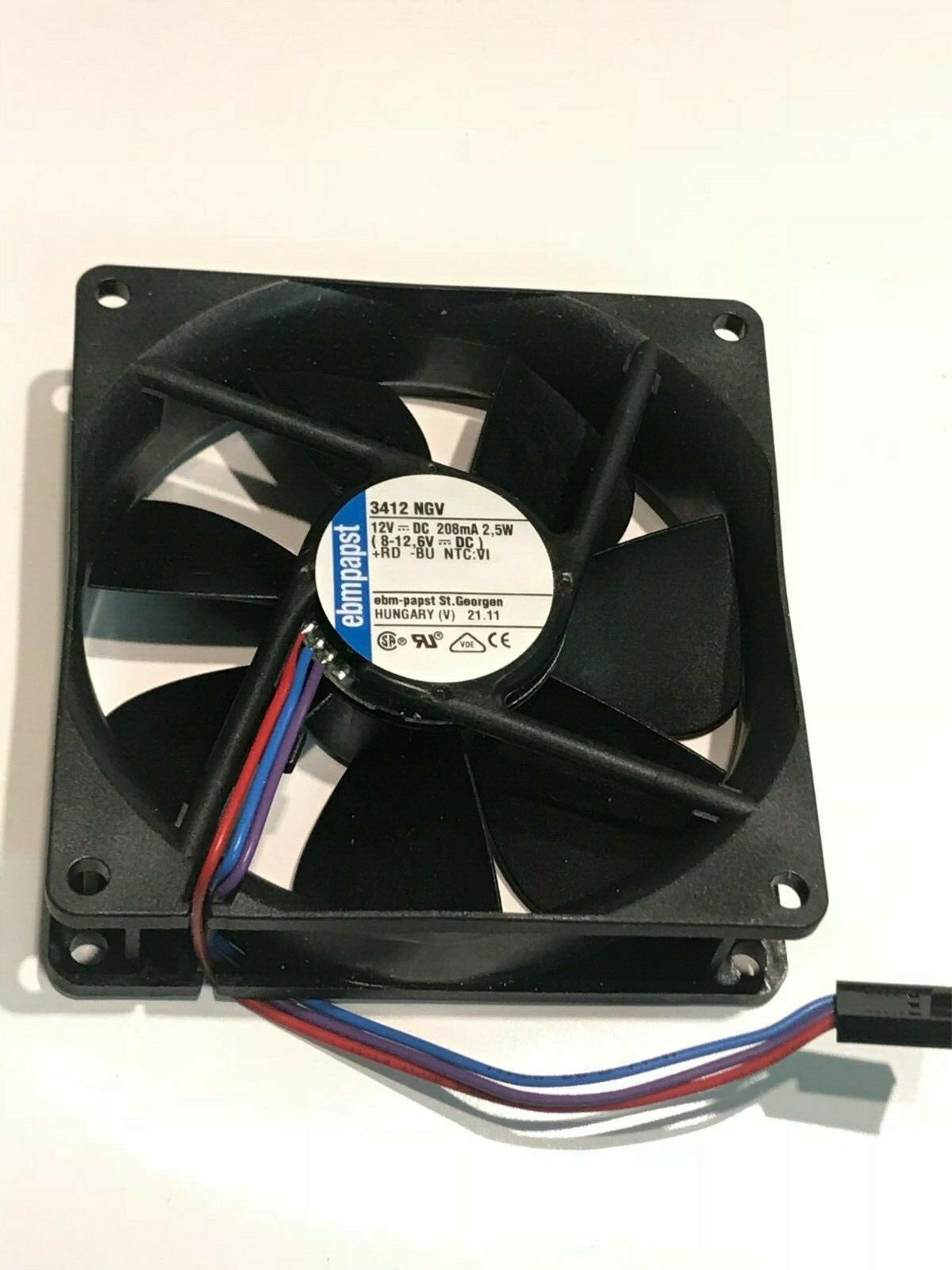

PAPST MODEL 3412-NGV AXIAL 12v FAN

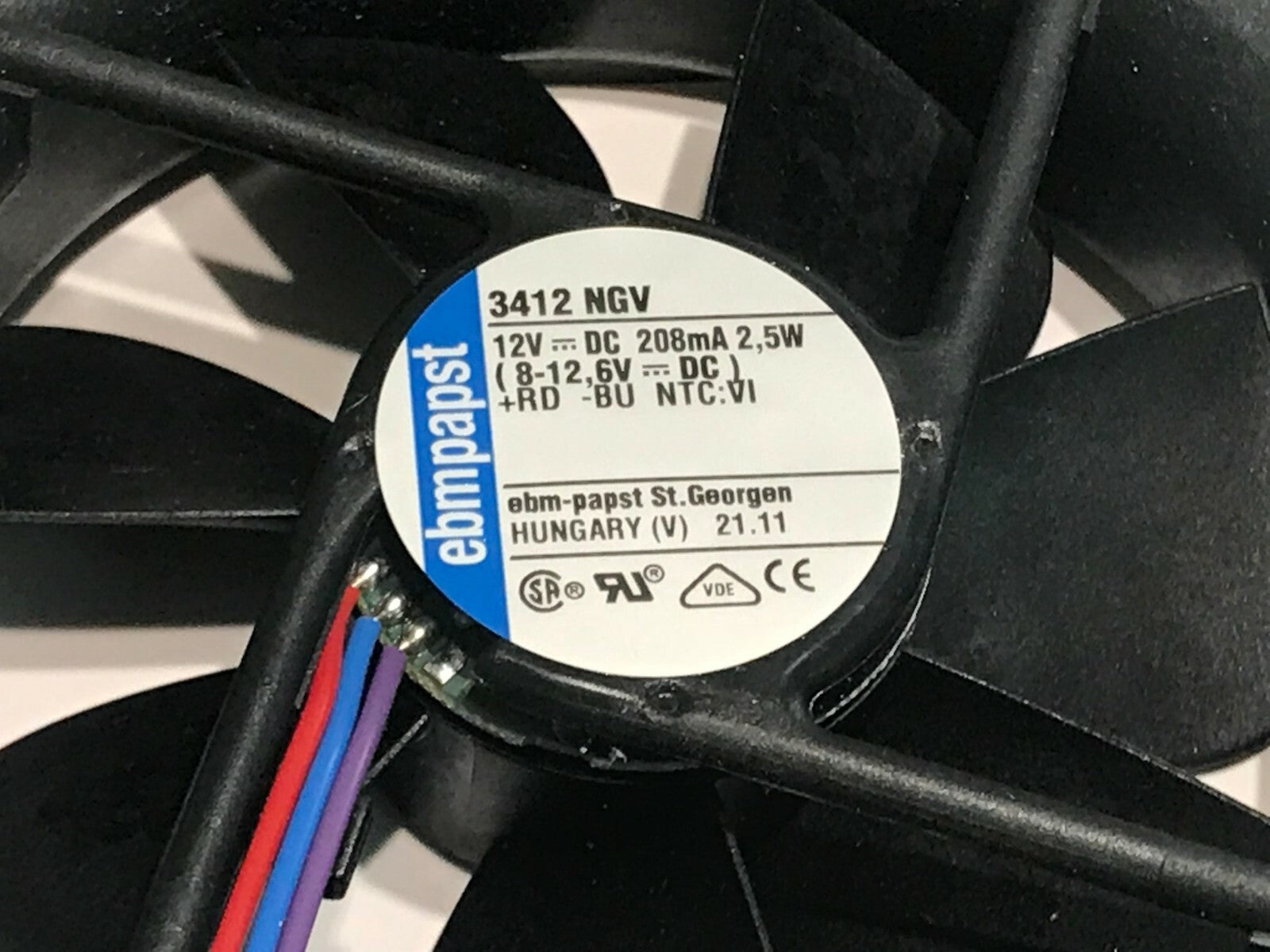

Manufactured by Papst as their type 3412-NGV,  these are a low noise best quality axial fan, Operates anywhere between 8V and 12.8V DC., at 12V the power consumption is 2.5W.

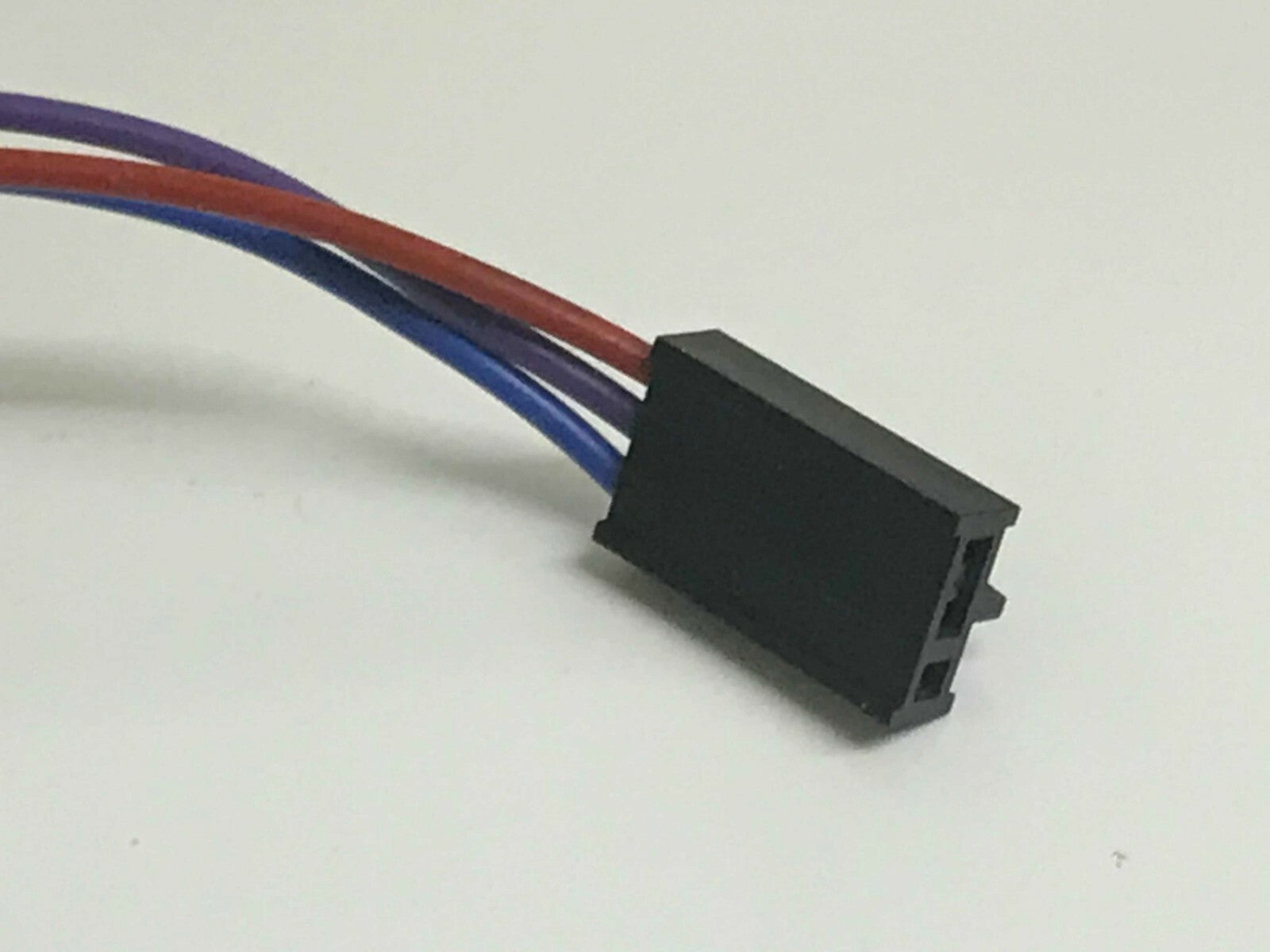

Has 3 leads which means it is fitted with a temperature sensor, which does not necessarily have to be used, but may be essential in some applications.

Dimensions are 100mm square (mountings are at 92mm)  x 25mm thick.

Nominal voltage VDC 12
Nominal voltage range VDC 8 .. 12.6
Speed (rpm) min-1 2700
Power consumption W 2.5
Min. ambient temperature °C -20
Max. ambient temperature °C 65
Air flow m3/h 84
Sound power level B 4.7
Sound pressure level dB(A) 32
Housing material Glass-fiber reinforced PBT
Plastic Impeller material Glass-fiber reinforced PA plastic
Weight 0.100 kg
Dimensions 92 x 92 x 25 mm
Airflow direction Exhaust over struts
Direction of rotation Counterclockwise, viewed toward rotor
Storage Sintec sleeve bearing
Motor protection Protection against reverse polarity and blocked rotor.
Option Alarm signal
New and unused industrial standard spare part.
