EATON MINI SINGLE POLE SPCO MILITARY SPEC PUSH SWITCH WITH PCB PINS fcb29.25

Name: EATON MINI SINGLE POLE SPCO MILITARY SPEC PUSH SWITCH WITH PCB PINS fcb29.25
Brand: EATON USA
SKU: 100186
Price: 10.00 GBP
Availability: InStock

£10.00

Sale Sold out

Taxes included.

Quantity

MINI PANEL MOUNT SINGLE POLE PUSH SWITCH

Manufactured by Eaton in the USA, these are a sensitive (less than 1mm travel required for the switch to action) top quality miniature push switch, with single normally open and normally closed contacts, so a single pole momentary push to make or break or changeover switch with gold plated contacts, rating of 5.0A

Designed for printed circuit board mounting with right angle PCB pins and a 6mm blind (non threaded) collar.

Overall behind panel dimensions are 14mm x 13mm x 7mm and the actuator or push button is 3mm diameter and fitted with a black 5mm knob .

Lovely military specification switches

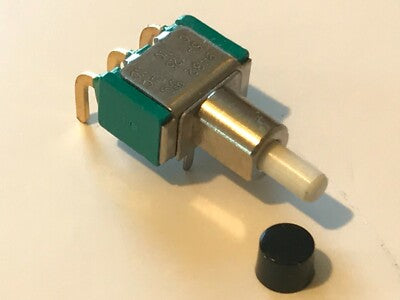

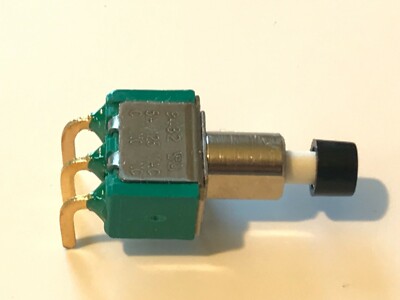

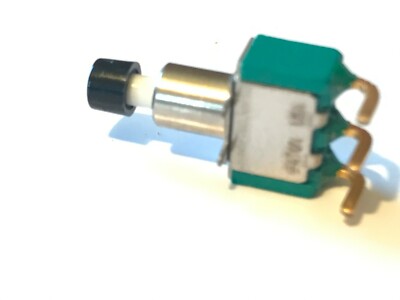

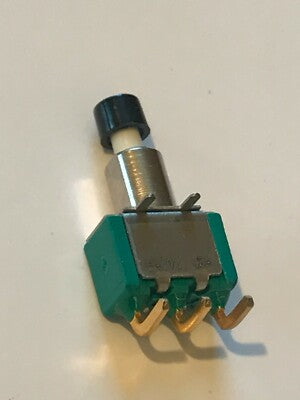

SUPPLIED AS SHOWN IN THE PHOTO
