ELMA

DUAL 9 WAY & 11 WAY 1 POLE 2 GANG CONCENTRIC ROTARY SWITCH AUDIO fcb20.3

DUAL 9 WAY & 11 WAY 1 POLE 2 GANG CONCENTRIC ROTARY SWITCH AUDIO fcb20.3

£65.00
£65.00
Sale Sold out
Taxes included.

1 POLE 9 & 11 WAY DUAL ROTARY SWITCH

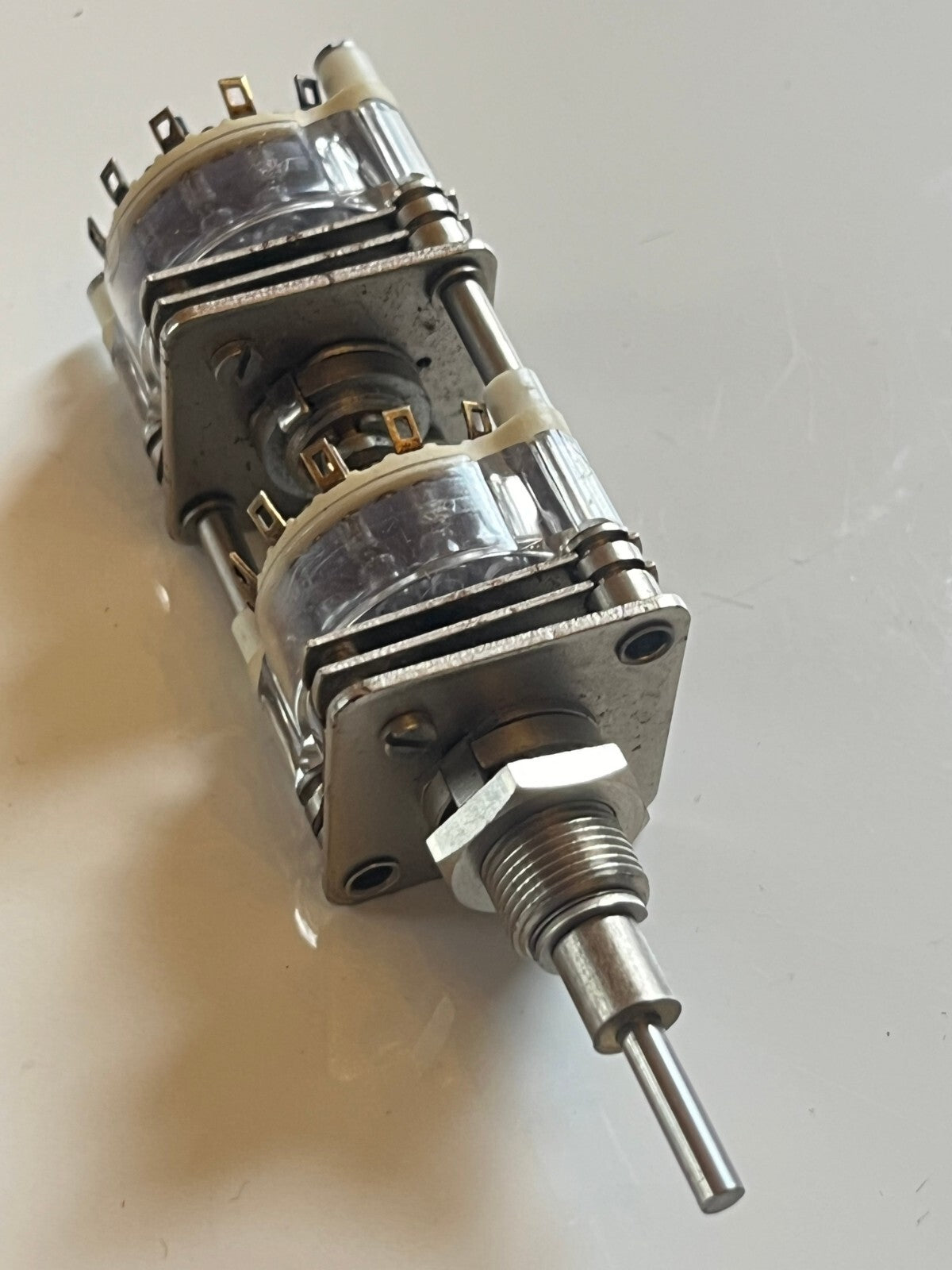

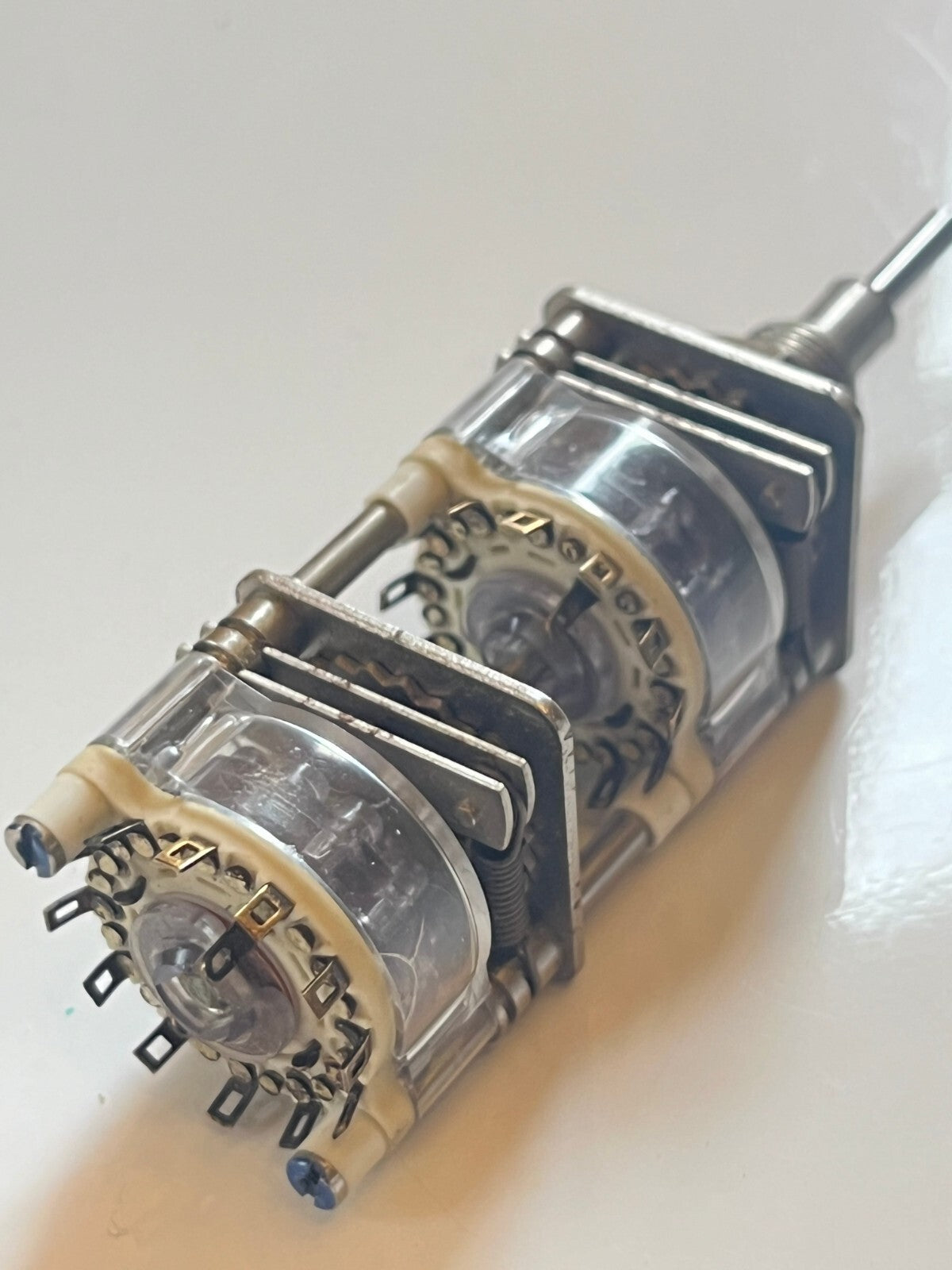

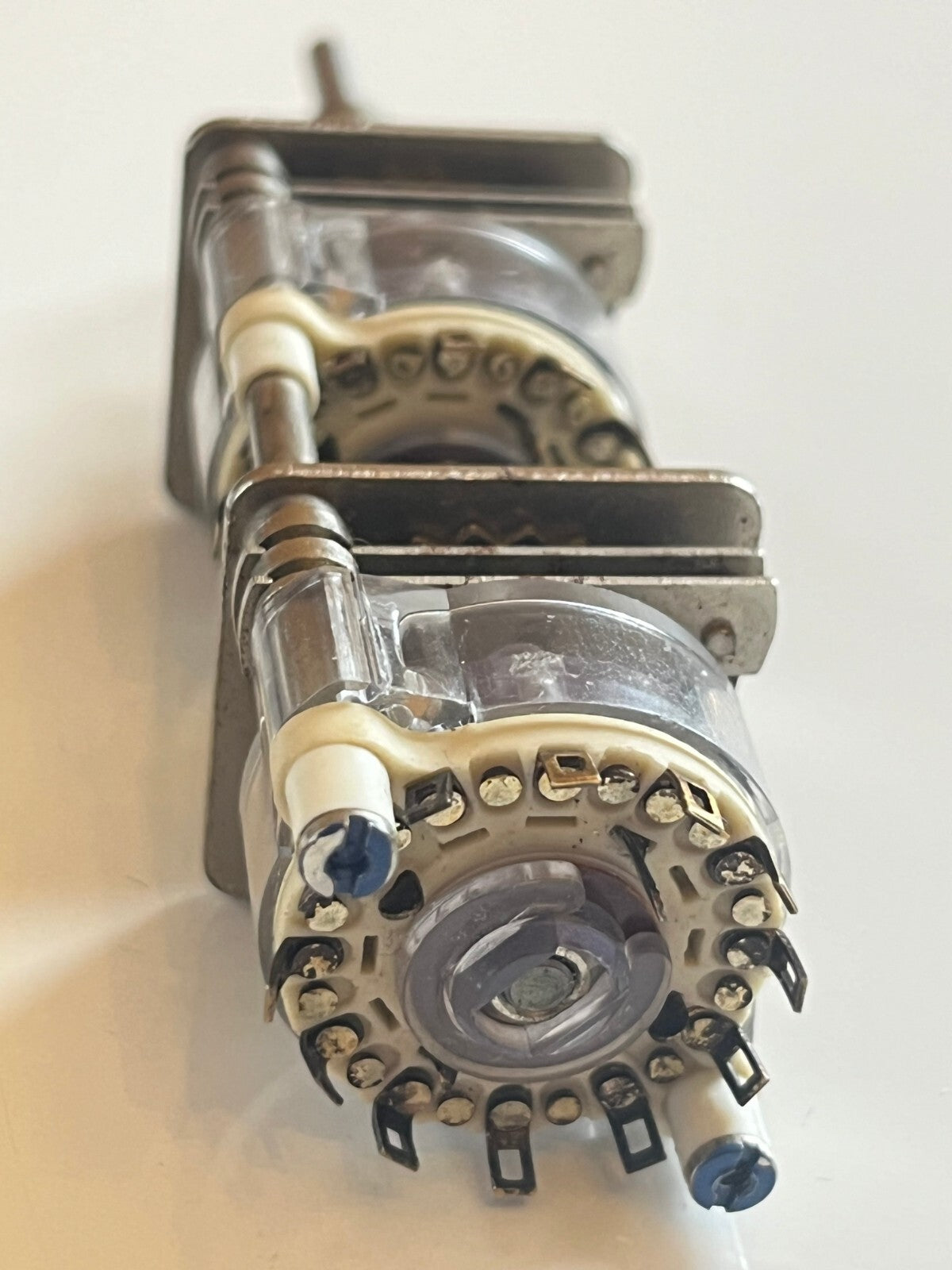

Manufactured to military specifications by Elma in Switzerland, these are a beautifully crafted very high quality miniature concentric rotary selector switch.

 2 (inner and outer) individual single pole switches, the inner switch is 11 way (so 11 positions) and the outer switch is 9 way (so 9 positions);  with 6 micron gold plated over copper alloy contacts.

 They are a concentric switch,  which means they are infact 2 separate single pole switches, in one stack, with an inner and an outer control on the one shaft.

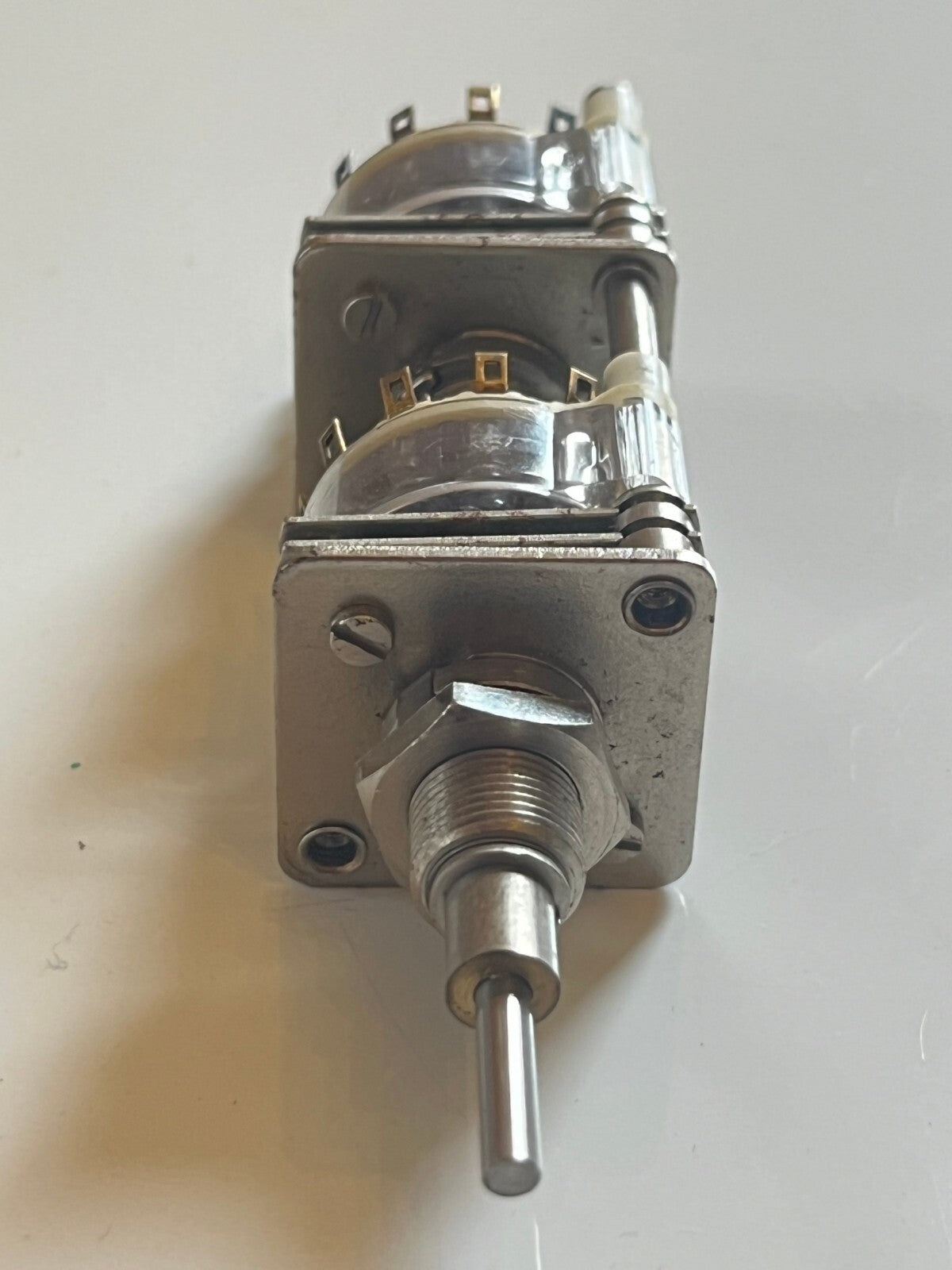

Designed to be panel mounted through a 10mm panel hole,  with a 6mm round shaft for the outer switch and 4mm round shaft for the inner switch.

Behind panel dimensions are roughly 24mm square x 60mm long; overall length from the tip of the inner control shaft to the back of the switch is 95mm.

Full specifications can be found by searching the internet for Elma series 04 rotary switch

Offered here at a fraction of the manufacturers price.

 Priced and supplied individually, each (x1)
