CROPICO

CROPICO PRECISION EXTREME ACCURACY RESISTANCE DECADE BOX 0.1R - 11.1K Ohm ad2~6

CROPICO PRECISION EXTREME ACCURACY RESISTANCE DECADE BOX 0.1R - 11.1K Ohm ad2~6

Regular price £295.00
Regular price Sale price £295.00
Sale Sold out
Taxes included.

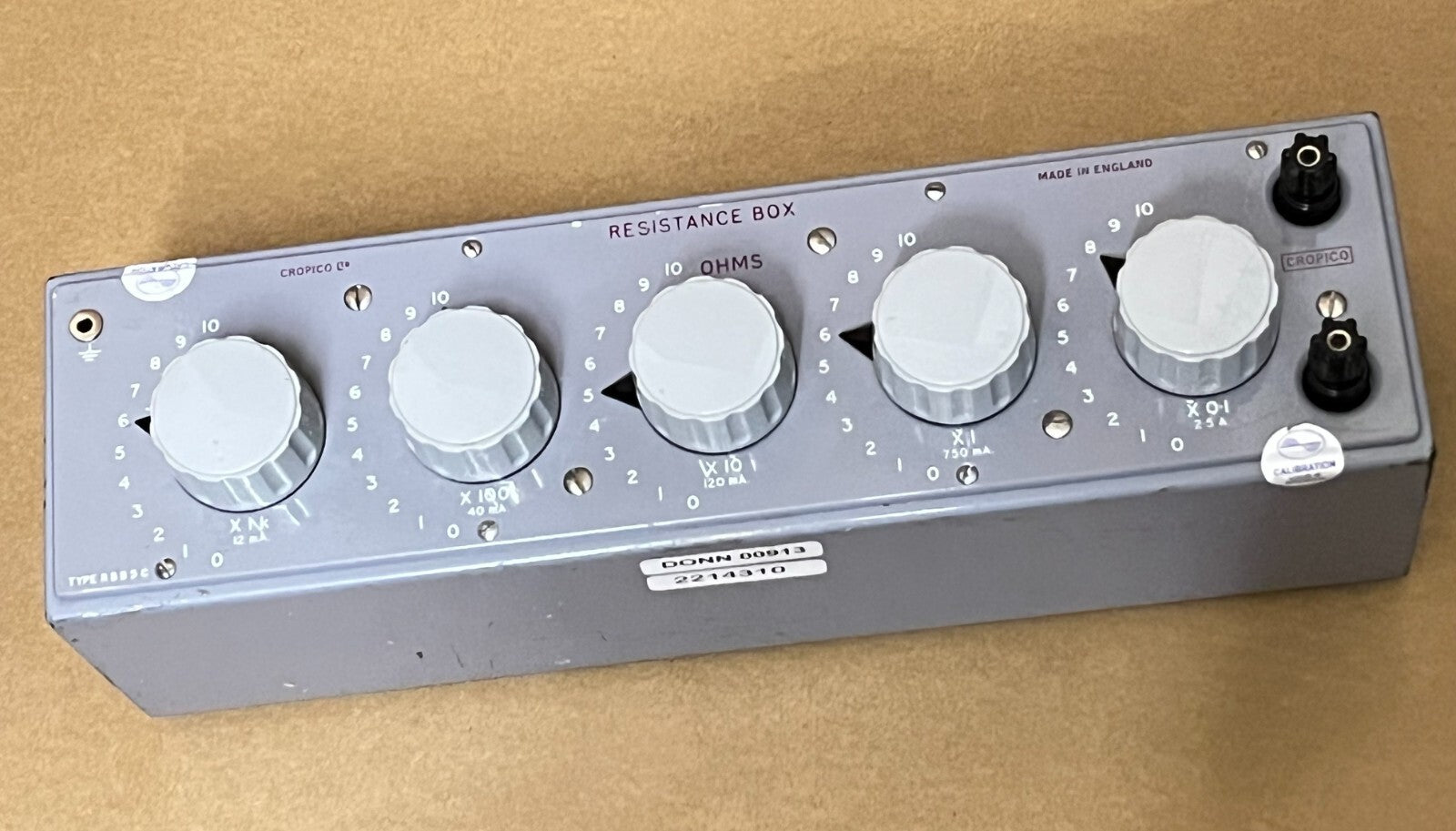

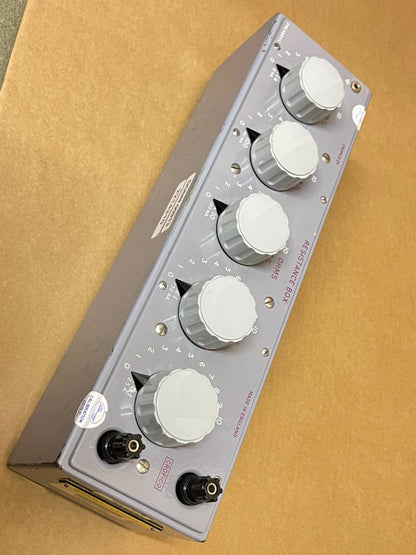

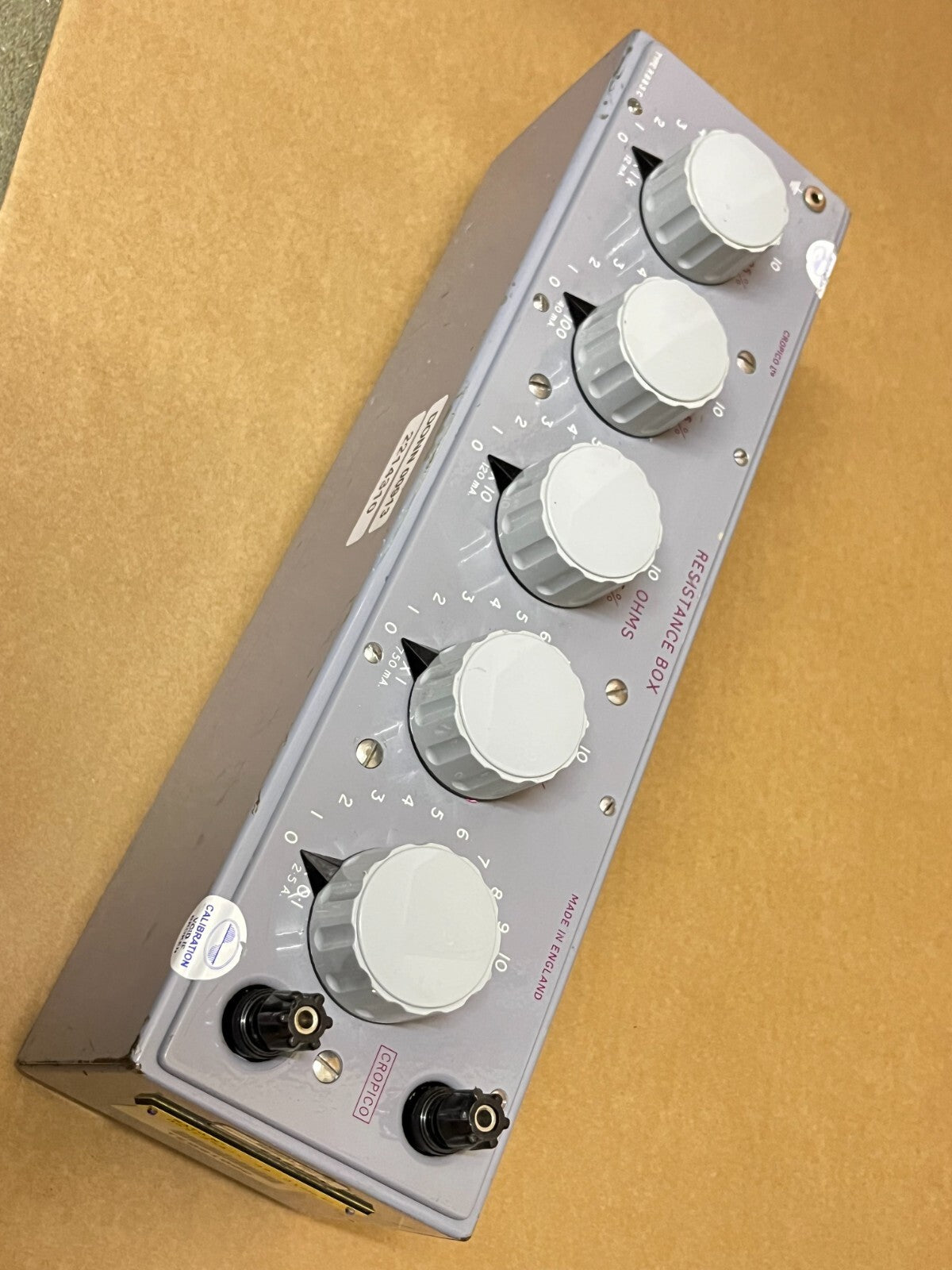

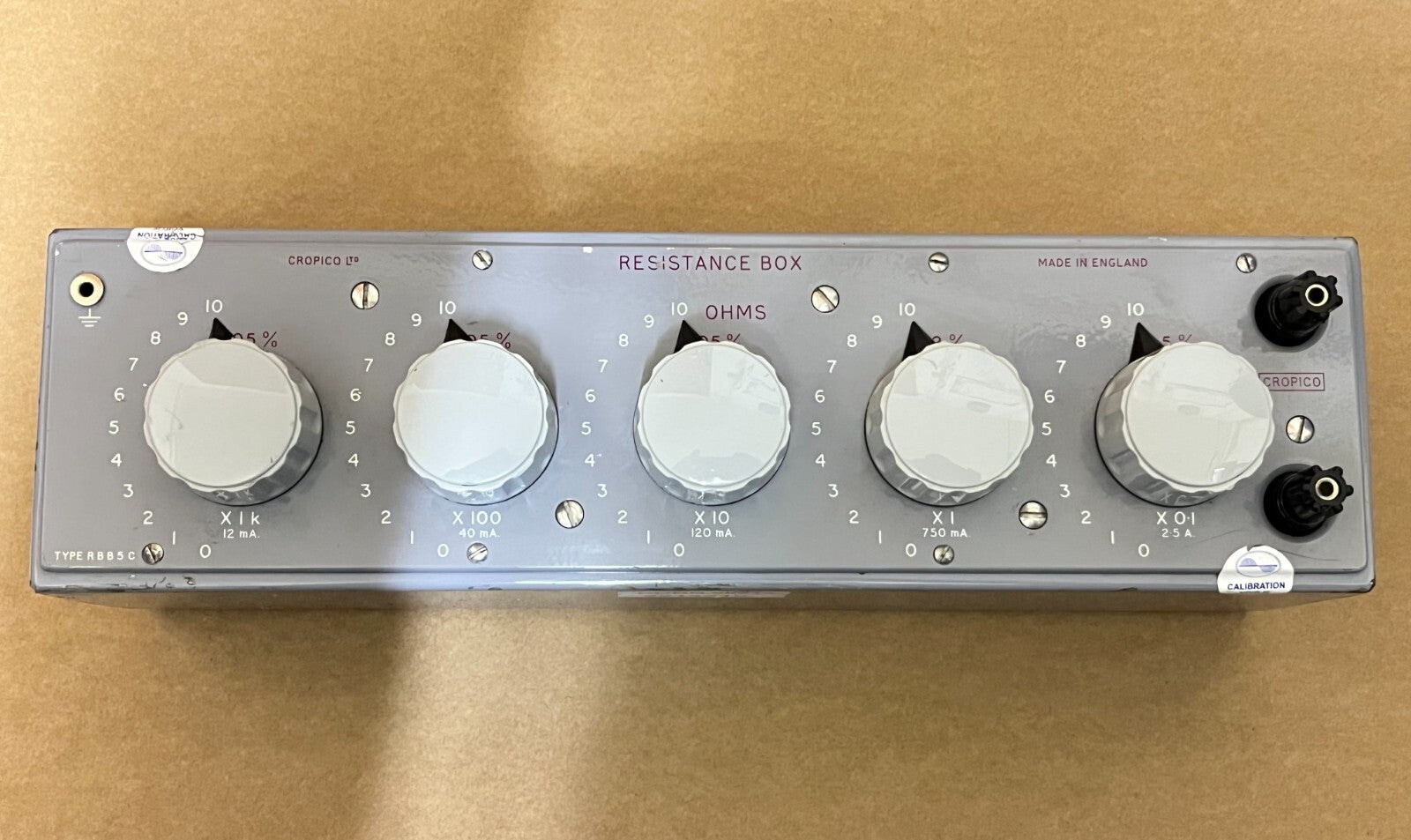

CROPICO PRECISION RESISTANCE DECADE BOX


Manufactured by Cropico in the UK, to exacting military standards, this is a laboratory quality AC / DC decade resistance box. It offers a range from 0.1 Ohm up to 11.1111k  Ohm in 0.01 Ohm steps, using 5 ranges with the following operating currents and tolerances.

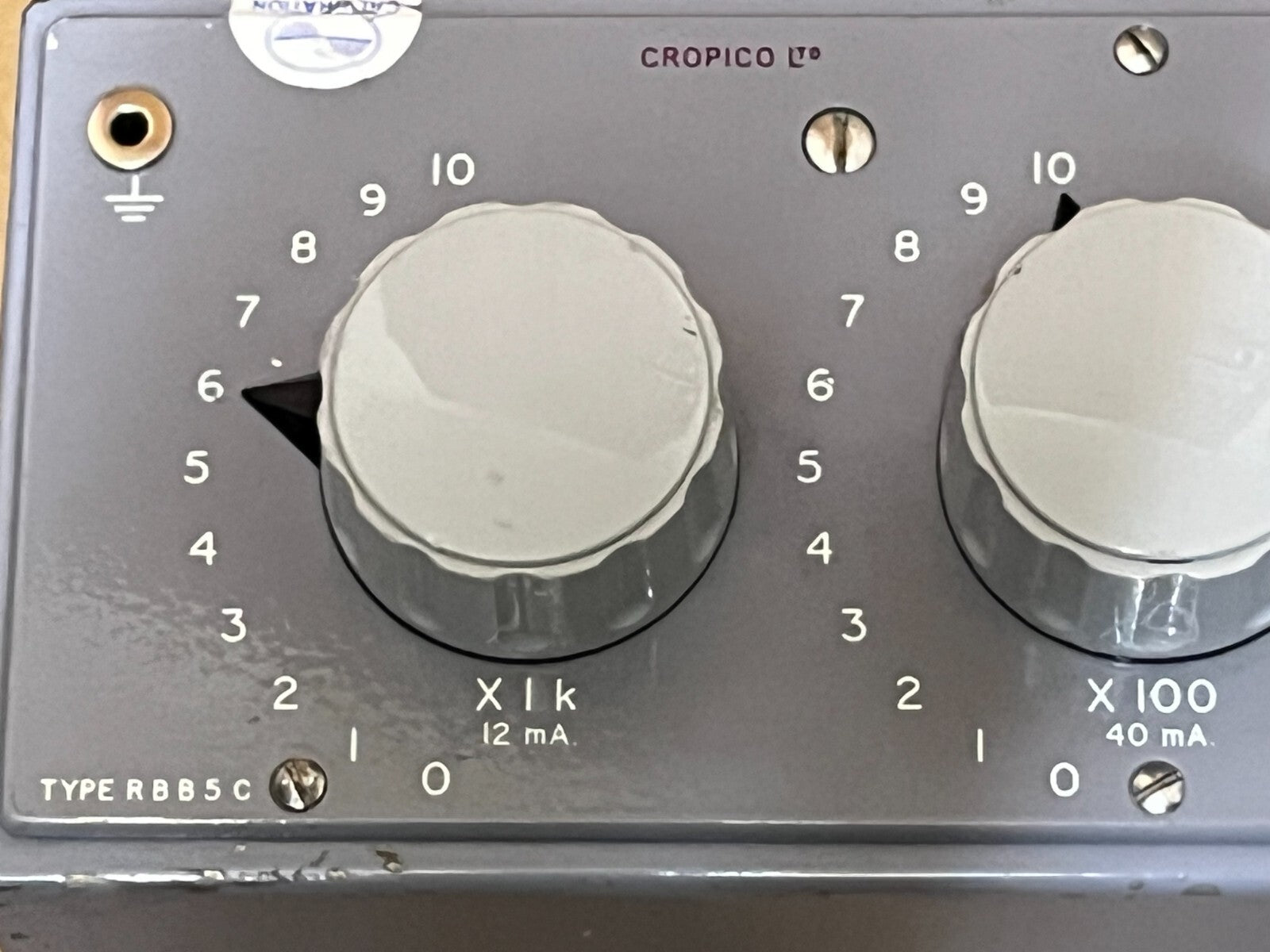

0 - 10 x 0.1   (2.5A (Max)  0.5% tolerance
0 - 10 x 1      (0.75A (Max)  0.2% tolerance
0 - 10 x 10    (0.12A Max)  0.05% tolerance
0 - 10 x 100  (0.04A Max)  0.05% tolerance

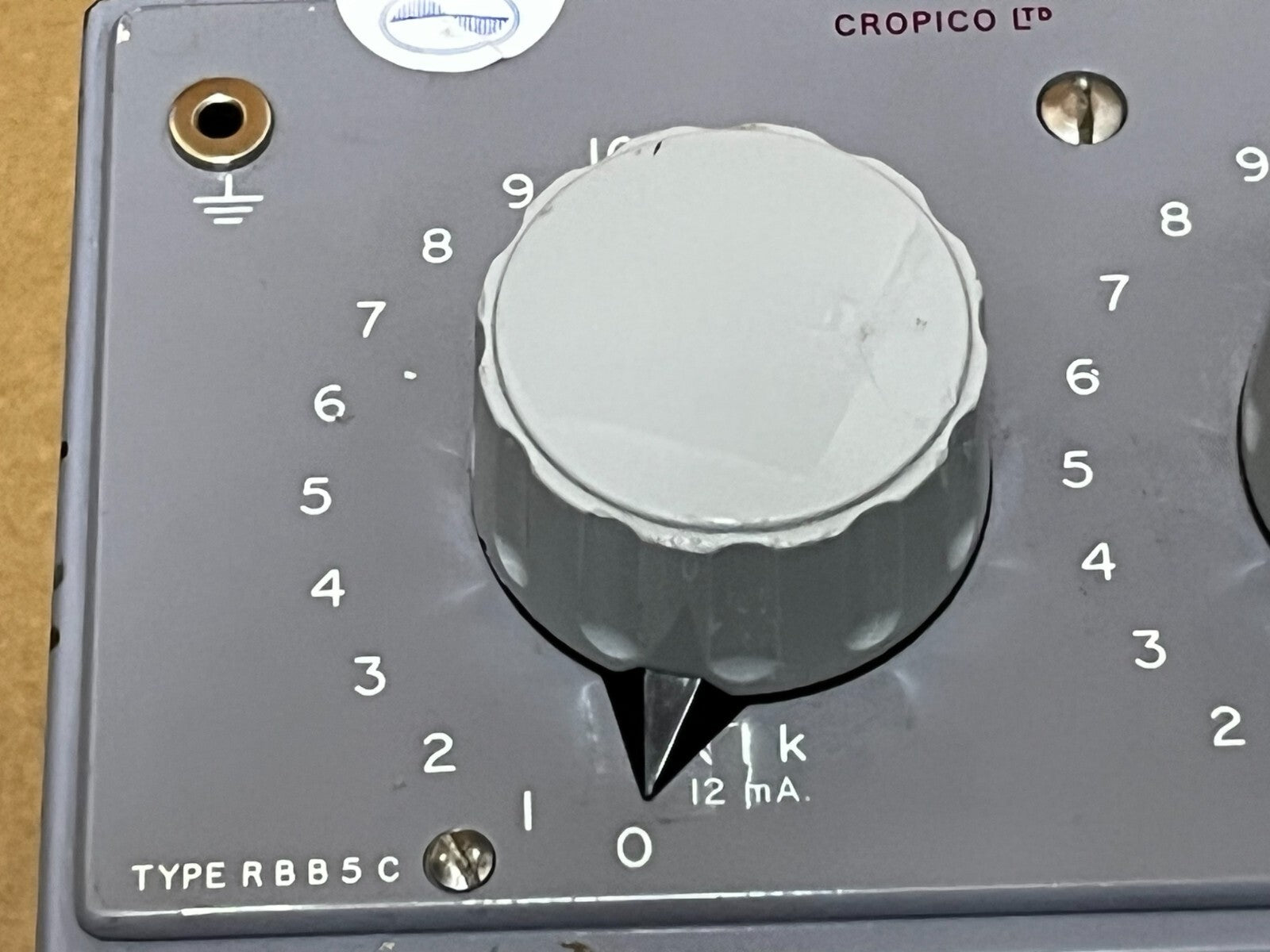

0 - 10 x 1000  (.012A Max)  0.05% tolerance

Please do not mistake this resistance box for a low cost modern type utilising cheap rotary switches and discrete resistors.

The resistive elements in this box are non-inductively wound on high quality formers, using a resistance wire of specially selected alloy. Each resistive element has then been heat treated and undergone a controlled ageing process to produce the very highest stability and also a low temperature coefficient.

 The switches are of the highest quality with low pressure contacts for long life and reliability.

It was calibrated before its disposal to us, but that has now expired, it is in perfect operational condition and very good cosmetic condition.

We will ship worldwide, please ask for a price to your country.
