COMPOSITE VIDEO CAMERA MODULE VISION VV5402, GREAT FOR EXPERIMENTING ! bsa3b

COMPOSITE VIDEO CAMERA MODULE VISION VV5402, GREAT FOR EXPERIMENTING ! bsa3b

Regular price £5.00
Regular price Sale price £5.00
Sale Sold out
Taxes included.


COMPOSITE VIDEO CAMERA MODULE

These are an interesting item ! Great for experimenting and one of our most popular lines.

A module with a camera chip (Type Vision VV5402) built on to a small PCB, which takes 5Vdc in and gives a monochrome (black and white) composite video image out.

A simple lens like used in a webcam is probably needed to use as an actual camera, but the CMOS Video sensor alone has many useful applications.

The board is 30mm square and about 8mm total thickness.


The datasheet for the Vision video sensor used can be seen here:
http://www.datasheet-pdf.com/PDF/VV5402-Datasheet-VLSIVision-915408


And features include:

• Complete Video Camera on a single chip

• EIA/CCIR standard compatible• Low power operation (250mW Typical)
• Integral 75Ω driver• Control options pin selectable for ease of use• Low light operation to 0.5 lux• Automatic Exposure and Gain Control• Automatic Black Level Calibration• Linear or Gamma corrected output optionThe module we sell has a standard type 11 pin connector on it and when looking at the connector with the open part to the top i.e.  where 'TOP' is printed on the module side of the PCB is at the top, the pins from left to right are:

 1 & 2 Vcc (+5V)
3 No Connection
4 AVO (video out)
5 & 6 Gnd (also VGND)
7 is pin 36 floating
 8 is pin 33 floating
9,10,11 all No Connection

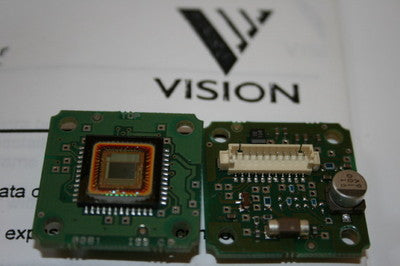

PRICED AND SUPPLIED EACH  X1, 2 PIECES ARE SHOWN IN THE PHOTO TO SHOW BOTH SIDES OF THE MODULE.
