Colvern

COLVERN 5K OHM 2 WATT WIRE WOUND VINTAGE POTENTIOMETER CLR1501/9S ad1u7

COLVERN 5K OHM 2 WATT WIRE WOUND VINTAGE POTENTIOMETER CLR1501/9S ad1u7

£9.00
£9.00
Sale Sold out
Taxes included.

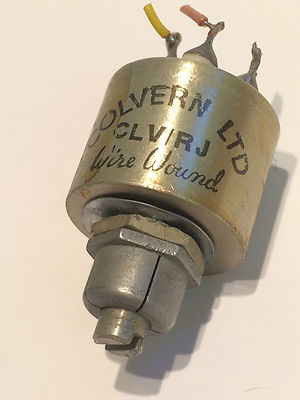

COLVERN 5K OHM 2 WATT WIRE WOUND POT

Manufactured by Colvern Ltd in the 1970's as their part number CLR1501/9S to military specifications, this is a vintage wire wound 5K  (so thats 5000 Ohm) potentiometer.

Power rating is 2 Watts, to 500v.

They were removed from new military equipment that had to be destroyed, so not new in the strictest sense but perfect and will give many years of trouble free use.

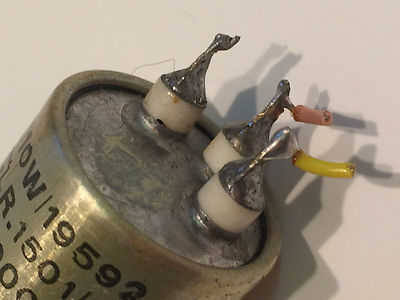

Made to military specs and hermetically sealed, the tinned beryllium copper contacts have porcelain insulators.

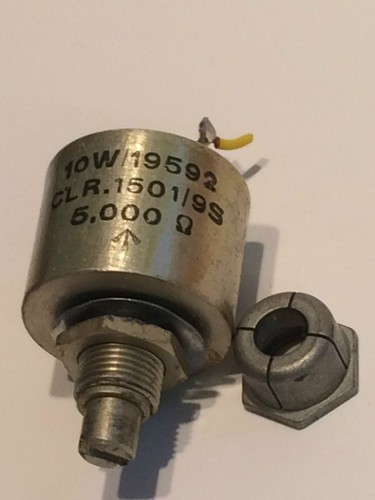

 Body dimensions are approximately 23mm diameter by 30mm deep with .25" (6.4mm)  control shaft (threaded section of about 10mm plus another 6mm length of control shaft). They come with a locking nut - so if desired the pot once set can be locked and not adjusted, of course this doesn't have to be used.

 Best quality wire wound pots.
