CENTER OFF 3 POSITION TOGGLE SWITCH ON-OFF-ON 15A 250V SCREW TERMINALS ad1F6

CENTER OFF 3 POSITION TOGGLE SWITCH ON-OFF-ON 15A 250V SCREW TERMINALS ad1F6

£5.00
£5.00
Sale Sold out
Taxes included.

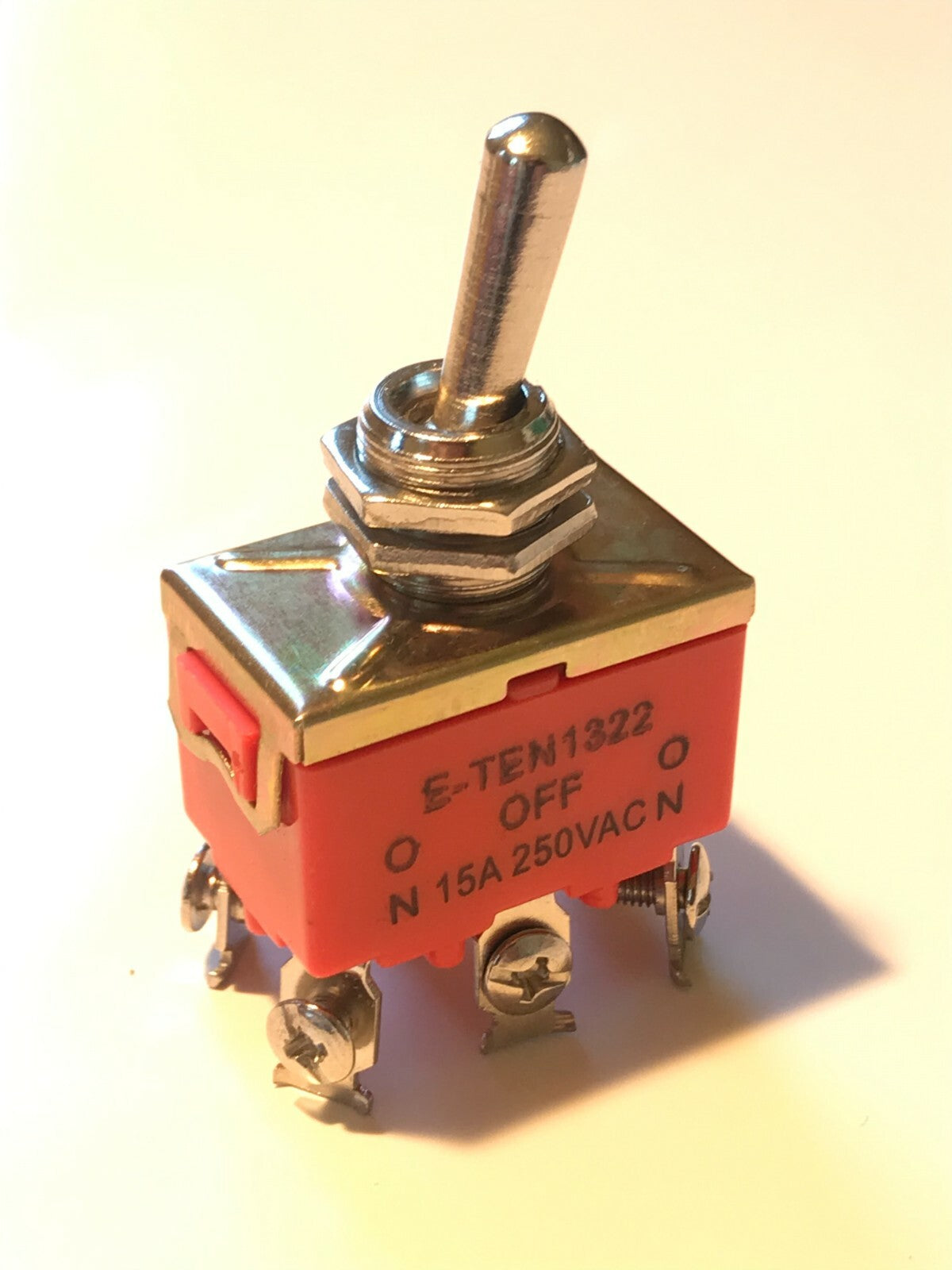

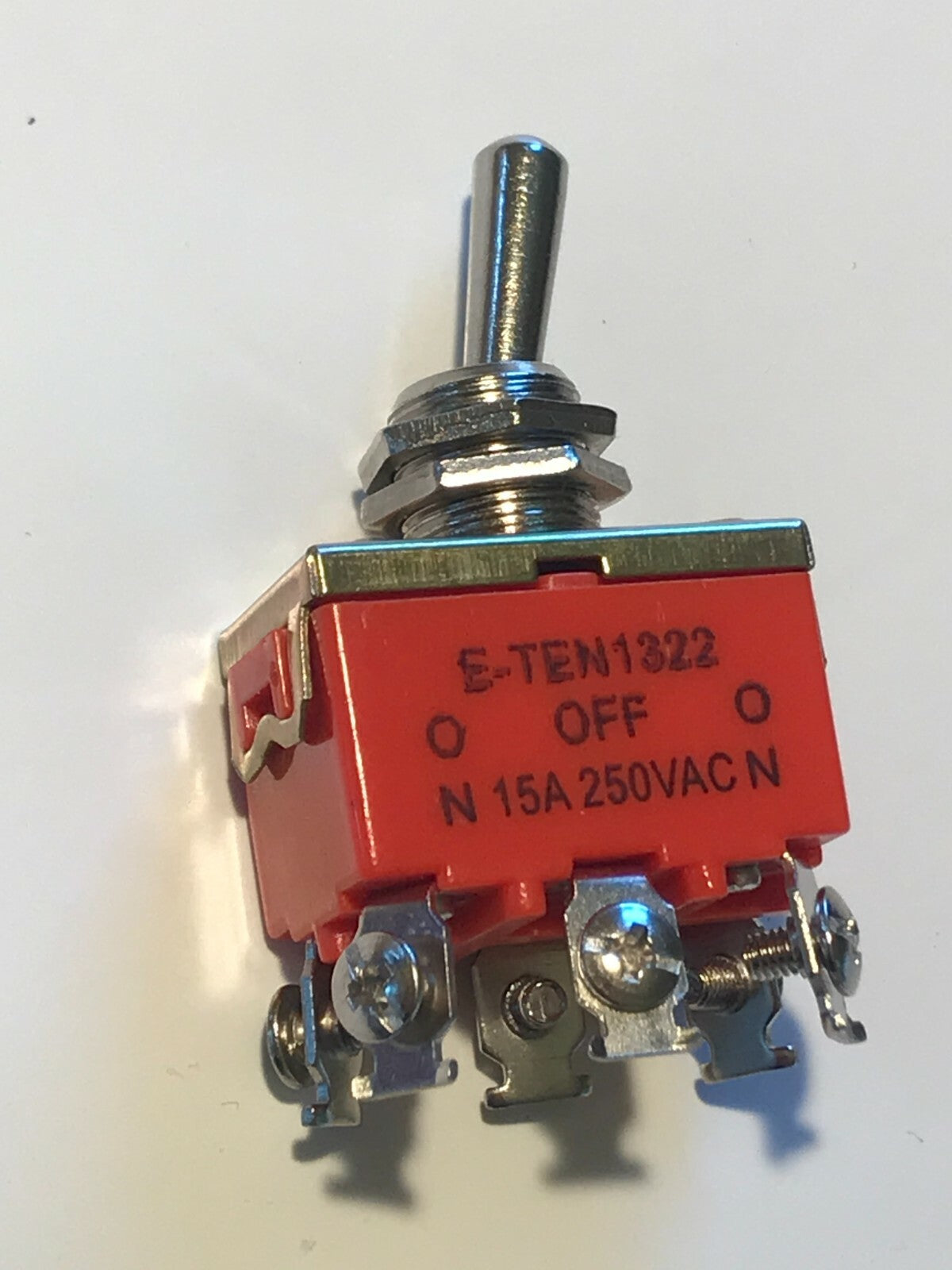

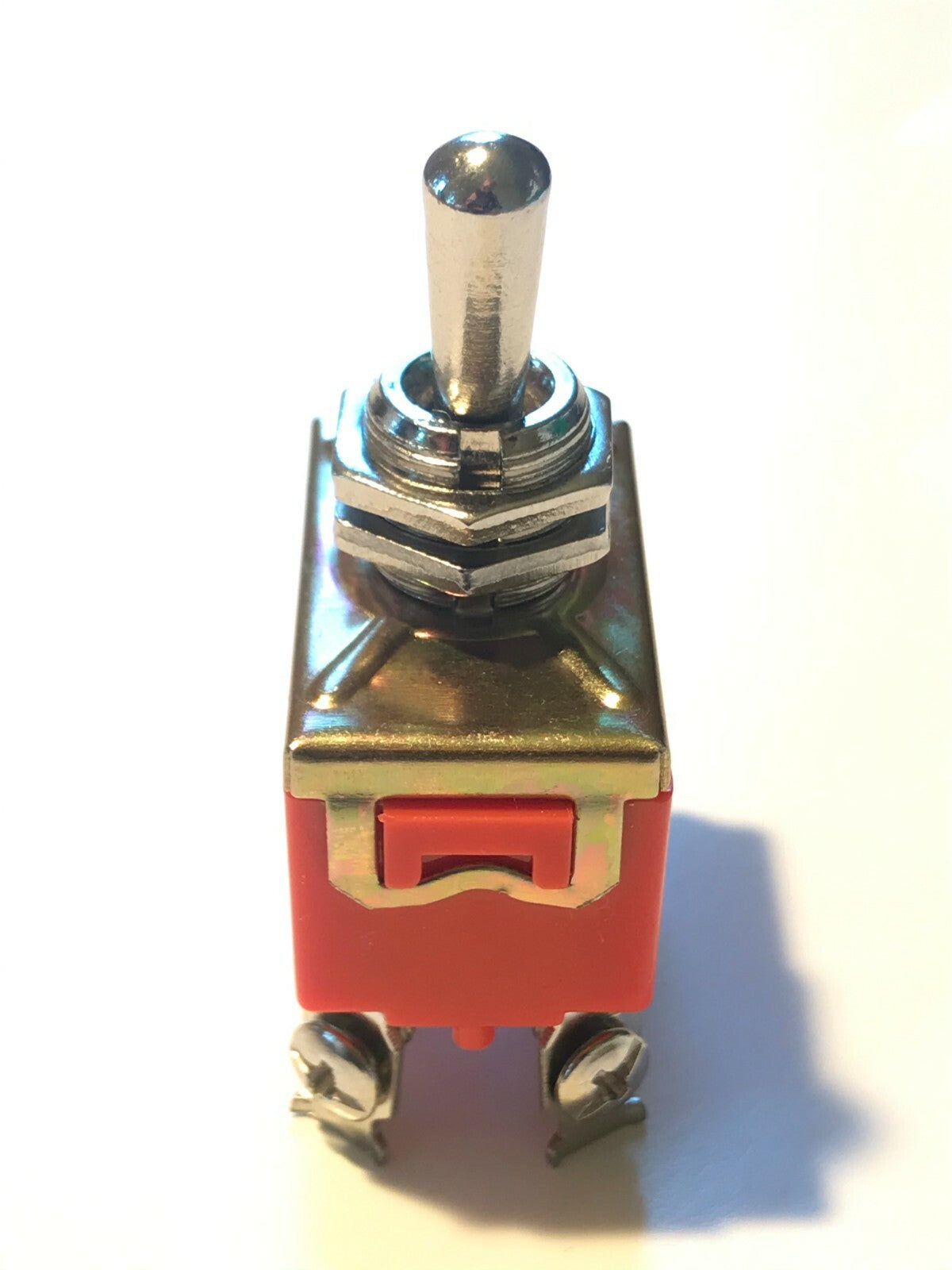

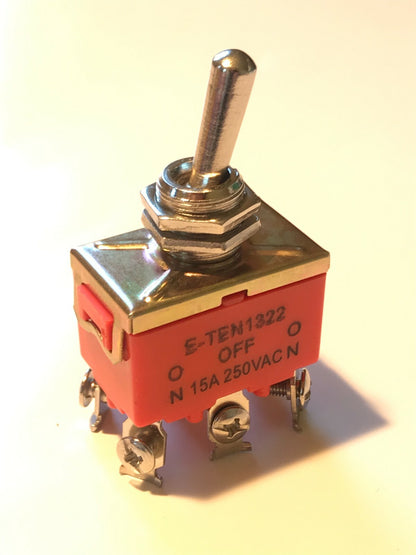

CENTER OFF TOGGLE SWITCH 15A 250V

These are a good quality double pole 3 position - center off toggle switch, ideal for everyday uses.

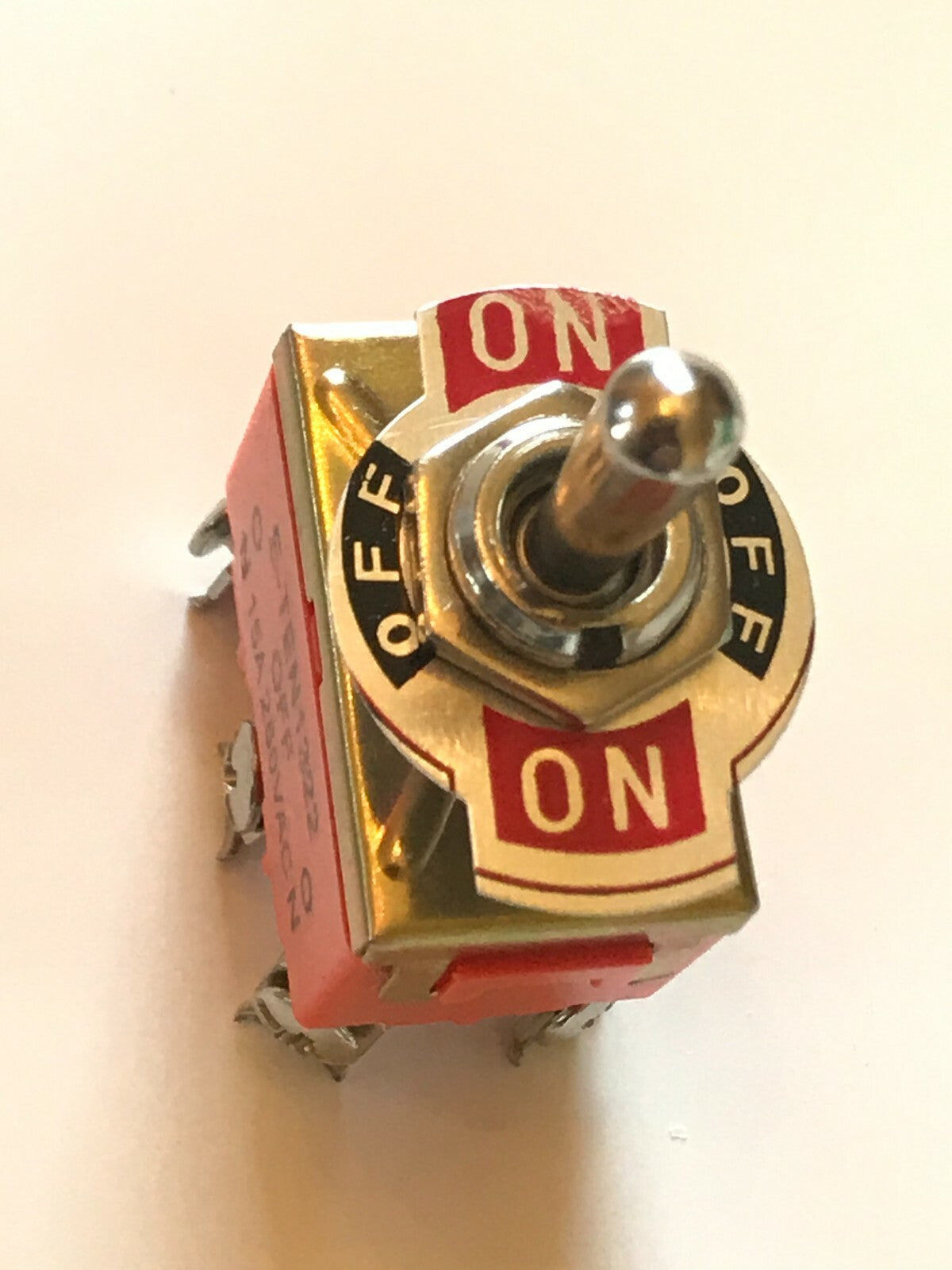

The 3 positions are maintained - not biased - so the toggle remains in the position it is set to.  On - Off - On.

 Switch is rated to 15A at 250Vac.

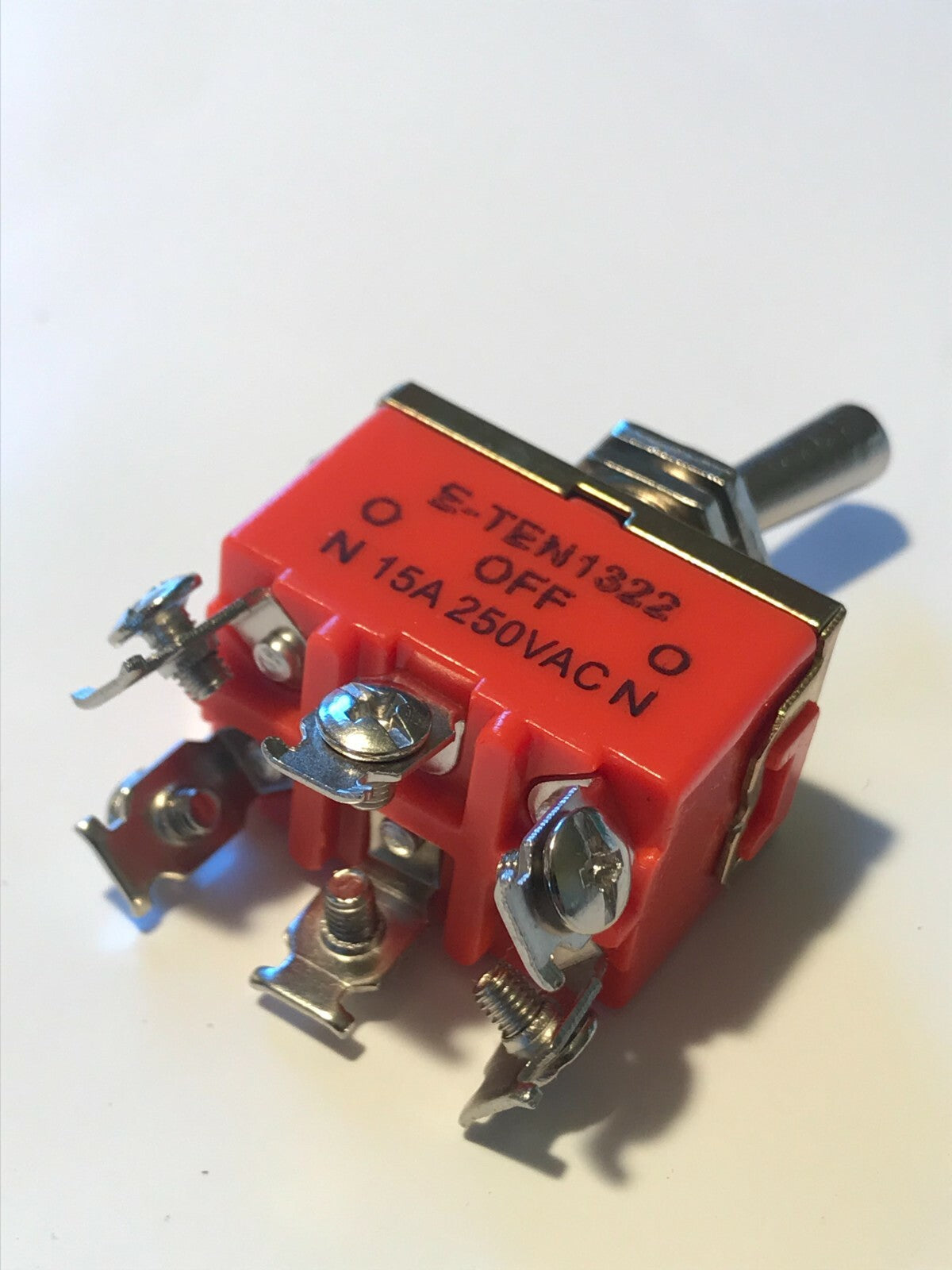

Connections are screw terminals, but with the screw removed they will accept a standard 1/4 inch spade (lucar) connector.

Dimensions are 33mm x 19mm with a minimum behind panel depth of about 32mm required. Mounting hole is 12mm.

Priced and supplied each x1, with quantity discounts available
