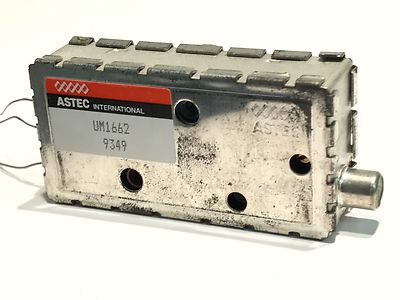

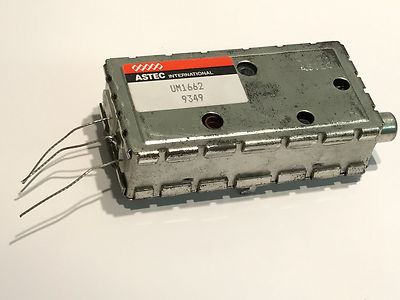

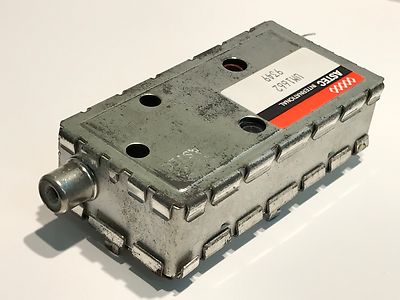

ASTEC UM1662 UHF MODULATOR

Manufactured by Astec as their type UM1662, these are a high performance UHF modulator, with intercarrier sound.

 The UM1662 is a high-performance intercarrier modulator which is primarily intended for use in colour TV games and computer graphics. The UM1662 has good modulation depth, bandwidth and subcarrier intermodulation figures. Good subcarrier intermodulation performance minimises the on-screen bar pattern due to chroma and sound  subcarrier beats.

Features:
Good modulation linearities and stability.
Pre-tuned vision carrier C36
Pretuned sound subcarrier.
External sound subcarrier fine tune.
 Negative transfer characteristic.
Supply voltage 5V with low current drain  - 9 mA typical. Low chroma / sound beat product (55 dB typical).
 75 ohm output on a standard phono RCA socket.
Compact rugged design for PCB insertion, designed for colour applications.

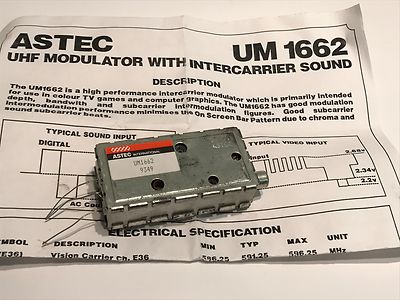

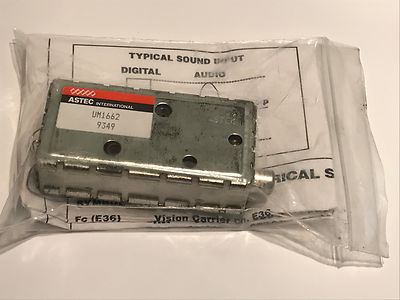

  These are new old stock from the 1980's, and we have a large quantity available. Supplied with a datasheet as shown in the photos.

 SUPPLIED AND PRICED IN PACKS OF 1 PC
