ARRA 0 TO 30dB 3.6 - 4.2 Ghz ROTARY VARIABLE RF ATTENUATOR ae1y8

ARRA 0-30dB  3.6 - 4.2Ghz ROTARY ATTENUATOR

Manufactured by ARRA Microwave, this is a direct read continuously variable attenuator, the attenuation is flat across the quoted frequency.

Frequency 3.6 to 4.2 GHz
Attenuation Range  0 - 30 dB
Power 10W
Peak Power 5KW
Insertion Loss 0.5 dB
VSWR 1.5:1
Package Type Module with Connectors
Connectors  SMA - Female

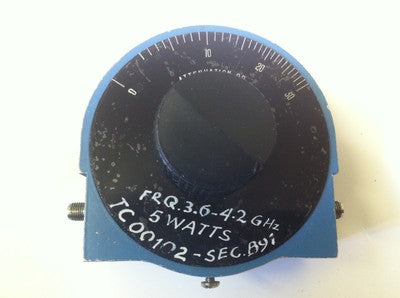

These came to us from a closed blue chip communications companies R & D department. They were marked up as having a power capability of 5W, this was done to avoid damage in the lab and infact as per the ARRA datasheet they are quoted as good to handle 10W average.

The datasheet is available here:   http://www.admiral-microwaves.co.uk/pdf/arra/cva_3.pdf

Easy to read calibrated dial with locking screw to lock the unit off if required,  SMA female connections.

Sold in good used condition - perfect functionality and good cosmetically.
