ANAREN 40285 SMA 8 WAY RF 25W POWER DIVIDER 1000MHz - 2000MHz AD2N26

ANAREN 40285 SMA 8 WAY RF 25W POWER DIVIDER 1000MHz - 2000MHz AD2N26

£145.00
£145.00
Sale Sold out
Taxes included.

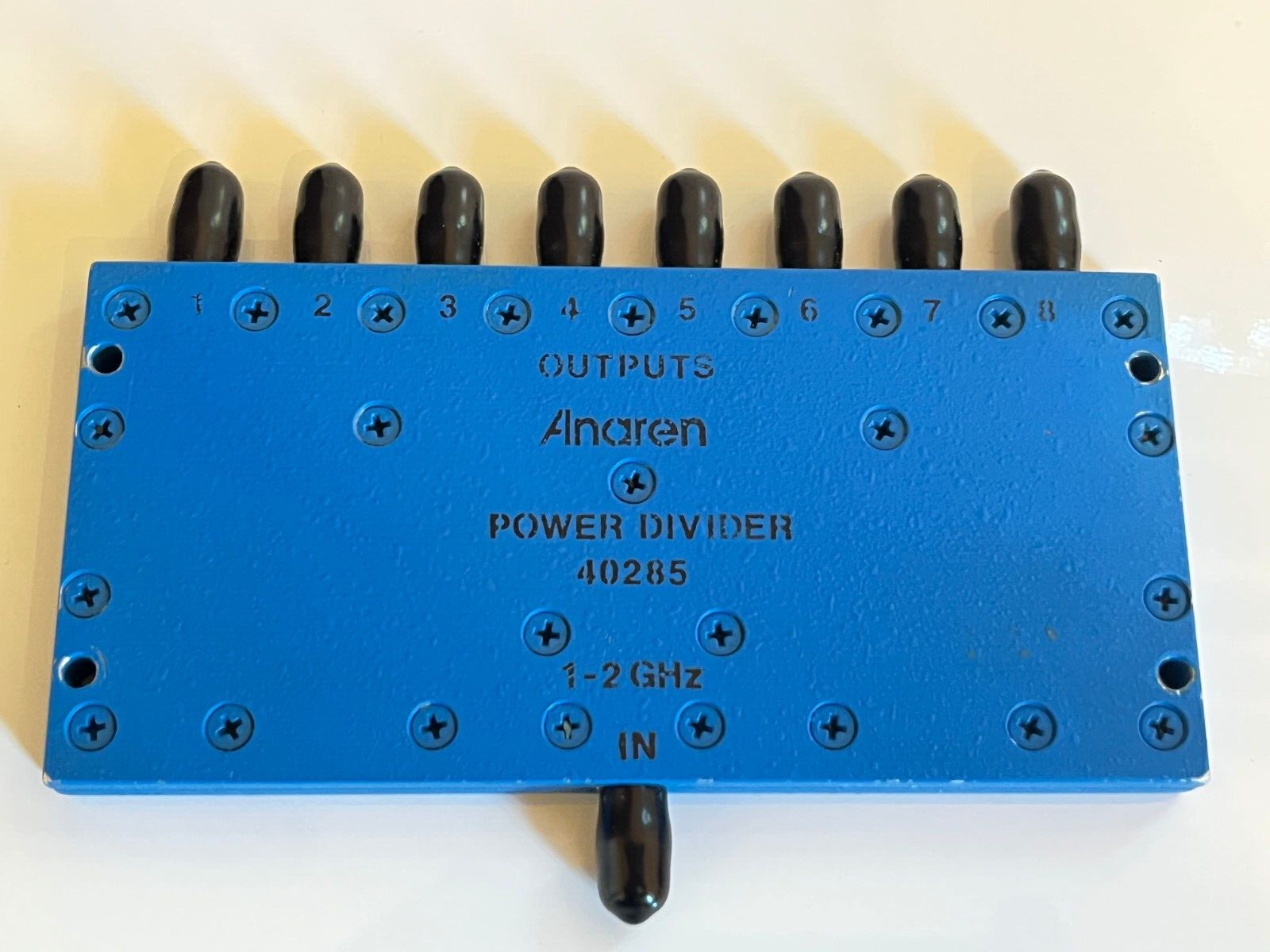

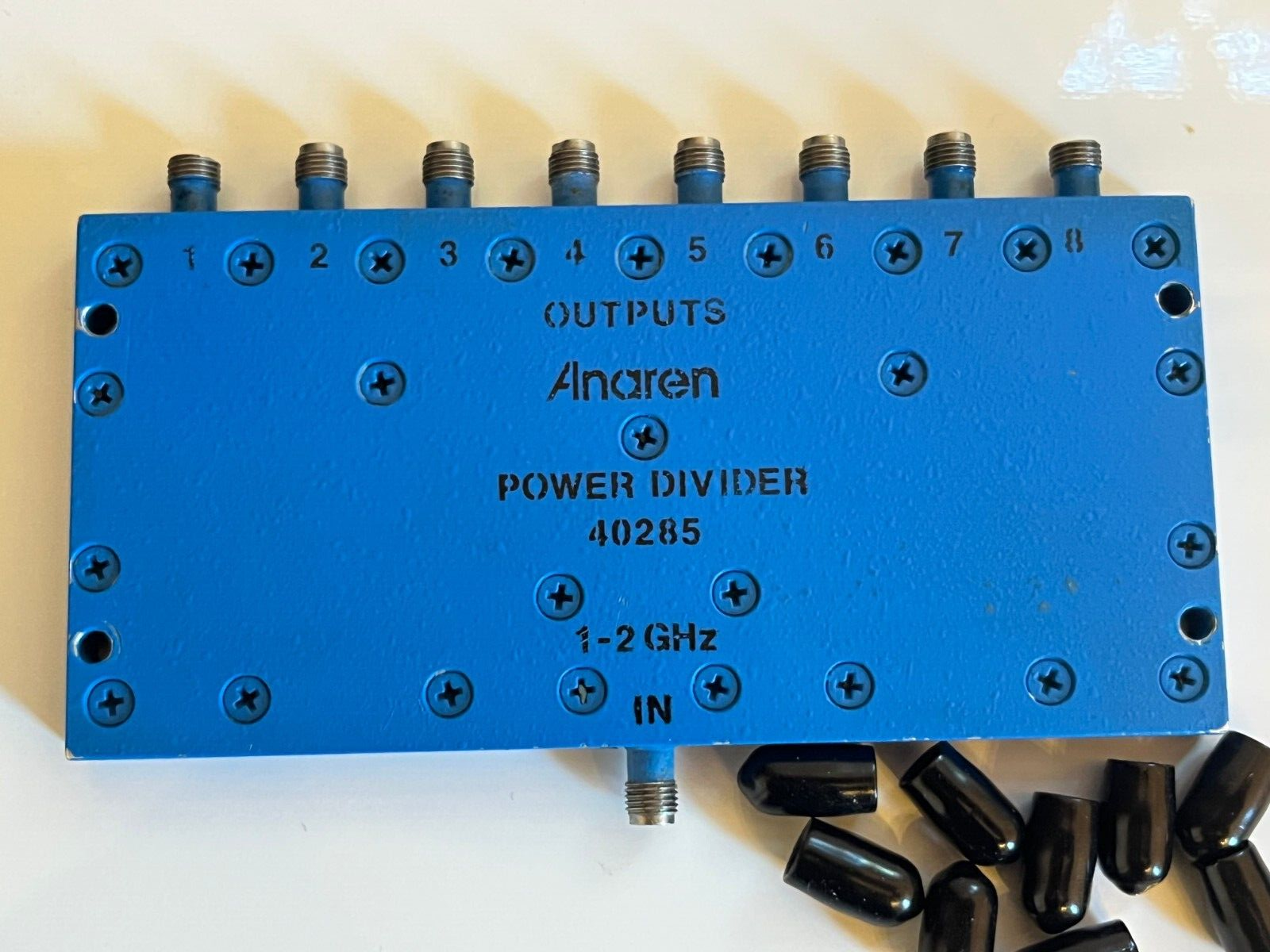

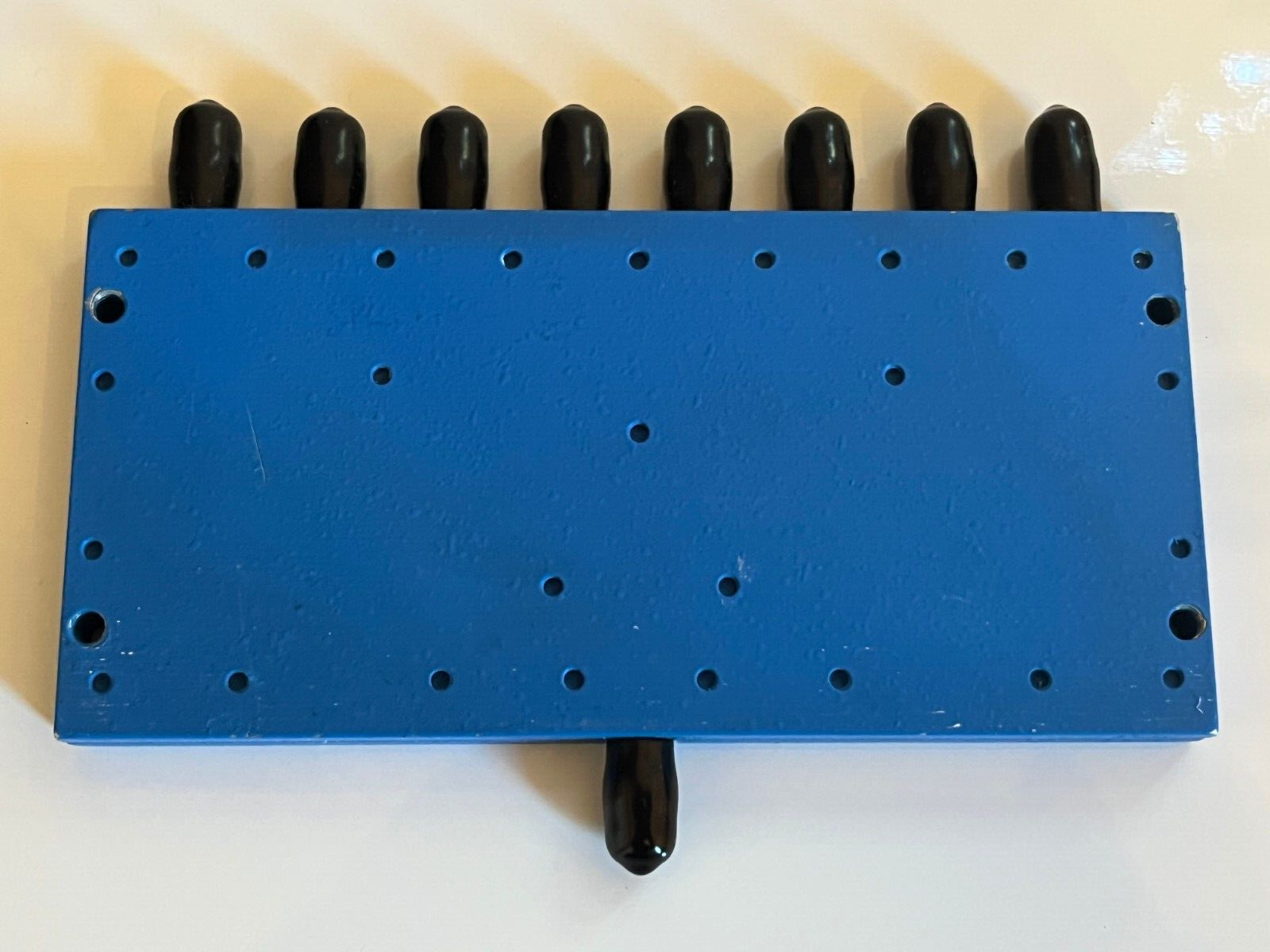

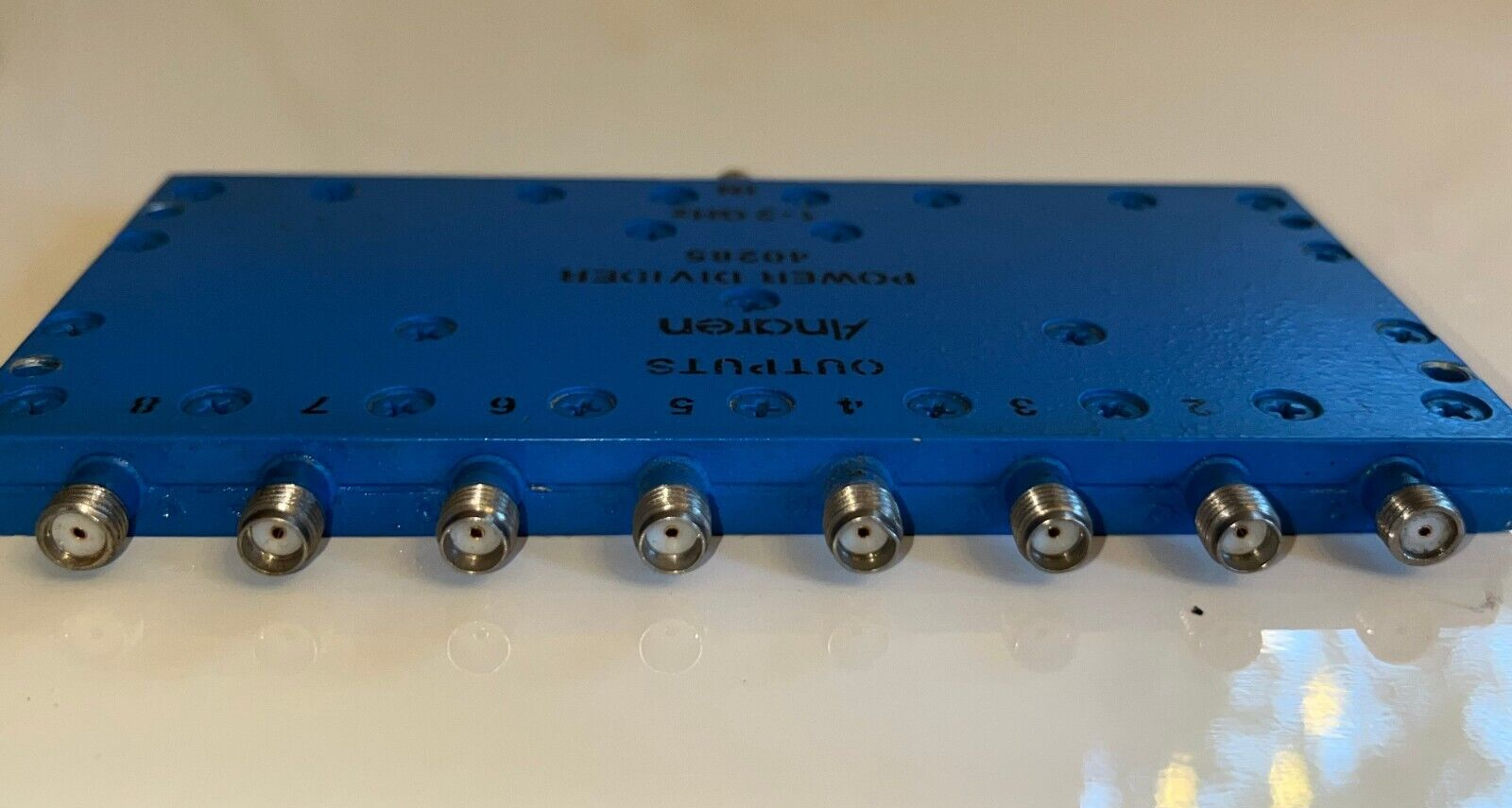

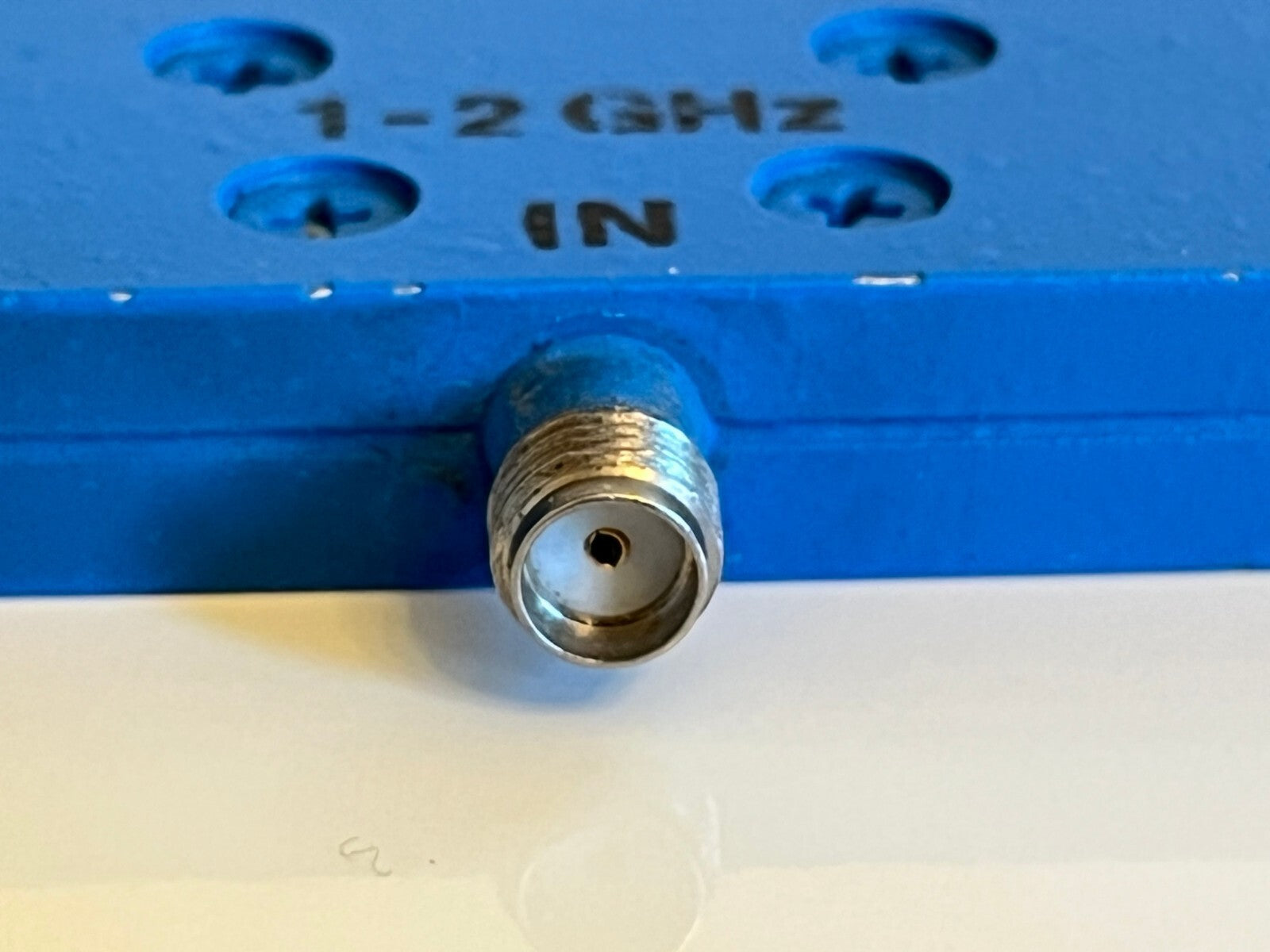

ANAREN 40285 POWER DIVIDER

Manufactured by Anaren in the USA as their part number  40285, this is an industry standard premium quality 50 Ohm 8 way RF divider with SMA female connections.

Frequency range is 1000Mhz - 2000Mhz
Input power is a high 25W (Average), low insertion loss of 1.0dB max and isolation is a good 20db (typical).

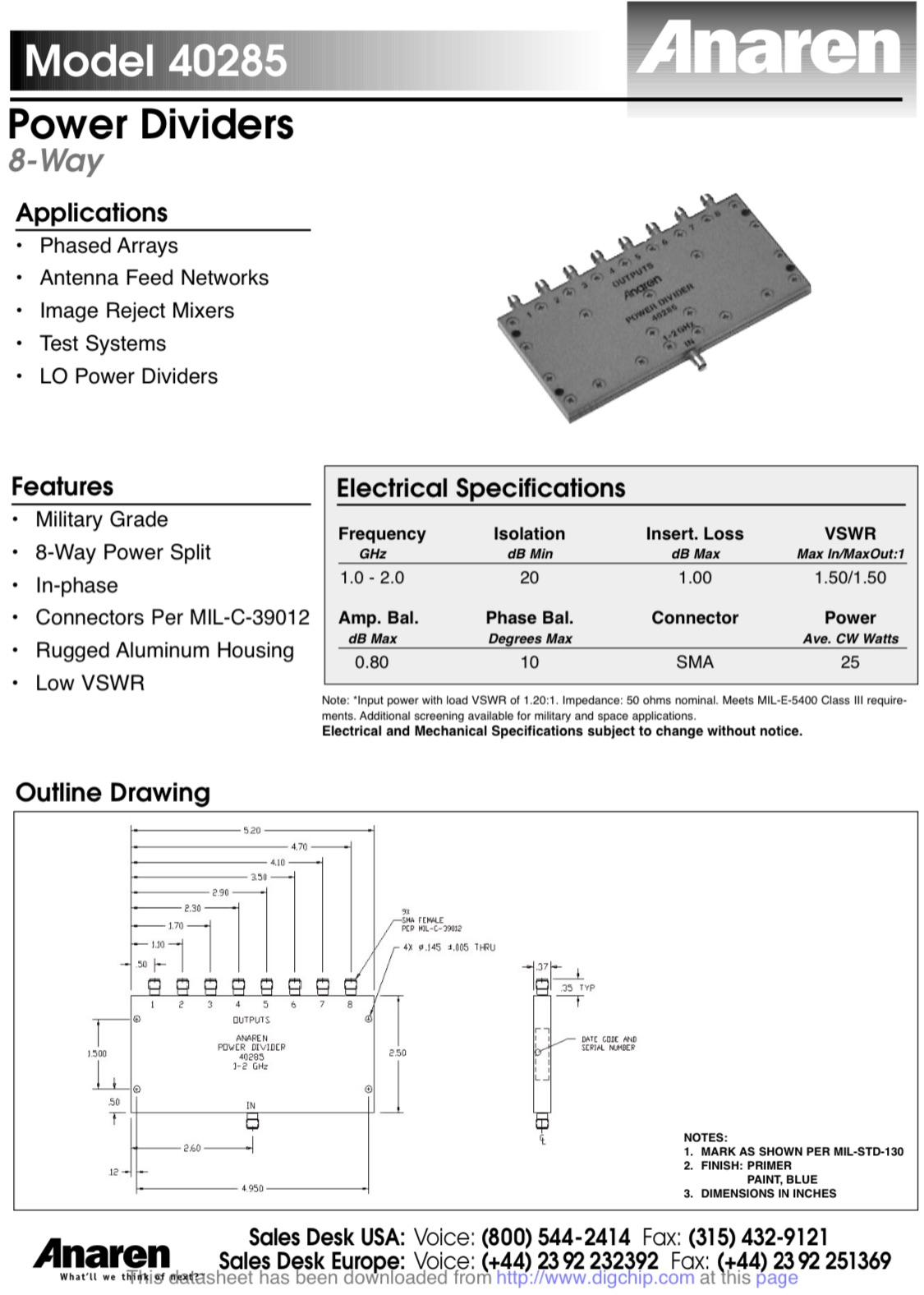

Manufacturers datasheet can be seen in the photos above

This came to us from a closed blue chip companies R&D Laboratory, it has had very little use and is offered here at a good discount to the distributors list price, supplied in perfect overall condition..  PRICED AND SUPPLIED EACH - X1.
