AMPHENOL

AMPHENOL 1.0/2.3 MALE PANEL MOUNT COAX PLUG (x1) 102-233-01 fd6j33

AMPHENOL 1.0/2.3 MALE PANEL MOUNT COAX PLUG (x1) 102-233-01 fd6j33

£14.00
£14.00
Sale Sold out
Taxes included.

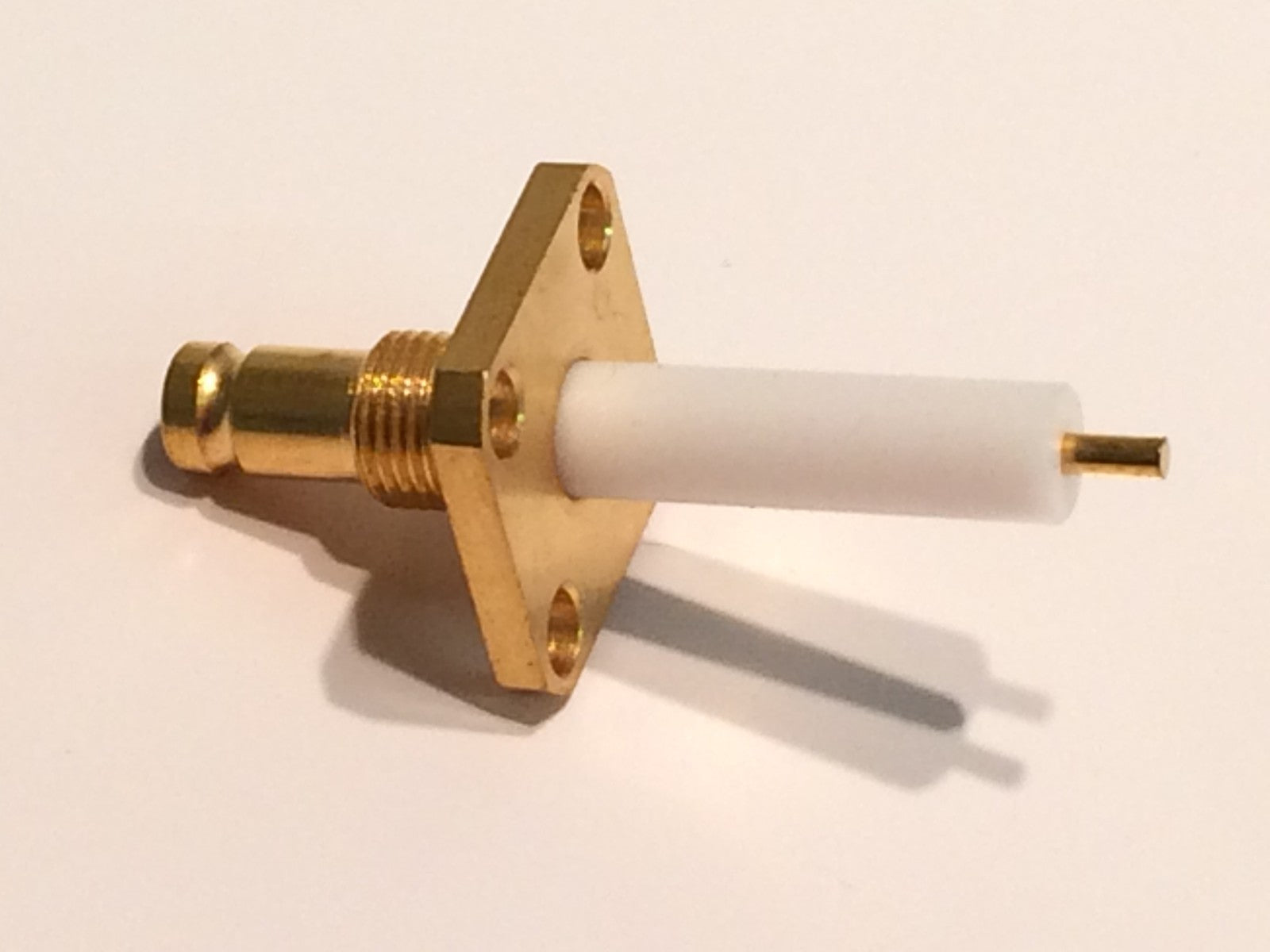

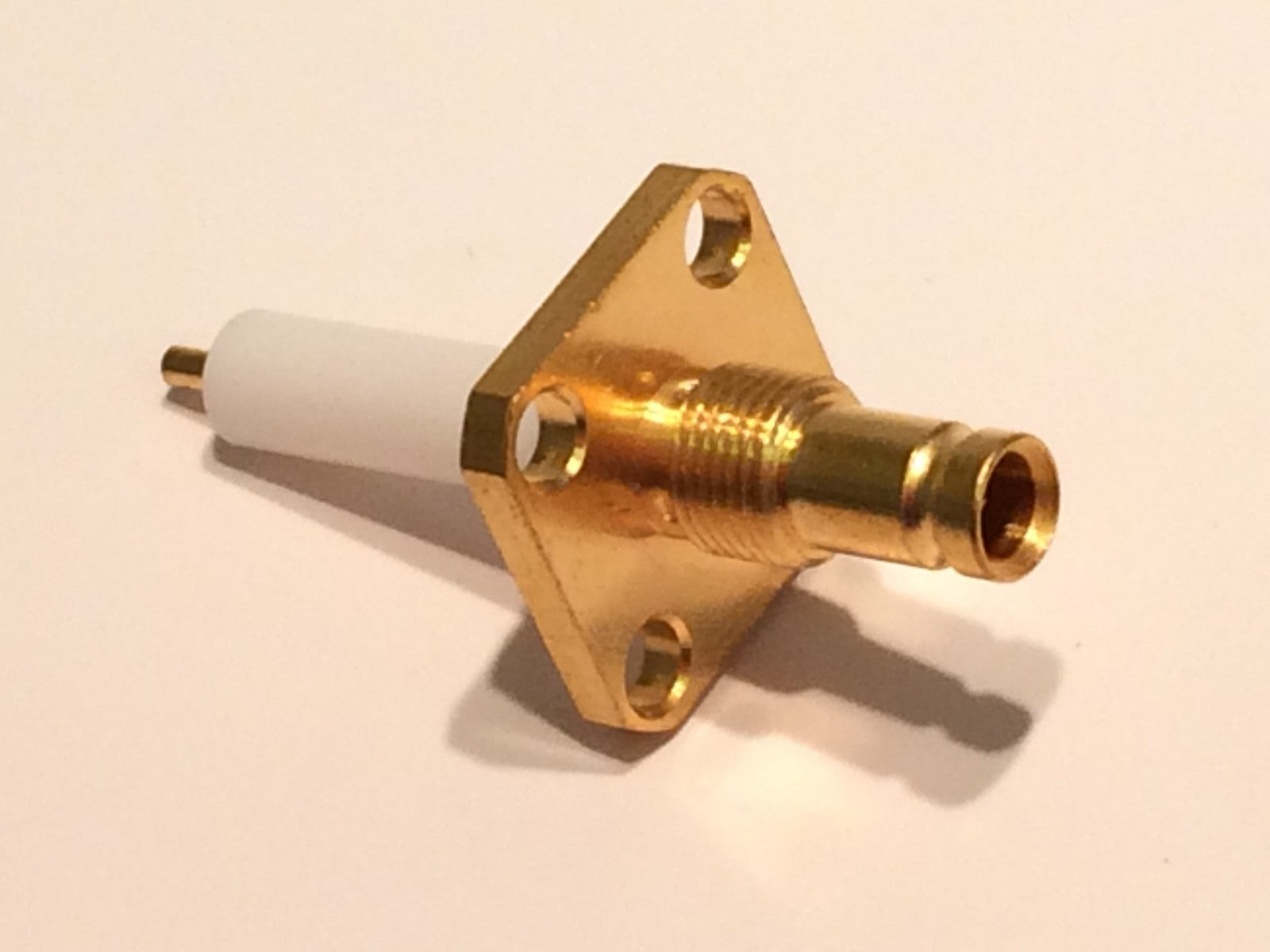

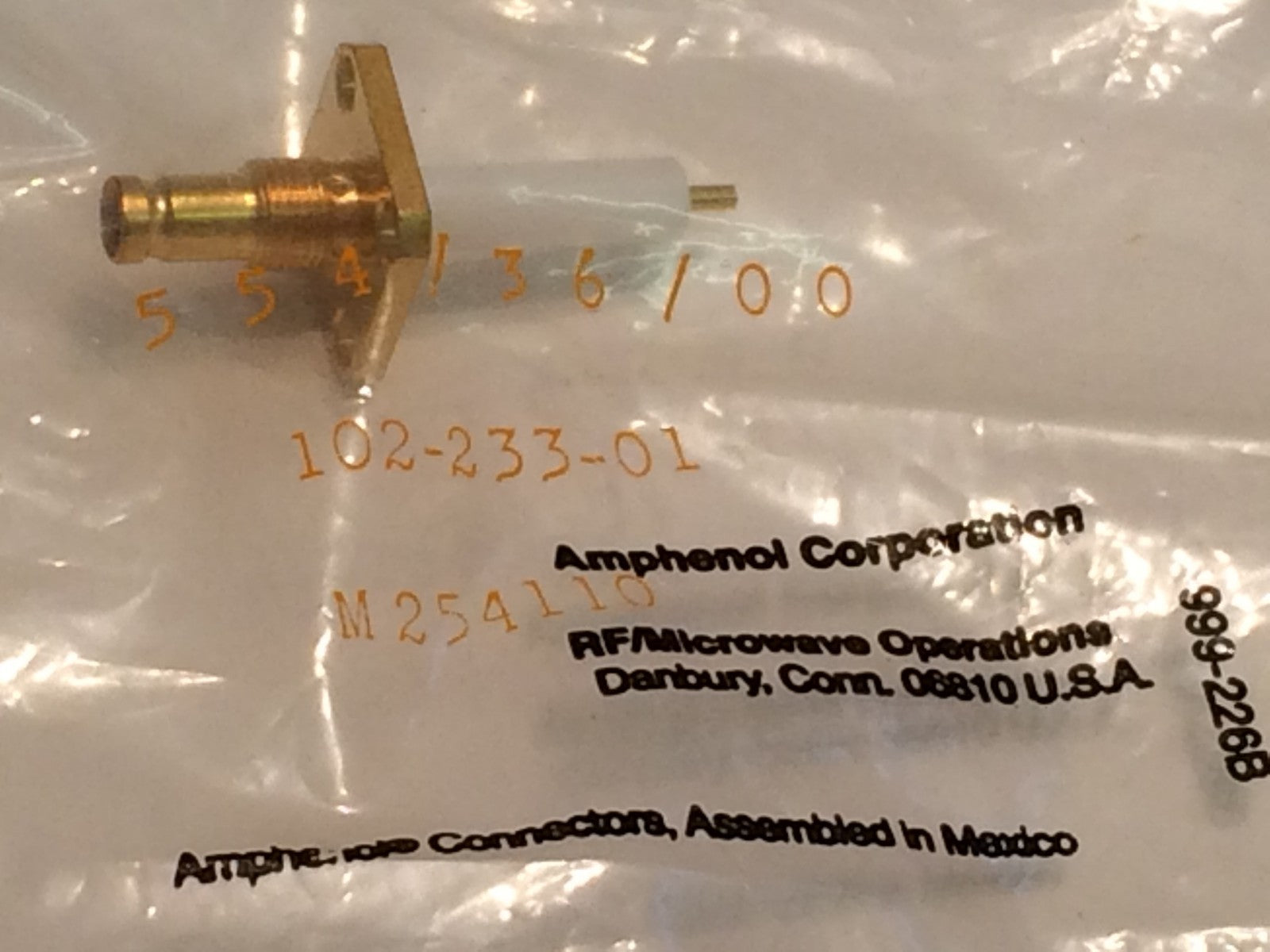

1.0/2.3 MALE PANEL MOUNT PLUG

Manufactured by Amphenol as their part number 102-223-01,  these are a best gold plate and teflon 4 hole chassis mount 1.0/2.3 coaxial male connectors.

The connection pin extends from the back of the connector by approximately 19mm, with the teflon insulation covering some 15mm of that.

Standard 4 hole footprint, 13mm square with mounting holes at 10mm centers.
