A.B. PRECISION M25 MK1 230V MINIATURE 3 PHASE AC SERVO MOTOR 3000RPM fd5b10

A.B. PRECISION M25 MK1 230V MINIATURE 3 PHASE AC SERVO MOTOR 3000RPM fd5b10

Regular price £165.00
Regular price Sale price £165.00
Sale Sold out
Taxes included.



A.B. PRECISION M25 AC SERVO MOTOR

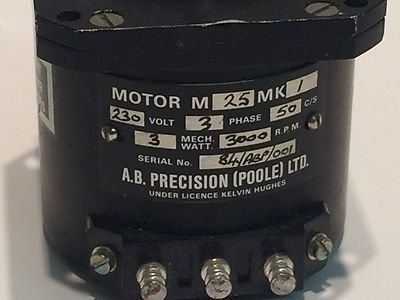

Manufactured for military equipment by A.B.Precision Ltd in the UK, as their type M25, Mk1, this is a new and unused miniature servo motor, 3 phase 230v 50Hz, 3000RPM.

Beautifully engineered product, cost many hundreds originally.

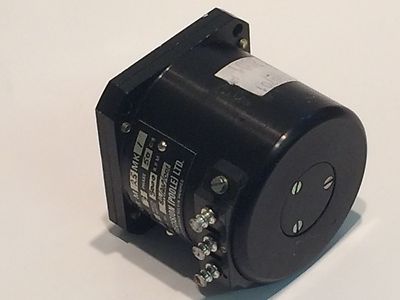

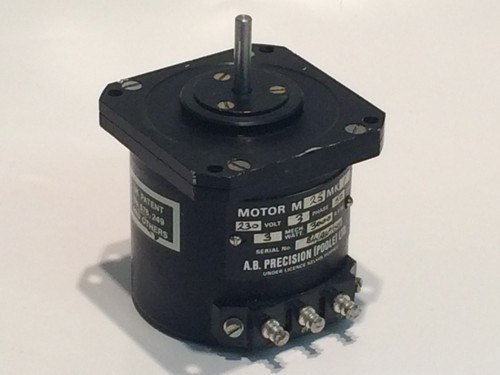

Dimensions across the front are 53mm square with mounting holes at 43mm centers, spindle is 1/8th inch diameter and 20mm in length, main body of the motor is 53mm diameter and the overall length including the spindle is approximately 72mm. Weight is 440 grammes.

Connections are solder turrets.
Supplied as shown in the photo.
