8 WAY MALE PLESSEY PAINTON JONES CONNECTOR

These are known as Plessey Painton connectors, being manufactured by the company of the same name. Plessey actually called them the 'Multicon' range, they are also sometimes referred to as Jones or in the USA, Cinch plugs.

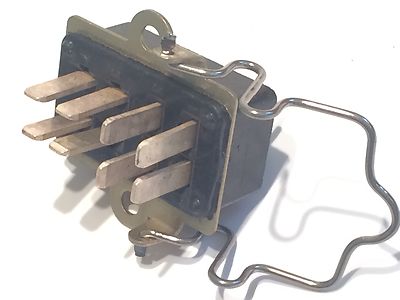

This particular one is an 8 pole male, with 4 of the connectors pins being at 90 degrees to the other 4, primarily designed for panel mount, with retaining clip. Superb vintage miltary specification heavy duty connectors, the contact is provided by a heavily silver plated plug blade contact engaging with a heavily silver plated socket clip contact.

Absolute reliability is ensured because each socket clip has 4 individual areas of contact with each plug blade. Rated as high as 1000V working, and upto 10A 250V per contact.

 New and unused vintage stock.
 SUPPLIED AS SHOWN IN THE PHOTO.
