8 WAY MALE & FEMALE PAIR IN LINE PLESSEY JONES CONNECTORS fba15g

8 WAY MALE & FEMALE PAIR IN LINE PLESSEY JONES CONNECTORS fba15g

£30.00
£30.00
Sale Sold out
Taxes included.

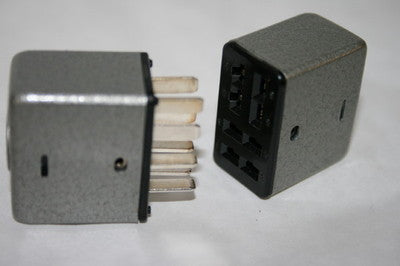

8 WAY PLESSEY JONES PAIR

These are known as Plessey Painton connectors, being manufactured by the company of the same name. Plessey actually called them the 'Multicon' range, they are also sometimes referred to as Jones or in the USA, Cinch plugs.

This type is an in line pair, 8 way cable mount 'free' or running male, together with a matching cable mount 'free' or running female, both halves have a galvonised pressed steel heavy duty housing. Four of the connections are at a 90 degree angle to the other four, thus avoiding an incorrect connection.

 Superb vintage miltary specification heavy duty connectors, the contact is provided by a heavily silver plated plug blade contact engaging with a heavily silver plated socket clip contact. Absolute reliability is ensured because each socket clip has 4 individual areas of contact with each plug blade.

Rated as high as 1000V working, and upto 10A 250V per contact.

Dimensions of the housings are approx 31mm x 18mm x 26mm and the cable entries are about 11mm.
New and unused vintage stock.

SUPPLIED AS SHOWN IN THE PHOTO.
