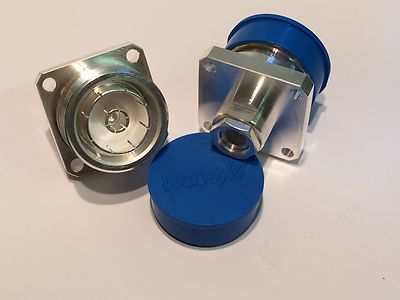

7/16TH HARD LINE COAX PANEL FEMALE

Made by Macom as their type D75G04E277R99, these are best quality 7/16th type, 50 Ohm female connectors, designed for use with the 'hard line' type of coaxial cable.

They are designed to accept large - 0.25" 6.35mm diameter types of semi rigid cable, RG401/U etc.

Standard pattern 4 hole mount.

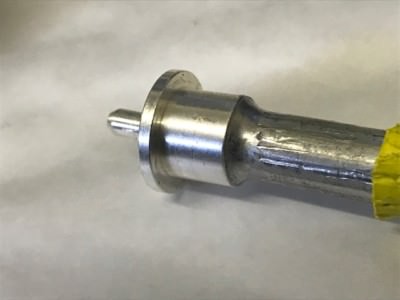

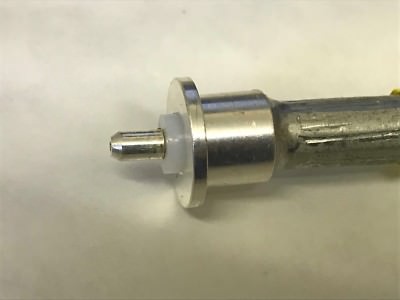

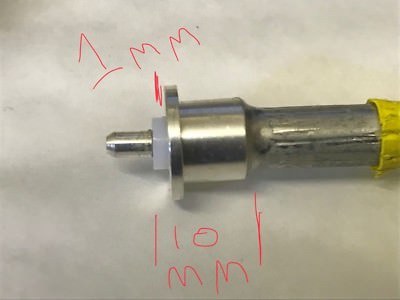

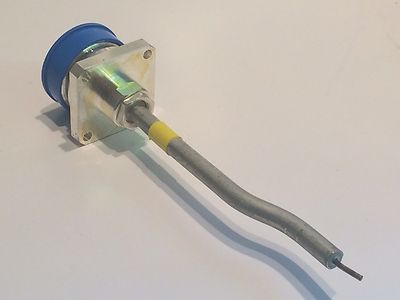

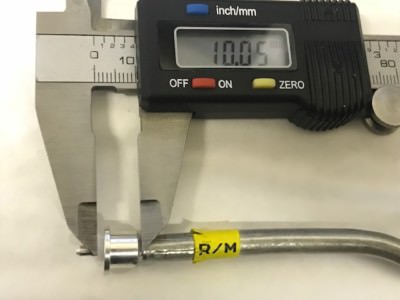

Second photo shows one used with the cable, and others show how the cable should be prepared to accept the connector, the outer metal sheath is stripped back 10mm.

White bronze and PTFE with heavy silver plated connections.

Dimensions are 32mm square, with fixing centers at 25mm.
