NIDEC

6 WAY SURFACE MOUNT DIP DIL SWITCH VERY LOW PROFILE GOLD PLATED x1 BDA40A

6 WAY SURFACE MOUNT DIP DIL SWITCH VERY LOW PROFILE GOLD PLATED x1 BDA40A

£3.00
£3.00
Sale Sold out
Taxes included.

6 WAY SURFACE MOUNT DIL SWITCH


Good quality and manufactured by Nidec-Copal as their type number CFS-0600TB, these are a 6 Way very low profile (3.7mm) DIL switch, on - off,  designed for surface mount PCB mounting, to allow easily changeable board level settings.

 Gull-wing connections for easier soldering to the PCB and comes with a plastic film protective cover in place which is removed after installation - protects during flux wash in automated manufacturing, we can supply the part as a cut tape from a new reel if requested.

Dimensions of the main body are 16.7mm long x 6.4mm wide x 3.7mm high.

Supplied and priced each, recent 2023 date code surplus to requirement perfect stock. We may have a large quantity, please send us a message.

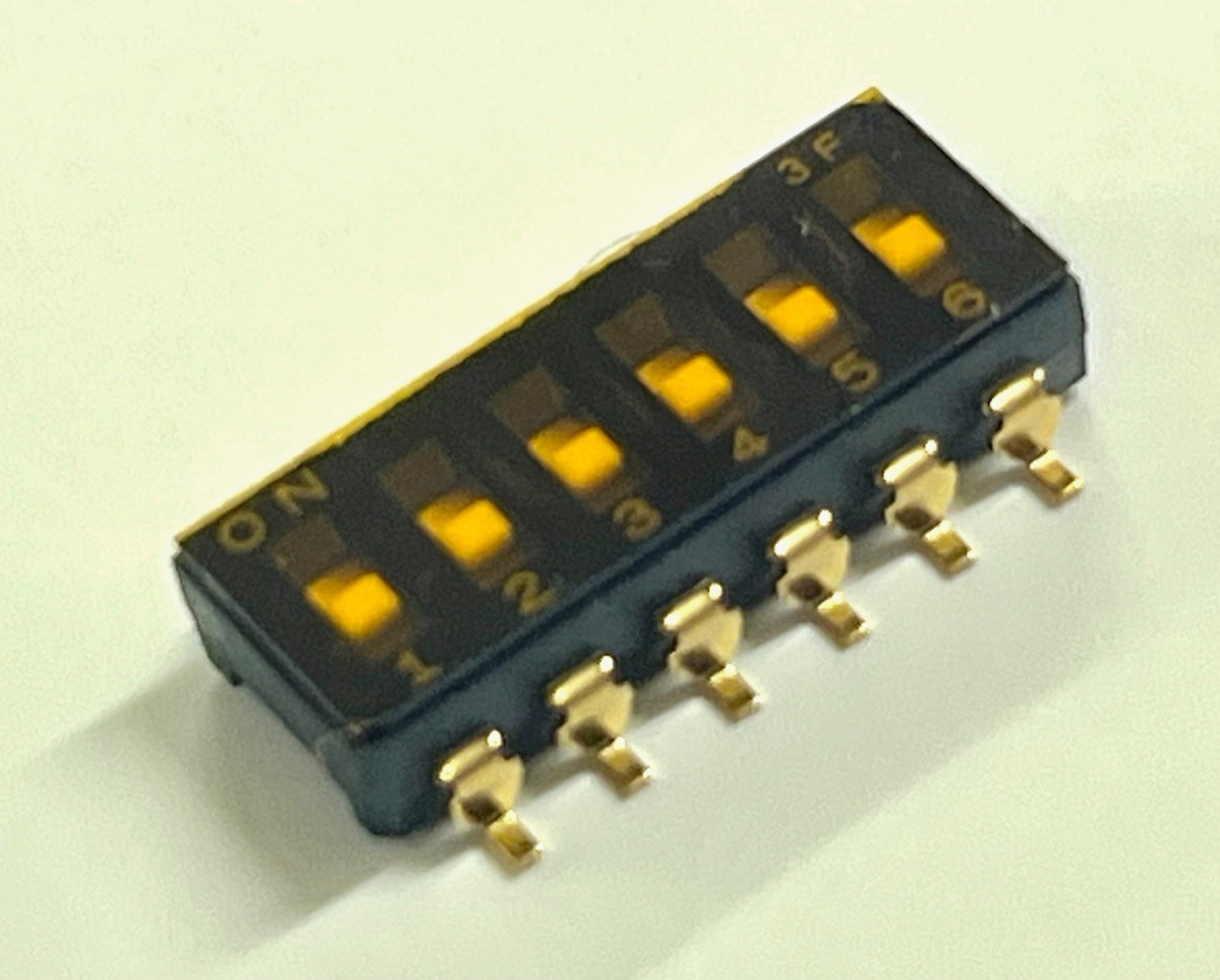

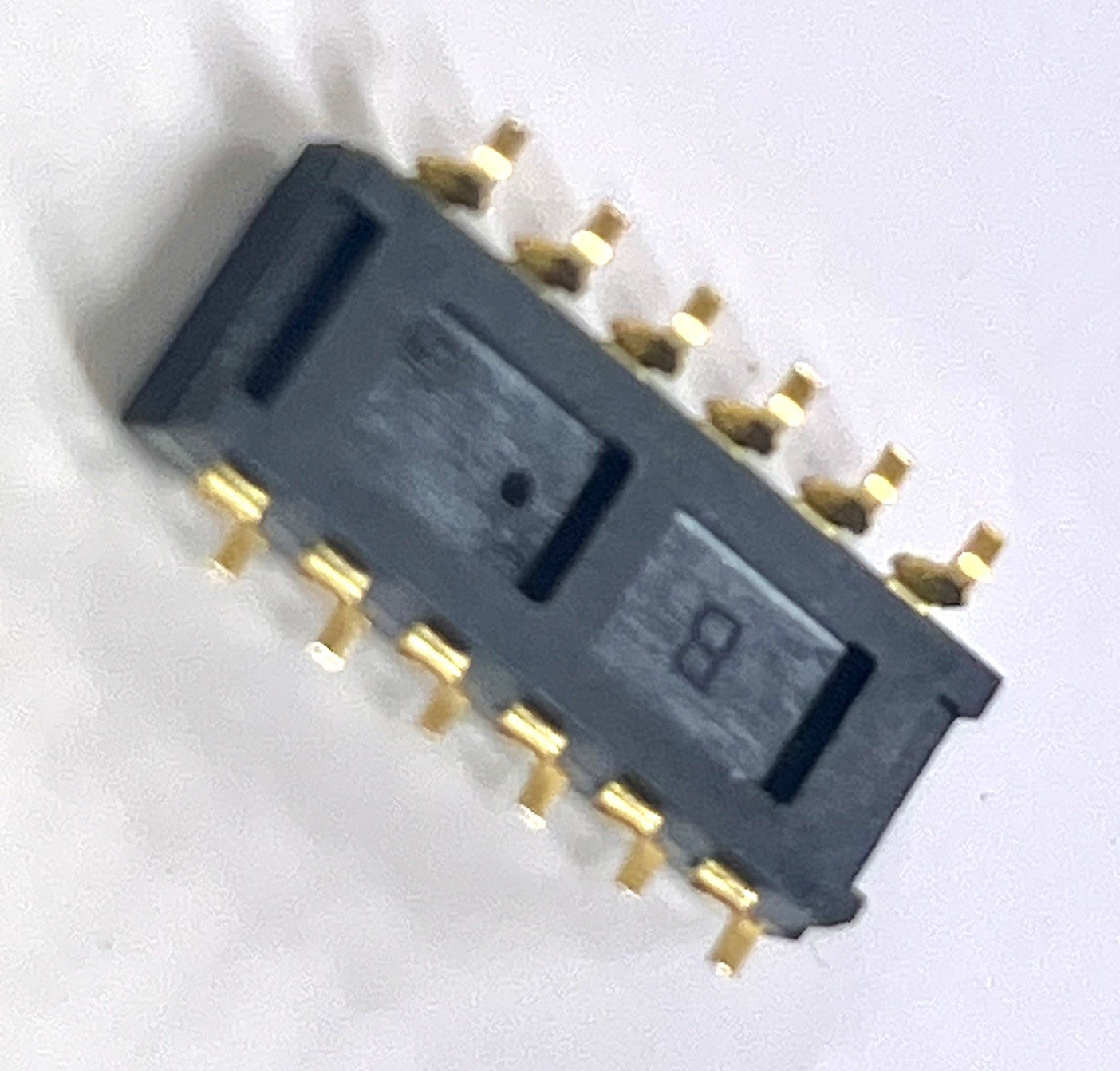

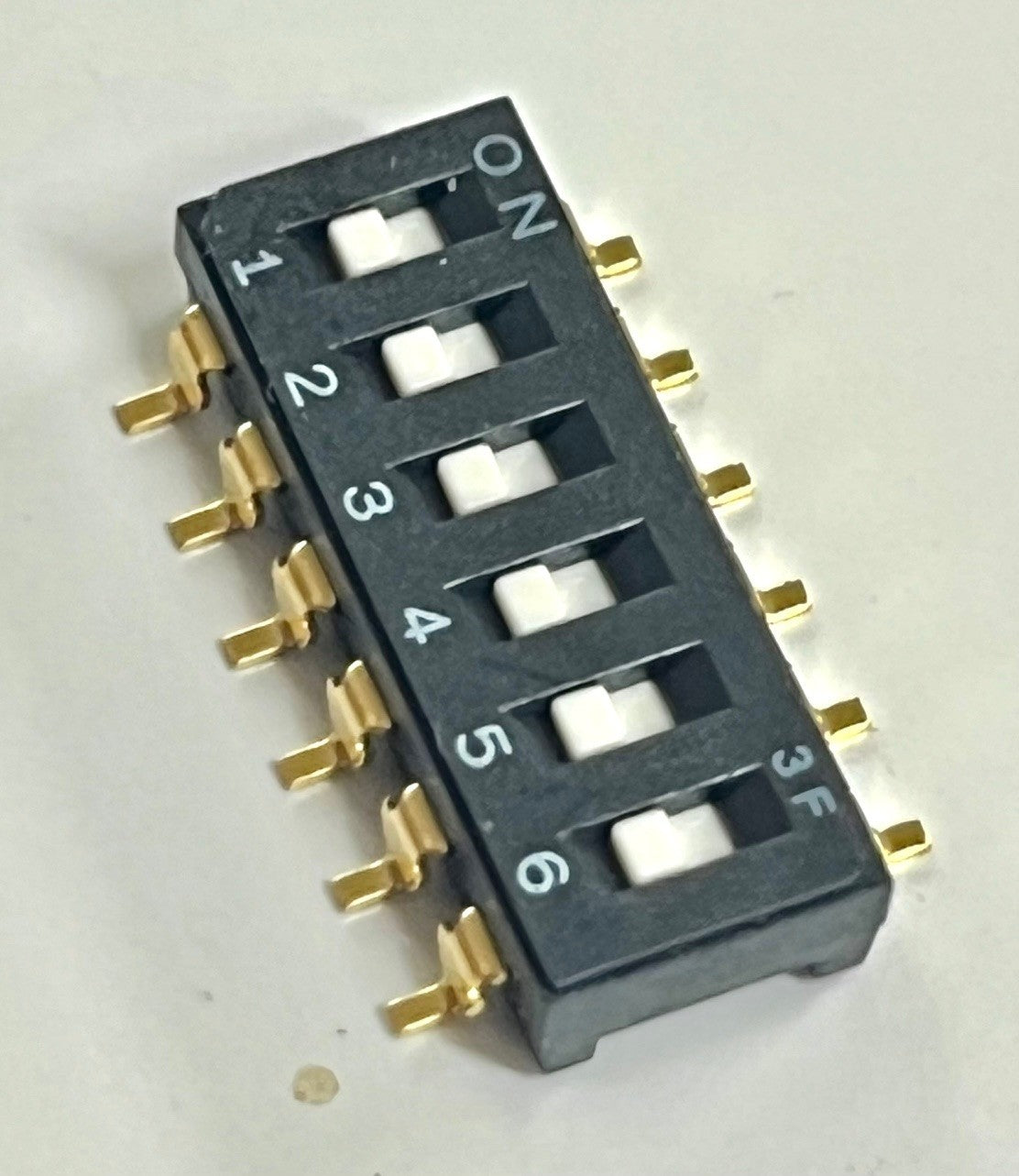

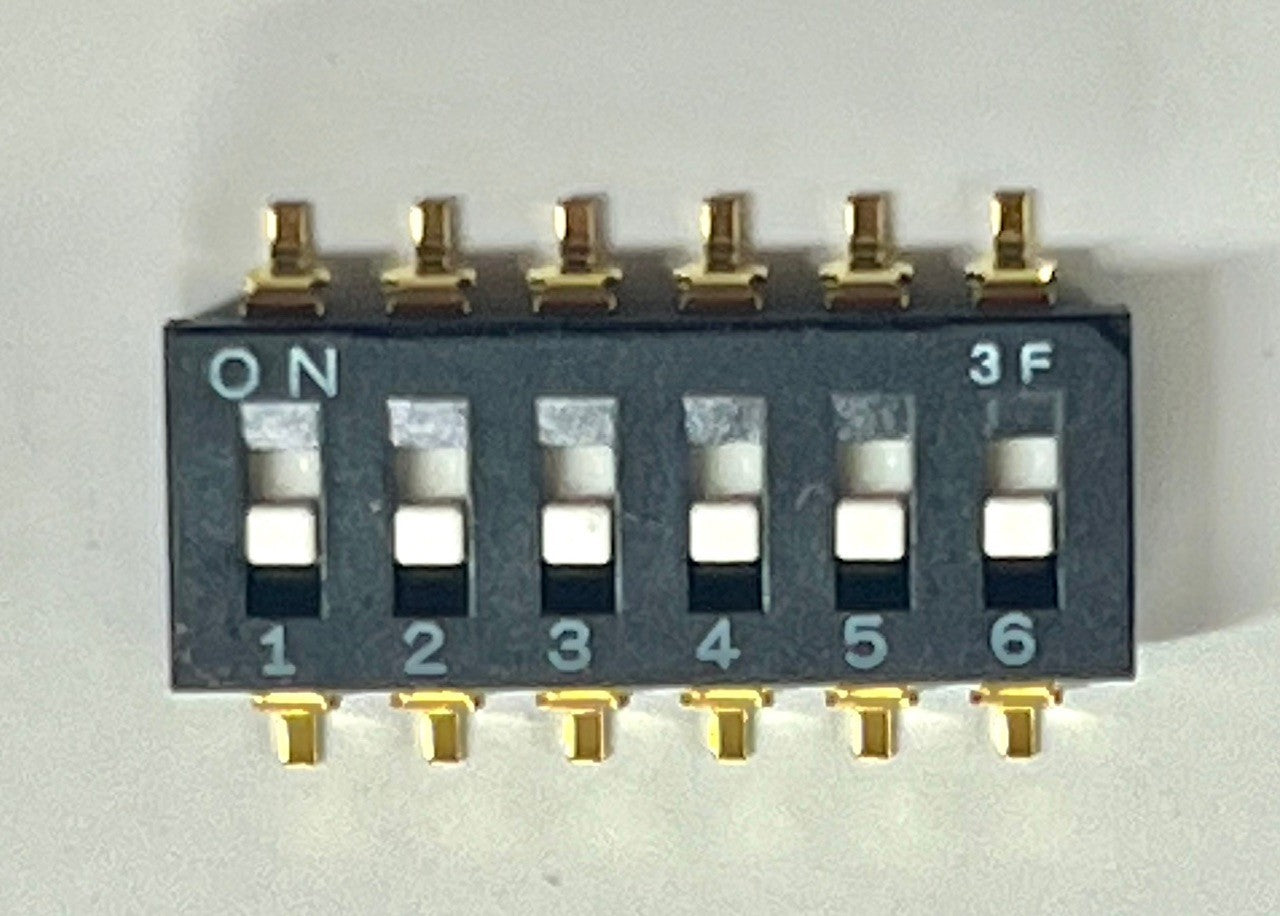

 SUPPLIED AS SHOWN IN THE PHOTO..
