6 WAY SMB ATTENUATOR PAD MODULE 1dB / SECTION 2GHZ 50 OHM AD2H2

6 WAY SMB ATTENUATOR PAD MODULE 1dB / SECTION 2GHZ 50 OHM AD2H2

£20.00
£20.00
Sale Sold out
Taxes included.

6 WAY ATTENUATOR PAD 1dB PER SECTION 50 OHM

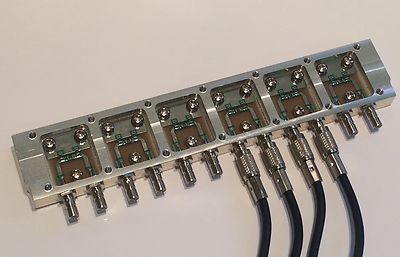

These are a nice and interesting item, manufactured by Hirose for Motorola communications, they are a bank of 6 identical PI attenuators, 1dB each.

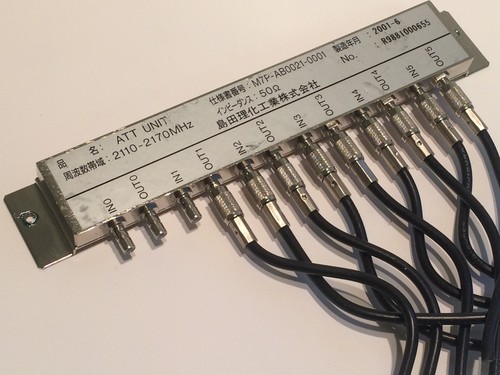

They are marked as 2110 - 2170MHz, however on analysis they are good to at least 2.5Ghz.

Each section is separate and has its own 50 Ohm SMB female connections, marked in and out. Where possible and while we have them we will include the SMB plugs on a short length of coax, as shown in the photo.

It would be very easy to open the unit up and replace the 3 resistors with other values to create a very useful multi dB attenuation unit, cut and paste this link for associated resistor values in PI attenuators:   www.qsl.net/ve3sma/Attenuators.pdf

Very nicely manufactured units.

Overall dimensions are roughly 158mm x 34mm (including connections) x 10mm thick.

Perfect as new condition, removed from brand new equipment which had to be dismantled under a secure destruction order.

 PRICED AND SUPPLIED EACH - X1.
