6 WAY PLESSEY JONES SOCKET

These are known as Plessey Painton connectors, being manufactured by the company of the same name. Plessey actually called them the 'Multicon' range, they are also sometimes referred to as Jones or in the USA, Cinch plugs.

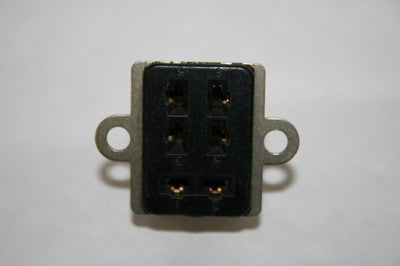

 This type is a 6 way female socket, primarily designed for chassis or panel use, with a 2 hole mounting plate. Two of the connections are at a 90 degree angle to the other four, thus avoiding an incorrect connection.

Superb vintage military specification heavy duty connectors, the contact is provided by a heavily silver plated plug blade contact engaging with a heavily silver plated socket clip contact. Absolute reliability is ensured because each socket clip has 4 individual areas of contact with each plug blade.

Rated as high as 1000V working, and upto 10A 250V per contact.

Dimensions of the body are approx 24mm x 17mm and the mounting plate has securing holes at approx 27mm centers.

 New and unused vintage stock

 SUPPLIED AS SHOWN IN THE PHOTO.
